Europe Netherlands Warehouse Trina Vertex S TSM NEG18R.28 PV Module 475W 480W 485W Solar Panel Rotterdam
- Категория: >>>
- Поставщик: Watt Solar Co. Ltd.Watt Ltd.
Сохранить в закладки 1601369055146:
Описание и отзывы
Характеристики
Overview
Trina Vertex S+ ---TSM-NEG18R.28 475-505W

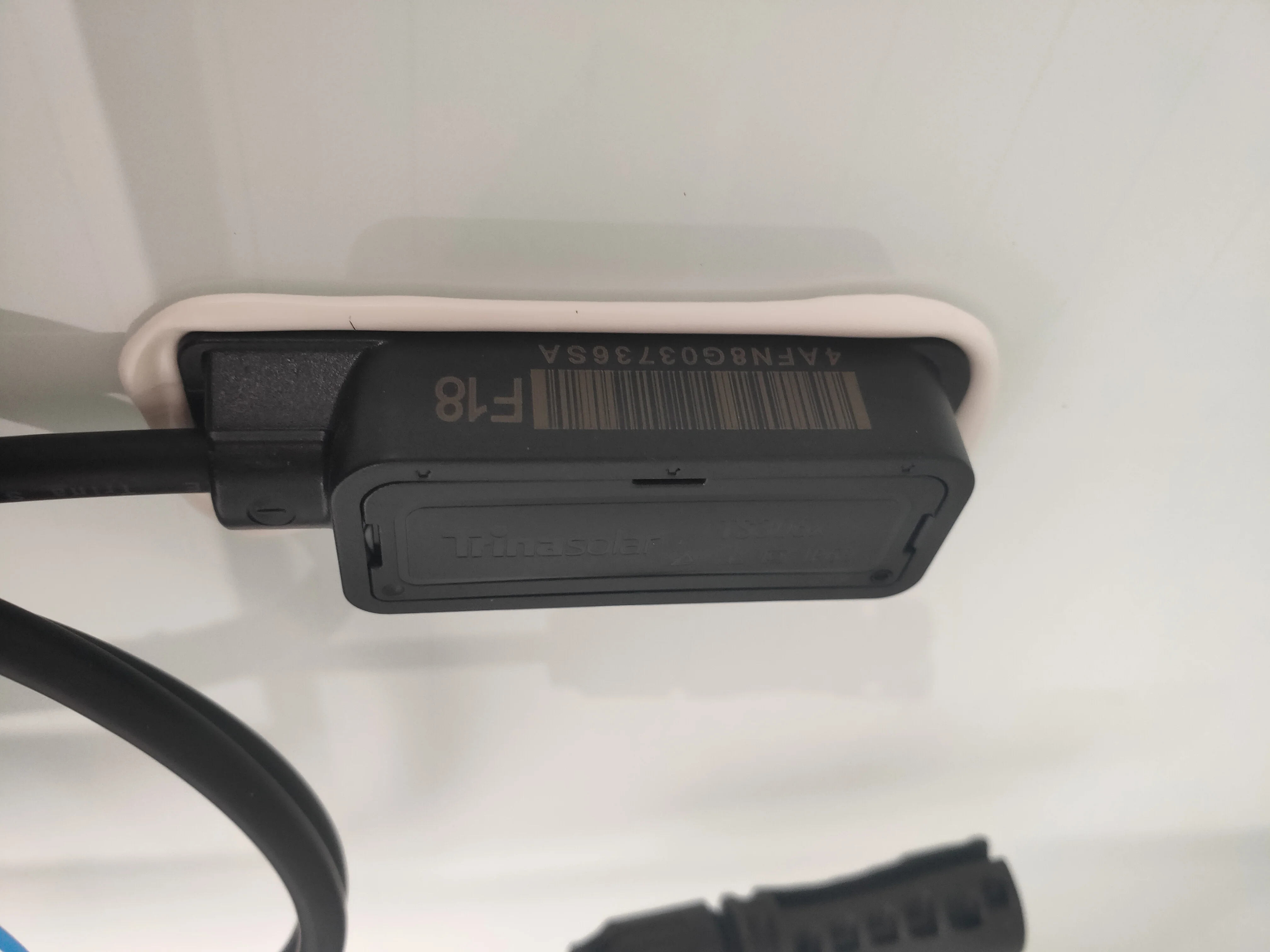

Details Images
Product Paramenters
Quick Data | ||||||||
Peak Power Watts(WP) | 475 | 485 | 495 | 505 | ||||
STC(Following datas are under the STC) | ||||||||
Voc | 39.0V | 39.4V | 39.8V | 40.3V | ||||
Isc | 15.68A | 15.763A | 15.83A | 15.89A | ||||
Module Efficiency (%) | 21.4% | 21.8% | 22.3% | 22.7% | ||||
Power tolerance | 0~+3% | |||||||
Cell Type | N-type | |||||||
No. of cells | 108 | |||||||
Dimensions | 1961×1134×30mm | |||||||
Weight | 23.5kg | |||||||
Packaging | 36pcs/pallets, 864pcs/ 40'HQ Container | |||||||
Advantages & It's Technology
Why Choose Trina Vertex S+ TSM-NEG18R.28?
1. Small in Size, Bigger on Power. Trina Solar's new generation Vertex S+ is based on n type i-TOPCon technology with 210mm advanced platform. It adopts 1.6*1.6mm ultra-slim dual-glass design. The product ensures the higher power generation, high reliability and safety, lightweight and easy to install.
2. Dual glass makes it more safe and have high reliability: Applicable in harsh environments such as salt, ammonia, sand, high temperature and high humidity areas with excellent fire rating, weather resistance, salt spray, sand dust, ammonia performance.
3. Ultra-low degradation, longer warranty, higher output: Extremely low 1% first year degradation and 0.4% annual power attenuation. Up to 15 years product warranty and 30 years power warranty.
What are the benefits of dual-glass PV modules for rooftop installations?
1. Increased toughness and dependability:One of the reasons that dual-glass panels work well for solar cell protection is the degree of abrasion resistance. That makes dual-glass roof installations ideal for places that experience a lot of windy weather and other environmental impact. In addition, double-glass panels keep sand from getting into the inner components and causing expensive damage.
While traditional panels have proven efficient and resilient in many places, they are more prone to stress from wind, snow, and other elements. Dual-glass modules have glass sheets on the front and back. Both sheets are of the same thickness. There’s also a neutral layer in the middle that doesn’t face any compressive stress. That allows double-glass solar panels to offer more mechanical protection, which leads to better cell protection and extends their lifetime usage.
While traditional panels have proven efficient and resilient in many places, they are more prone to stress from wind, snow, and other elements. Dual-glass modules have glass sheets on the front and back. Both sheets are of the same thickness. There’s also a neutral layer in the middle that doesn’t face any compressive stress. That allows double-glass solar panels to offer more mechanical protection, which leads to better cell protection and extends their lifetime usage.
2. Extended power:Dual glass panels can produce more electricity for an extended period of time. Three major factors contribute to this higher lifetime total energy yield. First is the total life expectancy of the product. Since the panels last longer, they produce more energy over their lifetime. Second, on a yearly basis annual degradation for the product is lower, thus they can yield more output power function optimally for longer. Third, the panels have the option of being bifacial, and by virtue of collecting solarun energy on both sides, the modules can produce more total energy.
3. Better resistance：There’s a reason that many products use glass to preserve materials. For example, wine lasts for hundreds of years. While dual-glass panels haven’t been proven to reach that level of durability, it is possible to get 30 years or more of usage from them. Part of that is because the double-glass construction of Trina Solar modules makes them more resistant to all type of chemical substances such as acids or alkalis. On the other hand, backsheet modules might be more prone to degrade under their exposure to these chemical elements.
4. Best fire rating：Trina Solar double-glass solar panels come with a high fire protection rating compared to backsheet modules. That makes them suitable for constructing roofs for residential homes, chemical plants, and other building structures that need additional protection against fire hazards.
5. Longest warranty: 30 years：As we have seen above, dual-glass modules are extremely resistant, reliant and yield a high energy output over their entire lifetime due to lowest degradation. For all those reasons Trina Solar is fully confident in both long-term performance and reliability of this technology. This is reflected in the extended power warranty of 30 years that Trina Solar grants for all Vertex dual-glass modules, for peace of mind of installers and customers alike.

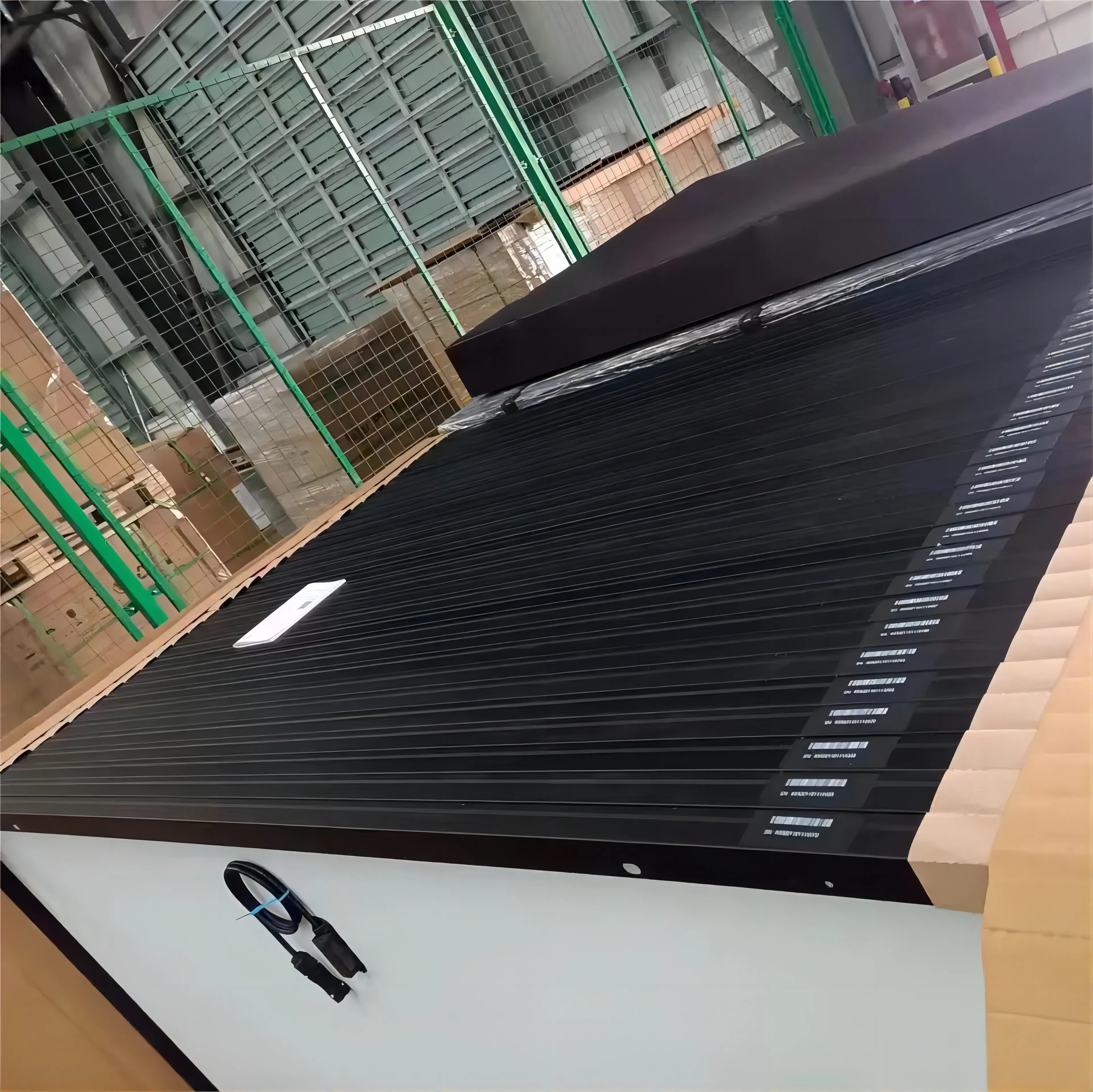

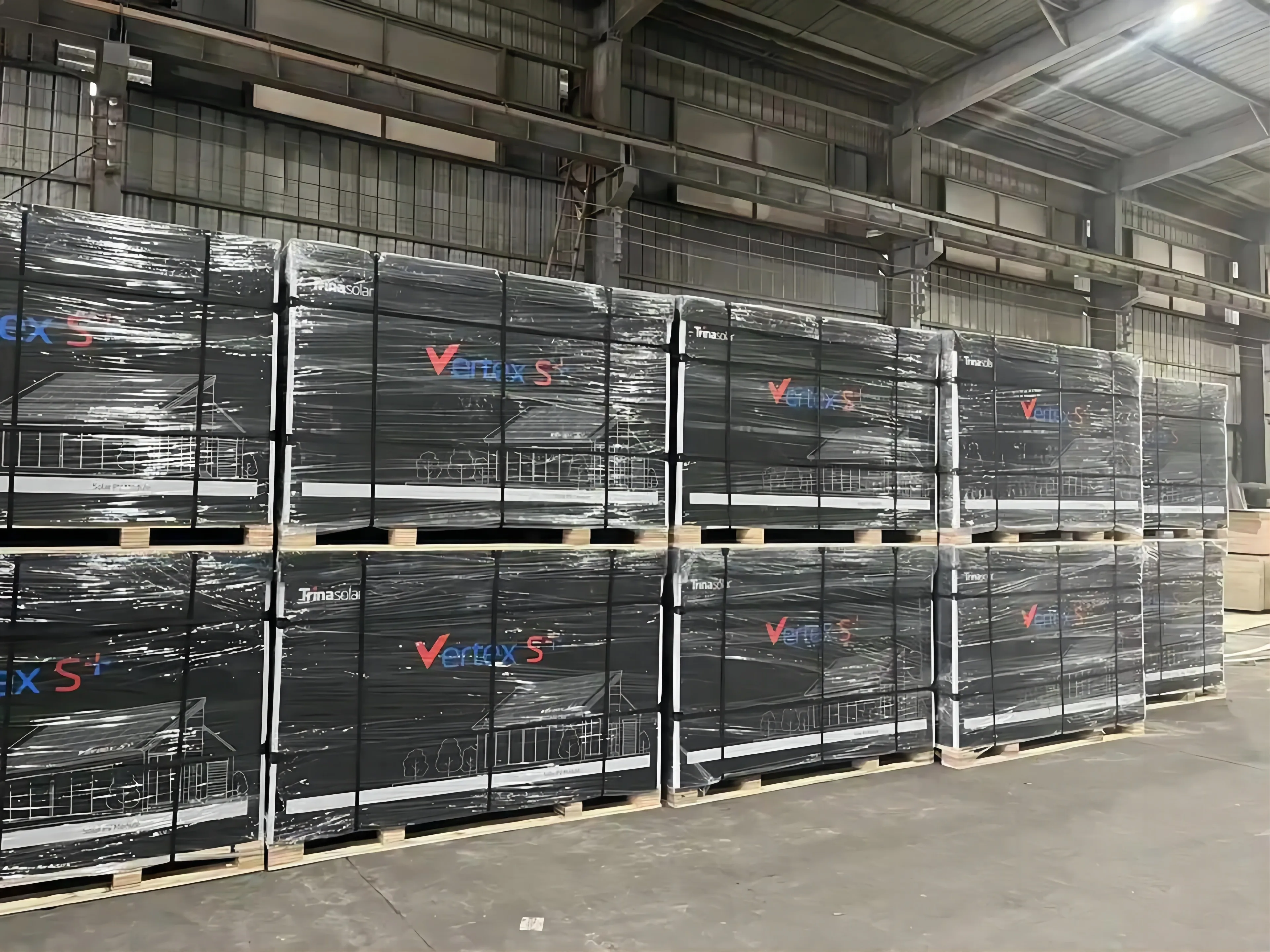

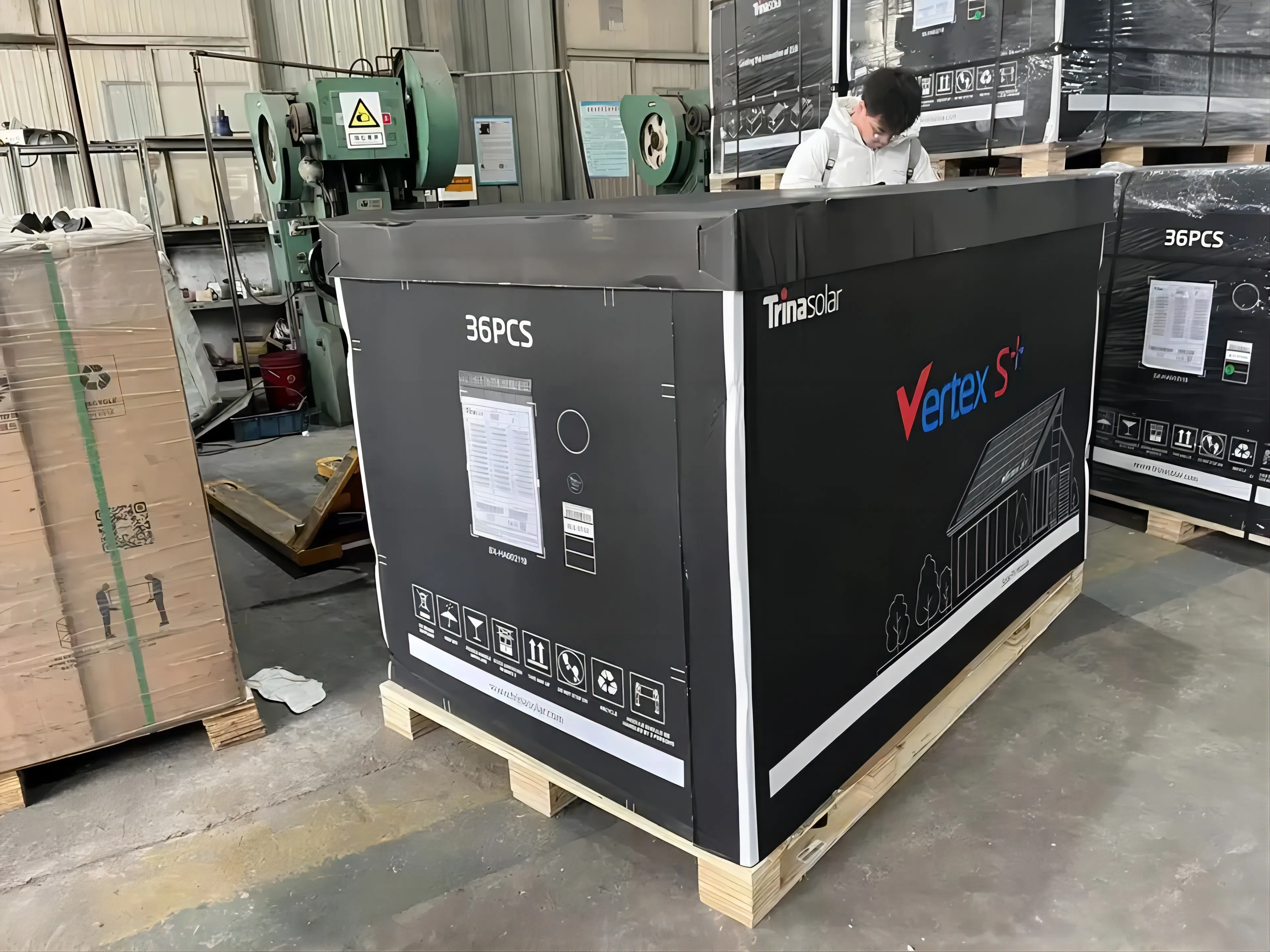

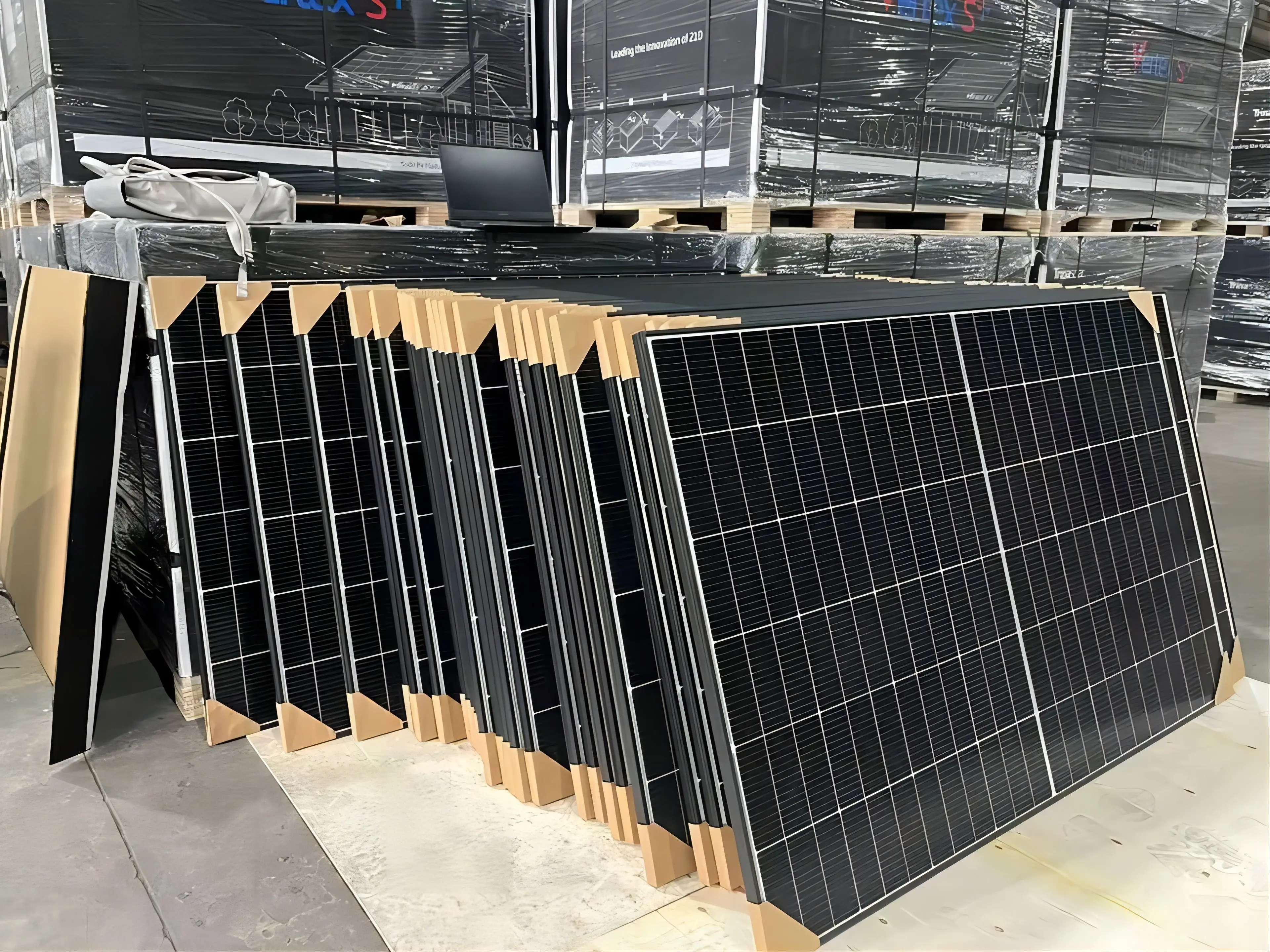

Packing & Delivery
Project Cases
In the Dominica
4 Sets 5KW Off-Grid Solar System
In the Netherlands
10KW Hybrid Solar System
Hefei city, China
2MW On Grid Solar System
In Italy
23Sets of Complete 10KW Hybrid Solar System With Batteries
In Poland
12KW & 8KW On Grid Solar System
Hefei City, China( on our building roof)
75KW In Total, 5KW Off-Grid+ 10KW On Grid +20KW On Grid +10KW Hybrid+20KW Hybrid
Why Choose Us
Watt Solar Co., Ltd. is committed to providing high-quality solar products and reliable pre-sales and after-sales service to our global partners .
2. We are professional in solar system designing. We can supply the complete set of solar system for you. We have more than 10 years working experience in the on-solution service .
3. You will find the goods you need here. We distributes for many well-known brands of solar panels , solar inverters and solar batteries.
4. Goods are all original and traceable.
5. You will get high quality products, perfect sale service , perfect after-sale service but with competitive price here.
Похожие товары
Моно фотоэлектрическая солнечная панель из Китая солнечные модули Pv 80 Вт для продажи
20,20-22,30 $

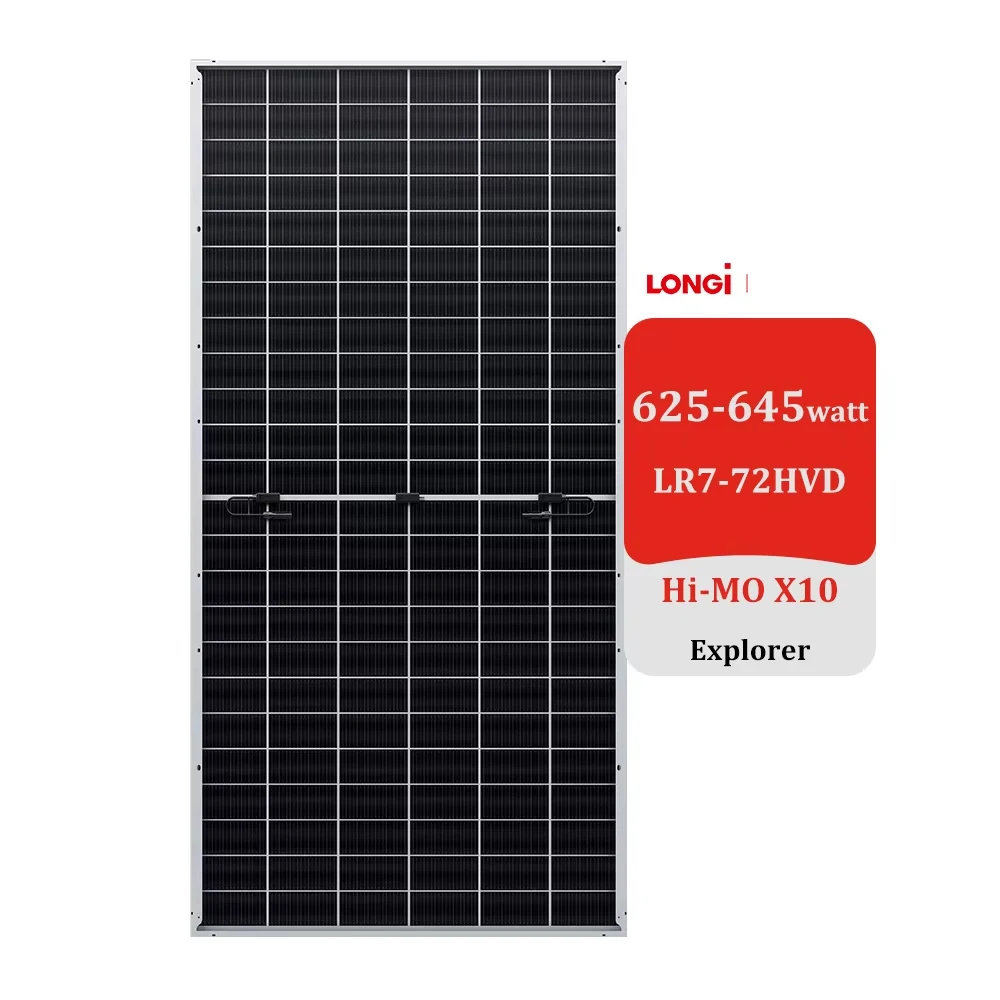

Двойные стеклянные солнечные панели N-type Longi HPBC PV модули для промышленных солнечных проектов EPC Hi-MO X10 LR7-72HVD ученого 624 ~ 645 м
