Компактные фильтры высокого качества V-образный суб-высокоэффективный Комбинированный воздушный фильтр Hepa 24*24*12 В с высокой эффективностью
32,50-42,50 $
Высокопроизводительный промышленный воздушный фильтр H10 H11 H12 H13 H14 плиссированный с стекловолокном для использования в сельском хозяйстве
- Категория: >>>
- Поставщик: Sichuan Huajie Purification Equipment Co. Ltd.Sichuan Ltd.
Сохранить в закладки 1601369617062:
Описание и отзывы
Характеристики
High Capacity Industrial Air HEPA Filter H10 H11 H12 H13 H14 Pleated Panel Air Filter with Fiberglass Media for Farm Use
Product Description
TRAIRF® HEPA Air Filter is made of ultra-fine fiberglass, it designed into continuity fold paper for providing larger filtration area. Mini-pleats media design also can extending filter life and decreasing filter pressure drop. Air can through media smoothly with low resistant. What's more, folded media separated through hot melt adhesive to make sure there are no chemical pollution air release to our clean space. TRAIRF®HEPA Filter testing according to EN-1822 standard, filtration efficiency guaranteed from 99.97 % to 99.999 % for particles size at 0.3 micro meter.
Part Name | H14 Mini Pleated HEPA Filter for Clean Room Ventilation Systems |
Shape | Panel Filter |
Porosity | 0.3um |
Colour | Silver |
Structures | Aluminum Alloy Frame and Fiberglass Pleated Pack (Customized) |
Filtering Efficiency Grade | 99.95% |
Special Properties | High Efficient, High Dust Holding Capacity, Long Service Life |
Details Images
Specification
* Light Weight
* Low cost
* Easy to installation
* High efficiency
* Low resistance
* Fully disposable
* Mechanical clamping structures
* Thickness size available in 150 mm ,180 mm
* Efficiencies of 95% up to 99.9995% @ 0.3 microns
* Testing according to EN-1822 standard
* Flammability: UL Classified Relative
* Customizable Size
* Low cost
* Easy to installation
* High efficiency
* Low resistance
* Fully disposable
* Mechanical clamping structures
* Thickness size available in 150 mm ,180 mm
* Efficiencies of 95% up to 99.9995% @ 0.3 microns
* Testing according to EN-1822 standard
* Flammability: UL Classified Relative
* Customizable Size
Product Parameters
Model | Outside Dimensions(mm) | Rated air flow(m³/h) | Initial resistance(Pa) | Efficiency(class) |
TR-WGB-1 | 320*320*90 | 500 | ≤220 | ≥99.95 |
TR-WGB-2 | 484*484*90 | 1000 | ≤220 | ≥99.95 |
TR-WGB-3 | 630*630*90 | 1500 | ≤220 | ≥99.95 |
TR-WGB-4 | 968*484*90 | 2000 | ≤220 | ≥99.95 |
Manufacturing Technique
Our Advantages
1) Advantageous price
Effective cost control and compression
2) Factory has technology and packaging resources
can contact with customers at any time the factory can control costs;
3) Able to receive large orders
The factory has production and R&D capabilities, and is able to accept wholesale or distribution type customers.
4) Strong after-sales capability
Once there is a problem with the product, you can directly interface with the factory production department for after-sales. From repair, improvement to research and development, the factory can be directly connected to the customer's needs.
Effective cost control and compression
2) Factory has technology and packaging resources
can contact with customers at any time the factory can control costs;
3) Able to receive large orders
The factory has production and R&D capabilities, and is able to accept wholesale or distribution type customers.
4) Strong after-sales capability
Once there is a problem with the product, you can directly interface with the factory production department for after-sales. From repair, improvement to research and development, the factory can be directly connected to the customer's needs.
Applications
1. Clean rooms (suitable for use in multi layer filter filtration system)
2. Food processing industry.
3. Pharmaceutical Processing.
4. Aerospace Engineering.
5. Genetic & Biological research.
6. Bio hazard Atmosphere.
7. Laminar Flow Workstations.
8. Bio Safe Hoods (Biological Safety Cabinets).
9. Hospital Operating Theaters & Intensive care units.
10. Spray Booth and Paint Room.
11. Electronic Industry.
2. Food processing industry.
3. Pharmaceutical Processing.
4. Aerospace Engineering.
5. Genetic & Biological research.
6. Bio hazard Atmosphere.
7. Laminar Flow Workstations.
8. Bio Safe Hoods (Biological Safety Cabinets).
9. Hospital Operating Theaters & Intensive care units.
10. Spray Booth and Paint Room.
11. Electronic Industry.
FAQ
Q: Are you a Trading Company or really a Manufacturer?
A: We are a manufacturer with two factories, one is main manufacture filter materials,media, elements, another is main manufacture all kinds of Air Filters.
Q: Why should we choose your as a trust quality supplier especially for the first deal?
A: Firstly: We can provide you qualified products as all our products are passed strictly quality inspection before sent out. Secondly: Competitive Price provided as raw materials are provided by our own factory.
Q: Do you have any certification to ensure the quality?
A: ISO9001; CE Certification. Company has advance quality inspection equipment.
Q: What is the international standard for air filter?
A: Euro: Pre (G1---G4), Medium (F5----F9), HEPA (H10--H14), ULPA (U15--17) American: Pre (Merv1---7), Medium ( Merve8----14), HEPA (Merv15---19), ULPA (Merv20)
Q: Can you send Free Sample?
A: Yes.We can offer you Free Samples and you just need to pay express charge. You also can provide your Express Account or asking your courier to pick up from our factory.
Q: What's your MOQ ?
A: Different standard of MOQ for different goods.
A: We are a manufacturer with two factories, one is main manufacture filter materials,media, elements, another is main manufacture all kinds of Air Filters.
Q: Why should we choose your as a trust quality supplier especially for the first deal?
A: Firstly: We can provide you qualified products as all our products are passed strictly quality inspection before sent out. Secondly: Competitive Price provided as raw materials are provided by our own factory.
Q: Do you have any certification to ensure the quality?
A: ISO9001; CE Certification. Company has advance quality inspection equipment.
Q: What is the international standard for air filter?
A: Euro: Pre (G1---G4), Medium (F5----F9), HEPA (H10--H14), ULPA (U15--17) American: Pre (Merv1---7), Medium ( Merve8----14), HEPA (Merv15---19), ULPA (Merv20)
Q: Can you send Free Sample?
A: Yes.We can offer you Free Samples and you just need to pay express charge. You also can provide your Express Account or asking your courier to pick up from our factory.
Q: What's your MOQ ?
A: Different standard of MOQ for different goods.
Похожие товары
H13 H14 фильтр очистителя воздуха Hepa Замена для пылесборника
3,80-4,80 $
Потолочный ламинарный фильтр 24x48x6 Hepa Ламинарный Воздушный Фильтр для чистой комнаты
40,00 $
Фильтр Hepa H11 H12 H13 H14 новый воздушный фильтр угольный для домашнего использования ресторан отели завод по производству
2,80-6,60 $
Промышленные воздушные фильтры HVAC 0 3 микрон 99.99% ламинарный поток GMP HEPA H11 H12 H13 H14 операционный Фильтр
80,00-100,00 $
Прочный моющийся заводской устойчивый микронный нейлоновый сетчатый первичный воздушный фильтр для нового воздушного фильтра
4,50-6,80 $
1 ~ 100 микрон дешевые PP жидкий фильтр мешки для фильтра воды
1,30-1,50 $

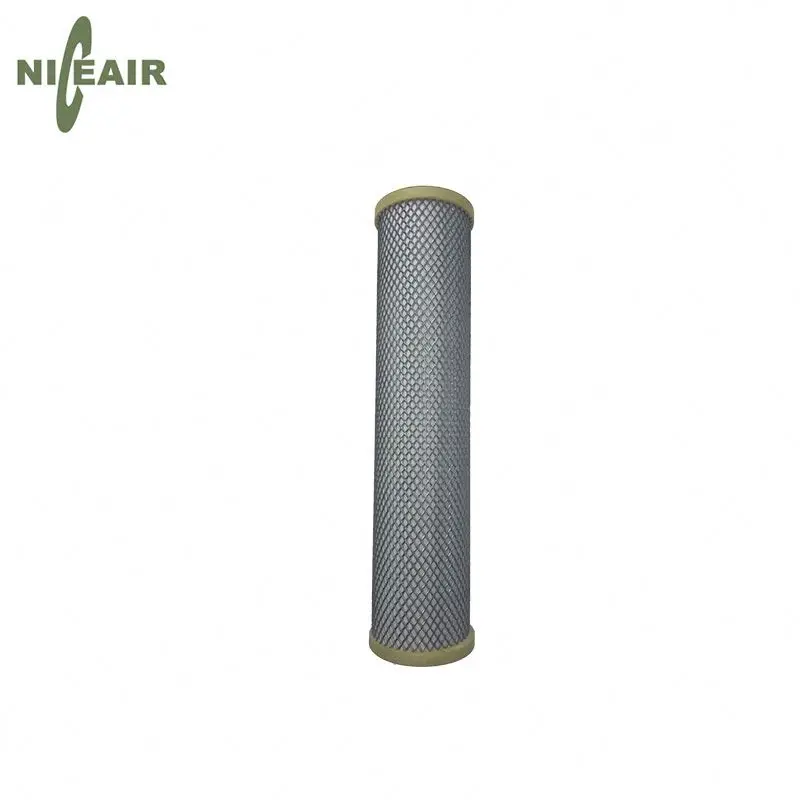

Заменить ультрафильтра/Donaldson 1C121248 1C121548 сжатого воздуха фильтрующих элементов
