Product Overview

iServer is a powerful, yet low power consumption, rack-mount with the features of Encoder, Receiver, IP Gateway and IPTV Server for the protocol-conversion application and IPTV-system application.

Multiple protocol conversion solution with the flexible configuration, It can get max 3 pluggable streamer cards embedded, such as encoder card and tuner card to receive the HD signals and tuner signals etc.

It can also convert the input IP streams from the embedded modules and Ethernet ports over SRT, HTTP, UDP, RTP, RTSP, HLS protocol and TS files into the output IP streams over SRT, HTTP, UDP, RTP, RTSP, HLS and RTMP protocol. It is also integrated with Dibsys IPTV management software and Streamer cards to make it ideal in an IPTV system, such as hotel, hospital and community.

Key Features

• Encoder/Receiver, IP Gateway and IPTV Server in one device


• Default no module,used for IP to protocol conversion


• 2 separate Web GUI, one for Cards and Gateway, the other for IPTV Server


• Ethernet ports(GE), customized Ethernet port setting is available
  --ETH0: IP output over SRT, HTTP, UDP (SPTS), RTP, RTSP, HLS and RTMP
  --ETH1&2: IP input over SRT, HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS
  --ETH3: Web Management Port


• SRT input mode support Caller and Rendezvous; SRT output mode support Listener, Caller and Rendezvous


• Support inter-cut feature of a live program, a TS file and a picture


• Support IP anti-jitter feature for the external IP streams


• DIBSYS IPTV APK download in the Web GUI


• Optional --- Modularized design, max 3 cards embedded, a flexible option as per the actual application


• Multi-level password control for your system security


• LCD/Key button for Network-Setting checking

Advantage

Encoder/Receive +IPTV middleware all in one design

Support 3 Pluggable module, able to support different kinds of module, Greatly reduces hotel costs and makes installation and maintenance more convenient, Ready-to-install and ready to use.

Build-in protocol conversion function

Able to receive video from internet, supports SRT, HTTP, UDP (SPTS), RTP, RTSP, HLS and RTMP, up to 480Mbps (60 HD Programs, Bitrate: 8Mbps)

Support self channels

Support uploading TS files directly in Web GUI to broadcast your own channels work as live channels

Powerful performance

When run for IPTV supports up to 400 terminals to connect simultaneously (60 Programs, Bitrate: 2Mbps), the actual application shall prevail with maximum 80% CPU utilization

Multi function

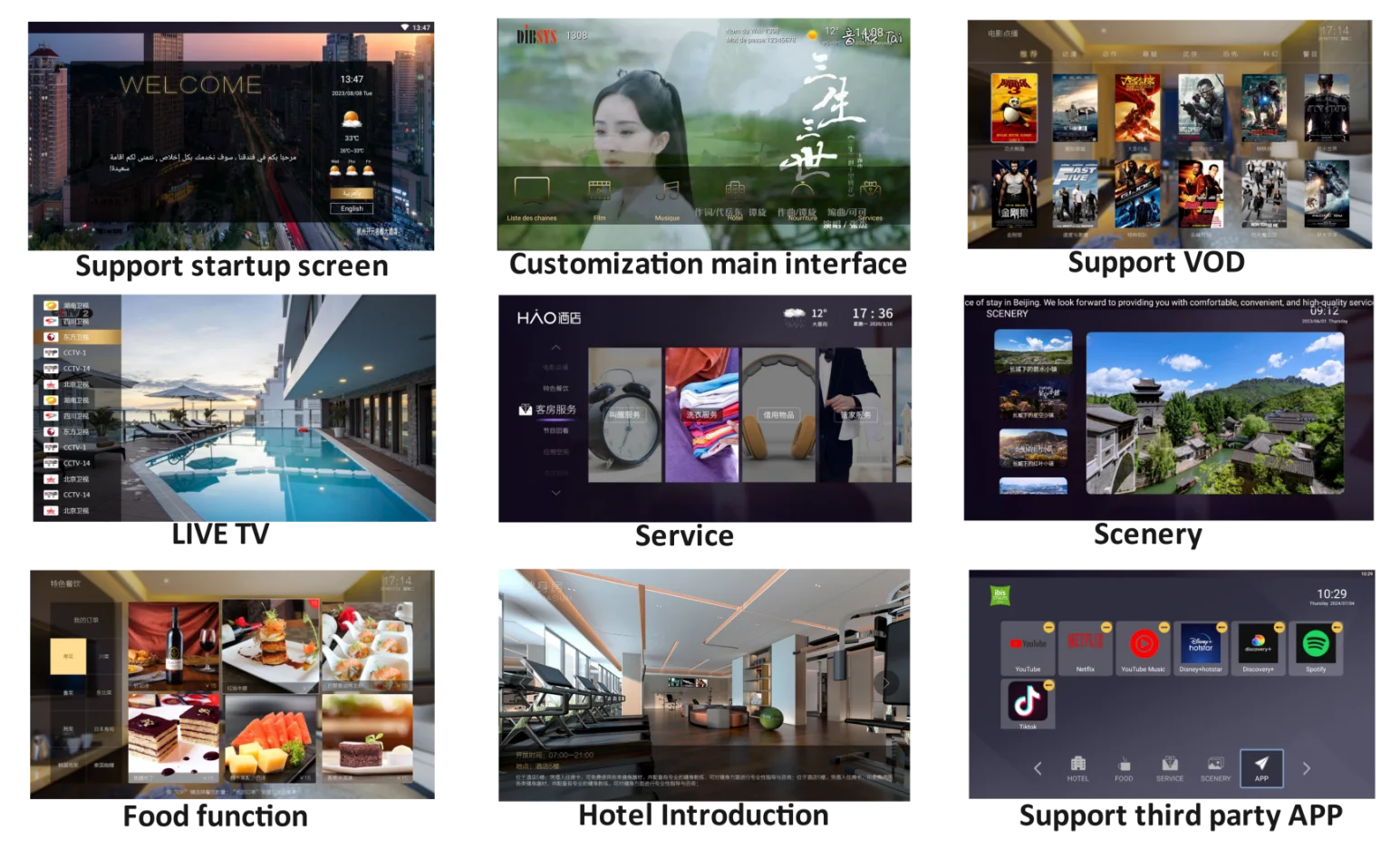

IPTV Features: Live channel, VOD, Hotel intro, Dining, Hotel service, Scenery intro, APPS, Adding scrolling caption, welcome words, pictures, advertisement, video, music etc (applicable to IP out application in the STB/Android TV installed with DIBSYS IPTV APK)

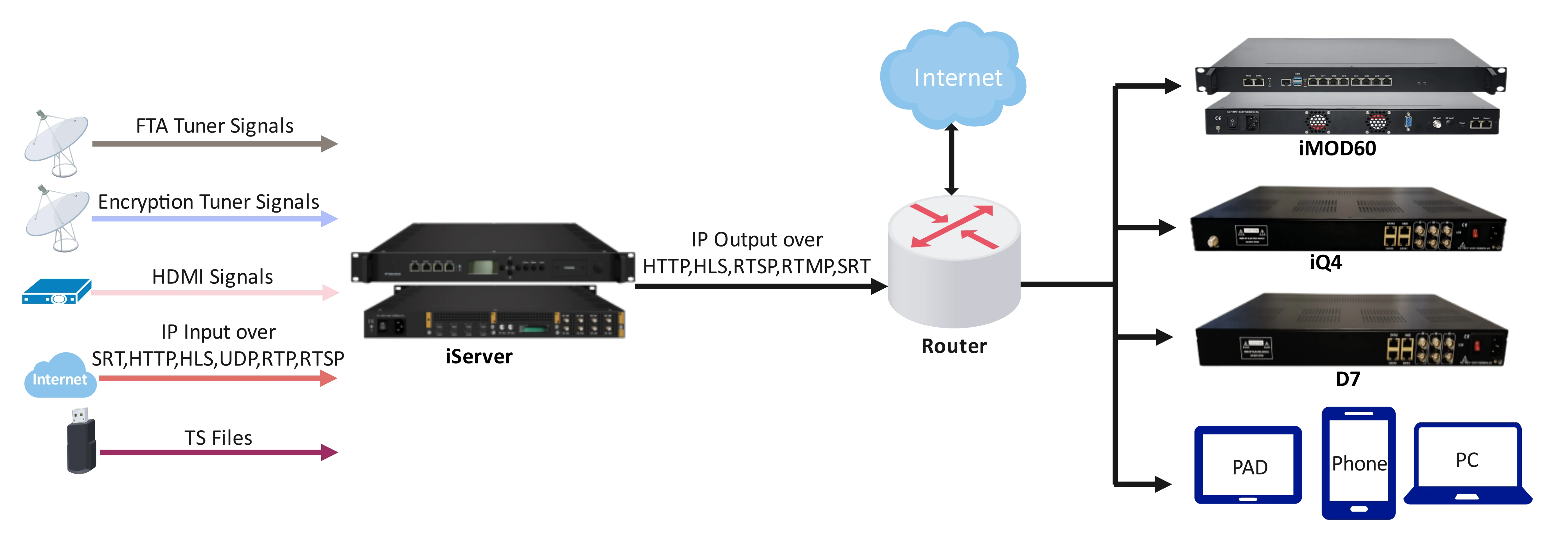

Application

Protocol Conversion

IPTV System

 Protocol conversion

Technical Specifications

Input

IP inputs: thru ETH 1&2, GE ports over SRT,HTTP, UDP(SPTS), RTP(SPTS),

RTSP (over UDP, payload: mpeg TS) and HLS

TS files uploading through Web management

Encoder card and Tuner card etc (Please refer to the detailed card spec below)

IP Output

IP outputs thru ETH0, GE port over SRT, HTTP (Unicast), UDP (SPTS, Multicast), RTP, RTSP, HLS and RTMP (Program source should be H.264 and AAC encoding)

SYSTEM

Channel switching time with DIBSYS’ STB: HTTP (1-3s), HLS (0.4-0.7s)

It is closely related with the program bitrate and protocol type etc for Max

program numbers involved in protocol conversion, and the actual application

shall prevail with maximum 80% CPU utilization (Please refer to Test data for

reference in the end of the spec)

It is closely related with the program bitrate and protocol type etc for Max affordable terminal numbers in IPTV application of the STB/Android TV installed with DIBSYS IPTV APK, and the actual application shall prevail with maximum 80% CPU utilization (Please refer to Test data for reference in the end of the spec)

IPTV Features: Live channel, VOD, Hotel intro, Dining, Hotel service, Scenery intro, APPS, Adding scrolling caption, welcome words, pictures, advertisement, video, music etc (the features are only applicable to IP out application in the STB/Android TV installed with DIBSYS IPTV APK)

 Available Card Specification (more available cards later for development)

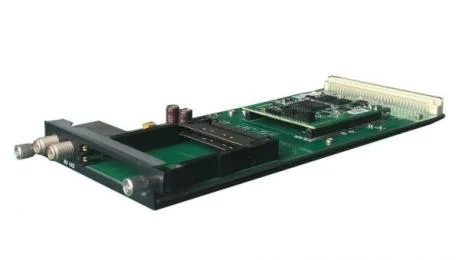

Tuner Descrambling Card

Stream in:  2 Tuner input, F Type,

Stream out : 16 SPTS output over UDP/RTP

DVB-CI : 2 independent common interface slots

Multiplexing

Maximum PID Remapping : 256 output pids

Function:

PID remapping (automatically or manually)

generate PSI/ SI table automatically

Descrambling

CAM/CI Quantity:  2

BISS Mode:  Mode 1, Mode E; 32 BISS Keys

Version1: DVB-S/S2/S2X Tuner

Stream in : 2 Tuner input, F Type

Input Frequency:  950-2150MHz

DVB-S

Symbol Rate : QPSK 1~45Msps

Signal Strength:  -65~ -25dBm

FEC Demodulation : 1/2, 2/3, 3/4, 5/6, 7/8

DVB-S2

Symbol rate : QPSK/8PSK 1~45Msps,

16APSK:  1~45 Msps,  32APSK: 1~32 Msps

FEC Demodulation:  1/2, 2/3, 3/4,5/6,7/8, 4/5,5/6,8/9, 9/10

DVB-S2X

Symbol rate:

QPSK/8PSK/16APSK : 0.5~45 Msps;

8APSK/32APSK:  0.5~40Msps

FEC Demodulation:

QPSK:  1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20

8PSK : 3/5, 2/3, 3/4, 5/6, 8/9, 9/10, 23/36, 25/36, 13/18

8APSK : 5/9-L, 26/45-L

16APSK : 2/3, 3/4, 4/5, 5/6, 8/9, 9/10,1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90

32APSK:  3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45,11/15,7/9,9/10

 Support Diseqc function

Version2: DVB-C (J.83 A/C)/J.83B/ DVB-T/DVB-T2/ISDB-T

switchable  Tuner

Stream in :  4 frequencies input

(each RF in interface for 2 frequencies locking), F Type,

Standard DVB-C:  (J.83 A/C); J.83B

Input Frequency : 60MHz~890MHz

Symbol rate : 1000~9000Ksps

Constellation : 16/32/64/128/256 QAM; 64/256 QAM for J.83B

Standard DVB-T/T2

Frequency In:  60MHz~890MHz

Bandwidth:  5/6/7/8M bandwidth

PLP supported for DVB-T2

Standard ISDB-T

Input Frequency:  60-890MHz

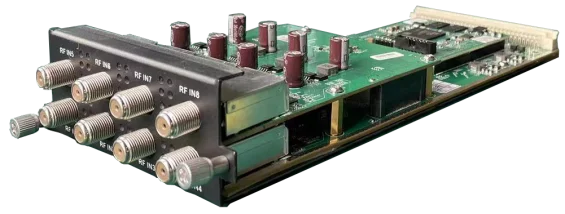

8 FTA Tuner Card

Stream in : 8 Tuner input, F Type,

Stream out : 512 SPTS out over UDP/RTP/RTSP, Unicast/Multicast

Multiplexing

Maximum PID Remapping : 256 output pids

Function:

PID remapping (automatically or manually)

generate PSI/ SI table automatically

Descrambling

BISS Mode:  Mode 1, Mode E;  up to 120Mbps, 32 BISS Keys

Version1:DVB-S/S2/S2X FTA Tuner

Symbol rate : QPSK/8PSK/16APSK : 0.5~45 Msps;  8APSK/32APSK: 0.5~40Msps

Input Frequency : 950-2150MHz

DVB-S Constellation:  QPSK

FEC Demodulation : 1/2, 2/3, 3/4, 5/6, 7/8

DVB-S2 Constellation:  QPSK/8PSK/16APSK/32APSK

FEC Demodulation

QPSK : 1/2, 2/3, 3/4, 5/6, 3/5, 4/5, 8/9, 9/10

8PSK:  3/5, 2/3, 3/4, 5/6, 8/9, 9/10

16APSK:  2/3, 3/4, 4/5, 5/6, 8/9, 9/10

32APSK : 3/4, 4/5, 5/6, 8/9, 9/10

DVB-S2X Constellation : QPSK/8PSK/8APSK/16APSK/32APSK

FEC Demodulation

QPSK:  1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20

8PSK : 3/5, 2/3, 3/4, 5/6, 8/9, 9/10, 23/36, 25/36, 13/18

8APSK 5/9-L, 26/45-L

16APSK : 2/3, 3/4, 4/5, 5/6, 8/9, 9/10,1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90

32APSK : 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9, 9/10

Support Diseqc function

Version2:DVB-C (J.83 A/C)/J.83B/ DVB-T/DVB-T2/ISDB-T switchable FTA Tuner

Standard DVB-C (J.83 A/C); J.83B

Input Frequency : 60MHz~890MHz

Symbol rate:  1000~9000Ksps

Constellation : 16/32/64/128/256 QAM; 64/256 QAM for J.83B

Standard DVB-T/T2

Frequency In:  60MHz~890MHz

Bandwidth : 5/6/7/8M bandwidth

PLP Index 0~255 for DVB-T2

Standard ISDB-T

Input Frequency : 60-890MHz

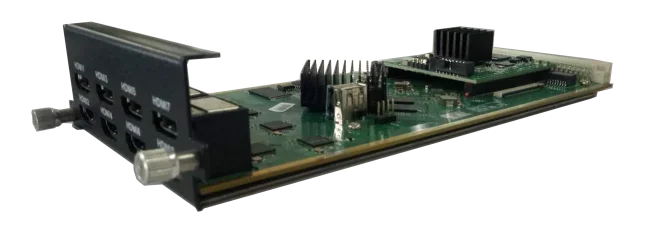

 8 HD Encoder Card

Input 8*HD (4 HD is available)

Output 8*SPTS (4 SPTS if 4 HD) output over UDP/RTP/RTSP, Unicast/Multicast

Video Encoding

Video format Version1:MPEG-4 AVC/H.264

 Version2:HEVC/H.265, MPEG-4 AVC/H.264

Input resolution:  1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i,1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i,

Output resolution:  1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P,

GOP structure:  IP…P (P Frame adjustment, without B Frame)

Video Bit-rate : 1Mbps~13Mbps each channel

Rate Control:  CBR/VBR

Audio Encoding

Audio format : MPEG1 Layer II, LC-AAC, HE-AAC and AC3 Pass through, support audio gain adjustment

Sampling rate : 48 KHz

Audio Bit-rate:

MPEG-1 Layer 2:  48/56/64/80/96/112/128/160/192/224/256/320/384 kbps

LC-AAC : 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps

HE-AAC : 48/56/64/80/96/112/128 kbps

Support Logo, Caption, QR Code insertion

Test data for reference
