Распродажа аппарат для точечной сварки с аккумулятором
2 000,00-2 500,00 $
Индивидуальная ультразвуковая машина для точечной сварки металла 25K1500W сварочный аппарат меди и алюминия
- Категория: >>>
- Поставщик: Xiamen Tob New Energy Technology Co. Ltd.Xiamen Ltd.
Сохранить в закладки 1601370603366:
Описание и отзывы
Характеристики
Products Description
Customized ultrasonic metal spot welding machine 25K1500W metal welding machine copper and aluminum welding

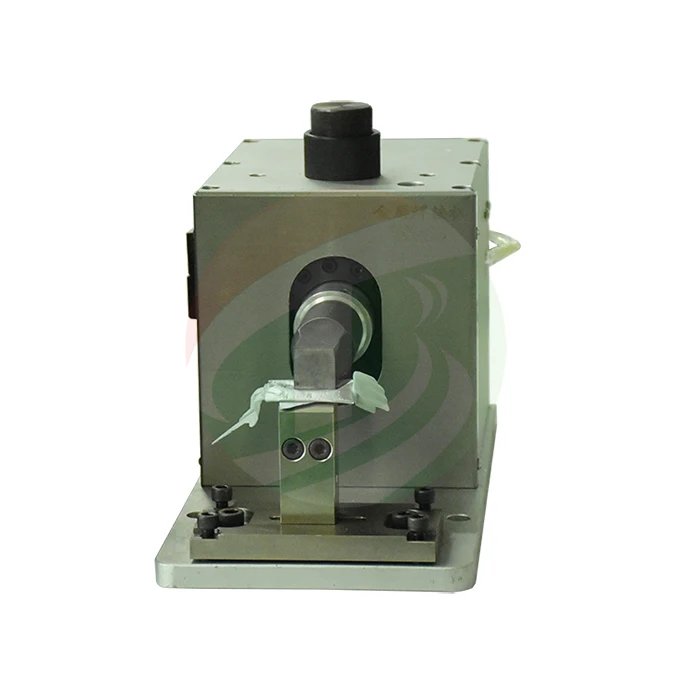

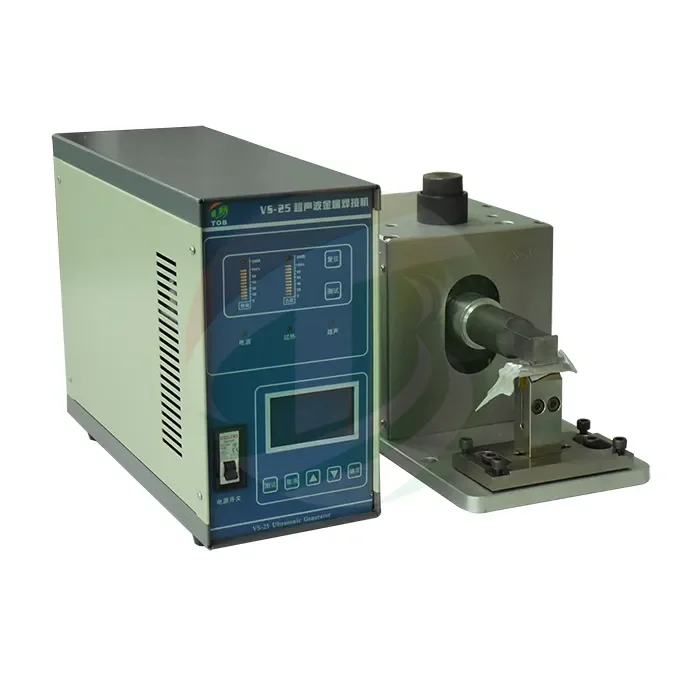

1 TOB-VS-25 Ultrasonic Spot Welding Machine is an ultrasonic metal welder designed for welding Li ion battery cathode electrode sheets aluminum foil and Al tab onto current collectors to prepare Li-Ion pouch cells and cylinder cell in R&D laboratories and production line.

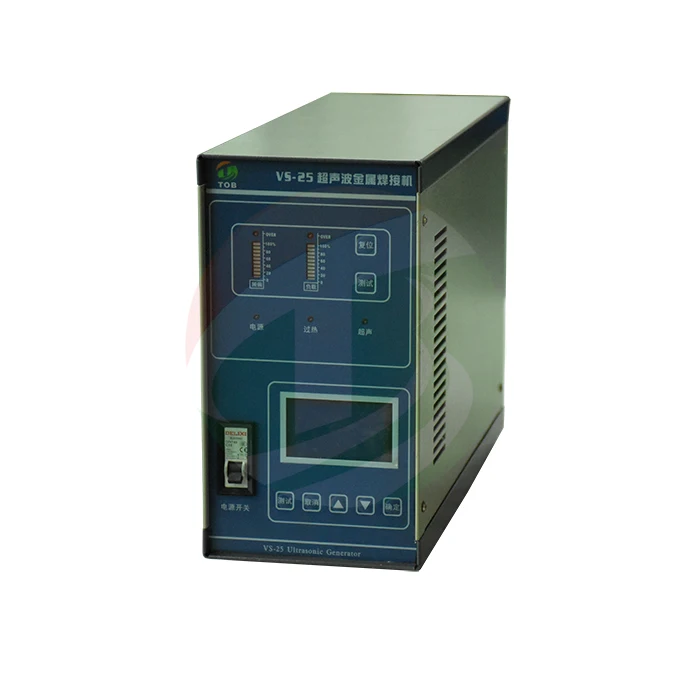

2 TOB-VS-25 Ultrasonic welding machine is with semi-auto frequency tracking function, you don’t need to setting frequency always, simple operation.
2 TOB-VS-25 Ultrasonic welding machine is with semi-auto frequency tracking function, you don’t need to setting frequency always, simple operation.
Model | TOB-VS-25 |
Source voltage | AC220V, 50HZ, can be customized |
Power | 1500W |
Warranty | One Year limited warranty with lifetime support |
Type | Ultrasonic spot welding machine |
Frequency | 25KHZ |
Welding time | 0.05-9.99s |
Air supply | 0.2-0.8MPa |
Welding effect | Single layer of aluminum foil and aluminum strip welding , aluminum foil and aluminum belt melt, welding firmly |
Welding ability | 1 Materials : Battery cathode electrode. (single layer aluminum foil and single piece aluminum strip) 2 Aluminum foil thickness : 10-20um 3 Aluminum strip thickness : 0.08-0.12mm 4 Welding mode : according to your requirements 5 Welding area : can be customized |

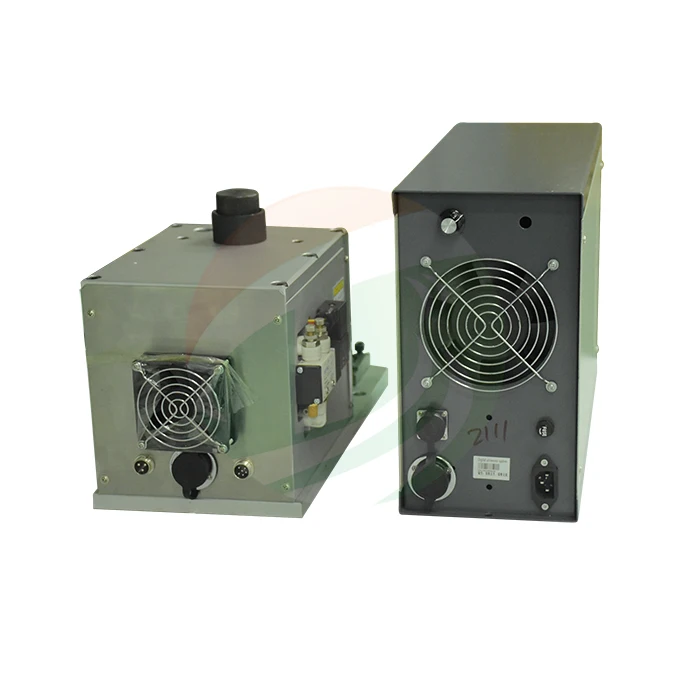

Dimension (L*W*H) | Power box : 400*170*300mm Welding machine : 300*200*270mm |
Other spot welding machine you may interesting
---- TOB-VS-50 battery top cap welder
---- TOB-VS-50 battery top cap welder
Recommend Products
Company Profile
Frequently Asked Questions
Q1: Are you factory or trading company?
A1: We are an integrated company of industry and trade.
Q2: How to order?
A2: Please send us your purchase order by email or call us sales, or we can make the proforma invoice under your request.
We need to know the fllowing information for your order before sending your PI.
(1)Product information-quantiy, speification(size, material, technical support and packing requirements etc.)
(2)Delivery time required.
(3)Shipping information(company name, street address, phone number, destination sea port.)
(4)Forwarder's contact details.
Q3: How to control quality?
A3: A, All the raw materials by lQC (Incoming Quality Control) before launch whole process into the process after the screening.
B, Process each link in the process of IPQC(Input Process Quality Contollpatrol inspection.
C, After finished by QC full inspection before packing into the next process packing.
D, OQC before shipment for each slipper to do full inspection.
Q4: About price
A4: The price is negotiable. It can be changed according to your quantity or package. when you are making an inquiry, please let us know the quantity you want.
Q5: How long do you need to prepare the item?
A5: 1-3 days for sample orders. 10-30 days for mass production orders (based on different quantities).
A1: We are an integrated company of industry and trade.
Q2: How to order?
A2: Please send us your purchase order by email or call us sales, or we can make the proforma invoice under your request.
We need to know the fllowing information for your order before sending your PI.
(1)Product information-quantiy, speification(size, material, technical support and packing requirements etc.)
(2)Delivery time required.
(3)Shipping information(company name, street address, phone number, destination sea port.)
(4)Forwarder's contact details.
Q3: How to control quality?
A3: A, All the raw materials by lQC (Incoming Quality Control) before launch whole process into the process after the screening.
B, Process each link in the process of IPQC(Input Process Quality Contollpatrol inspection.
C, After finished by QC full inspection before packing into the next process packing.
D, OQC before shipment for each slipper to do full inspection.
Q4: About price
A4: The price is negotiable. It can be changed according to your quantity or package. when you are making an inquiry, please let us know the quantity you want.
Q5: How long do you need to prepare the item?
A5: 1-3 days for sample orders. 10-30 days for mass production orders (based on different quantities).
Похожие товары
Точечная сварочная машина 25 кВА 50 точечная листового металла цена завод Китай для продажи онлайн рядом со мной
2 700,00-5 100,00 $
Точечный сварщик
500,00 $
Машины для точечной сварки/машина сварки с c-тип пистолет
Awithz Новый мини-аппарат для точечной сварки 80-уровневый регулируемый экран 1 0 мм 15A скорость зарядки предварительного нагрева 1-10

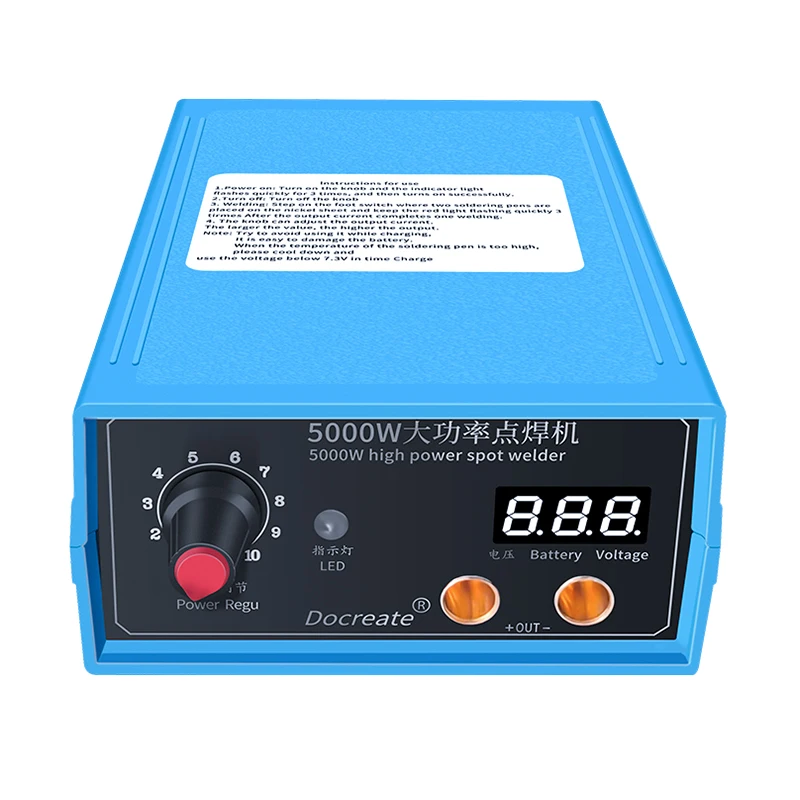

Портативный точечный сварщик 5000 Вт высокомощный ручной сварочный аппарат 110-240 В регулируемые по току сварочные аппараты для 18650 аккумулятора
