Products Description

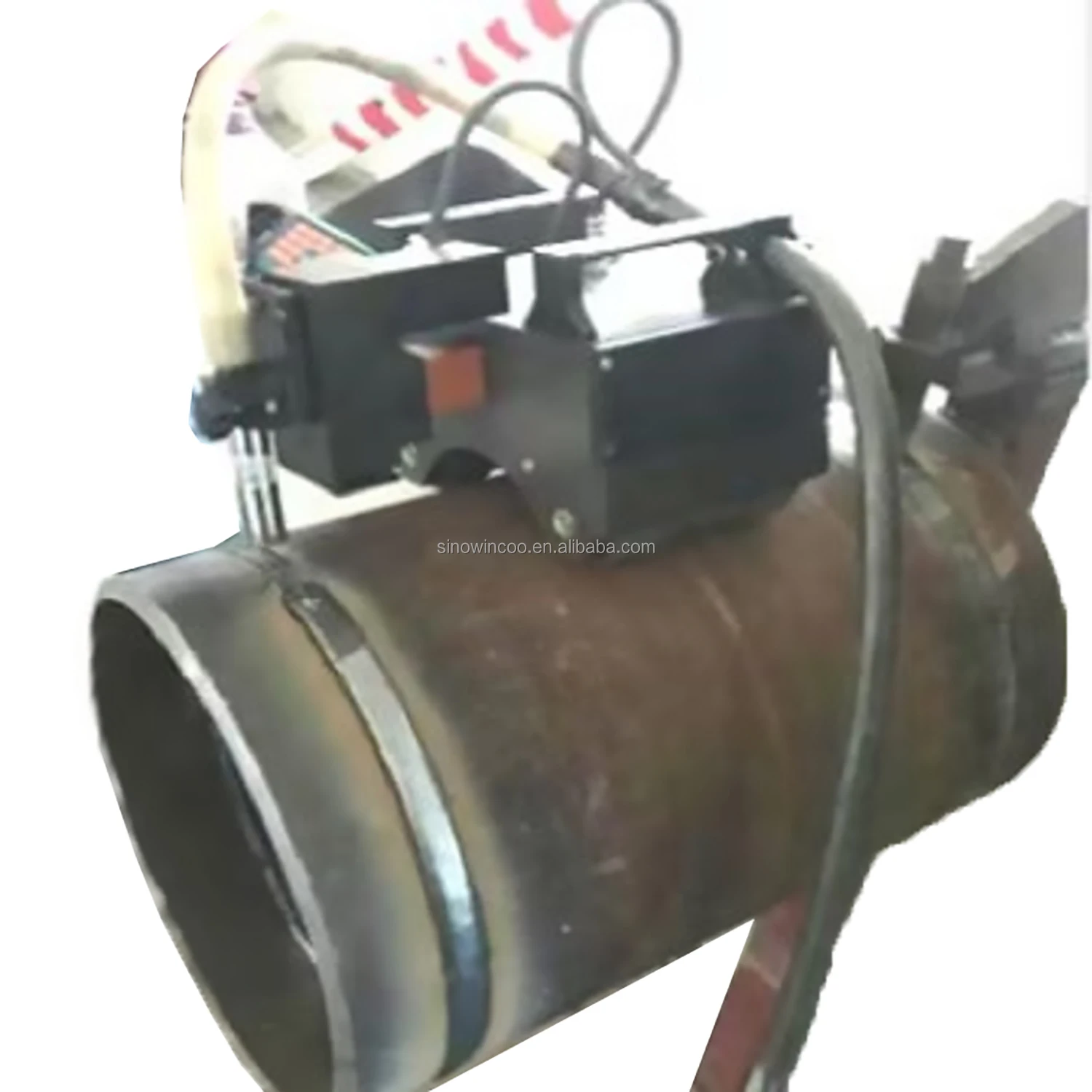

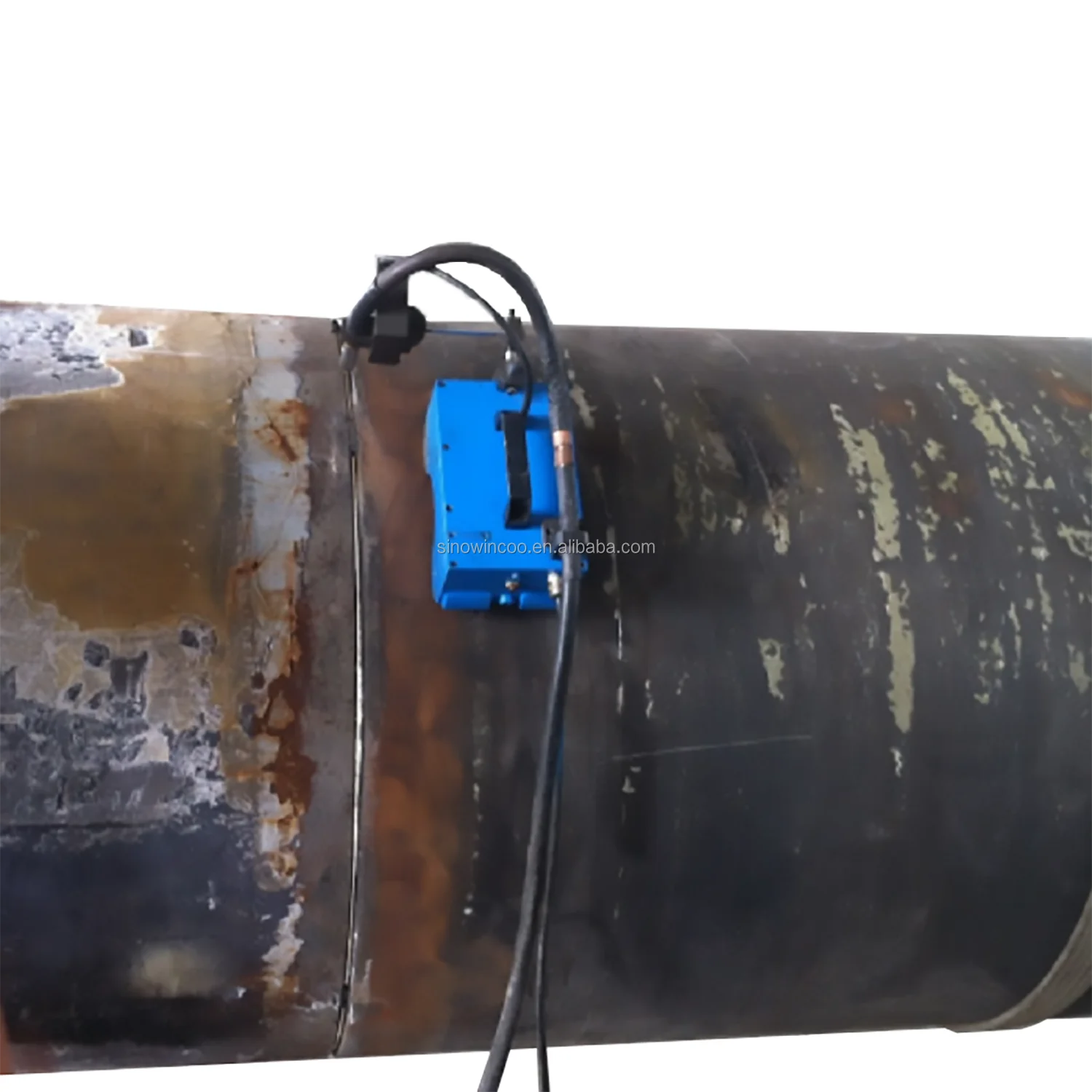

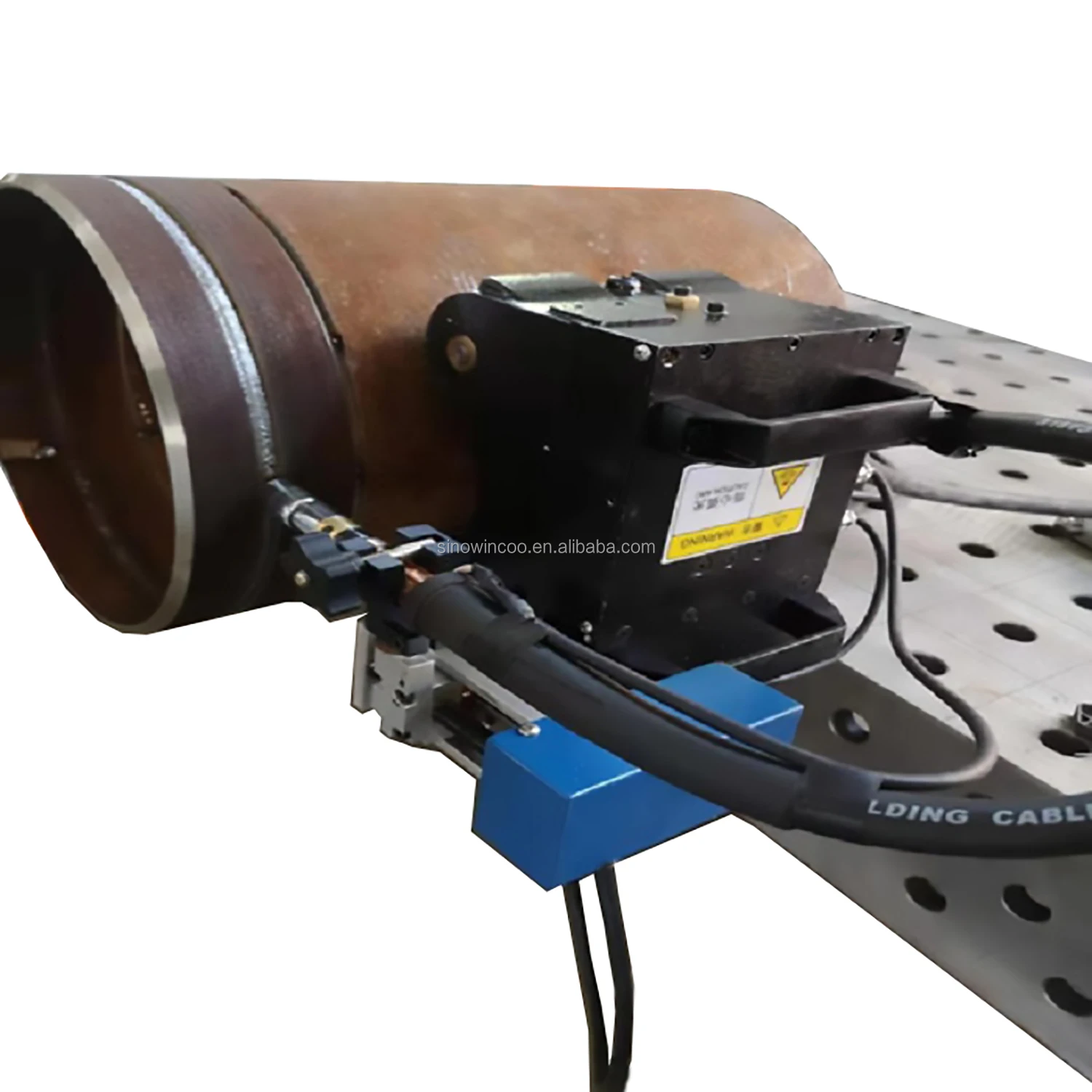

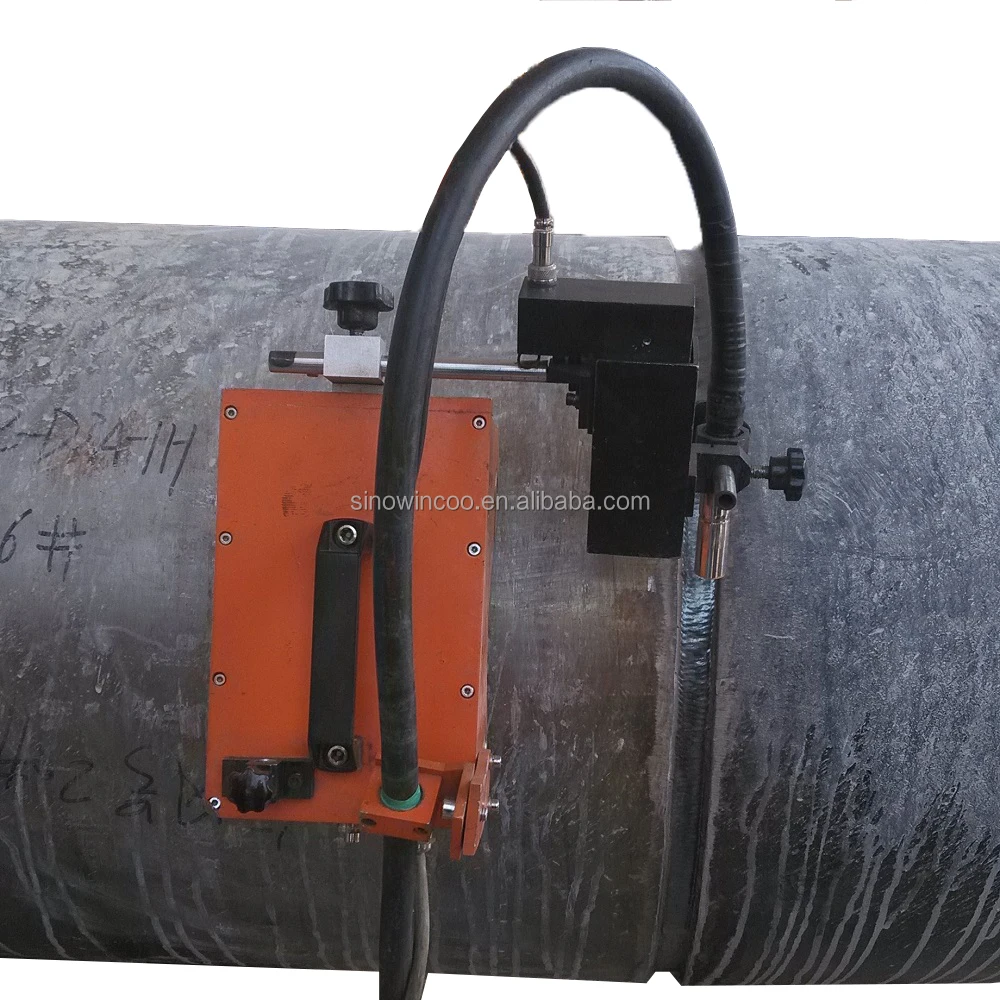

WQ-III Pipeline all-position automatic welding machine is divided into rail type and trackless type. The trackless type adopts magnetic absorption on the pipeline, and automatically crawls along the welding path during welding. The installation, use and disassembly can be completed quickly and conveniently. Rail type is mainly used for welding stainless steel or non-magnetic adsorption pipeline, the track specifications according to the welding needs to be customized;

Pipelines all position automatic welding machine is widely used in petroleum, petrochemical, chemical, thermal, gas, Marine engineering, municipal pipelines all position automatic welding in all walks of life, such as using pipe fixed tube, welding carriage to walk the way of all position automatic welding, the welding process with high efficiency and low cost of melting polar gas shielded welding;

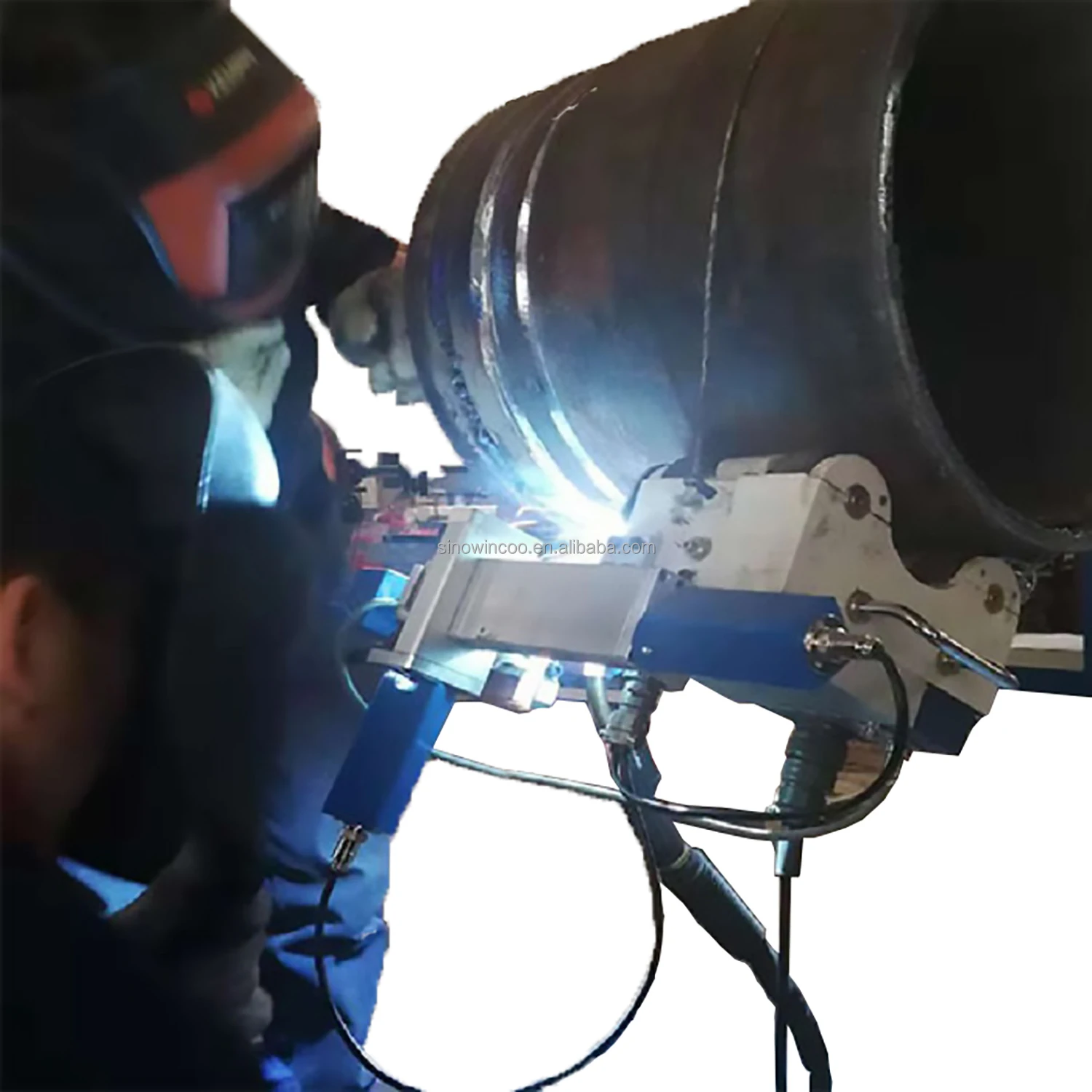

All-position welder is mainly characterized by light and portable design, especially suitable for automatic pipe welding on the construction site, with the characteristics of easy to learn, fast welding speed, high production efficiency, good welding
mechanical properties, low labor intensity and so on. workpieces applicability is wide and more than 150 mm diameter Φ pipes are applicable, without welding thickness limitation in theory, thick tube can use multi layer multi phases welding, welding such as: pipe - weld pipe, pipe, elbow, tee.




Product Paramenters


Items
Parameter
Note
Tractor
Power supply
AC 220V
Size
240×330×310 mm
W×L×H
Weight
16 Kg
Including swinger
Moving mode
Four-wheel drive
Magnet-wheel
Walking speed
0∼700mm/min
Control
Swing motor
DC24V 18RPM
Adjustable range of welding gun
Up and down
Before and after
85mm
Operating Angle adjustment range
360°
Carry out Angle adjustment range
0°
Operating function
Swing mode
Swing speed
0-10RPM(Show with scale)
Swing scope
0-±10°(Show with scale)
Left and right residence time adjustment
0-2S(Show with scale)
Central range of movement
0-±8°
Inching wire feeding
Walking starts/stops
Welding current/voltage control
Choice of walking direction
Walking speed regulation
0∼1000mm/min(Show with scale)
Welding/non-welding options


Our Advantages


1, WQ-III is swing automatic welding device, one welding can get a wider weld.
2, Swing speed, swing range, center position and left and right residence time can be adjusted, suitable for various specifications of the weld.
3, Small size, light weight, easy to install and move, unskilled workers can also carry out welding.
4, Permanent magnet is installed to avoid welding line disconnection during welding.



Application Environment
Suitable for pipe welding of various steel structures.


Major Component




Details Images






Hymaron engineering machinery co.,td, Along with the global petroleum and Natural gas pipeline construction thriving. Our company has a professional manufacturing team and advanced production facilities. Manufactured in 1 year. Pipelayer 700 sets, Mobile power station 1200 sets, Internal/External Clamp series 1500 sets, Intermediate Frequency Heater 3000 sets, Pipeline Sandblasting tractor 3000 sets,our company has experienced designers and engineers in pipeline construction, The product's function and pipeline construction process requirements have been combined reasonably and effectively, making the product more suitable for construction site work, Improve work efficiency and create more profit for the company . And other pipeline Project. Our company provides customers with the best solutions and strives to advance the technological progress of pipeline construction machinery.












1. Who are we?
We are engaged in bringing the most suitable solutions/equipments for client, fabricators EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.
2.Can l use my own logo or design on my products?
Yes, we offer OEM/ODM services; Your logo and design can be made on the product
3. How can we guarantee the quality?
We can provide 12 months warranty for whole machine. Meanwhile, we offer whole life on-line technical supports for operating guide and troubleshooting.
4. How to place order? l haven't done business with you guys before,how can i trust your company?
We are able to provide online demonstration to show the performance before proceeding your procurement, online videos showing during production and packing, online technical support after sales.
You may place order online through Alibaba, it is safe for your money.
5. How to inspect?
Welcome your third party or SGS or your friend to come an inspect before delivery
6. why choose us?
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.
Based client's facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.
To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources
