Запчасти для горнодобывающей машины клапан 80759069 гидравлических молотков
33,28 $

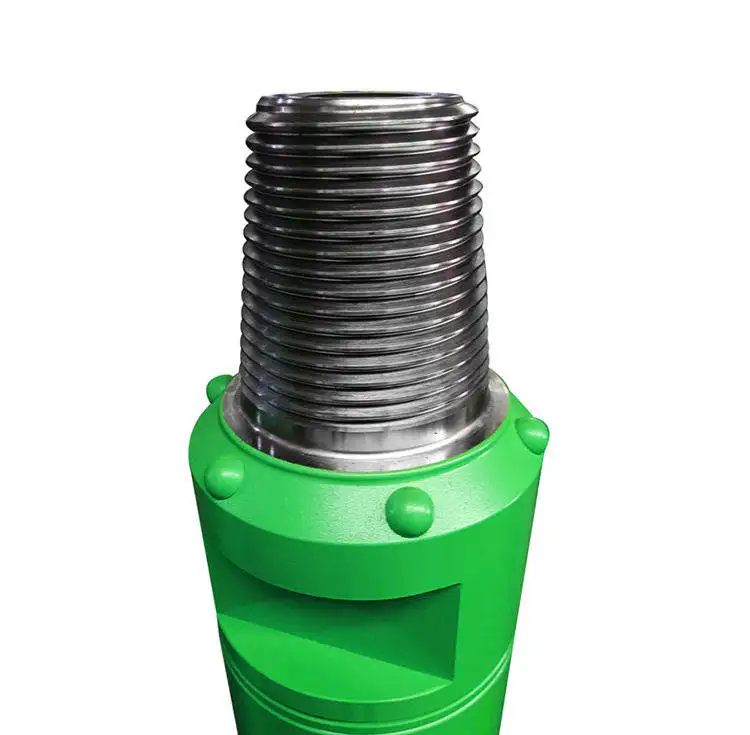

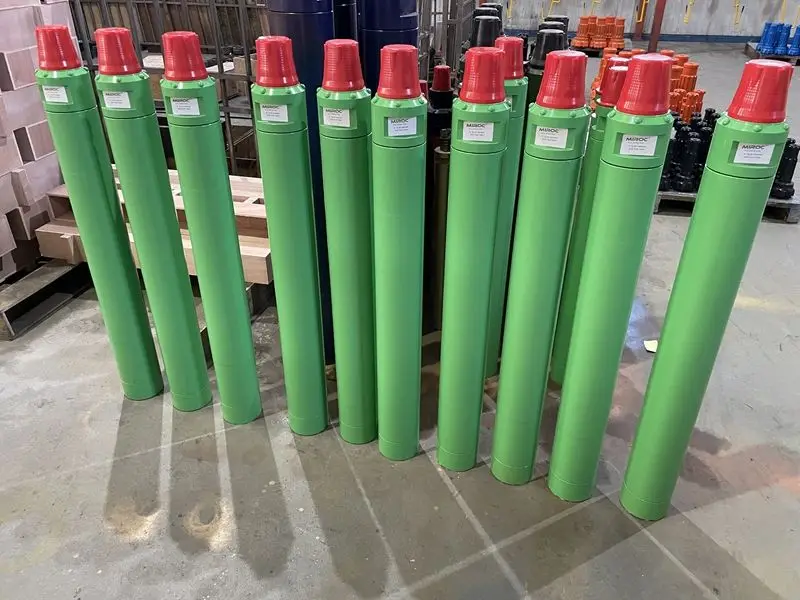

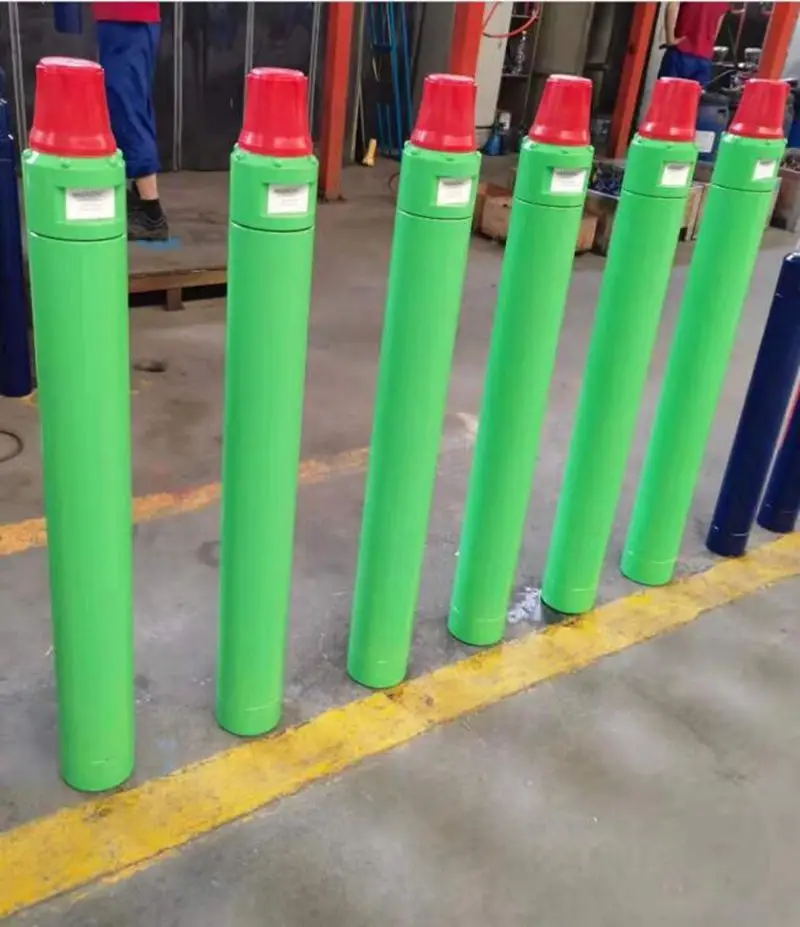

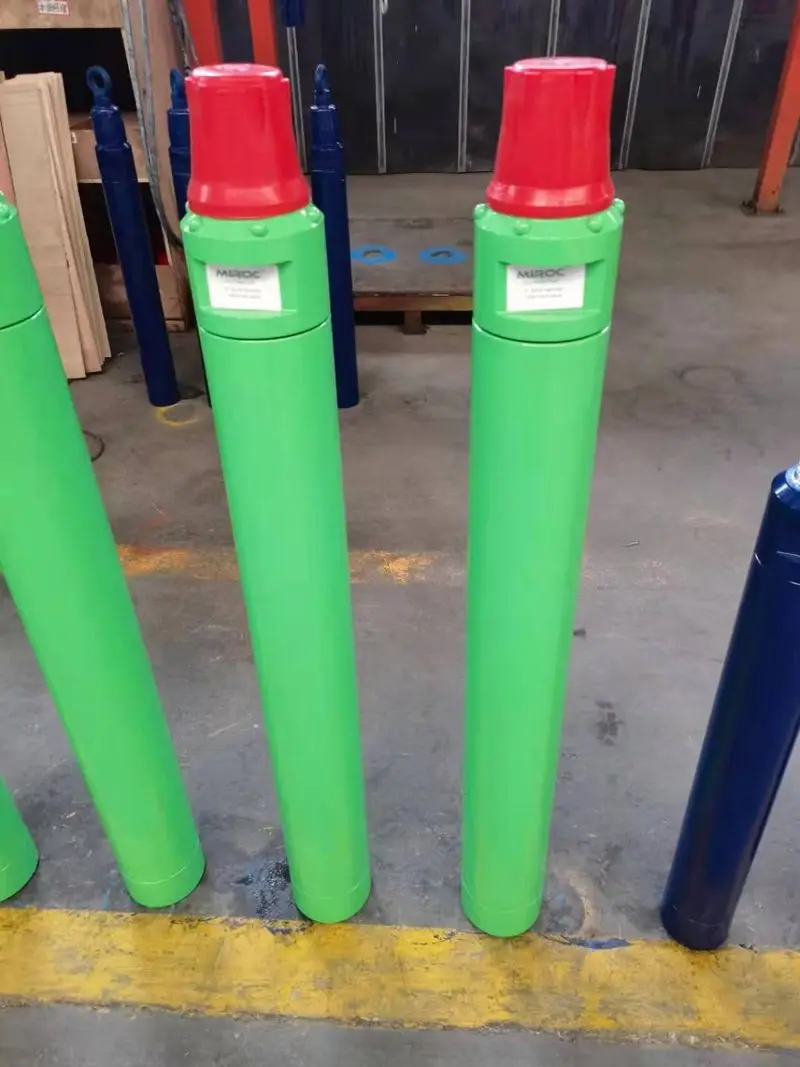

DHD350 DHD360 QL50 высокое качество давление в скважине dth молоток и биты для добычи водяных скважин
- Категория: >>>
- Поставщик: Ksq Technologies (beijing) Co. Ltd.Ksq Ltd.
Сохранить в закладки 1601371634168:
Описание и отзывы
Характеристики
Products Description
Product Description：
KAcan supply you with high pressure and medium to low pressure DTH hammersWith professional manufacturing experience in DTH hammer production,. It strictly matches with API standard and other Chinese industry standards.It is durable for being produced with advanced craftwork and good material.
It also has the following advantages:
1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure of HD
series DTH hammer designed according to newest rock drilling theory.
2. Smooth performance and long service life of HD series DTH hammer due to high quality alloy steel materials and advanced
processing technology adapted.
3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.
4. Easy to depart bit from hammer due to multi—head thread connecting chuck and cylinder of hammer.
5. Interchangeable with DTH bit and drill pipe
Specification:
Dth rock drill bits are in different sizes ranging from 3" to 12".
Dth rock drill bits are available in valveless model and is competent to operate in harsh conditions
dth rock drill bits have four kinds of button type
Spherical button : good wearing resistance, suited to hard ground, abrasive to very abrasive.
Parabolic button : fast penetration,suited to medium to hard rock,suitable for the mildly abrasive ground.
Conical button : fast penetration, suited for smaller diameter bits, suited for all non-abrasi
It also has the following advantages:
1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure of HD
series DTH hammer designed according to newest rock drilling theory.
2. Smooth performance and long service life of HD series DTH hammer due to high quality alloy steel materials and advanced
processing technology adapted.
3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.
4. Easy to depart bit from hammer due to multi—head thread connecting chuck and cylinder of hammer.
5. Interchangeable with DTH bit and drill pipe
Specification:
Dth rock drill bits are in different sizes ranging from 3" to 12".
Dth rock drill bits are available in valveless model and is competent to operate in harsh conditions
dth rock drill bits have four kinds of button type
Spherical button : good wearing resistance, suited to hard ground, abrasive to very abrasive.
Parabolic button : fast penetration,suited to medium to hard rock,suitable for the mildly abrasive ground.
Conical button : fast penetration, suited for smaller diameter bits, suited for all non-abrasi
DTH hammer types: | D55 | D55C | SD5 | QL5 | ||
Length(less bit) mm | 1214 | 1160 | 1175 | 1156 | ||
Weight(less bit) kg | 76.5 | 72.5 | 72.5 | 73 | ||
External diameter mm | Φ125 | Φ125 | Φ125 | Φ125 | ||
Bit shank | COP54 DHD350R | HD55C DHD350Q | SD5 | QL50 | ||
Hole range(mm) | Φ135-155 | Φ135-155 | Φ135-155 | Φ135-155 | ||
Connection thread | API 2 3/8"Reg | API 2 3/8"Reg | API 3 1/2"Reg | API 3 1/2"Reg | ||
API 3 1/2"Reg | API 3 1/2"Reg | |||||
Working pressure | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | ||
Impact rate at 1.5-1.7Mpa | 25Hz | 25Hz | 25Hz | 25Hz | ||
Recommended Rotation speed | 20-35r/min | 20-35r/min | 20-35r/min | 20-35r/min | ||
Air consumption | 1.0Mpa | 9.0m3/min | 9.0m3/min | 9.0m3/min | 9.0m3/min | |
1.8Mpa | 15.0m3/min | 15.0m3/min | 15.0m3/min | 15.0m3/min | ||
2.4Mpa | 23.0m3/min | 23.0m3/min | 23.0m3/min | 23.0m3/min | ||
Company Profile
Factory
Why choose us
Certifications
Exhibition
Packing and delivery
FAQ
1. Q：Are you manufacturery or trade company?
A:We are manufacturer, has more than 10 years of professional production experience .Products including DTH Hammer and Bit、Drill Pipe Casing System、Tricone Bit、Top Hammer Drill Rod、 Drill Bit、Tapper Button Bit and Rod、 Integral Drill Rod etc.
2.Q: Do you offer warranty on your products?
A: Yes. For different products we offer different warranty that cover all manufacturing defects in materials and workmanship. The longest period of warranty is 6 months after shipping date.
3、Q: How is your quality control?
A: We have our own experienced quality control. There will be strict inspection and testing for every order before shipping out.
4.Q: How long is your delivery time?
A: 1-5days for the products in stock； regular order delivery in 2-3weeks.
5.Q: After Services:
A:(1) Our sales team will response for your question within 24 hours (Holidays included).
(2) Technical Support will be available in any time.
(3)Free replacement will provide once the failure confirmed caused by our product quality.
6.Q:Methods of Payment:
A:We offer different payment terms, including T/T, D/A, D/P, L/C and O/A, etc. You can choose your preferred payment methods before we shipping the goods.
7Q: Do you offer OEM service?
A:Yes, we can offer OEM service if you have regular requirement.
8Q: Where did you export ?
A:Till 2023 we have exported to 60+ countries.
A:We are manufacturer, has more than 10 years of professional production experience .Products including DTH Hammer and Bit、Drill Pipe Casing System、Tricone Bit、Top Hammer Drill Rod、 Drill Bit、Tapper Button Bit and Rod、 Integral Drill Rod etc.
2.Q: Do you offer warranty on your products?
A: Yes. For different products we offer different warranty that cover all manufacturing defects in materials and workmanship. The longest period of warranty is 6 months after shipping date.
3、Q: How is your quality control?
A: We have our own experienced quality control. There will be strict inspection and testing for every order before shipping out.
4.Q: How long is your delivery time?
A: 1-5days for the products in stock； regular order delivery in 2-3weeks.
5.Q: After Services:
A:(1) Our sales team will response for your question within 24 hours (Holidays included).
(2) Technical Support will be available in any time.
(3)Free replacement will provide once the failure confirmed caused by our product quality.
6.Q:Methods of Payment:
A:We offer different payment terms, including T/T, D/A, D/P, L/C and O/A, etc. You can choose your preferred payment methods before we shipping the goods.
7Q: Do you offer OEM service?
A:Yes, we can offer OEM service if you have regular requirement.
8Q: Where did you export ?
A:Till 2023 we have exported to 60+ countries.
Похожие товары
Atlas Copco 3128 3025 53 опорная втулка инструмента для горного бурения
83,00 $

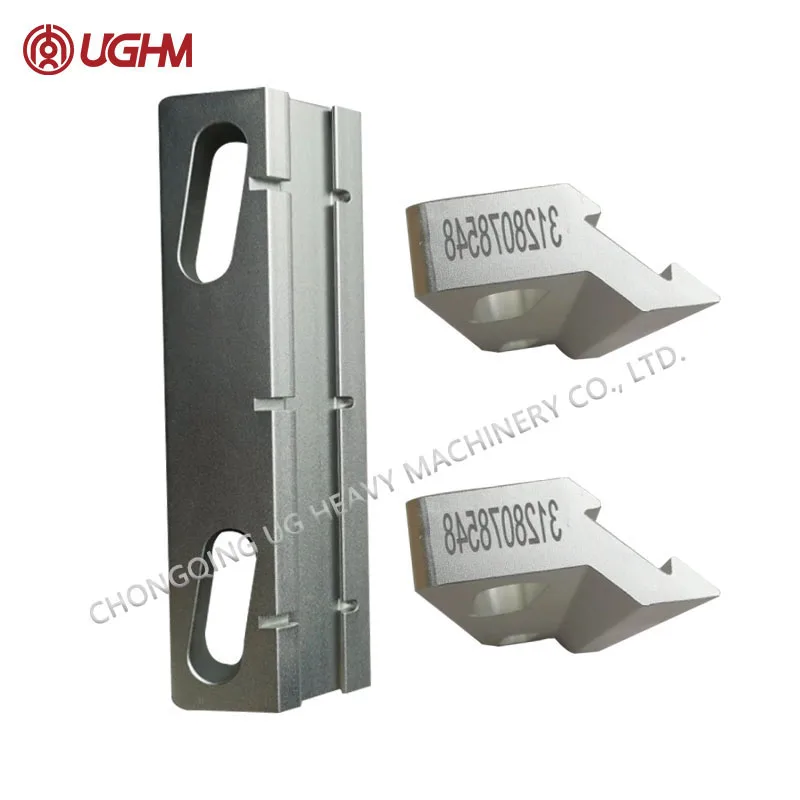

Заводские продажи 3128078438 держатель для подземного бурения-совместим с моделями Atlas Copco/Epiroc jumbo drill
388,22 $
Впускной отбойный молоток 4 'COP44/DHD 340/QL50 для бурения скважин на твердокаменной воде
605,00-615,00 $

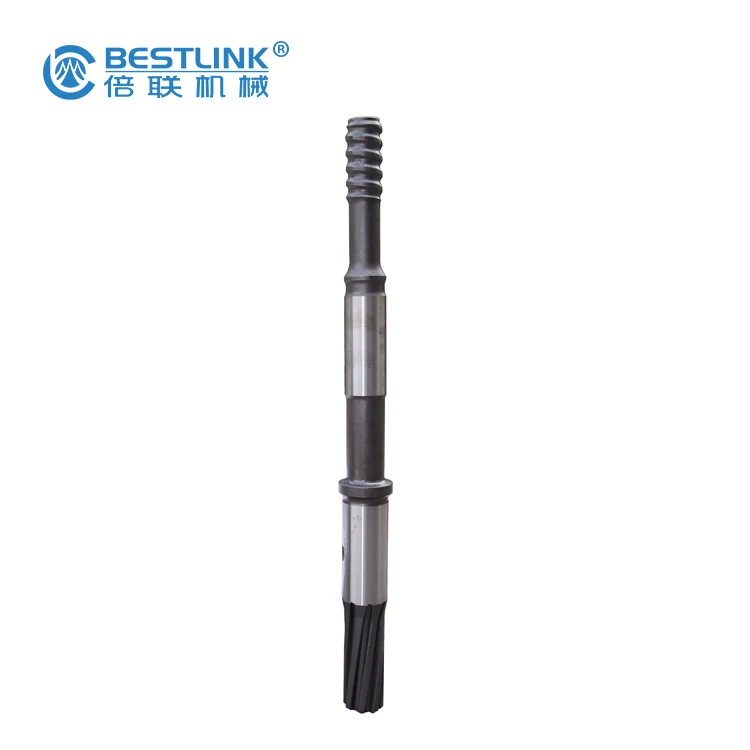

Хвостовик-адаптер Atlas Copco COP1240 для буровой установки
200,00 $

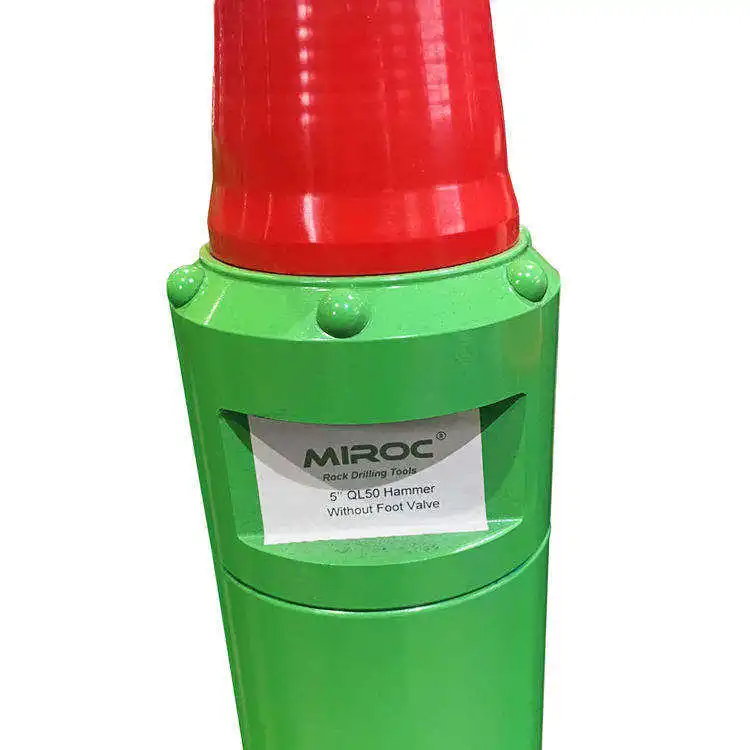

QL50 5-дюймовый Новый пуховой молоток для бурения скважин DTH добычи воды с ножным клапаном
