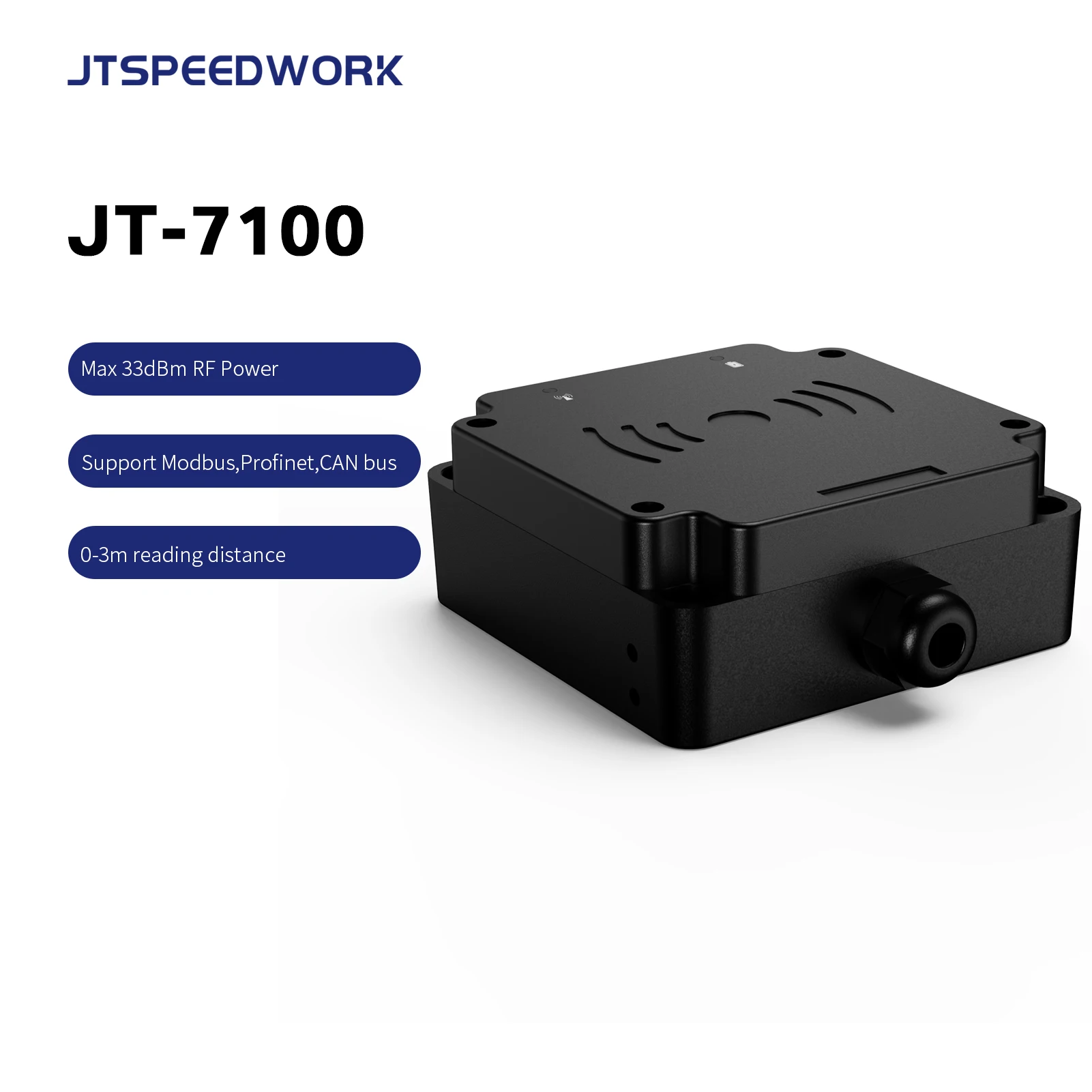

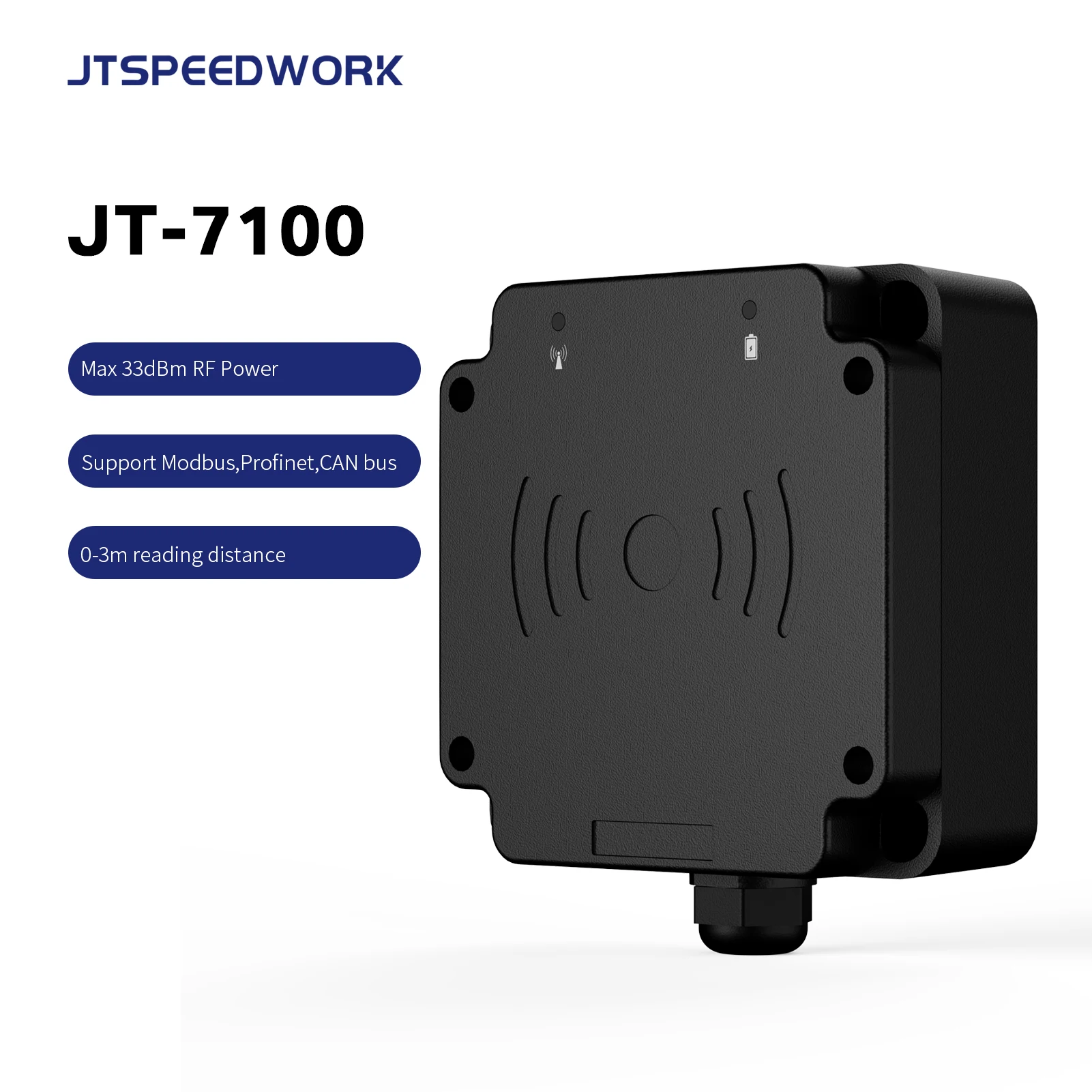

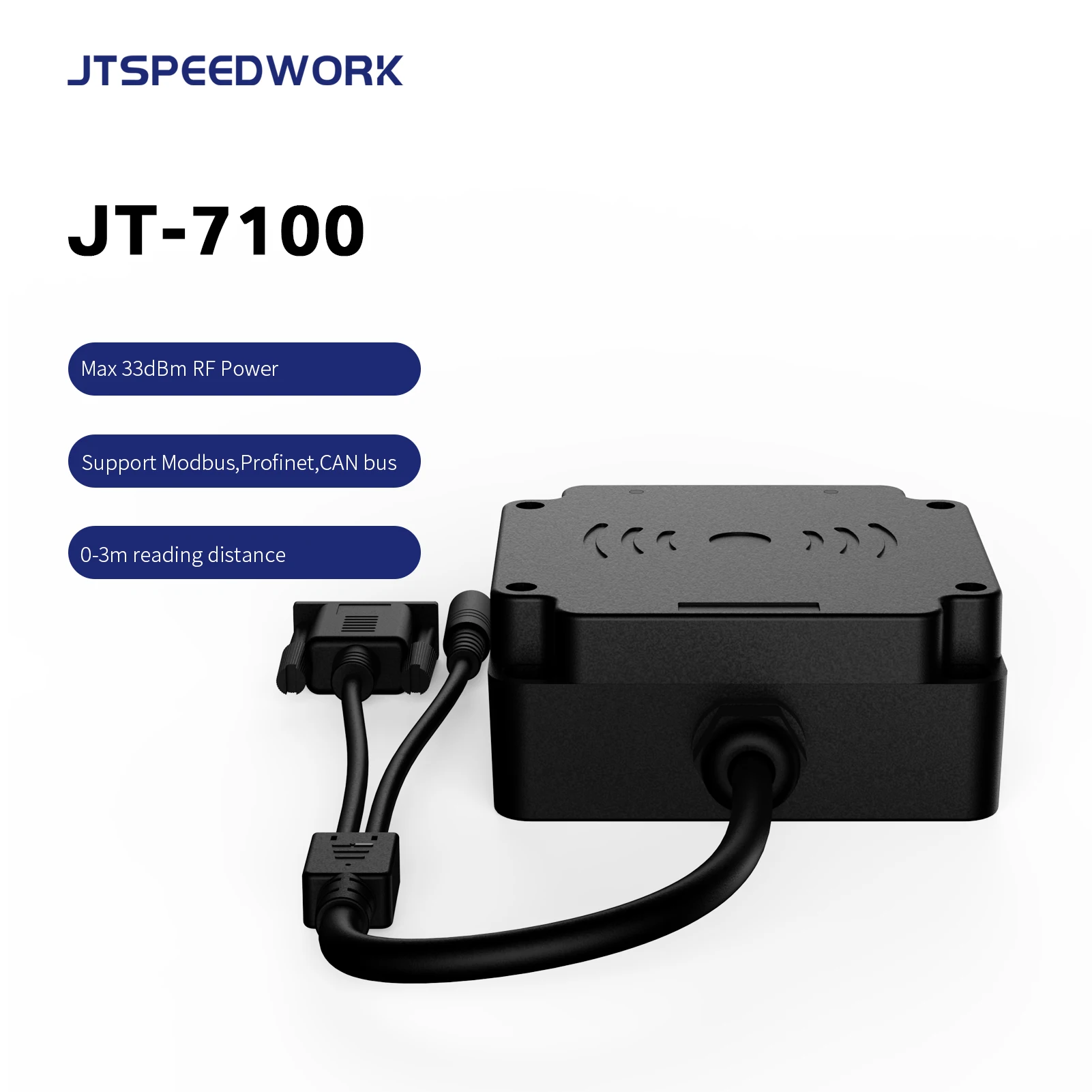

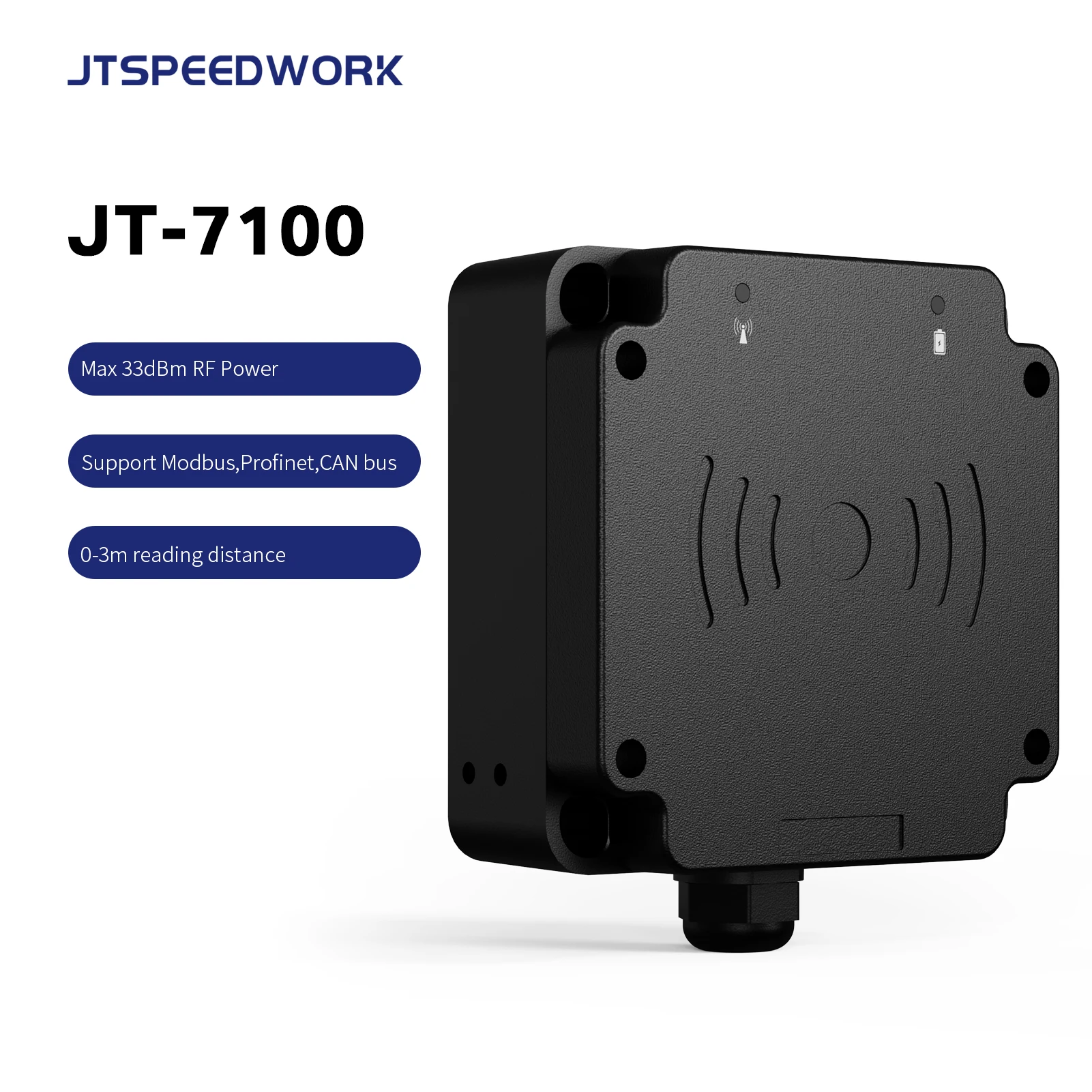

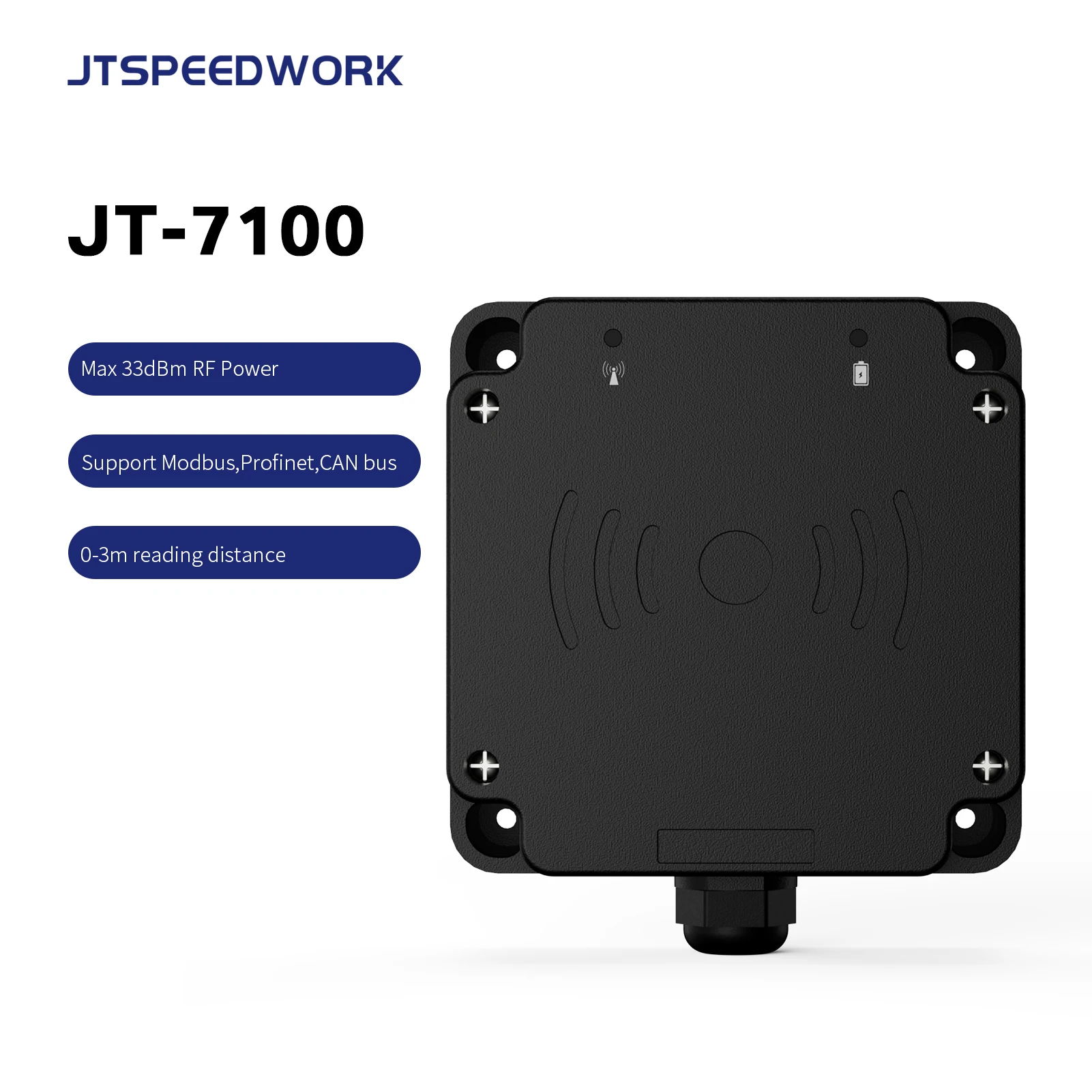

JT 7100 Считыватель RFID со склада стоимость фиксированных китайские встроенные ворота комплект 860 960 МГц устройство для записи около поля OEM UHF Reader
- Категория: >>>
- Поставщик: Shenzhen Jietong Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601377264056:
Описание и отзывы
Характеристики
Product Description
Performance | ||
Item No. | JT-7100 | |
Item size | 95*95*40mm | |
Net weight | 450g | |
Equipment power supply | Industrial grade wide voltage design, 9-36V DC | |
LED indicator | Blue: card reading indicator; red: power indicator | |
Protection level | IP65 | |
Connector form | Round waterproof M5 pin socket connector | |
Connector pin definition | 1：GND； 2：TXD； 3：RXD； 4：DC； 5：GND | |
Operating temperature | -20ºC ～60ºC | |
Storage temperature | -20 ºC～85 ºC | |
Working humidity | 5%～95%RH, Non-condensing | |
Technical Parameters | ||
Working frequency | 902~928MHz(US) or 865~868MHz(EU) | |
Frequency modulation method | Broad spectrum frequency modulation (FHSS) or fixed frequency, software settings | |
RF output | 20~26 dBm adjustabl;50 dBm load | |
Built-in antenna | Dual feed 40x40 ceramic antenna | |
Antenna | 3dBi | |
Communication rate | Rate 9600～115200bps | |
Reliable firmware upgrade | Scalable upgrade mechanism | |
SDK | C#,Java,Android | |
Working status display mode | LED indicator (blue, red), buzzer | |
Rewrite and Read | ||
Read distance | 0-3m | |
Write distance | 0-30cm | |
Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C | |
Max receiving sensitivity | -65 dBm | |
Multiple Choices | ||
JT-7100A | RS232 | |
JT-7100B | TCP/IP | |
JT-7100C | RS485 | |
JT-M7100B | Modbus TCP/IP | |
JT-M7100C | RS485 Modbus RTU | |
☆ The shape is industrial design, sturdy and durable, in line with the harsh industrial production line
environment, the protection level reaches IP67.
☆ RF uses proprietary intellectual property research and development chips with high-performance label
recognition algorithm
☆ Software intelligent monitoring of the working state, 24 hours X 365 days of operation does not crash.
☆ The bottom cover is designed to install iron pieces, which is convenient for industrial production line
environment installation and reader installation.
☆ Small size and light weight, easy to integrate industrial production line equipment.
☆Support EPC global UHF Class 1 Gen 2 / ISO 18000-6C RFID tag.
environment, the protection level reaches IP67.
☆ RF uses proprietary intellectual property research and development chips with high-performance label
recognition algorithm
☆ Software intelligent monitoring of the working state, 24 hours X 365 days of operation does not crash.
☆ The bottom cover is designed to install iron pieces, which is convenient for industrial production line
environment installation and reader installation.
☆ Small size and light weight, easy to integrate industrial production line equipment.
☆Support EPC global UHF Class 1 Gen 2 / ISO 18000-6C RFID tag.

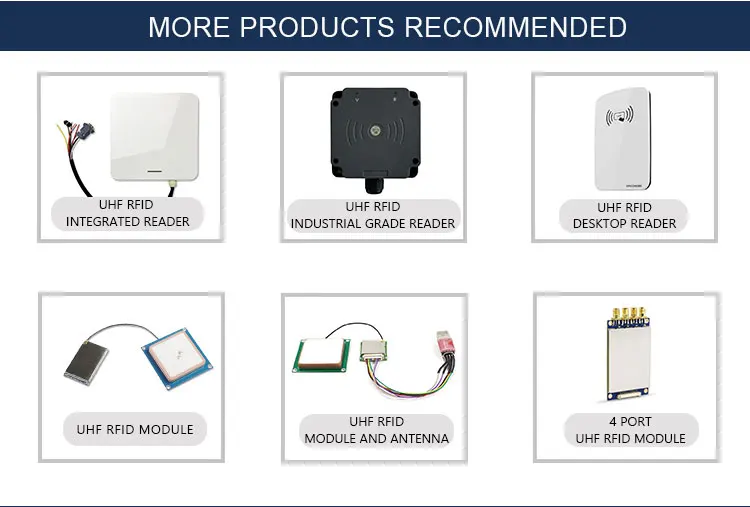

Recommend Products
Company Profile
Why Choose Us
Certificates
Packing & Shipping & Payment
FAQ
1. Are you a manufacturer or trading company?
We are original equipment manufacturer in UHF RFID reader for over 10 years.
2. How is your QC?
We have strict QC process and all the products will be 100% testing before shipping.
3. What's your advantage compared with other company?
We have an own RFID industry R&D team which the engineers has more than 10 years of R&D experience.
4. Can I get technical support from you?
Sure. Our sales are of all good knowledge in the field. Besides,we have a technical team behind to support.
5. What can you offer?
We can provide free DEMO operation video and guaranteed after the warranty period,And provide product life-long maintenance(only maintenance costs of nuclear charges)
6. What is your payment term?
100% payment should be paid before shipping.
Our company supports these payment method: T/T,Paypal etc.
7. How long is your delivery time?
Our delivery time is within 3 working days, and we transport our RFID UHF Reader with UPS,DHL,EMS,FedEx and other shipment methods.
8. What is your warranty?
Within 2 years(For reader).
We are original equipment manufacturer in UHF RFID reader for over 10 years.
2. How is your QC?
We have strict QC process and all the products will be 100% testing before shipping.
3. What's your advantage compared with other company?
We have an own RFID industry R&D team which the engineers has more than 10 years of R&D experience.
4. Can I get technical support from you?
Sure. Our sales are of all good knowledge in the field. Besides,we have a technical team behind to support.
5. What can you offer?
We can provide free DEMO operation video and guaranteed after the warranty period,And provide product life-long maintenance(only maintenance costs of nuclear charges)
6. What is your payment term?
100% payment should be paid before shipping.
Our company supports these payment method: T/T,Paypal etc.
7. How long is your delivery time?
Our delivery time is within 3 working days, and we transport our RFID UHF Reader with UPS,DHL,EMS,FedEx and other shipment methods.
8. What is your warranty?
Within 2 years(For reader).
