Кевларовая волоконная веревка/кевларовая упаковка/уплотнение/фабрика YD
- Категория: >>>
- Поставщик: YD Rubber Co. Ltd.
Сохранить в закладки 1605133820:
Описание и отзывы
Характеристики
Product Description
Kevlar fiber packing Typical Application
This is a universal packing which can be used for pumps in all types of industry.
Chemical, petrochemical, pharmaceutical, food and sugar industries, pulp and paper mills, etc.
A durable packing able to withstand granular and abrasive applications.
Prime Features
It is wear resistant but may damage the shaft if not used properly.
A minimum shaft hardness of 60HRC is therefore recommended.
Superior performance
Lower frictional factor
Specifications
Kevlar Fiber Packing
1.High quality Kevlar fiber
2.Impregnated with PTFE
3.Clean & widely used
4.With PTFE impregnated
5.Kevlar fiber packing is braided from high quality Dupont kevlar fiber with PTFE impregnated and lubricant additive. It shows good chemical resistance, high elasticity and very low cold flow. It can resist severe media and higher pressure. The packing is lubricated with silicone based compound for quick and easy break-in.
Advantages
It is particularly well suited for difficult sealing applications, i.e. with high pressures or abrasive media, such ensuring longer service life. Combines exceptional extrusion resistance and high mechanical strength with good chemical and thermal stability.
Physical Property
Rotary Pump | Reciprocating Pump | Static Seals | |
Pressure | 25 bar | 100 bar | 200 bar |
Speed | 25 m/s | 1.5 m/s |
|
Temperature | -100~+280°C | ||
PH range | 2~12 | ||
density | about 1.4g/cm3 | ||
Packing | Application range: All kinds of sealing material | |||
Name | Material | Temperture °C | Pressure Mpa | PH value |
Carbonized Fiber Gland Packing | Shrink-proof synthetic yarn with a special heatresistant, silicon-oil-free assitive. | 250 | 12 | 2-13 |
Flexible Graphite Gland Packing | Braided packing made of flexible pure graphite with structural textile fibres. | -200-850 | 25 | 0-14 |
PTFE Packing | PTFE packing with lubricating assitive. | 250 | 15 | 0-14 |
PTFE Packing with Graphite | PTFE filament yarn with permanently added PTFE graphite dispersion. The specially developed silicon-oil-free substance has excellent sliding characteristics and is incorporated in the packing by a special process | 250 | 10 | 2-13 |
PTFE Packing | High-quality yarn with permanently added liquid PTFE and lubricating silicon oil. | 250 | 10 | 2-13 |
Aramid(Kevlar) Braided Packing | A high-quality, smooth, synthetic aramide endless fibres(Kevlar) with PTFE impregnation and lubricant additive. Extremely hard wearing. | -100-260 | 30 | 2-13 |
Remie gland Packing | Ramie fibre with light-coloured. Special PTFE impregnation or lubricating additive for prevention of product contamination. | -50-140 | 20 | 2-13 |
GFO gland Packing | PTFE filament yarn with permanently added QFO dispersion as lubrication additive | -200-280 | 10 | 0-14 |
PTFE with Kevlar gland Packing | A high-quality combination consistion of graphite-incorporated PTFE with sliding surface reinforcment made of aramide endless fibres(Kevlar) | -100-250 | 15 | 0-14 |
Cotton gland Packing | Pre-impregnated, twisted cotton yarns, intensively re-impregnated during braiding. | -20-100 | 6 | |
Packaging & Shipping
Packing
With woven bags outside and plastic bags inside or cartons or according to customers requirement .
Our Services
Our Services
- Your inquiry related to our products or prices will be replied within 24hours.
- Well-trained and experienced staffs to answer all your enquiries in fluent English.
- All our products have 1-year warranties.
- Offering the support to solve the problem in the application or selling period.
- Competitive prices based on same quality.
- Guarantee samples quality same as mass production quality.
Concept and advantage
- "YD Rubber" is developed under the concept of "Passion, Innovation, People Friendly, Environment Friendly"
- We strive to produce new premium quality products to suit all needs
- YD Rubber Co., Ltd. is located in Tianjin port, the transportation is convenient
- Our subordinates independent factory can meet all customers need.
Company Information
About USYD Rubber co.,ltd. is one of the professional and biggest manufacturers in China. Our factory is
Hebei province of China. Our main products are, Industrial Rubber Sheet
and other Sealed Gasket material, which have the Certificate of ISO9001:2000.
We have been in this line for more than 10 years and have the experience of exporting for 6 years.
Certificates
FAQ
Похожие товары
Из водонепроницаемого материала с активированным углем бактерицидный лейкопластырь клей из дышащей хлопковой ткани свидетельствует об этом
0,40 $ - 0,65 $
T55 + смарт-часы 6 серии 6 телефонных звонков
3,22 $ - 10,66 $
Профессиональный круглый печатей форма уход за кожей лица макияж кисть для пудры румян контурирования
Формовочная машина Zhejiang для литья под давлением трубок для взятия крови
26 000,00 $ - 28 000,00 $

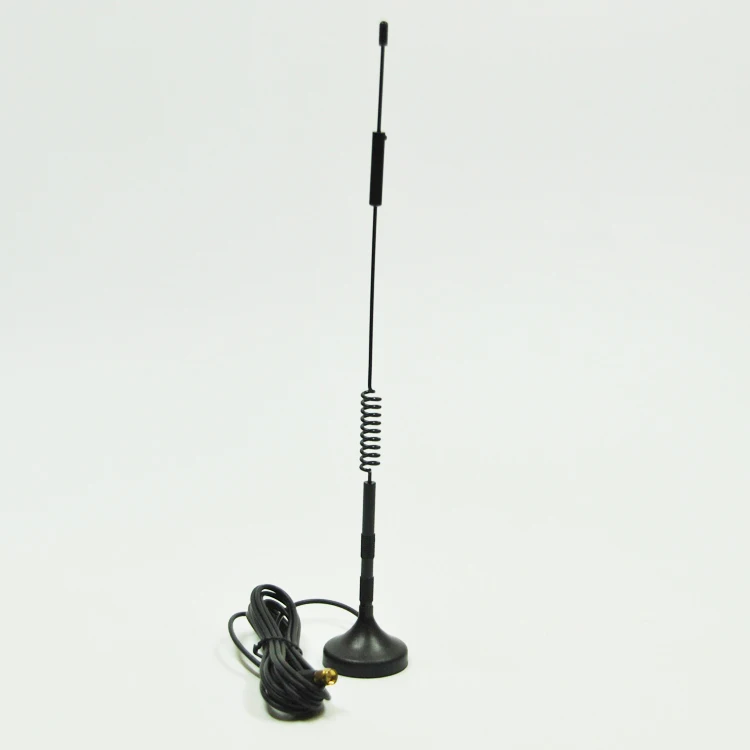

Высокое качество Фабрика Лучшая цена FW DV05 Крытый открытый беспроводной VHF UHF Цифровой DVB-T2 антенна 3dbi
1,25 $ - 1,55 $

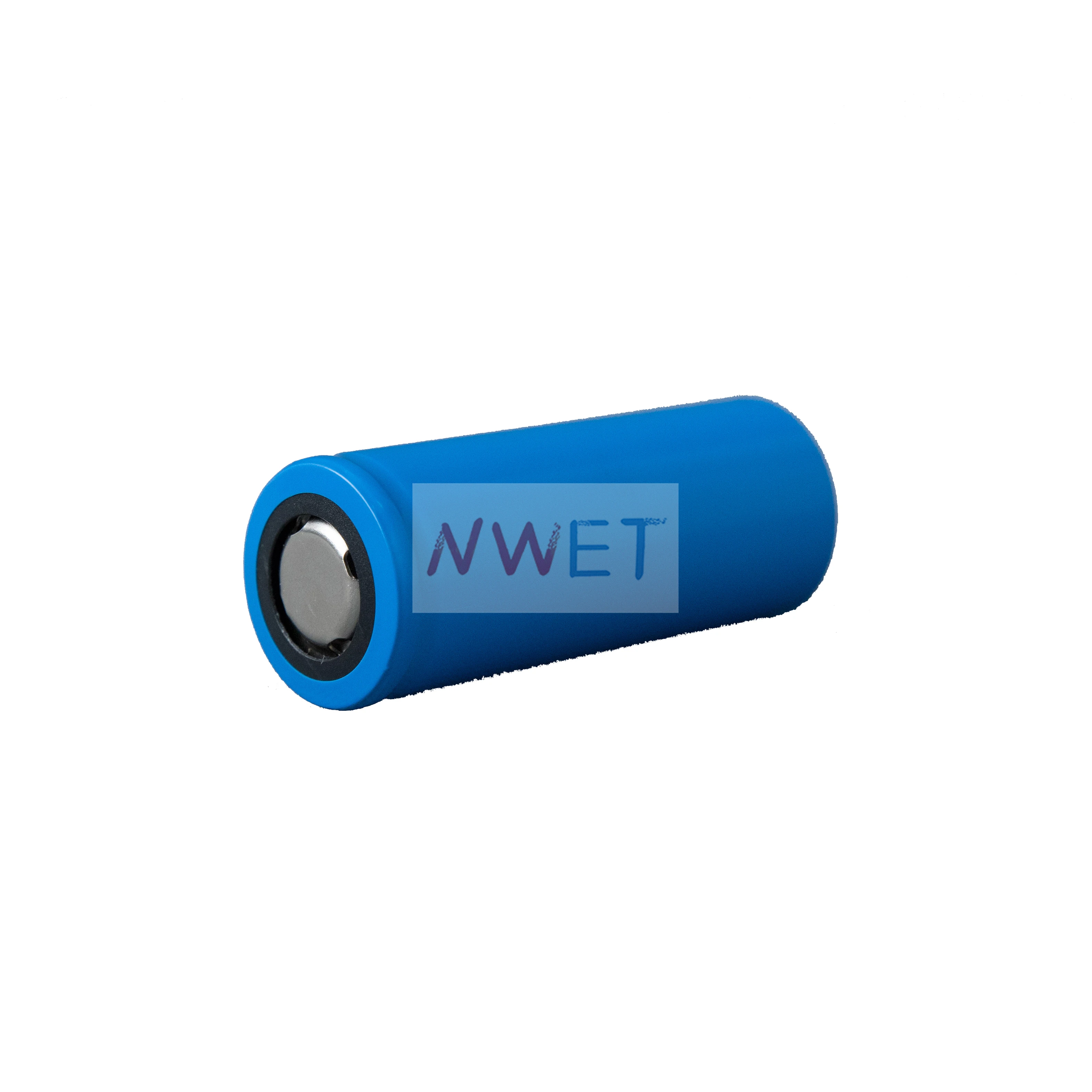

Лидер продаж, заводская цена, батарея lifepo4 3,2 в 18650, литий-ионная аккумуляторная батарея lifepo4
1,30 $ - 1,50 $

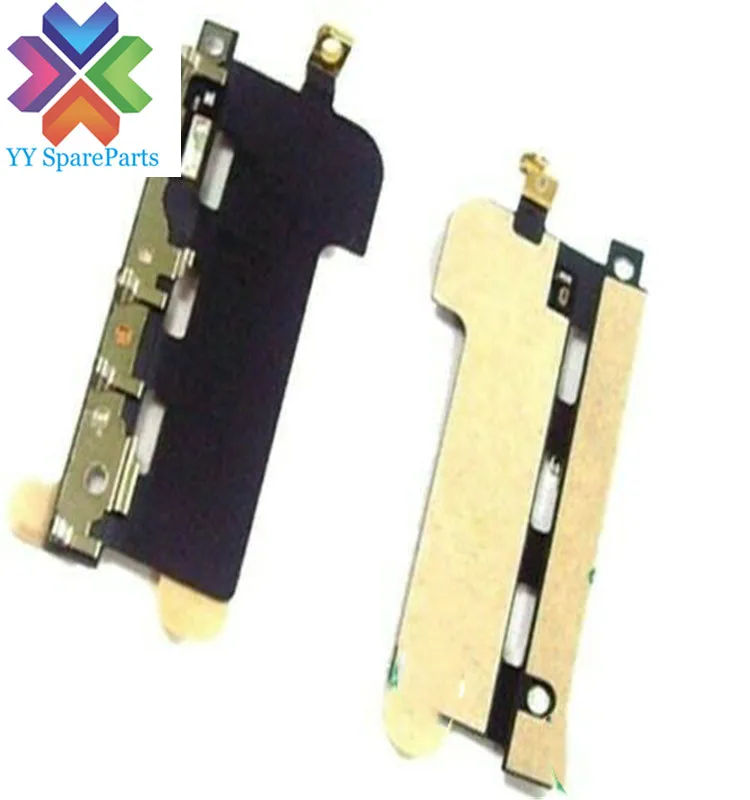

For iPhone 4g 4s WiFi Signal Antenna Flex Cable Ribbon Connector Replacement With Good Quality And Best
