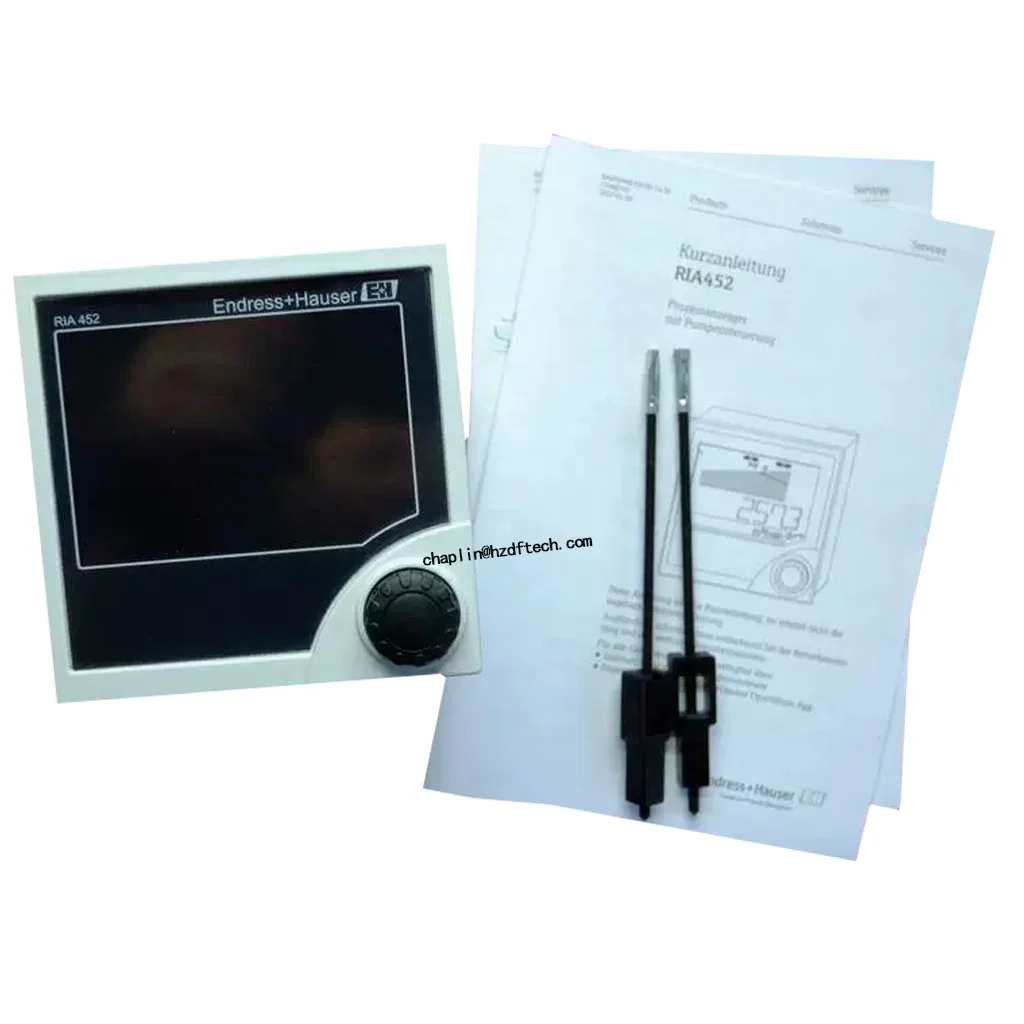

Индикатор процесса Endress + Hauser RIA452 RIA452-A112A11A индикации
600,00 $ - 675,00 $
Млечного Пути QLF 1100L планетарный блендеры рассеивать мощность смеситель жидкий силикон формы тестомесильная машина
- Категория: >>>
- Поставщик: Foshan Golden Milky Way Intelligent Equipment Co. Ltd.
Сохранить в закладки 1609052044:
Описание и отзывы
Характеристики
QLF-1100L Silicone Dispersing Power Mixer mixing machine
Product Description
1,cooperating with ITW ,Soudal ,Momentative ,Shinetsu
2,with patent
3,one year guaranteed
4,Siemens and ABB parts

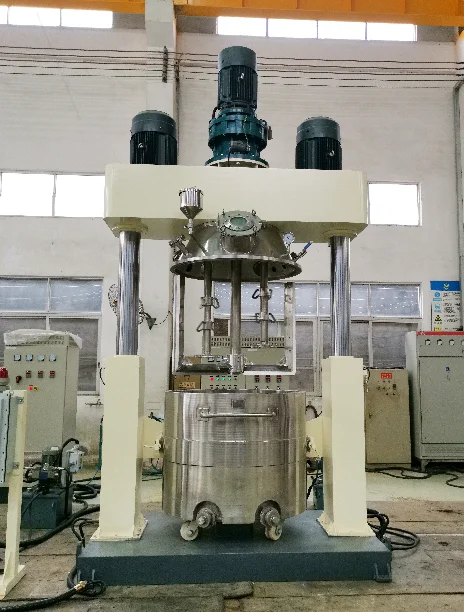

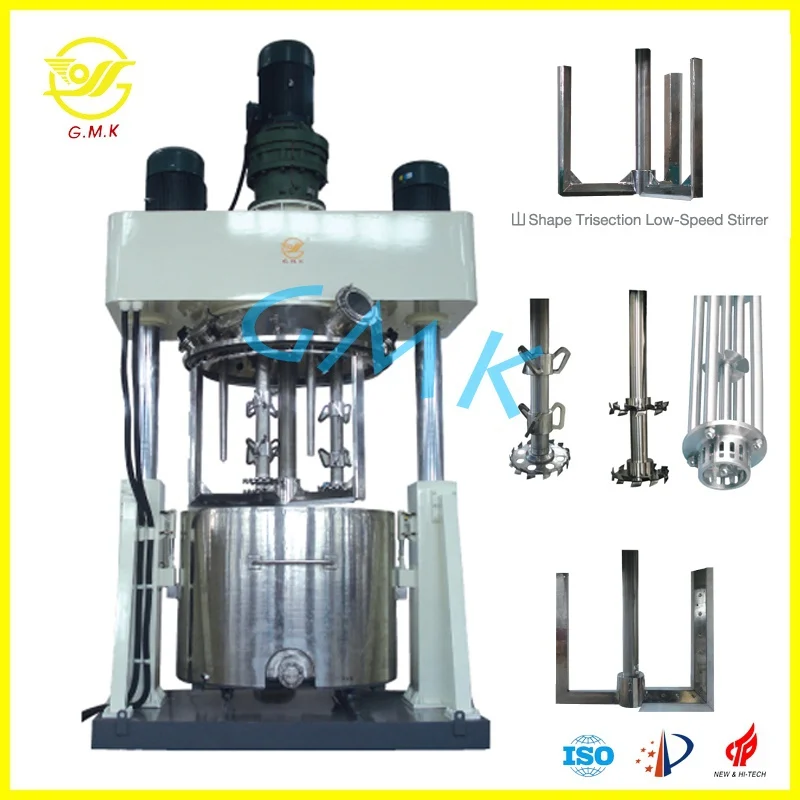

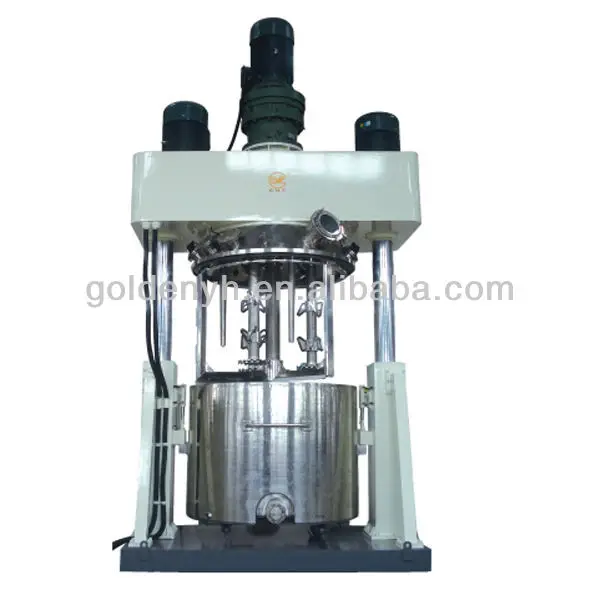

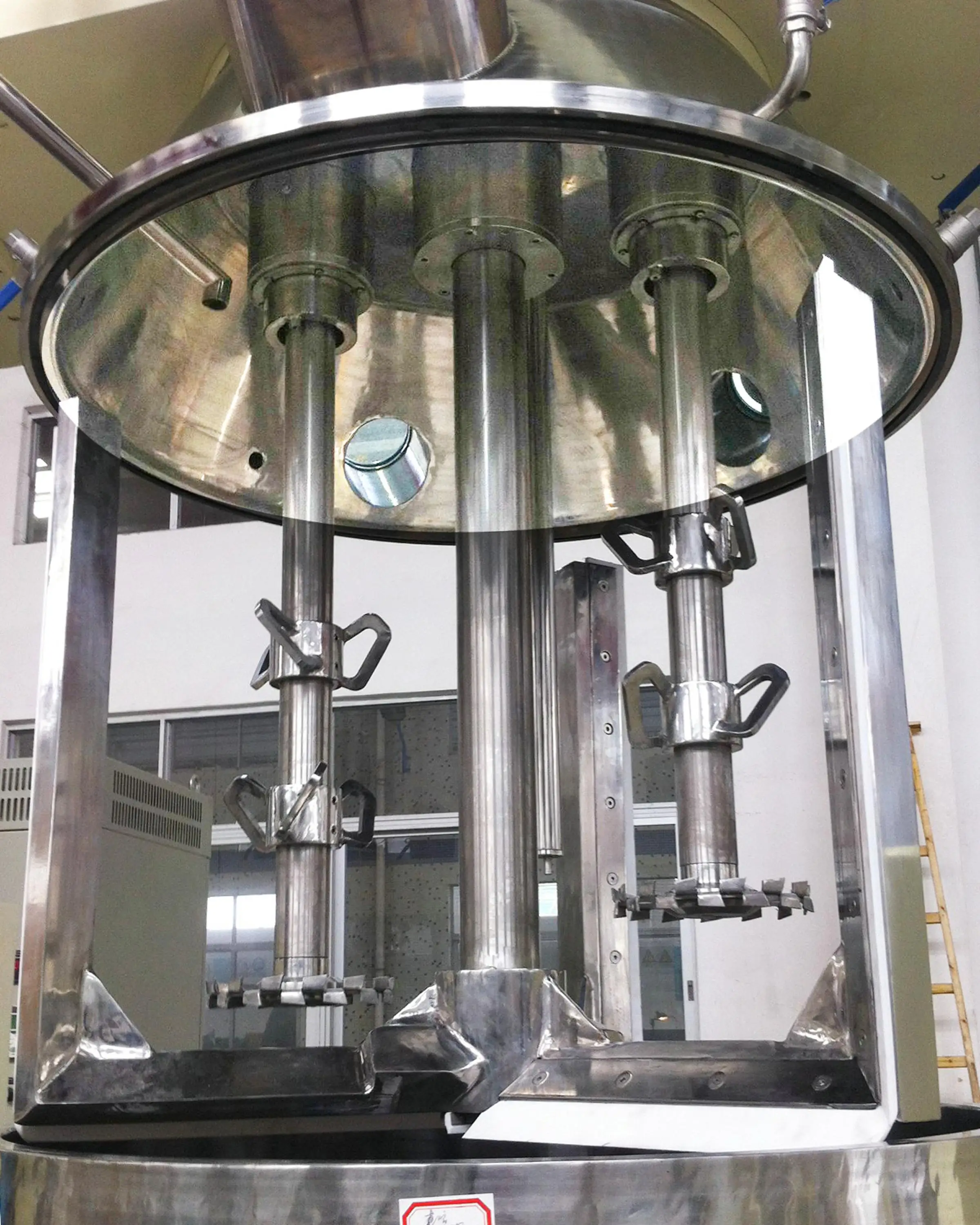

QLF dispersing power mixer is a kind of high-efficiency multifunctional mixer already proved by practice. It can meet the needs of users to quickly change working requirements during operation, and can custom-make various kinds of mixer to meet different viscosity materials on clients’ requirements. Working capacity range from 5L to 3500L, power is designed according to viscosity of materials. It is widely used in silicone sealant, adhesive, cosmetics, chemical products, battery, foodstuff, pharmacy and plastic industries, etc. Dispersing power mixer has 3-4 different stirrers inside of vessel, including one low-speed stirrer revolving around vessel axis, and the other 2-3 high-speed stirrers rotating around its own axis at different high speeds to achieve complicated movement of strong shearing and kneading for materials inside of vessel.
The E-shaped scraper inside the equipment revolves around the vessel axis to scrape the materials adhering to wall and bottom for ideal mixing effects. The equipment is well sealed, can be vacuumized, with excellent exhaust and bubble removal effects. The vessel cover can be hydraulically lifted, and vessel body can move freely for ease of operation.
Model | Nominal Capacity | Vacuum Degree | Vessel type | Discharge mode |
QLF-2.5 | 2.5L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
QLF -5 | 5L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
QLF -10 | 10L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
QLF -20 | 20L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
QLF -50 | 50L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
QLF -100 | 100L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
QLF -200 | 200L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
QLF -300 | 300L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
QLF -500 | 500L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
QLF -1000 | 1000L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
QLF -1500 | 1500L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
QLF -3500 | 3500L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
1 | Vacuum Degree | -0.098MPa |
2 | Structure | Gantry Type(DLHL) |
3 | Rotation Speed r/min | Revolution:0~42r/min,Rotation:0~66r/min( Frequency-converting); High speed:0~980r/min( Frequency-converting). |
4 | Slow Shaft | Two set ribbons, two set bottom scraper and one set wall scraper. |
5 | Fast shaft | Single fast shaft with two Φ250 dispersion disk structure, no hole in the middle of dispersion disk ( or with two above butterfly stirrers ) |
6 | Lifting mode of vessel cover | Hydraulic |
7 | Lifting height of vessel cover | 1200mm |
8 | Mode of Temperature Measurement | Temperature detector fixed on scraper, rotation electric conduction device inside, temperature detector contacting material, it is exact for measurement, the patent no. of this device is Z200520112283.5. |
9 | Location of vessel | Adopt guiding device for pushing and location way of arc plate, lugs structure on the vessel, ensure the middle location. |
10 | Lock of vessel | Mechanical manual lock |
11 | Total Power(KW) | 164kw |
12 | Power Supply | AC:3*380V,50HZ |
13 | Dimension | L2720 W1750 H4480(the higest) |
14 | Weight(kg) | Abt 8500kgs |
Packaging & Shipping
Our Services
Company Information
Established in 2002, Foshan Golden Milky Way Intelligent Equipment Co.,LTD(GMK)covers an area of
19,253squaremeters. Company existing staff 310 people,of which 101 people are technical personnel with
high education background (accounting for 32.58% of total staff), 38 people are whole-time researcher ( accounting for 12.26%of total staff).
GMK company mainly manufacture high-tech intelligent complete sets of equipment, including Silicone
Sealant Continuous Automatic Production Line, HTV Continuous Automatic Production Line, Planetary
dispersing power mixer, Static mixer, Automatic cartridge filling machine, Lithium battery pole
sheet coating machine, Lithium battery pole sheet rolling machine and so on. GMK company
has a good reputation in Fluorosilicone industry, Construction Sealant industry, Solar Power
and Wind Power specialized Sealant industry. Domestic market share in silicone sealant industry
reaches 25%.
GMK company is an innovation based company. It possesses 10 authorized invention patents, 31 authorized
utility patents, copyright of 7 computer software, 1 national key new product and 14 new and high-tech
products of Guangdong province.
Our Company
Our machine tools
Customer List
Countact Us
Похожие товары
Натуральный цитрин желтый хороший цвет граненый драгоценный камень квадратной формы от 3 мм до 6 мм в оптовых ценах онлайн от поставщика

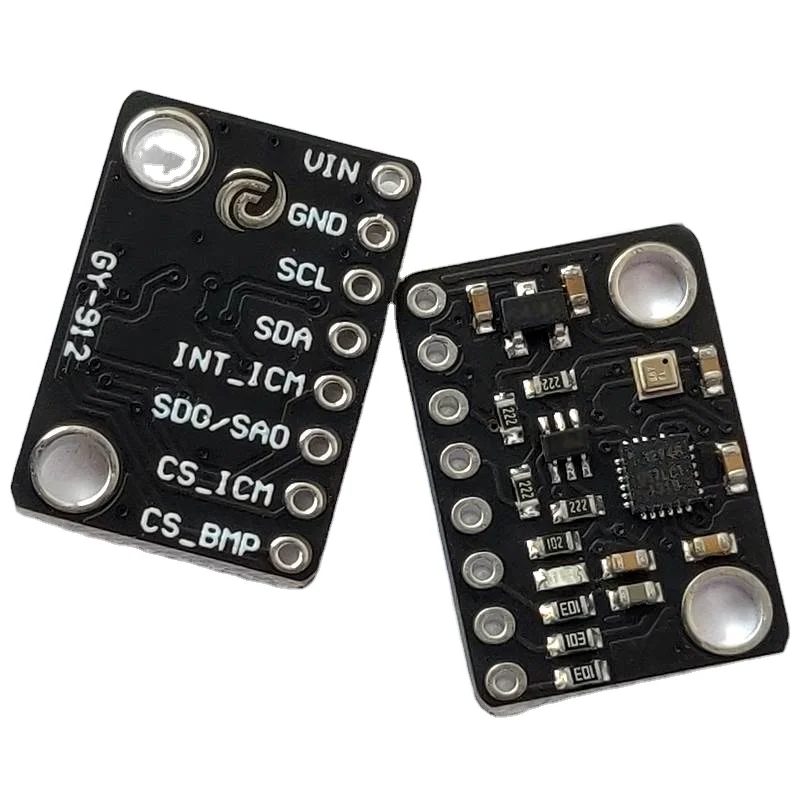

GY-912 ICM20948 10DOF ускорение гироскоп компас Девять ось модуль датчика

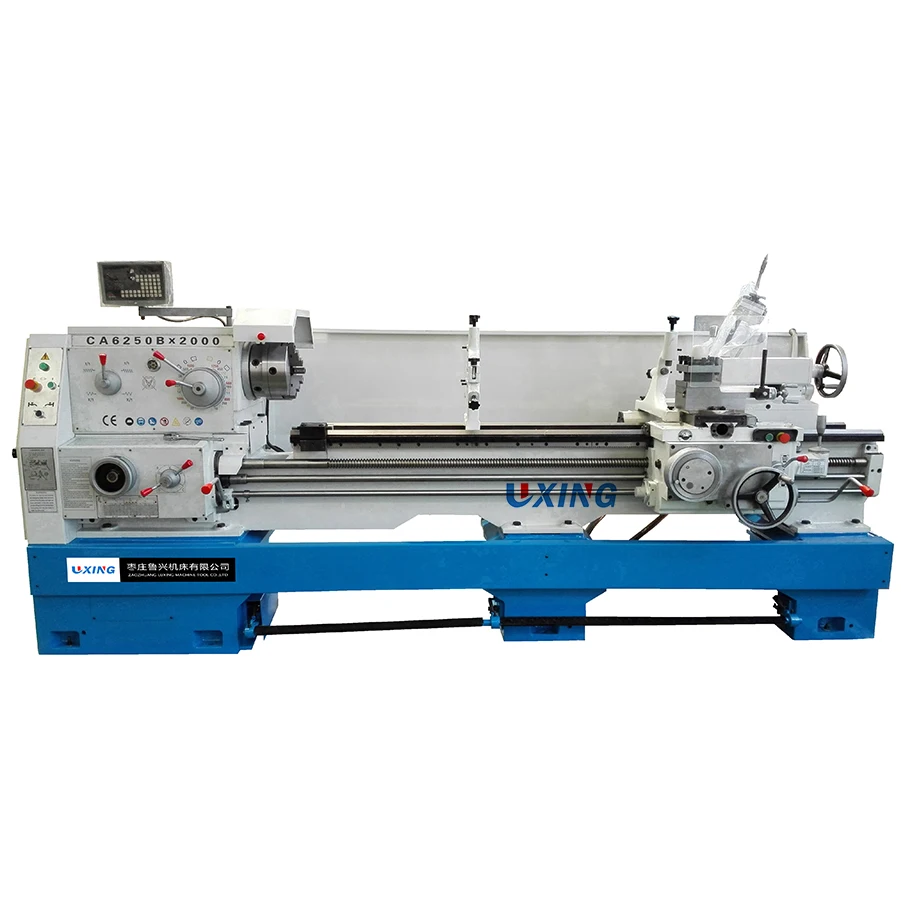

Традиционный токарный станок для металла CA6150 dalian
7 280,00 $ - 8 690,00 $
Деревянный магнит для холодильника, 3D прямоугольный магнит в виде верблюжьего верблюда, ручная работа, сувенир для путешествий, коллекционное украшение
0,15 $ - 0,69 $
В наличии металлические награды футбольной лиги по индивидуальному дизайну для бодибилдинга, награды, Кубок, спортивные медали и награды
3,50 $ - 5,50 $

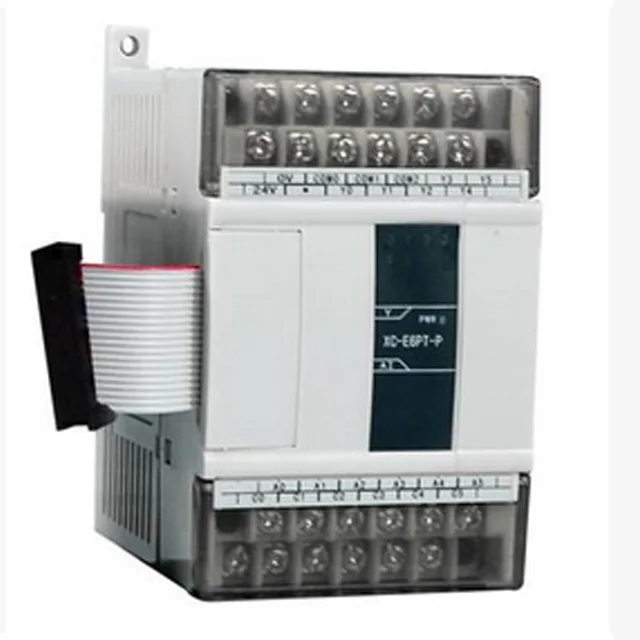

Лидер продаж Новый в коробке xinje plc XD-E32YT-E
101,50 $ - 102,30 $

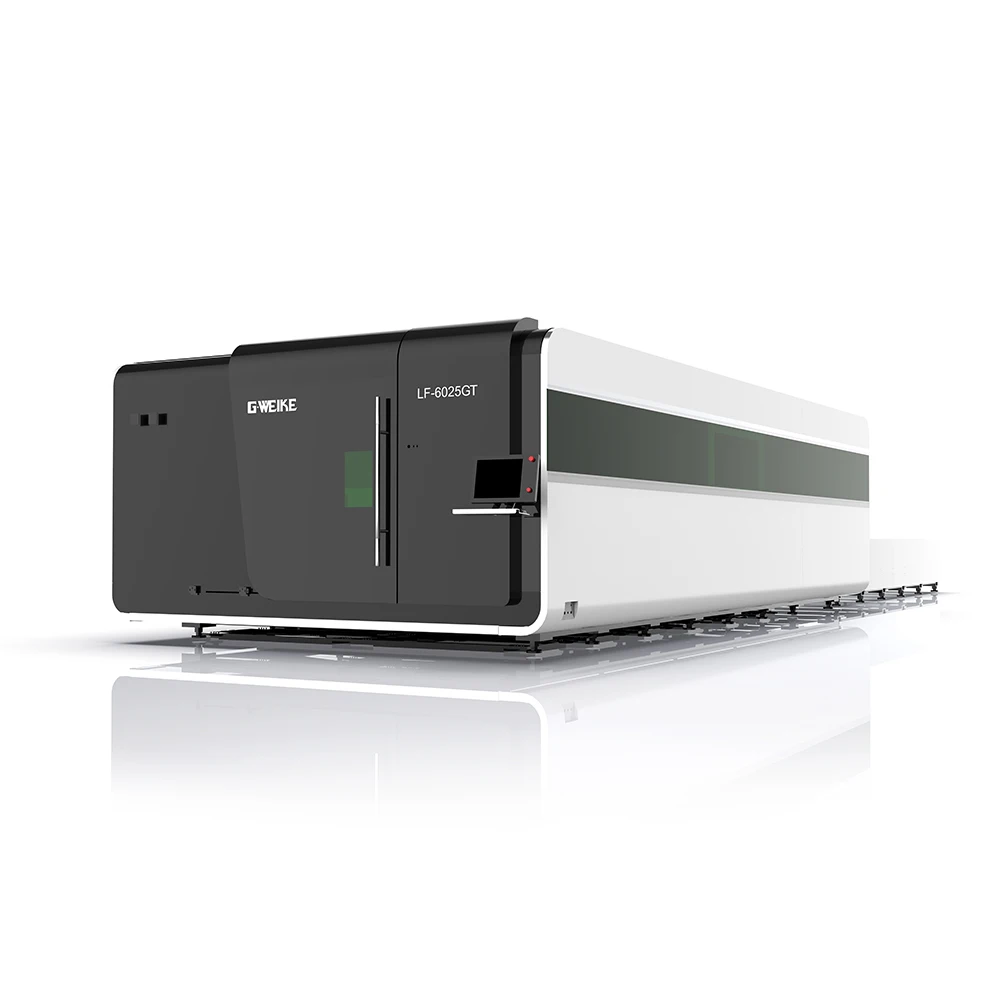

6000 Вт/8000 Вт/12000 Вт 25 мм CS 25 мм SS 20 мм AL LF6025GA волоконно-листовой металлический лазерный станок для резки
