best Skid-mounted Drilling rig/ oil rig drilling machine

Baoshen Group Petroleum Machinery Manufacture Co.,Ltd currently designs and manufactures electrical, mechanical and electromechanical rig from 2000-7000 meters. Our company also produces various types of pumping unit.

We can matufacture all type of drilling rig from 2000m-9000m, different configurations and styles, including Digital control VF rig,Mechanical cold weather rig, Electromechanical Rig ,DC rig,mechanical rig ,trailer drilling rig.techonlogy from USA.

Spare parts

china factory prices

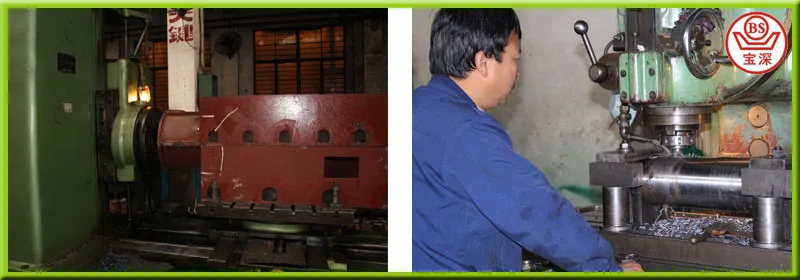

The world's top level of the manufacturing process

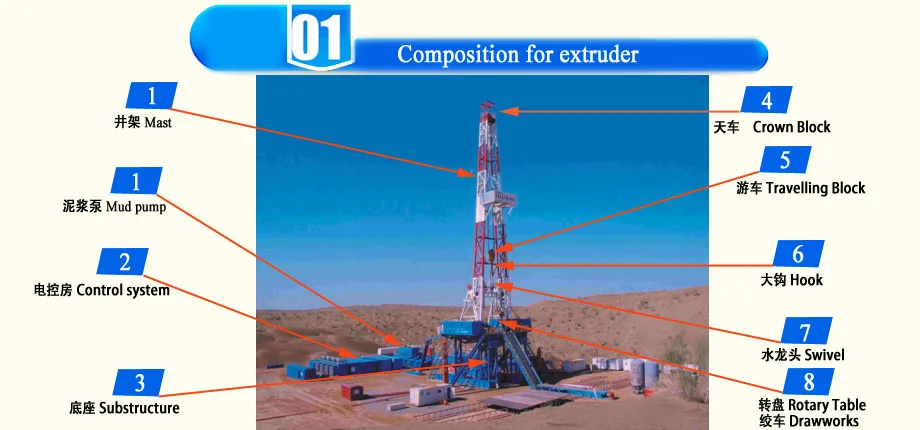

Components

Different capacity for you choosing:

Rig Model		ZJ20DBS	ZJ30DBS	ZJ40DBS	ZJ50DBS	ZJ70DBS
Nominal drilling depth, 127mm(5)DP, m		2000	3000	4000	5000	7000
Max. hook load, kN(t)		1350(135)	1700(170)	2250(225)	3150(315)	4500(450)
Drill line number		8	10	10	12	12
Dia. of wireline, mm		29	29	32	35	38
Max. pull of fastline, kN		200	200	275	350	487
Drawworks	Model	JC-20DB	JC-30DB	JC-40DB	JC-50DB	JC-70DB
	Rated power, kW(hP)	400(500)	450(600)	900(1200)	1200(1600)	1940(2600)
	Gears	one gear, stepless speed regulating
Brake		hydraulic disk brake + dynamic brake
Brake		EATON brake + dynamic brake
Crown block		TC135	TC170	TC225	TC315	TC450

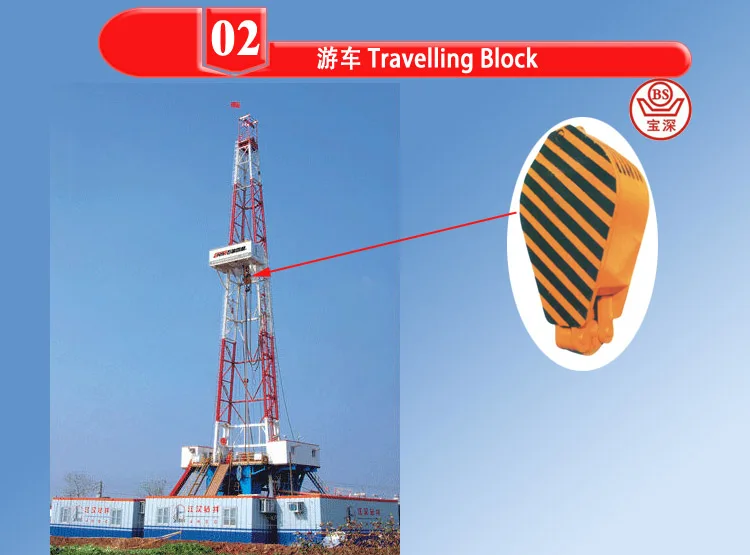

Traveling block		YG135	YC170	YC225	YC315	YC450
OD of sheaves of hoisting system, mm			1005	1120	1270	1524
Hook		YG135	YG170	DG225 or DG250	DG315	DG450
Swivel	Model	SL-135	SL-170	SL-225	SL-450	SL-450
Swivel	Dia. of stem bore	75	75	75	75	75
Rotary table	Opening dia. mm(in)	444.5(17 1/2)	520(20 1/2)	698.5(27 1/2)	952.5(37 1/2)	952.5(37 1/2)
	Gears	one gear, stepless speed regulating
	Drive mode	independent motor drive
Derrick (mast)	Type	K or telescoping	K or A	K	K	K
	Height, m	31 or 39	41	43	45	45
	Max. load, kN(lbs)	900	1700	2250	3150	4500
Substructure	Type	box on box, or telescoping		dual-lifting	dual-lifting or swing up
	Drillfloor height	3.8 or 4.5	5 or 5.5	7.5	9	10.5
	Clearance height under rotary beam, m	2.6 or 3.3	3.8 or 4.3	6	7.6	9
Mud pump	Model×number	F800×1	F1000×2	F1300×2	F-1600×2	F-1600×3
Mud pump	Drive mode	electric drive			electric drive
Electric control mode		AC-DC-ACone to one
