  Free Static Pressure Duct VRV X Daikin air conditioner


Central multi split commercial air conditioning system for large-sized buildings











Daikin VRV X air con duct split unit Free Static Pressure
1. up to 200Pa ESP
2. total 14 types pressure freely adjust
3. 700mm pump


3. DC inverter, R410a

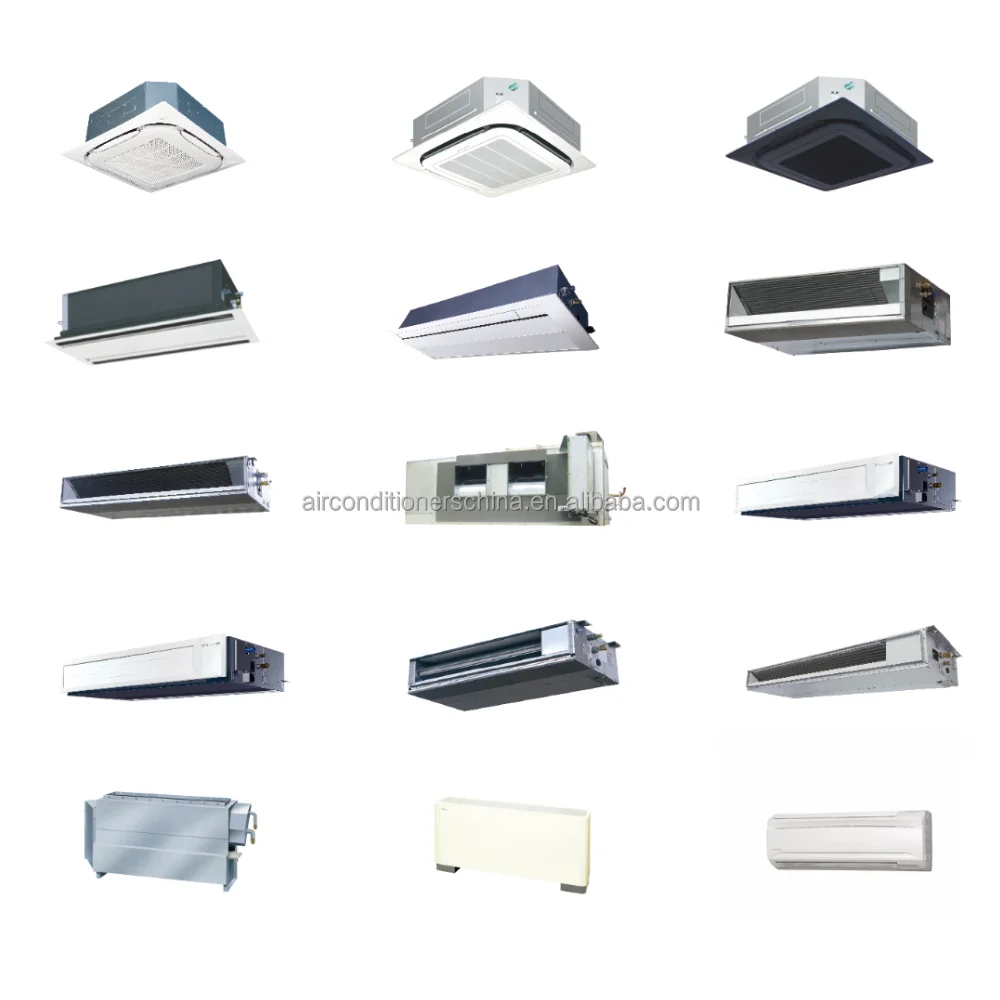

Indoor lineup (Daikin VRV X air conditioner)


 2013-10-24 07.34.24.jpg

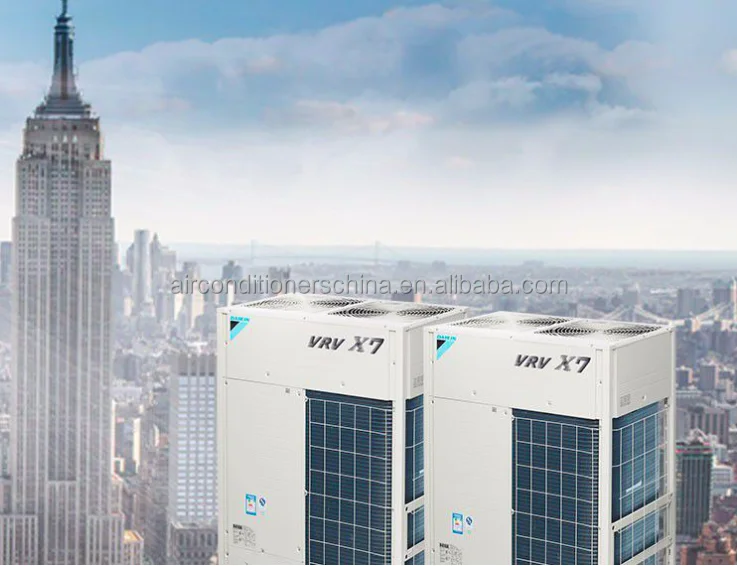

Daikin VRV X Outdoor Units Combination





The biggest Single installation outdoor cooling capacity from: 8HP(22.4KW) to 22HP(61.5Kw)





Two combination outdoor units cooling capacity from: 24HP(67Kw) to 46HP(128.9KW)





Three combination outdoor units cooling capacity from: 48HP(134.5Kw) to 66HP(184.5KW)


 2014-01-20 08.53.20.jpg





FAQ


Daikin VRV X air conditioner introduction:





Daikin is using the latest and most revolutionary technologies in the development of the VRV-X air conditioner system, which is for large-sized buildings.


This central air conditioning system provides outdoor units that extend air conditioning capacity up to 66 HP.


The VRV X series provide the power and versatility you need for flexible design and easy installation in large-sized buildings.


 2013-10-24 05.13.20.jpg





Outstanding features (Daikin VRV X air conditioner):



  • Energy saving, IPLV 6.60

  • Wide range of outdoor and indoor units, 14 series indoor units, up to 119 types capacity

  • 3D air flow, Navi function

  • Longer actual and total refrigerant piping lengths, 1000m total lengths

  • Extended operation range

  • High external static pressure, up to 81 Pa

  • one module up to 22HP, install space only 0.95 m2, one system up to 66HP, save 28% installation space








Key Features (Daikin VRV X air conditioner):





1. High efficiency Heat Exchanger DC Inverter R410





2. External Static Pressure (ESP)





The additional ESP (81Pa) provides far more flexibility when designing condensing units in plant room applications. No additional components are requiredto extend the fan performance.





ESP up to 81 Pa.jpg








3. Advanced Defrost Cycle Operation in Heating





Superior Heating Comfort thanks to the newly adopted continuous heating during defrost function, cold draft discharge from the indoor unit during defrost is eliminated. Therefore, heating comfort is improved and better maintained.





Each heat exchanger is defrosted by using heat transferred from one heat exchanger to the other in the outdoor unit.


 2013-10-24 01.34.32.jpg








If you have any inquiry for Free Static Pressure Duct VRV X Daikin air conditioner, pls. let us know freely !
