Company Information

1. Realtop has more than 10 years experience on manufacturing Pipe Jacking Machinery(TBM),

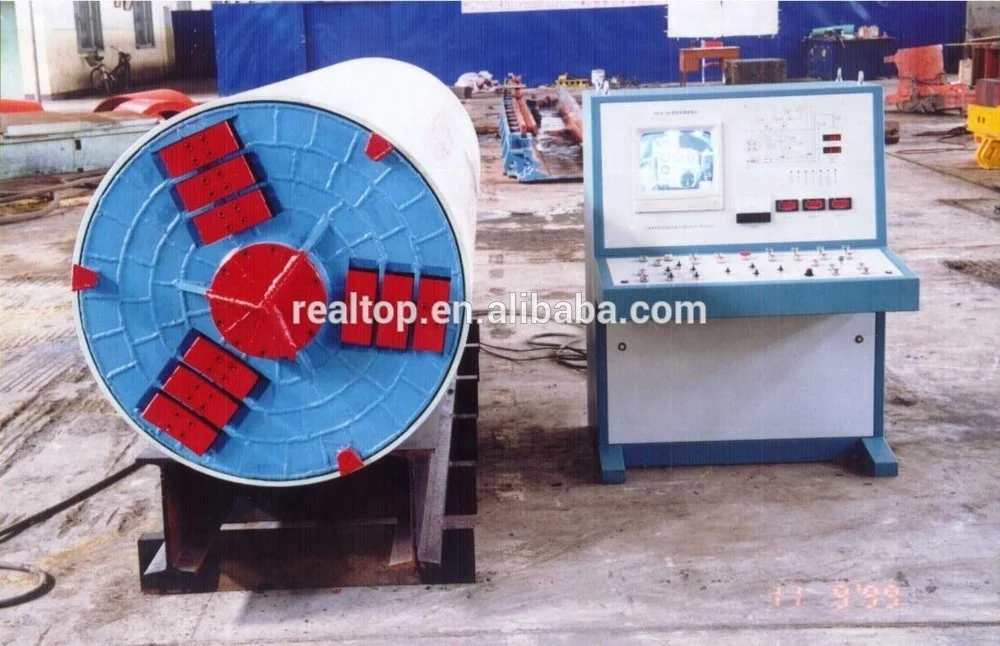

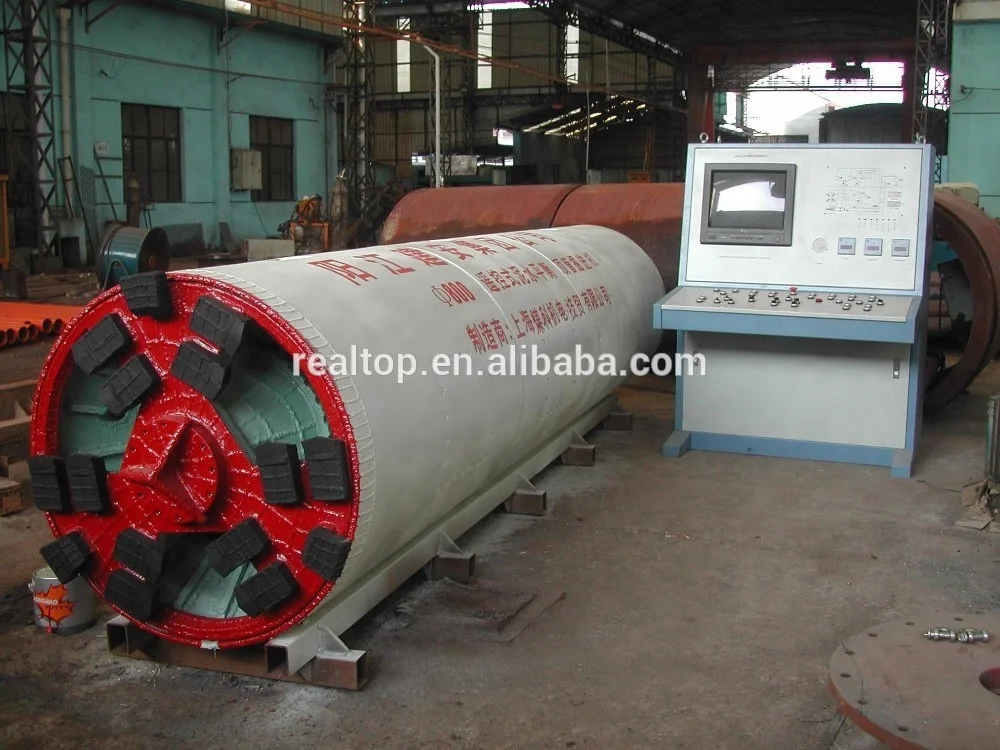

2. Remote-controlled Slurry Balance microtunneling machine for sale is a new advanced non-digging-equipment with high technology.

3. It combines multi-disciplinary technologies in one, such as the machinery units, hydraulic system, electric controller (including PLC), Laser system, measuring device, etc, curve jacking;

4. Besides the high efficiency, it also has effect on the traffics on surface. Furthermore, it is good for the environment, and can lower the cost of the construction.

5. Projects in Singapore,Thailand,Hongkong,etc.. Export to Singapore from 10years ago;

Our Services

1. On site service support;

Product Description

we could supply microtunneling machine for sale model from ID from 250mm to 5000mm, customer-built size ok, not only for round shape and rectangle shape.

Two hot models for your reference: DG600 and DG1200

Models& Parameters		DG600-QNP
Dimention	Inner diameter (mm)	600
	Outer diameter (mm)	780
	Total Length (mm)	3800
Main drive	Rated Power (kW)	18.5
	Max. torque (kN·m)	29
	Revolution (r/min)	6.14
Steering	Steering cylinders	4
	Force per cyl. / oil pressure (kN)	375
	Stroke per cyl. (mm)	35
	Steering angle (°)	±2
Inside hydraulic system	Rated power (kW)	1.1
Inside hydraulic system	working pressure (MPa)	25
Slurry system	Rated Power of Water Supply Pump (kW)	18.5
	Rated Power of slurry-out Pump (kW)	30
	Side-Slurry line diam.	80
Main Jacking system	Rated Jacking Speed mm/min	0--100

Model Name		DG1200-QNP
Dimensions	Inner Diameter (mm)	1,200
	Outer Diameter (mm)	1,470
	Total Length (mm)	3800
Cutting Part	Motor Power (kW)	37
	Cutterhead Torque (kN·m)	67
	Cutterhead Rotating Speed (r/min)	0-5.25
	Timing Way	VVVF
Oil Cylinder of Rectifying	Quantity	4
	Thrust Force (kN)	800
	Stroke (mm)	60
	Rectifying Angle (°)	±2
Hydraulic System	Motor Power (kW)	1.5
Hydraulic System	Working Pressure (MPa)	25
Slurry In & Out System	Water-in Gravel Pump(kW)	22
	Slurry-out Gravel Pump(kW)	37
	Timing Way	VVVF
Main Jacking System	Jacking Speed (mm/min)	0~80
	Rated Pressure (MPa)	31.5
	Rated Jacking Force (kN·m)	2,000 *6
	Main Pump Power (kW)	22
	Vice Pump Power (kW)	15
	Timing Way	VVVF
