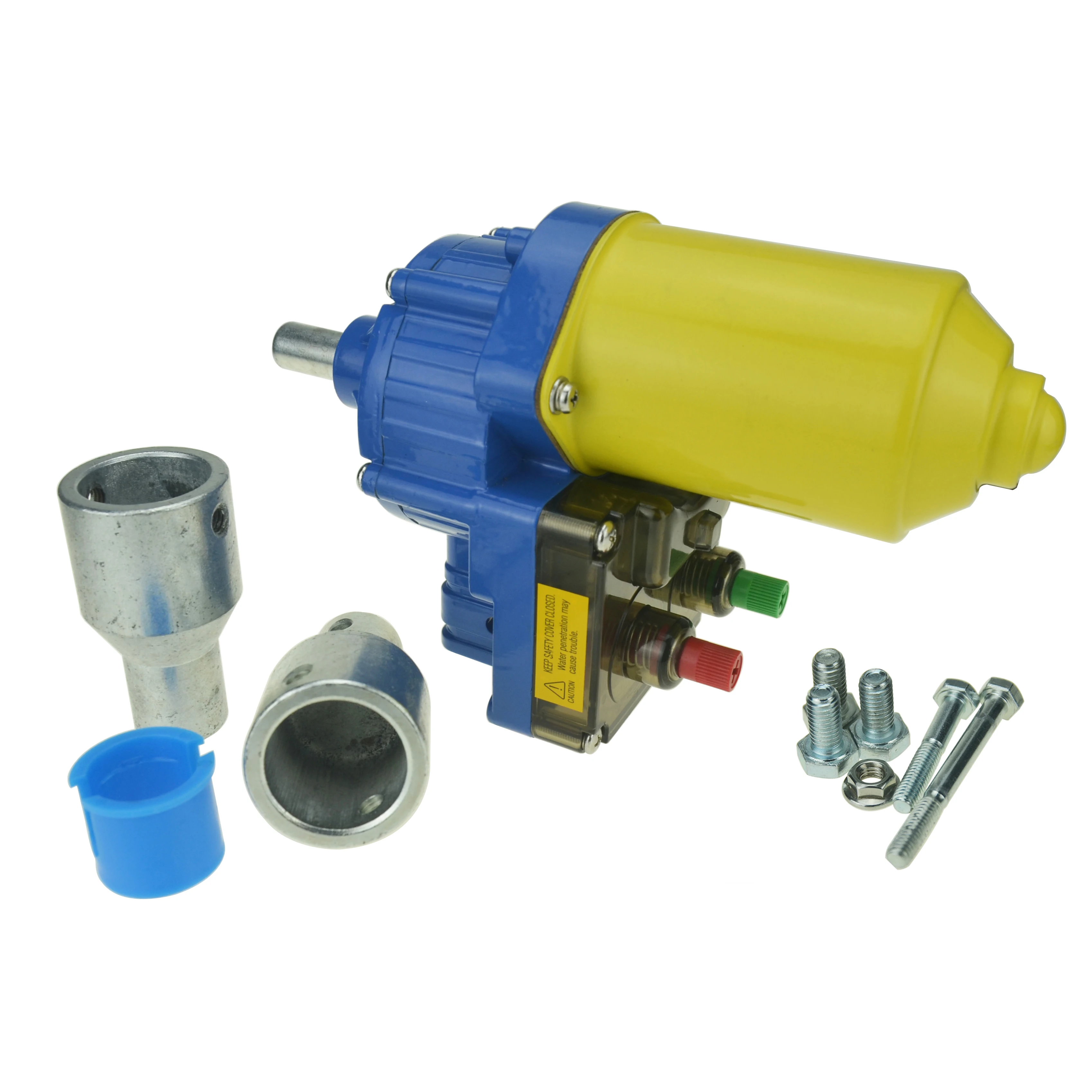

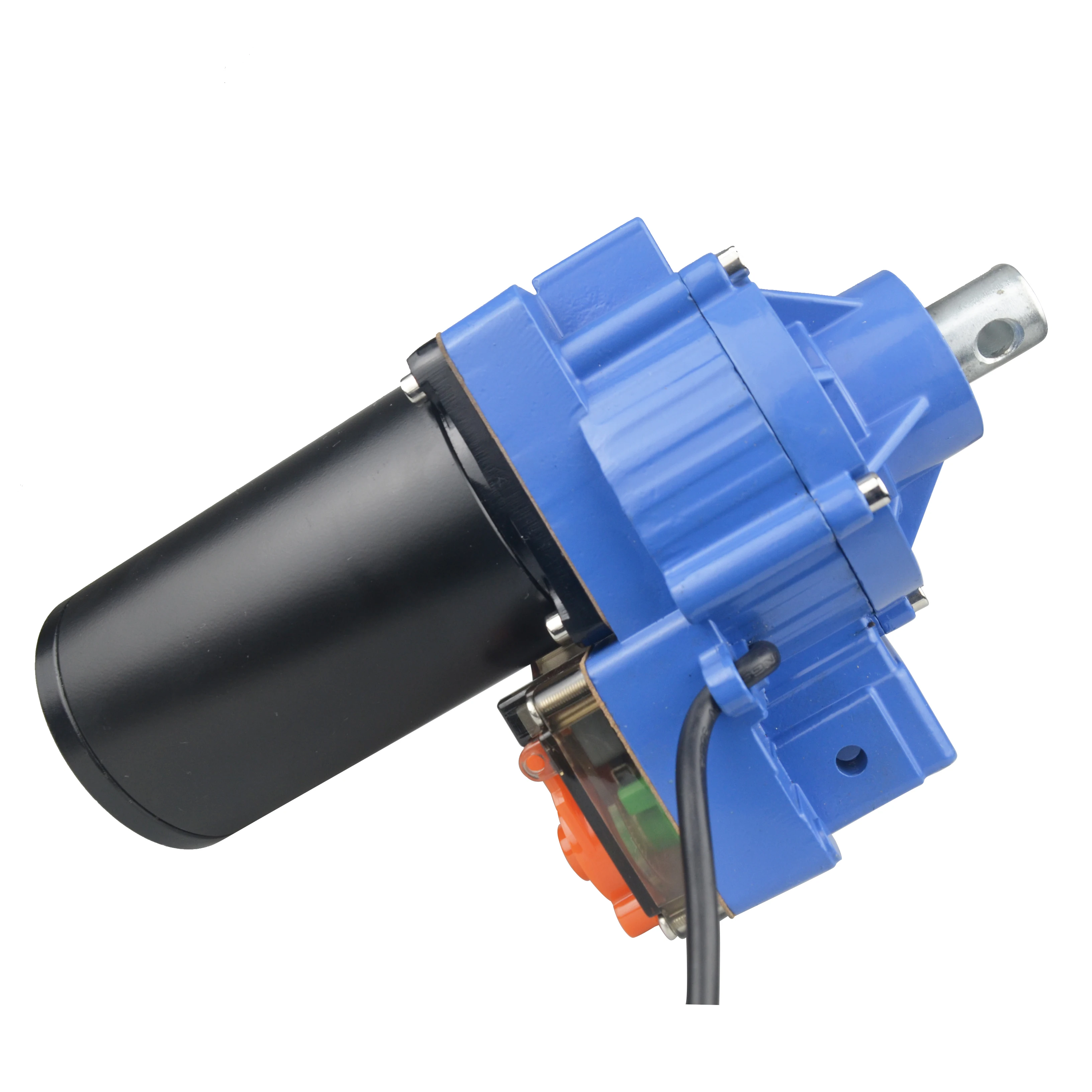

Maxpower Greenhouse Roll Up Motor




Products Description






1. Our electric roll up motors use DC24V DC safety voltage, after using our control box to transform the voltage, avoid electric shock accidents.
2. The internal gear adopts a combination of helical gears and planetary gears, which has high transmission efficiency. After the key gears are made of special steel, they are carburized and heat treated to achieve high surface hardness and more wear resistance.
3. It adopts double ring gear and planetary gear self-locking, it will not automatically slip off when stopped.

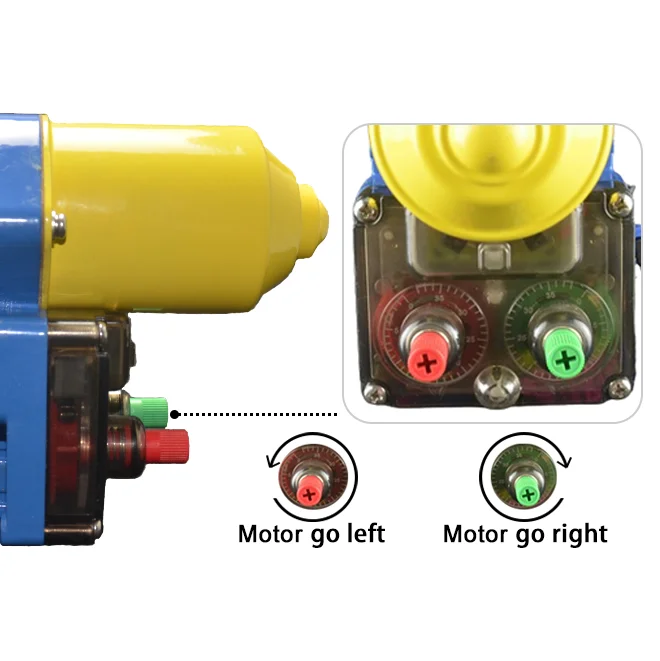

4. It is convenient to adjust the limit position of the line scale without the assistance of other tools, which is conducive to high-altitude operation, and is equipped with indicator lights to facilitate the confirmation of the power supply status and the running status.
5. Use rubber cork gaskets to prevent aging and effectively prevent rainwater from infiltrating.




Model
 Voltage
Power
Amps
Rotate speed
Torque
Max
rotations

Roll pipe size
MP-4027
DC24V
62w
2.5A
3.8rpm
35N.m
30r
22mm/25mm
MP-6040
DC24V

80w
3.5A
3.8rpm
60N.m
40r
22mm/25mm/
32mm
MP-8040
DC24V
AC220V
100w
3.0A
2.8rpm
80N.m
40r
22mm/25mm/
32mm
MP-10060
DC24V
130w
5.0A
2.8rpm
130N.m
60r
22mm/25mm/
32mm
MP-18060
DC24V
200w
8.5A
3.4rpm
180N.m
60r
32mm









Power supplies for various usage needs

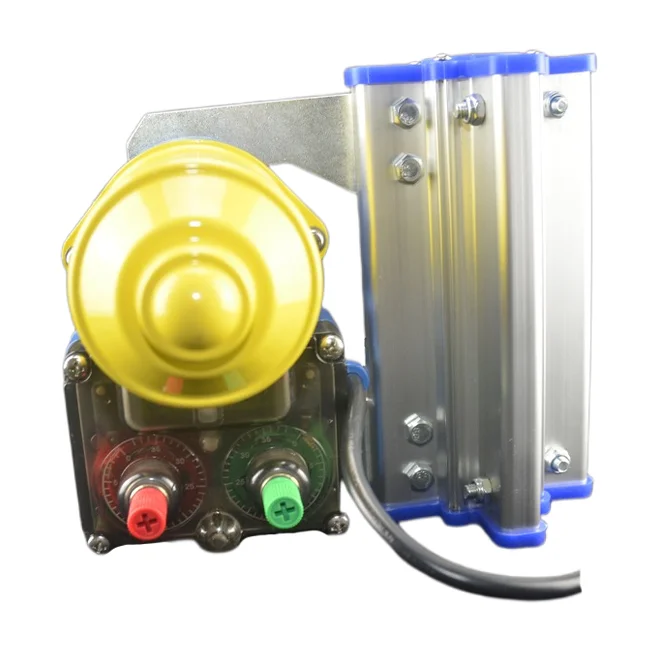

Connected to climbing device










Climbing device
Power source
(one for one motor)
Power source
(one for two motors)


Control box
Timer controller
Manual film roll up unit
