Цена 750 gpm дизельный пожарный насос портативный сельскохозяйственный двигатель одноступенчатый
118 608,50-177 912,75 ₽
EDJ высокого давления ранчо противопожарное оборудование системы водяные насосы пожаротушения
- Категория: >>>
- Поставщик: Quzhou Zhongyi Chemicals Co. Ltd.Quzhou Ltd.
Сохранить в закладки 1700000415843:
Описание и отзывы
Характеристики
Product Description

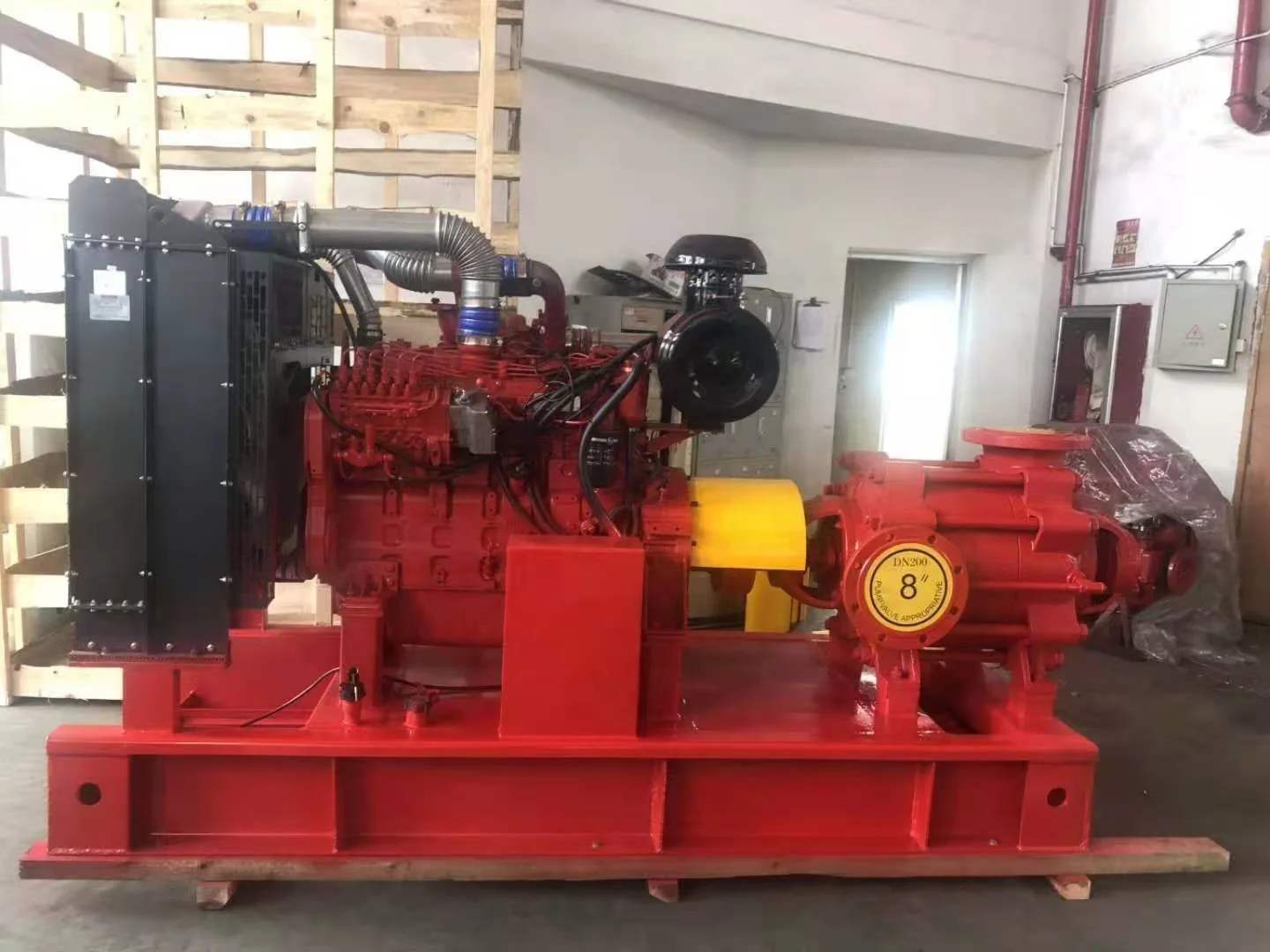

XBC series diesel engine fre-fighting pump group is a new-style fire-fighting equipment ("equipment" thereafter) developed by this Co. in accordance with GB624S-98《Performance requiement and testing method of fire-fighting pump sand NEPA20 《Installation of centrifugal fire-fighting pumps》etc .standards and, upon the fitted fire-fighting pumps (single-stage single-suction type, single-stage dual*suction type and sectionalnultitagetype)canbe divided hto SBC-IS, XBC-SIOW and XBC-D there。sub-series. The equipment has a wide range of ptessure and temperature and can be used hr almost every occasion necessary for fire-fighting.The diesel engine fitted with the equipment is an exetfent product domestic or imported«features good starting performance. strong overload capacity, compact structure, easy maintenance and use and high degree of automation The equipment is really a fire-fighting one advanced and reiable in performance.
Related diesel engines are classical domestic or imported ones, which have features of stable starting, high capacity compact structure, easy maintenance and high automation, thus, they are fire-protection equipments with advanced and dependable performance.
Item | Diesel Engine Fire pump |
Material | Cast Iron |
Medium | Clear Water |
Flow | customization |
Head | customization |
Speed | 1480/2200rpm |
Type | horizontal |
Usage: | Fire fighting, irrigation |
Power | 20~450kW |
Package | International Standard Plywood Case |
Start, stop and run
1. Start up: first, confirm that the direction of the fire pump should be correct. Before the water free start of the pipe network, the inlet valve is normally open and the outlet valve is normally closed. Start the fire pump after there is no mistake, and gradually open the outlet valve when the fire pump operates stably and adjust it to the operating point of the pump. The outlet valve is normally open when there is water in the pipe network.
2. Operation: when the fire pump turns to normal operation, check the shaft seal and observe the operation of the bearing. The leakage of mechanical seal shall not exceed 3 drops per minute, and the leakage of packing seal shall be drop by drop. The bearing temperature shall not exceed 75 ℃, and the temperature rise shall not exceed 35 ℃. If there is any abnormal response during the operation of the fire pump, stop the inspection.
3. Generally, close the outlet valve of the pump unit before stopping the pump, and then stop the diesel engine.
2. Operation: when the fire pump turns to normal operation, check the shaft seal and observe the operation of the bearing. The leakage of mechanical seal shall not exceed 3 drops per minute, and the leakage of packing seal shall be drop by drop. The bearing temperature shall not exceed 75 ℃, and the temperature rise shall not exceed 35 ℃. If there is any abnormal response during the operation of the fire pump, stop the inspection.
3. Generally, close the outlet valve of the pump unit before stopping the pump, and then stop the diesel engine.
Packing&Shipping
All of the pumps/controler panel/accessories are packaged by plywood case, to protect the goods from damaged in transit.
Company Introduction
Quzhou Zhongyi Chemicals Co., Ltd. was founded in 2004. We are locate in HangBu development zone,\u2029Quzhou, Zhejiang, with convenient transportation access, covering an area of 20000 square meters, for 15000\u2029square meters workshop. It combines the functions of professional design, development, manufacture and sale\u2029of general fluid equipment of high-tech enterprise. It has established the technology cooperation with overseas\u2029famous companies such as Hyundai Pump Corp, of Korea, Sitian Corp, of Japan etc. introduced the advanced\u2029design, development and management mode, and long emptoyed foreign expert as the instructor. The products\u2029enjoy the competitive force in gtobal market Better Pump has established many sales distributions and agencies\u2029in the major provinces in China. Through attending a variety of large scale exhibition, we have developed a broader\u2029market We are looking forward to forming successful business relationships with new clients around the world\u2029in the near future.
