Product Description

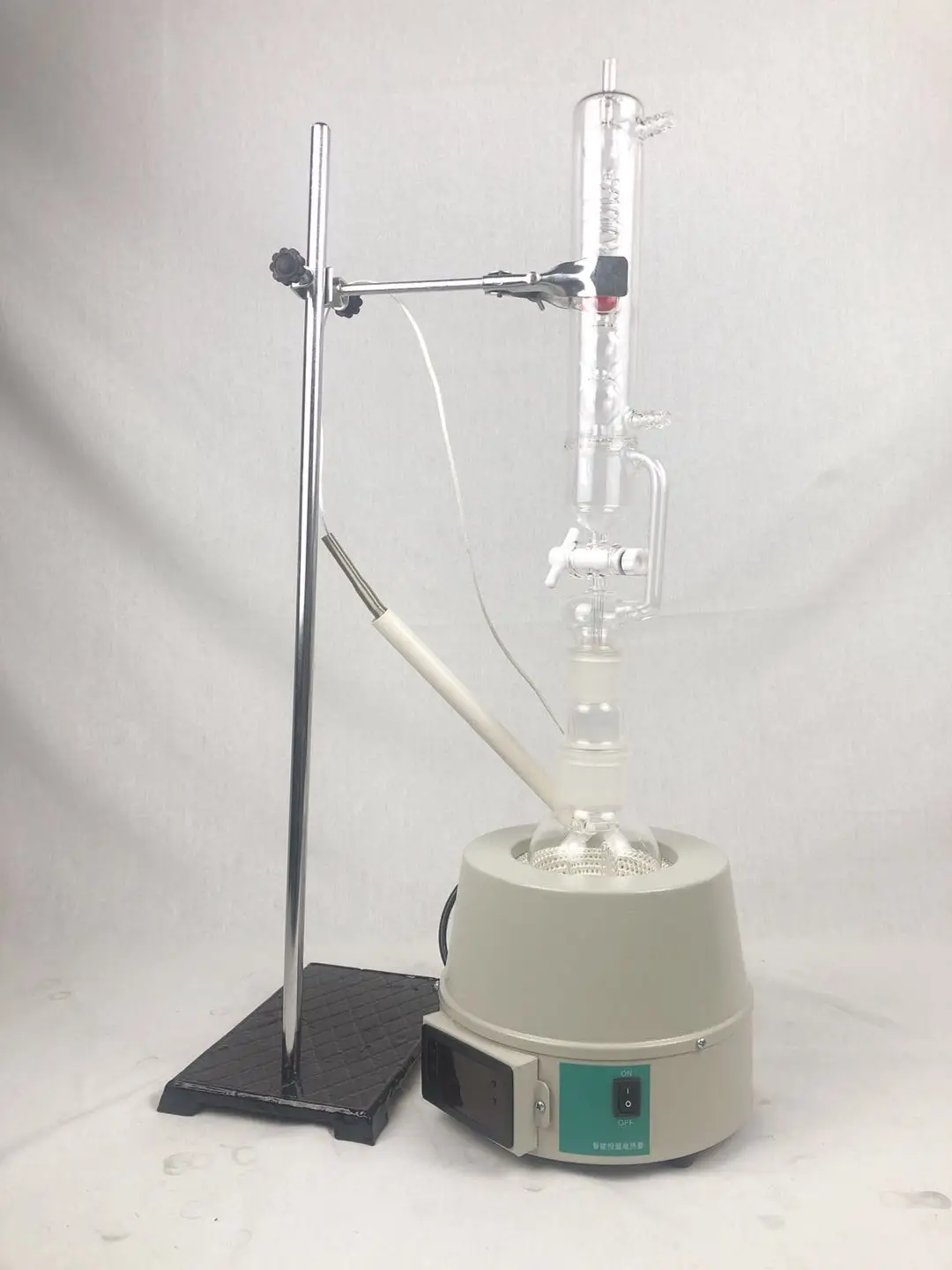

AYXT-250S Professional laboratory soxhlet extractor supplier
We can offer high quality soxhlet extractor laboratory equipment, soxhlet extractor apparatus with high accuracy, doing soxhlet extractor test for your best choice.Fat Analyzer is base on the Soxhlet extraction principle and integrates functions: soaking, extraction, leaching, heating,
condensation and solvent recovery.
condensation and solvent recovery.
The single fat extractor is composed of extraction bottle, extraction tube and condenser. There are siphon and connecting tube on both sides of the extraction tube, and the connection of each part shall be tight without air leakage. The conventional method is to extract compounds from solid substances. One method is to use solvent to soak the solid for a long time and extract the required substances, that is, long-term leaching. This method takes a long time. Large amount of solvent and low efficiency.
Application Fields:
Determination of fat content in pastry, moon cake, cashew nuts, soybean protein powder, margarine, metal iron powder, grain, etc
Determination of fat content in pastry, moon cake, cashew nuts, soybean protein powder, margarine, metal iron powder, grain, etc
Main Features
The single unit fat extractor is based on the principle of solvent reflux and siphon, so that the solid matter is continuously extracted by pure solvent, which not only saves solvent, but also has high extraction efficiency. Before extraction, the solid materials are ground to increase the solid-liquid contact area. Then, the solid matter is placed in the filter paper sleeve and placed in the extractor. The lower end of the extractor is connected with the round bottom flask containing the solvent, and the upper end is connected with the reflux condensation pipe. Heat the round bottom flask to make the solvent boil, the vapor rises through the branch pipe of the extractor, and drops into the extractor after being condensed. The solvent and the solid contact for extraction. When the solvent surface exceeds the highest part of the siphon, the solvent containing the extract siphons back to the flask, so as to extract a part of the substance, so that the solid substance is continuously extracted by pure solvent, and the extracted substance is enriched in the flask In the bottle. The purpose of liquid-solid extraction is to achieve the purpose of extraction and separation by using the solvent with high solubility to the components needed in the solid mixture and low solubility to the impurities.
Specification
Name | Flask Volume | Extraction tube diameter | extraction tube length | Siphon length | Condenser length |
Sphercial Soxhlet Extractor | 60ml | 33mm | 150mm | 60mm | 200mm |
125ml | 33mm | 160mm | 70mm | 210mm | |
150ml | 33mm | 170mm | 80mm | 220mm | |
250ml | 40mm | 190mm | 90mm | 240mm | |
500ml | 50mm | 230mm | 110mm | 270mm | |
1000ml | 55mm | 250mm | 150mm | 300mm | |
2000ml | 100mm | 300mm | 200mm | 400mm | |
Serpentine Soxhlet Extractor | 60ml | 33mm | 150mm | 60mm | 200mm |
125ml | 33mm | 160mm | 70mm | 210mm | |
150ml | 33mm | 170mm | 80mm | 220mm | |
250ml | 40mm | 190mm | 90mm | 240mm | |
500ml | 50mm | 230mm | 110mm | 270mm | |
1000ml | 55mm | 250mm | 150mm | 300mm | |
2000ml | 100mm | 300mm | 200mm | 400mm |
Model | Part Name | Specifications | Quantity |
AYXT-250S | Fat Extractor | Snake shaped condenser tube, extraction tube, extraction bottle 250ml | Each with 1 piece |
Electric heating insulation sleeve | 250ml (optional water bath) | 1 piece | |
Iron frame platform (with stainless steel rod) | Medium size | 1 piece | |
Universal clamp/flask clamp | Medium size | 2 pcs | |
Cross clamp | Larger size | 2 pcs | |
Fat extractor | Snake shaped condenser tube, extraction tube, extraction bottle 500ml | Each with 1 piece | |
Electric heating insulation sleeve | 500ml (optional water bath) | 1 piece | |
Iron frame platform (with stainless steel rod) | Medium size | 1 piece | |
Universal clamp/flask clamp | Medium size | 2 pcs | |
Cross clamp | Larger size | 2 pcs | |
Packing & Delivery
Packing and Shipping:
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides, you can choose to use your own shipping agent.
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides, you can choose to use your own shipping agent.
Company Profie
Hangzhou Anyan Instrument Manufacturing Co., Ltd. Is located in Yuhang District, Hangzhou city. It’s a professional manufacturer focusing on R&D, production, sales and service of lab equipments. More than 90% of the company’s R&D personnel are senior experts engaged in scientific research instrument industry for many years. Strong technical force greatly ensure the quality of our products and technical support service. The company’s main products are Molecular distillation equipment, Thin film evaporator, Fully-closed nitrogen blowing instrument, Nitrogen generator, Constant temperature thawing instrument, Low temperature spray dryer, Solid phase extractor, Fat analyzer, Soxhlet extractor and so on.
Anyan products are CE certified, and strictly implementing ISO9001-2000 quality control system instructions in the whole procedure of R&D and production. Currently, we have established long-term cooperation with many domestic university laboratories, well-known hospitals, Pharmaceutical companies, Food processing plants, Chemical plants and etc., sales channel cover over 30 provinces and autonomous regions in China, and has been exported to Europe, America, Oceania, the Middle East, Southeast Asia and other Countries and Regions. The products are well received by customers.
Anyan products are CE certified, and strictly implementing ISO9001-2000 quality control system instructions in the whole procedure of R&D and production. Currently, we have established long-term cooperation with many domestic university laboratories, well-known hospitals, Pharmaceutical companies, Food processing plants, Chemical plants and etc., sales channel cover over 30 provinces and autonomous regions in China, and has been exported to Europe, America, Oceania, the Middle East, Southeast Asia and other Countries and Regions. The products are well received by customers.
FAQ
1.Q: Are you a trading company or manufacturer?
A: We are a professional manufacturer of apparatus for laboratory and pilot plants. We can customize according to clients' requirements.
2.Q: Where is your factory?
A: Our factory located in Hangzhou City, Zhejiang Province.
3.Q: How long is your delivery time?
A: Generally our delivery time is within 15 working days. Ayan occupies a 2000 M2 production base, is able to guarantee our quality and fast delivery to users. Genuine products are assured by factory direct sales.
4.Q: What are your MOQ and your payment term?
A: Our MOQ is 1 set. While the value is less than 10,000USD, 100% prepayment. While the value more than 10,000 USD, 50% T/T in advance, balance before shipping.
5.Q: What is your package?
A: Sufficient inner protection with different materials, including bubble bag, foam board and foam grain. Then pack into plywood boxes or cartons for different products.
6.Q: How to install the apparatus and how to operate?
A: All of our apparatus are designed by simplicity assembly. The critical parts will be fixed in our plant and the whole equipment is debugged and tested before transportation.
2.Q: Where is your factory?
A: Our factory located in Hangzhou City, Zhejiang Province.
3.Q: How long is your delivery time?
A: Generally our delivery time is within 15 working days. Ayan occupies a 2000 M2 production base, is able to guarantee our quality and fast delivery to users. Genuine products are assured by factory direct sales.
4.Q: What are your MOQ and your payment term?
A: Our MOQ is 1 set. While the value is less than 10,000USD, 100% prepayment. While the value more than 10,000 USD, 50% T/T in advance, balance before shipping.
5.Q: What is your package?
A: Sufficient inner protection with different materials, including bubble bag, foam board and foam grain. Then pack into plywood boxes or cartons for different products.
6.Q: How to install the apparatus and how to operate?
A: All of our apparatus are designed by simplicity assembly. The critical parts will be fixed in our plant and the whole equipment is debugged and tested before transportation.
