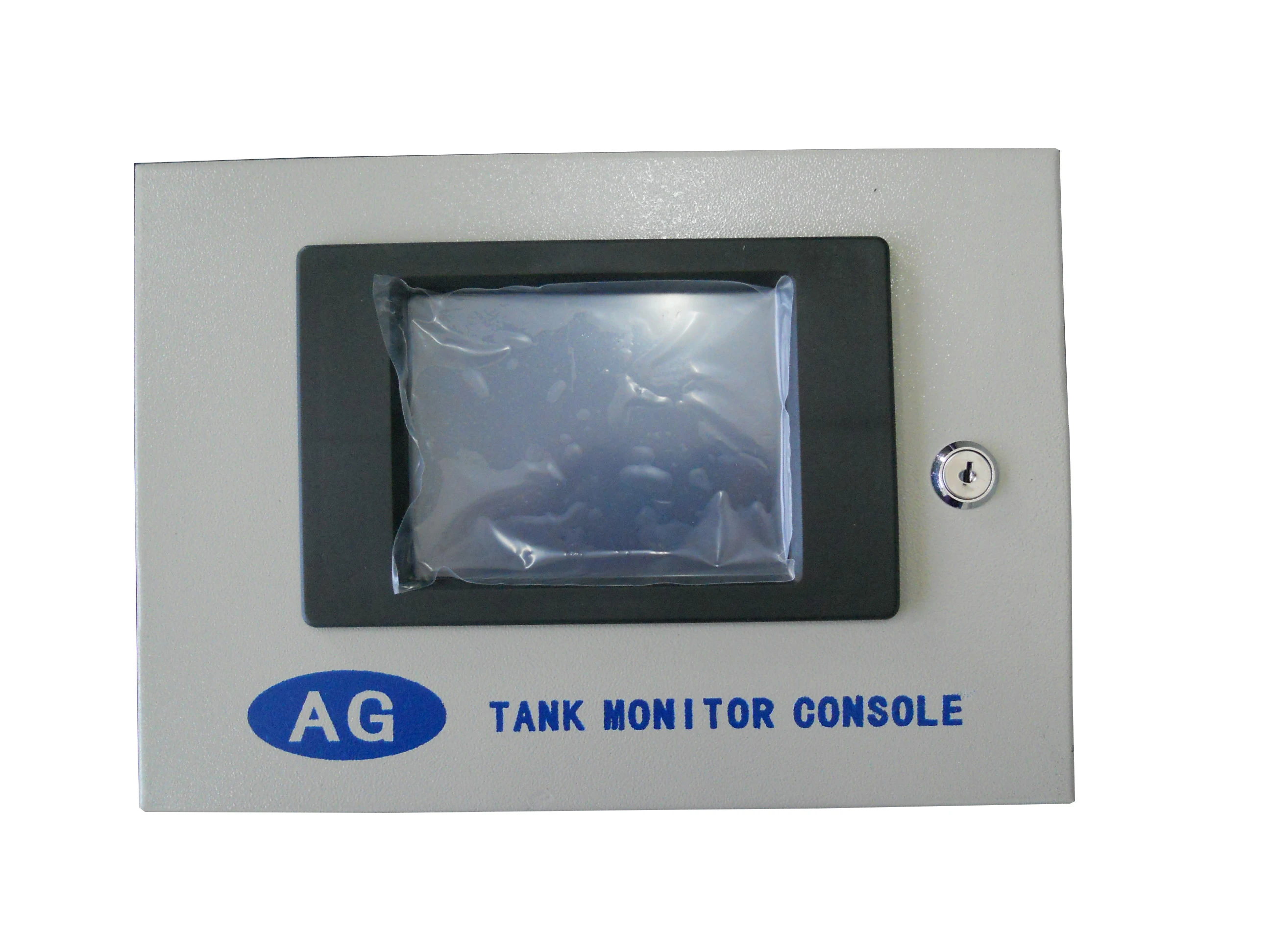

Автоматическая консоль монитора бака на продажу (ATG)
- Категория: >>>
- Поставщик: Wenzhou Ecotec Energy Equipment Co. Ltd.Wenzhou Ltd.
Сохранить в закладки 1700000617501:
Описание и отзывы
Характеристики
Product Description
Tank stock management system
II. Configuration and condition
1. Petrol stations
„ There should be internet connection in petrol stations.
„ Have computer in stations, and equipped with SP300 probe, SS160 console, PC Remote software 200
Safety device: Audible-visible Alarm can protect against over fill when loading oil into underground tank from
tank truck.
2. Head office
„ Fixed IP address is necessary.
„ Server, common model is ok.
3. Software – Socket service software and database.
4. Laptop terminal
In any where, any time, just have internet, you can see all your tanks status by our Golden Assistant Software.
Model GAS-01
III. Working principle

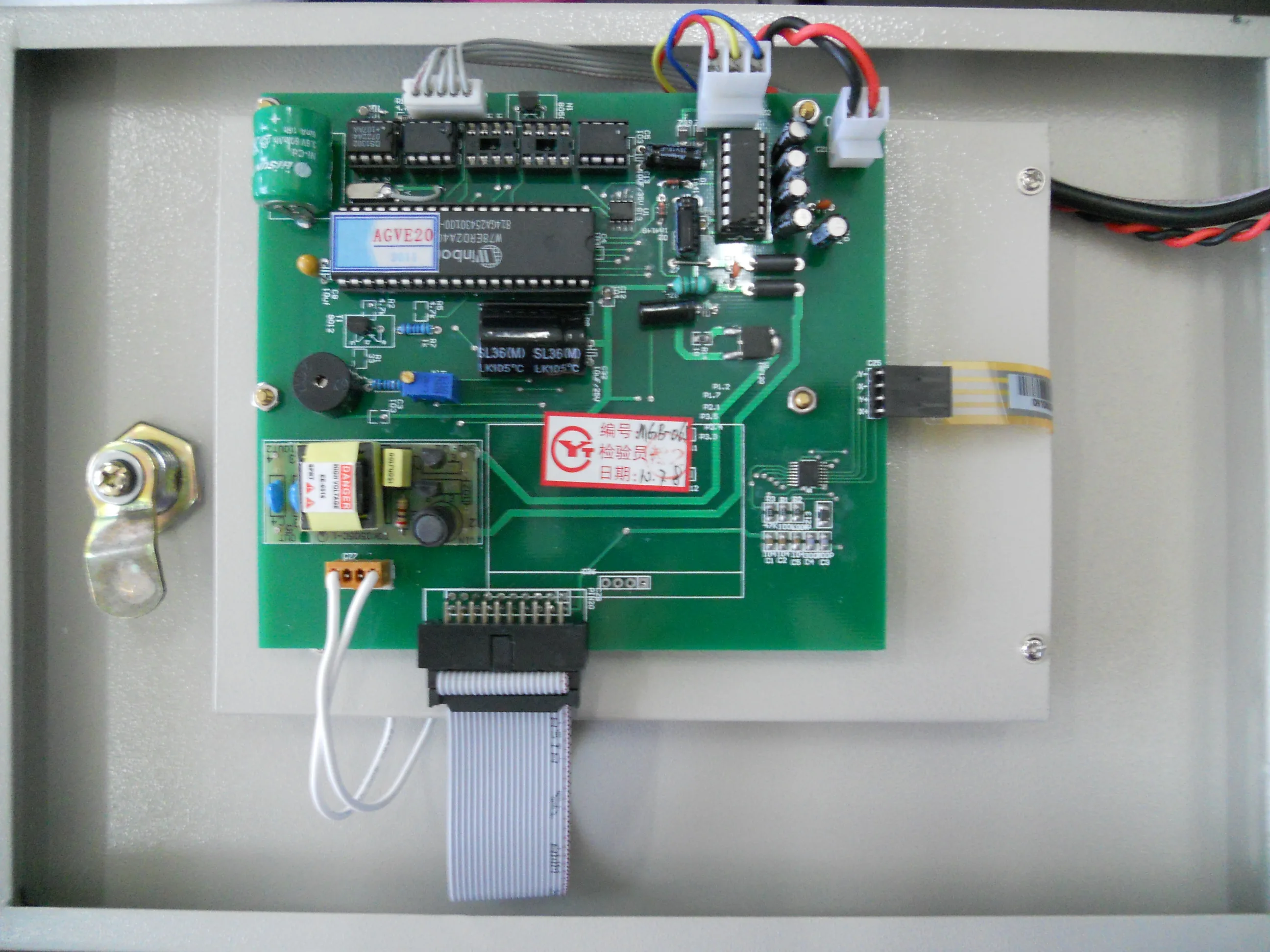

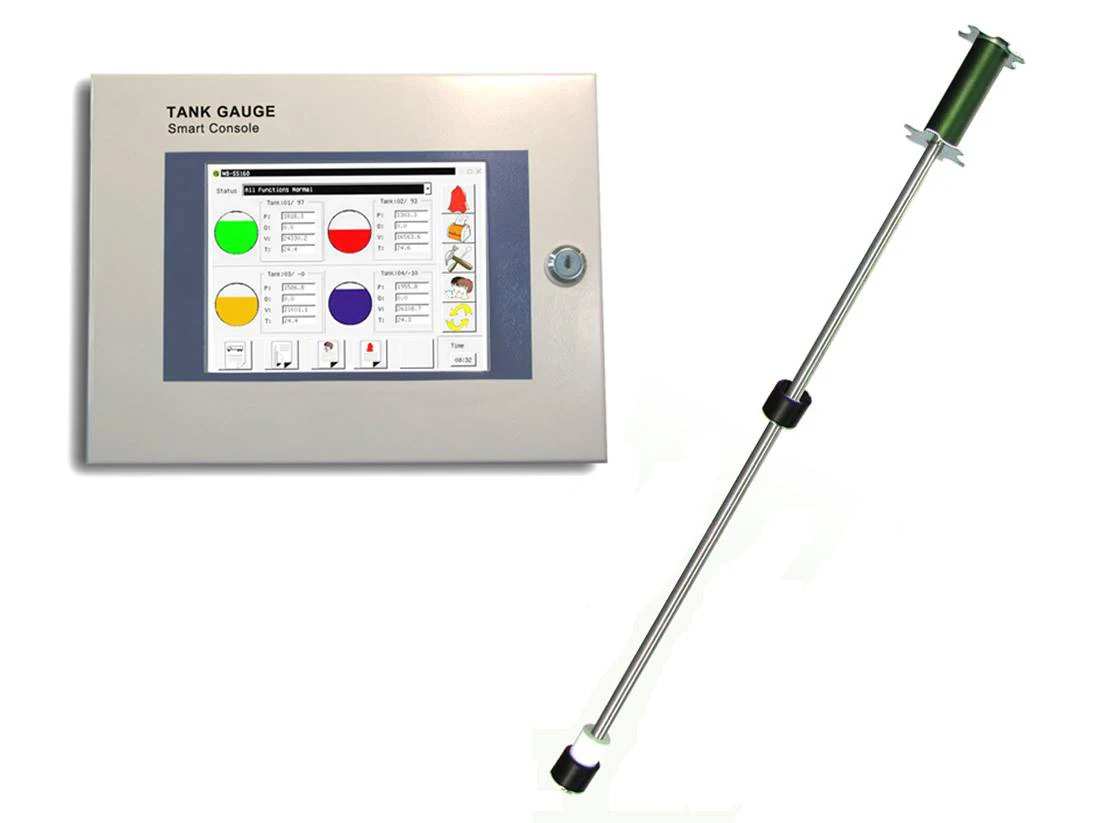

SP probes are installed in fuel tanks, the motherboard in probe head send signals to product floater and water floater in highly
frequency, usually milliseconds, and floater responds and feedback to motherboard of probe.
By RVVP4x0.5 shielding cable connection, SS console asks the tanks information (oil product level, water level and temperature)
from SP probes in milliseconds, too. One important feature of SS console is that users can input tank volume chart into program, SS
console program will automatically simulate a precisely tank module and calculate the stock volume base on measured oil height,
water height and temperature value.
SS console connects to site computer by RS232, PC Remote back-office software which installed at site computer will asks tanks
information from SS console in milliseconds frequency, so users can monitor tanks information from PC screen.
Base on internet connection between sites and head office, Server in head office can received the tanks information transferred from
PC Remote back-office software, and store every record for inquiry in future.
More we can do for you is that when you travel or at home, it is easy to see the current conditions of each tank, just have internet and
a computer or notebook which preinstalled Inquiry software GAS-01.
(Data format IP Date Packet, Encrypted by DES)
IV. Features and Benefits
How can we do if there no internet at site or it is oil tank-trucker?
SS console have built-in GSM module, GSM module is to replace PC Remote back-office, will send tank information like oil
height, oil stock, water height and temperature of each tank to the head office; There another GSM module which receive the short
message from each site, and saved at Central management system for inquiry and analysis. - Authorities for access to operate console, high grade of management and control
- Large expansion ability for future needs, more sites share the same one head office software, save cost
- History records for inquiry and analysis
- High precision data with 0.05mm accuracy
- Real time monitoring offer the most safe and efficient management
- Support shift duties and automatically creates duty report after shift
- Support export history records to.xls, text, or PDF format for record
- Support Built-in printer for reports print (option)
- Audible and visible ex-proof alarm perfectly protect tank against over fill when loading from tank truck
Packaging & Shipping
Standard Carton or Wooden for transportation
Our Services
Warranty : 12 months
Company Information
WENZHOU ECOTEC ENERGY EQUIPEMNT Co., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer the better products with better price.
Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over 10 years. We can package service from Design, Manufacturing, Delivery and after-sale service, we have exported to over 60 countries now, and have agent in Africa, Middle East, Asia and South American countries.
Here Eectec Energy are on the position to offer the below products:
1. Fuel station: Fuel dispenser, Pump, Meter, fuel accessoires, Ablue and contrainer stations
2. LPG station: LPG dispenser, LPG pump, LPG meter, LPG Tank, LPG skid and other LPG station equipment
3. CNG station: CNG dispenser, CNG compressor, CNG cylinder and skid type CNG station
4. LNG Station: LNG dispenser, LNG pump, LNG pumping skid, LNG vaporizor etc
5. Valves for petroleum industrial: Ball valve, Gate Valve, Global valve, Check valve with differnet standard
6. Station Automation system: Station Retail system, Cell phone APP system, Tank Gauging system
7. Auto Parts: Tyre inflator, Wheel Balancer, Car Washing Machine etc
Customer and Dedication is what we standarding for, we will alwasy focus customer′s need, and struggle for it, Looking forward to cooperate with you
Похожие товары
Дизельный трансферный насос в сборе ETP-80A Электрический для продажи
163,00-172,00 $

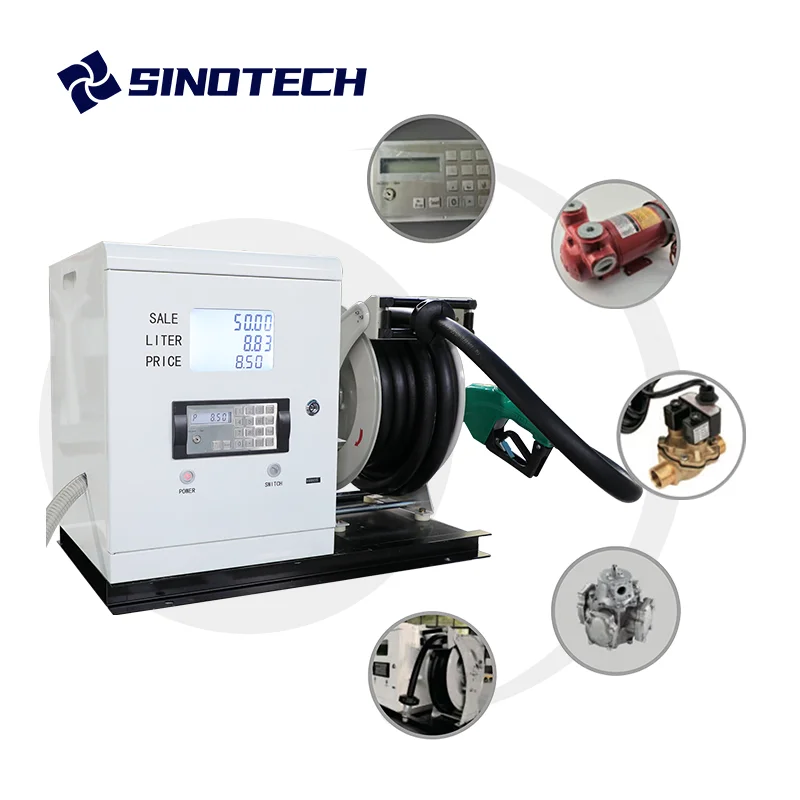

SINOTECH мини бензиновый насос для перекачки топлива взрывозащищенный дозатор 12 В 220 с измерительным соплом Displayer
310,00-340,00 $

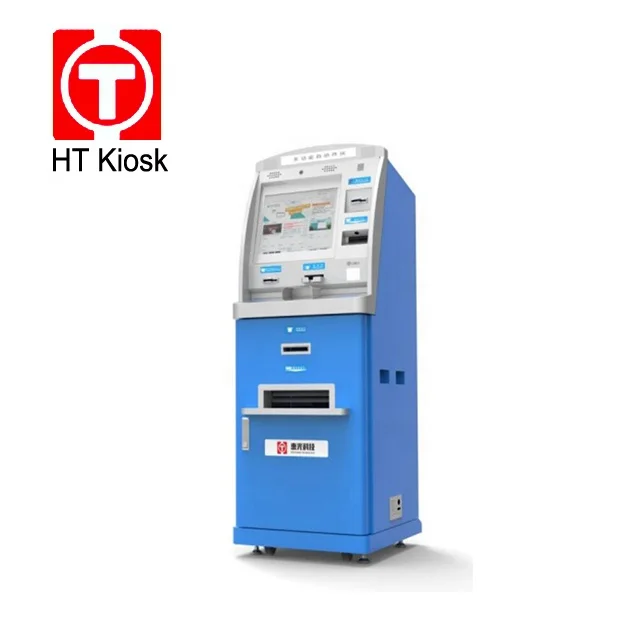

19 дюймовый платежный киоск для проверки пациента в киоске электронный медицинский рекорд управления
999,00-1 999,00 $

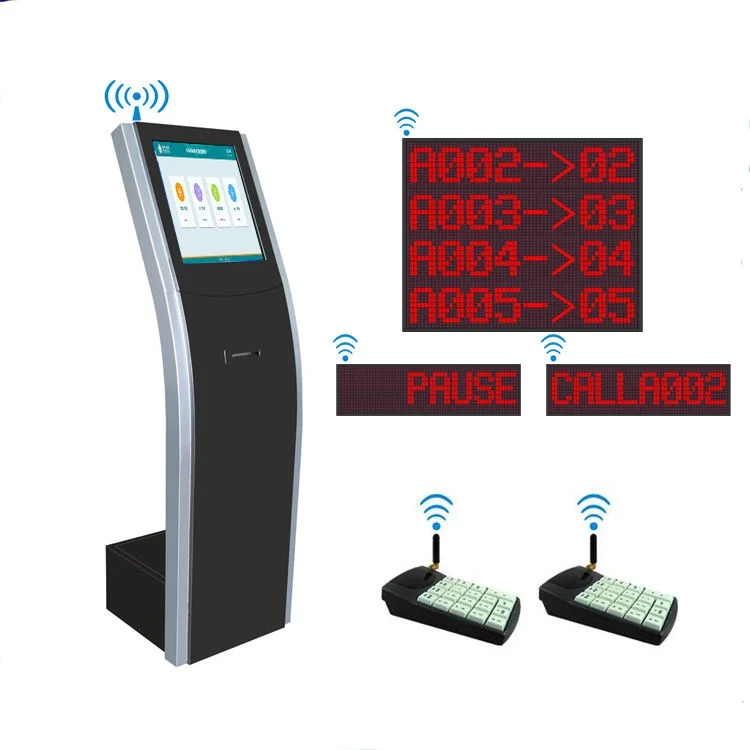

Электронная система управления очередями сенсорный ЖК-экран киоск для очередей бумажный диспенсер билетов самообслуживание автоматические очереди
470,00 $

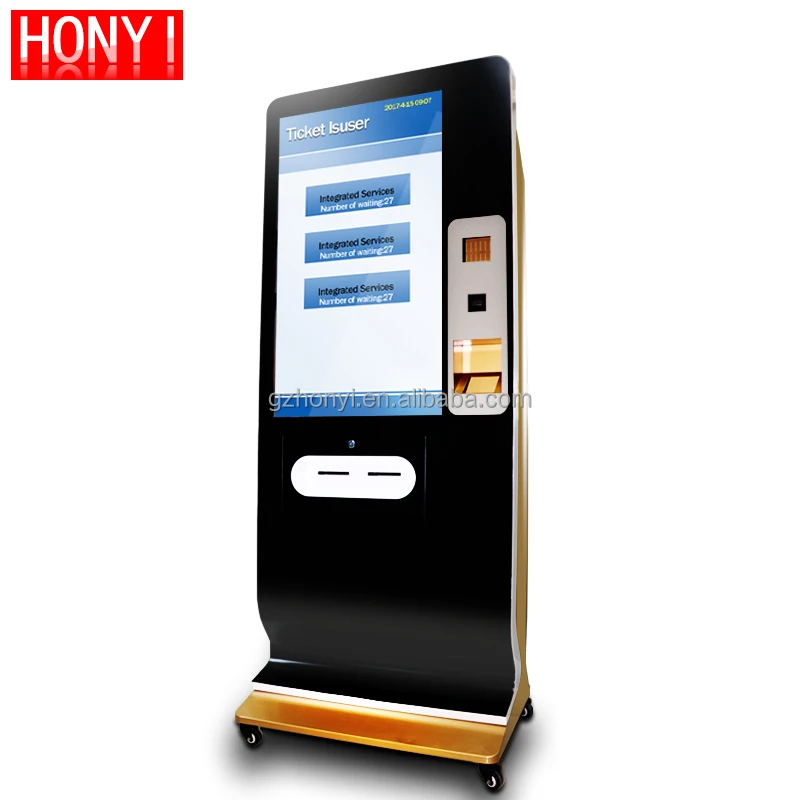

Полная беспроводная система управления поддерживающая индивидуальную машину для очереди с принтером двойного биллинга

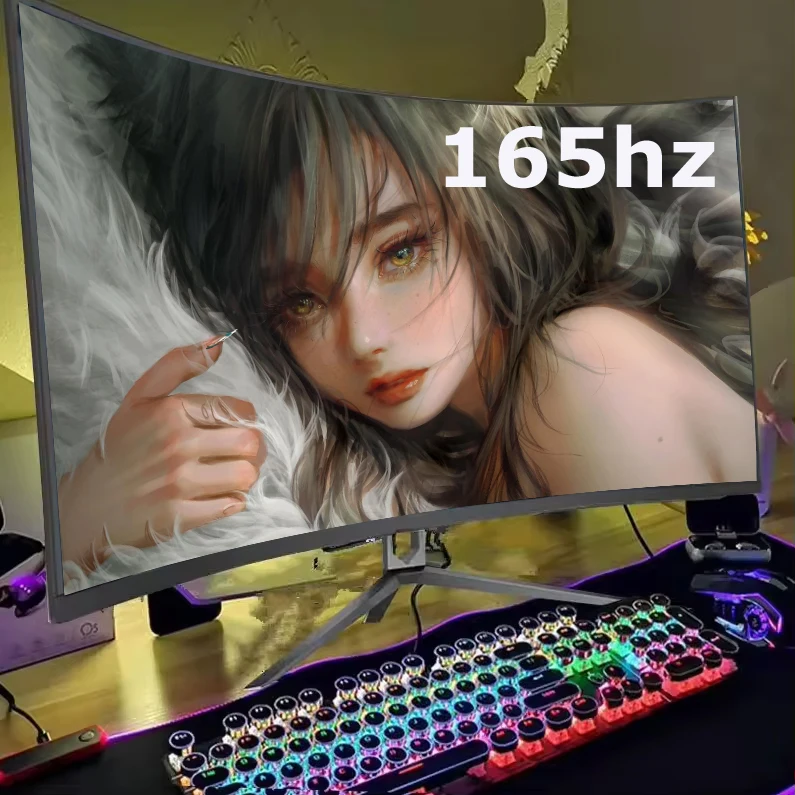

4k светодиодный игровой монитор 144 Гц 165 Dp лифтинг безрамочный 34 дюймов ЖК-Дисплей 24 дюйма дисплей 32 кривая 240 27
33,28-62,56 $

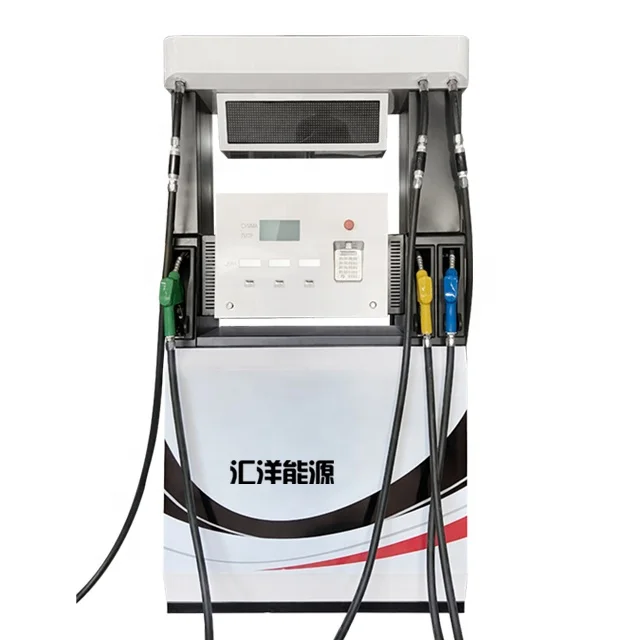

Дизельный дозатор популярный бензиновый Электрический топлива для автозаправочной станции
