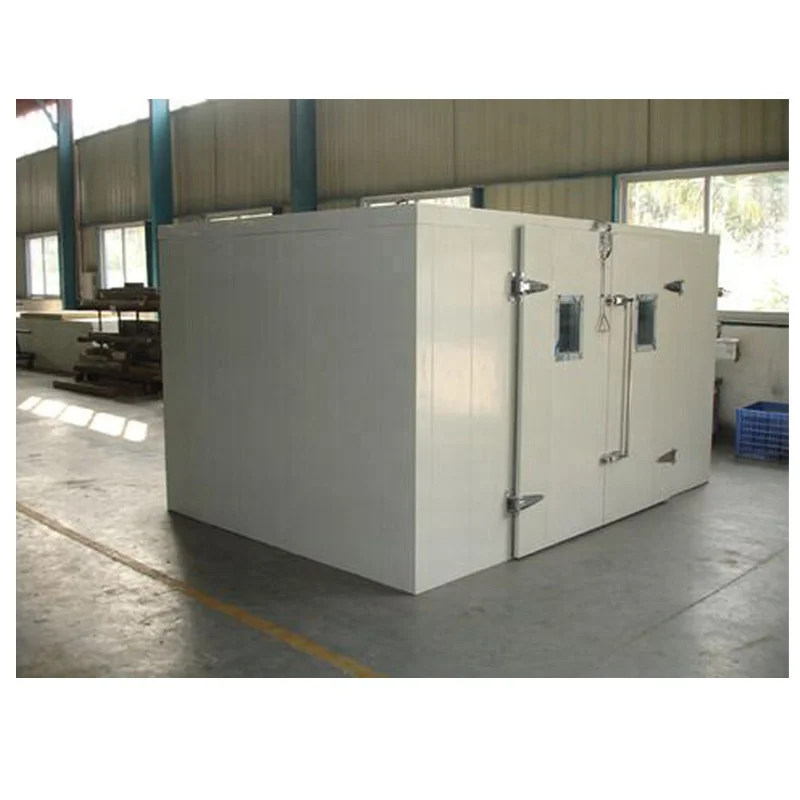

Коммерческое Хранение продуктов, морозильная камера, холодильная камера, производитель холодильных камер
800,00 $ - 1 000,00 $
20RT 30RT ПВХ ПЭТ линия промышленная система охлаждения воды
- Категория: Refrigeration & Heat Exchange Equipment >>>
- Поставщик: Jinan Mgreenbelt Machinery Co. Ltd.
Сохранить в закладки 1700001891219:
Описание и отзывы
Характеристики
Product Description

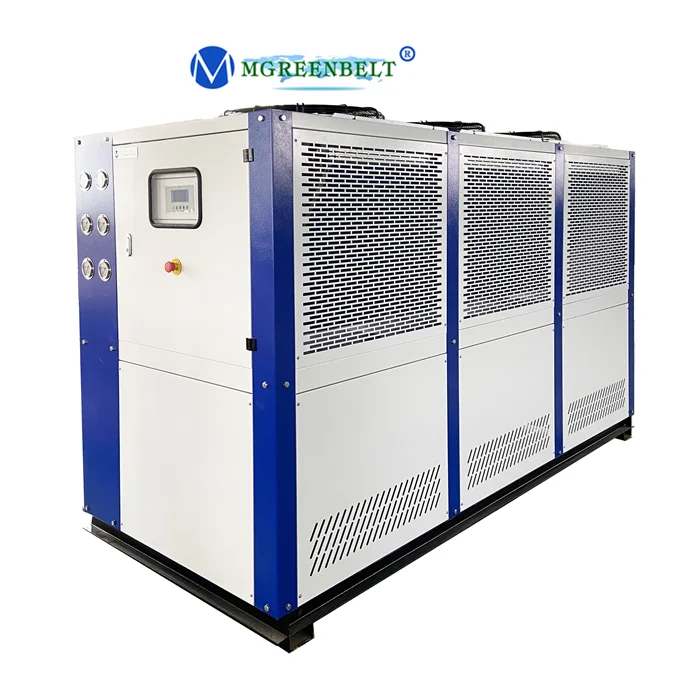

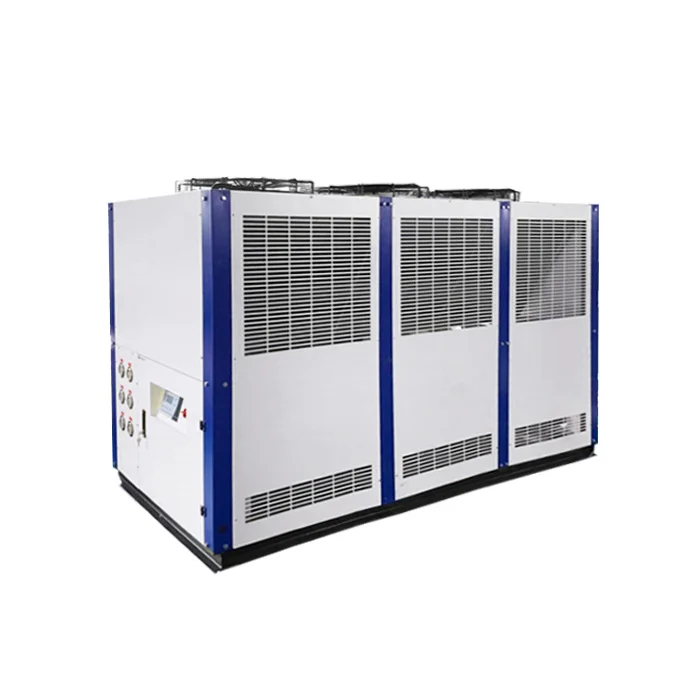

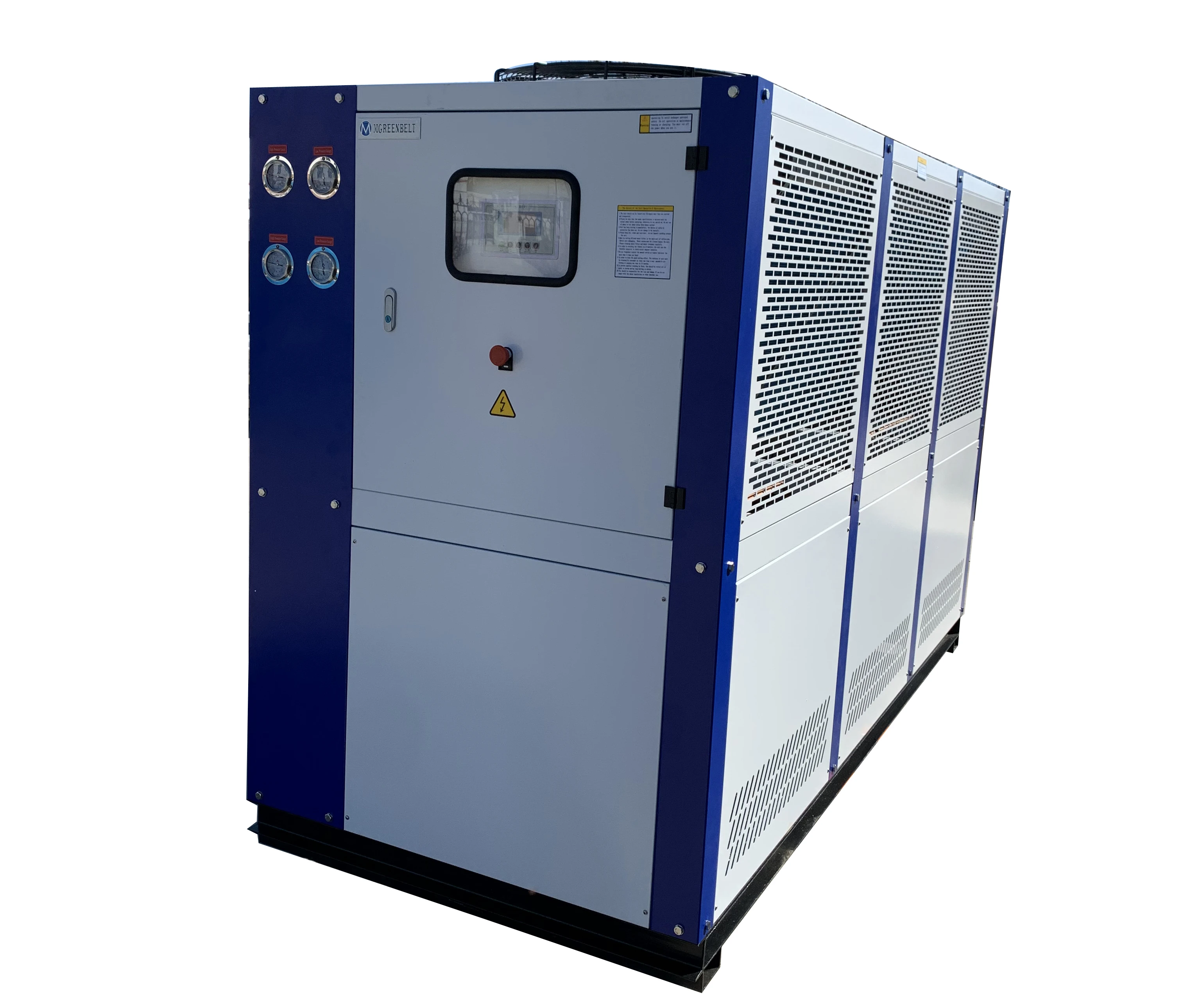

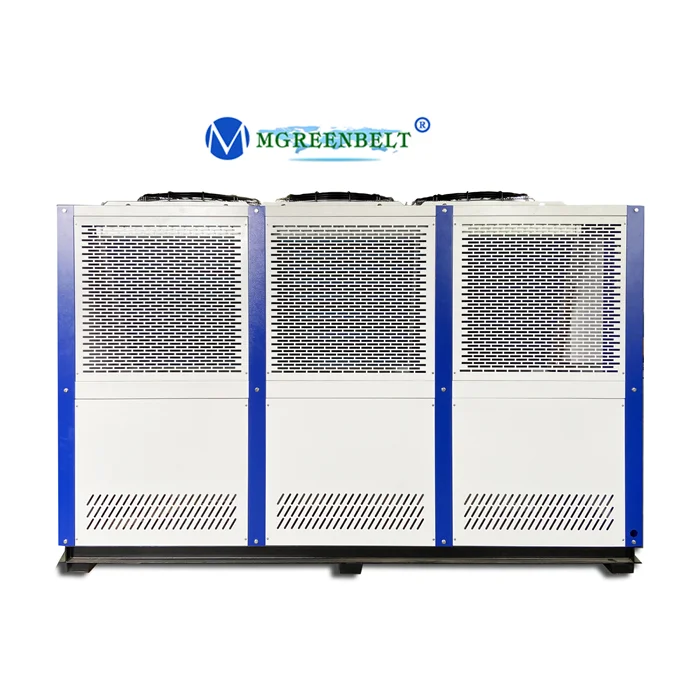

20RT 30RT PVC PET Line Industrial Chilled Water Cooling System Water Chiller Machine
1. The water chiller is to provide cooling process to plastic moulds to improve molded products quality and cut down injection cycle time. Hence maximizes plastic molding machines productivity.
2. Installed with import compressors, highly efficient shell condenser and evaporator, excellent cooling, quiet and low electricity consumption.
3. Microprocessor control, easy to operate;
4. Unique open reservoir tank made of stainless steel, easy cleaning and maintenance;
5. Pipeline well-arranged to save energy;
6. Installed will precise electronic thermostat accurately maintains temperature within 5C~35C;
7. Installed with current overload protector, high and low pressure switch, electronic timer delay, fault display system;
8. Screen liquid crystal display of chill water out let and inlet with temperatures setting;
9. Single, double or four compressors combination unit available;
10. Industrially designed, elegant and ergonomic.
2. Installed with import compressors, highly efficient shell condenser and evaporator, excellent cooling, quiet and low electricity consumption.
3. Microprocessor control, easy to operate;
4. Unique open reservoir tank made of stainless steel, easy cleaning and maintenance;
5. Pipeline well-arranged to save energy;
6. Installed will precise electronic thermostat accurately maintains temperature within 5C~35C;
7. Installed with current overload protector, high and low pressure switch, electronic timer delay, fault display system;
8. Screen liquid crystal display of chill water out let and inlet with temperatures setting;
9. Single, double or four compressors combination unit available;
10. Industrially designed, elegant and ergonomic.
Durable import brand scroll compressor
Closed high efficient Shell and tube type evaporator/heat exchanger
Circulation water pump built inside chiller
Red screw copper tube covered aluminum fins + low noise air fans
Chiller structure inside
Microcomputer controller, English language, Auto control
Modbus RS485 optional
Design
(1). Design waterproof ,suitable using outside and in house.
(2) Design working condition ambient temperature from -20C degree to +50C degree.
(3). Working condition: good air circulation place to discharge the heat.
(4). Remote and local control available.
(5). Power off - Auto strart up turn on function supported.
(6). Inlet and outlet pipe stainless steel;
Model | MG-5C | MG-10C(D) | MG-15C(D) | MG-20C(D) | MG-25C(D) | MG-30C(D) | MG-40C(D) | ||||||||||
5HP | 10HP | 15HP | 20HP | 25HP | 30HP | 40HP | |||||||||||
Cooling capacity | +7℃ | Kcal/h | 11266 | 24510 | 35948 | 47558 | 54352 | 71896 | 94256 | ||||||||
KW | 13.1 | 28.5 | 41.8 | 55.3 | 63.2 | 83.6 | 109.6 | ||||||||||
Tons | 3.72 | 8.1 | 11.89 | 15.72 | 17.97 | 23.77 | 31.16 | ||||||||||
+12℃ | Kcal/h | 13972 | 27944 | 41960 | 55889 | 62768 | 83834 | 111779.88 | |||||||||
KW | 16.25 | 32.5 | 48.8 | 65.0 | 73.0 | 97.5 | 130.0 | ||||||||||
Tons | 4.62 | 9.24 | 13.88 | 18.48 | 20.76 | 27.72 | 36.96 | ||||||||||
Input power | kW | 5.61 | 10.83 | 16.31 | 21.27 | 24.35 | 32.33 | 41.66 | |||||||||
Outlet water temperature | 5°C -35°C | ||||||||||||||||
Power supply | 3PHASE-220/380V/415v/460v-50HZ or 60hz | ||||||||||||||||
Refrigerant | Type | R22/R407C/R410A | |||||||||||||||
Control type | Thermostatic expansion valve | ||||||||||||||||
Compressor | Type | Hermetic Scroll Type | |||||||||||||||
Power(kw) | 4.54 | 4.54*2 | 4.54*3 | 9.05*2 | 10.6*2 | 9.05*3 | 9.05*4 | ||||||||||
Evaporator | Type | Stainless Steel Tank with Coil | |||||||||||||||
Water flow(m³/h) | 2.25 | 4.89 | 7.17 | 9.48 | 10.83 | 14.33 | 18.79 | ||||||||||
Capacity(Lts) | 70 | 200 | 270 | 350 | 350 | 450 | 580 | ||||||||||
Fitting pipe(mm) | DN25 | DN32 | DN40 | DN40 | DN40 | DN65 | DN65 | ||||||||||
Condenser | Type | Finned Copper tube +low noise air fans | |||||||||||||||
Air volume(m³/h) | 5000 | 10000 | 15000 | 20000 | 25000 | 30000 | 40000 | ||||||||||
Water pump | Power(kw) | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | |||||||||
Lift(m ) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | ||||||||||
Dimension | L(mm) | 1300 | 1560 | 1800 | 2100 | 2100 | 2500 | 2350 | |||||||||
W(mm) | 650 | 850 | 1000 | 1000 | 1000 | 1200 | 1460 | ||||||||||
H(mm) | 1200 | 1500 | 1600 | 1700 | 1700 | 1800 | 2000 | ||||||||||
Weight | KG | 200 | 450 | 750 | 850 | 900 | 1150 | 1350 | |||||||||
Application
MGreenbelt Industrial Chiller Widely used in many different industries:
Automobile and Mechanical Engineering – machine tool, induction hardening and heating, welding machines, rolling mills, presses, cutting, profiling, polishing, electric discharge machine, hydraulic oil cooling, heat treatment, component washing, component cooling, environmental test chambers, drive cooling, plasma spray, vacuum systems, etc
Plastics – injection moulding, PET, blow moulding, woven sack extrusion, sheet and profile extrusion, thermoforming, presses, etc
Pharma and chemical – Jacketed vessels cooling, condenser cooling, PUF mixers, Laboratories applications, x ray spectrometers, paint cooling, packing machine, anodizing, plating, liquid nitrogen plant, etc
Medical – MRI, PET scan, CT scan, linear accelerator, electron microscope, etc
Food and Beverages – Microbreweries, confectionary, bakeries, distilleries, wineries, bottling, corbonation, vegetable, meat and fish processing, etc
Metal working – Water jet cutting, power press, hydraulic oil cooling, laser cutting, aluminium extrusion, precious metal processing, etc
Paper and related – printing machine, labelling machine, cardboard making, plastic film machine, etc
Others – textile, semiconductor, air compressor, concrete batching, dynamometer, furnace, etc
Certification
Our Service
A. Order service
Inquiry-Quotation-Agreement-Order Confirm-Proforma Invoice-Deposit Payment-Production-Testing --Balance Payment- Packing &Delivery--Documents Dispature- Assist of custom-cleaing --Instruction of Installation&Operation-Feedback
B. Technical service
1, We calculate the capacity and recommend the best models.
2, We design and develop the new products according to your requirement besides our standard products.
3, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
4, We supply the spare parts and technical support in & after the warranty time.
5, We supply the training course to your workers at our factory if you need.
C. After sale service
1. One-Year guarantee for whole unit and all parts free
2. Life time maintenance
3. Machines have to be strictly adjusted before delivery and deliver with firm & reliable packing and transportation.
4. Supply the professional refrigeration technical support and electronic technical support for your installation, debugging, operation and maintenance.
5. Supply free training course to your workers at our factory if you need.
6. Supply the spare parts and technical support in & after the warranty time.
7. Spare parts and technical support at most economic prices after the warranty.
8. 24 hours on line service each day by telephone.
Packing & Delivery
Related Products
Contact US
Похожие товары

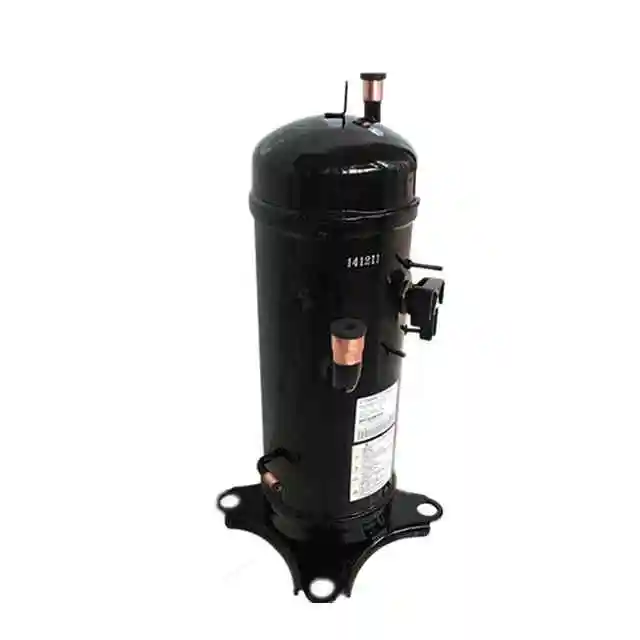

Новый 12-лошадиный компрессор SM147A4ALB SM147A4ALC
205,00 $ - 235,00 $

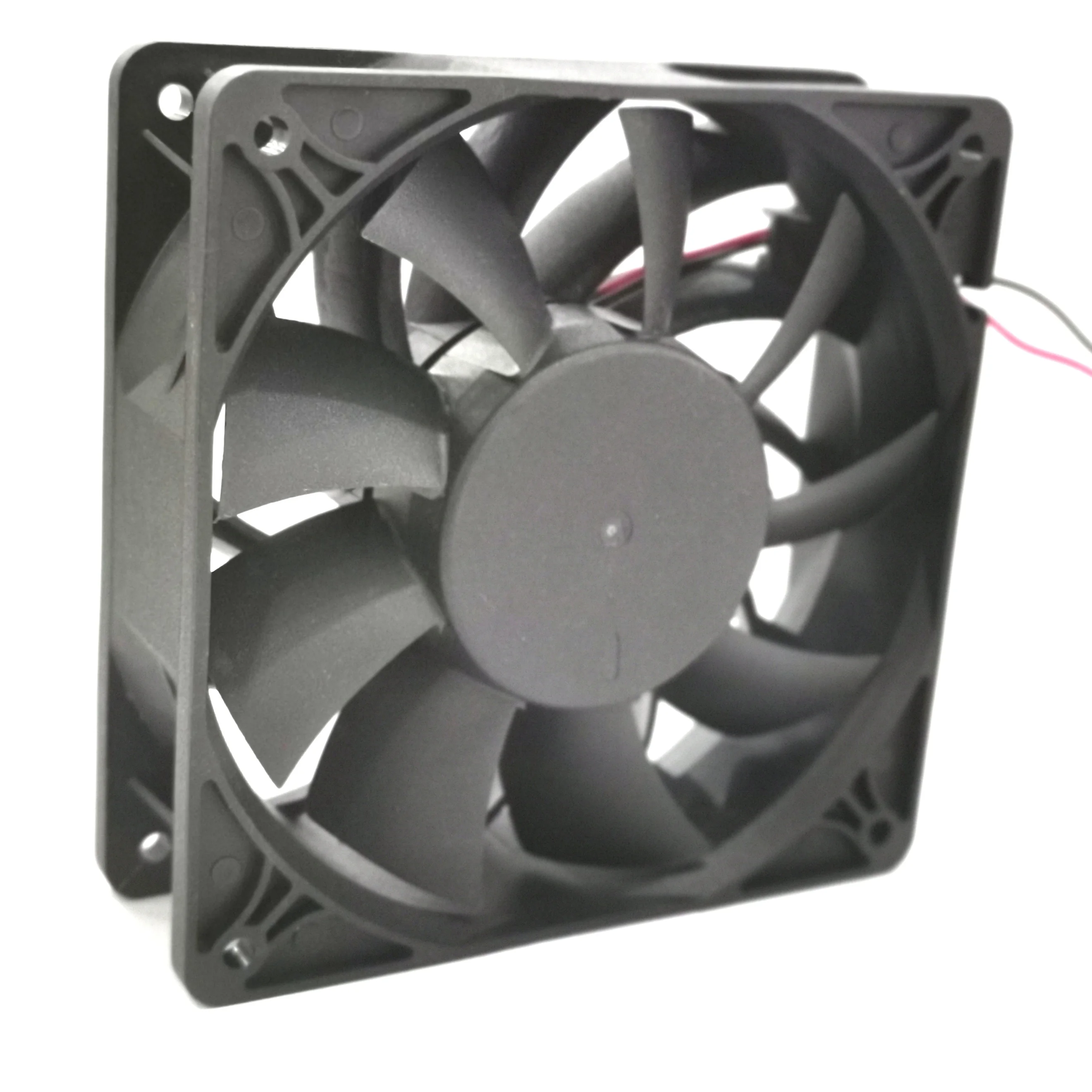

YCCFAN мощное медицинское оборудование 12038 осевой вентилятор постоянного тока 120x120x38 12 в 24 водонепроницаемый
5,60 $ - 6,00 $

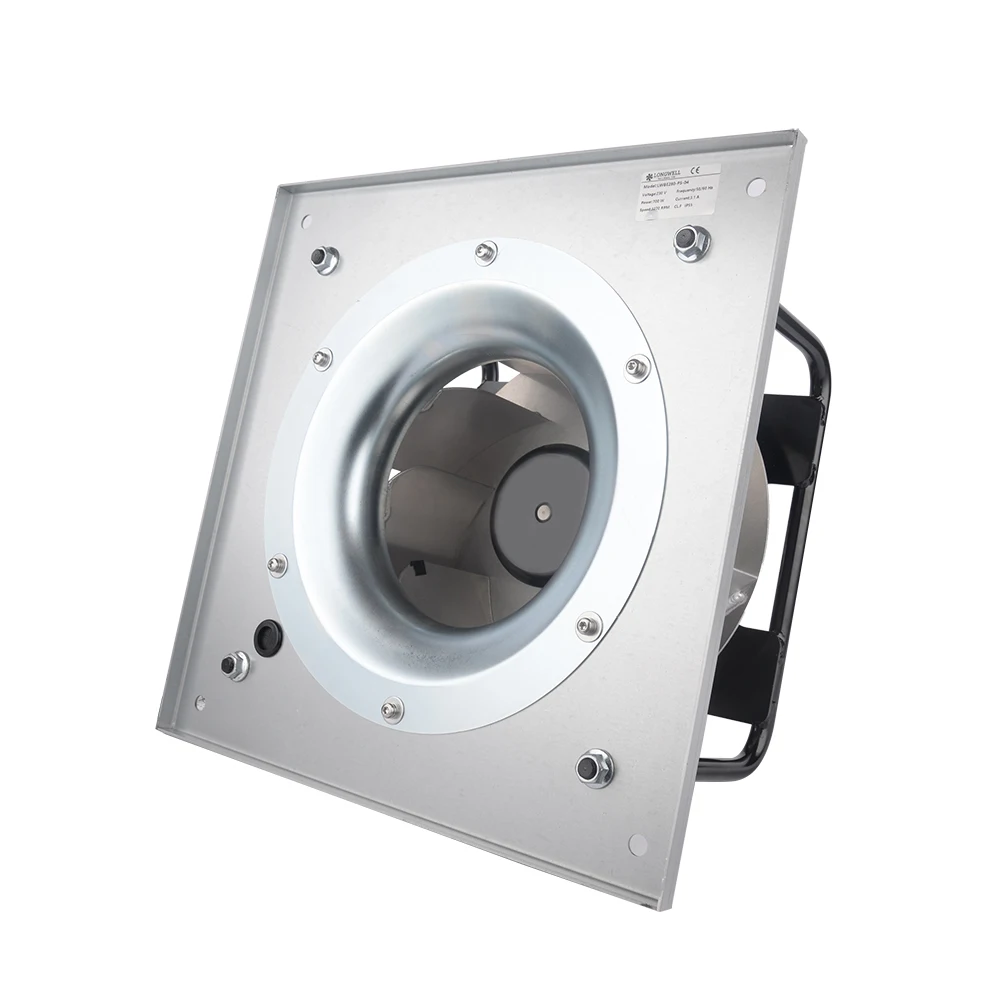

Центробежный вентилятор LONGWELL высокого давления 1 - 3 фазы AC DC EC с RS485 0-10 в PWM для AHU отопления охлаждения
50,00 $

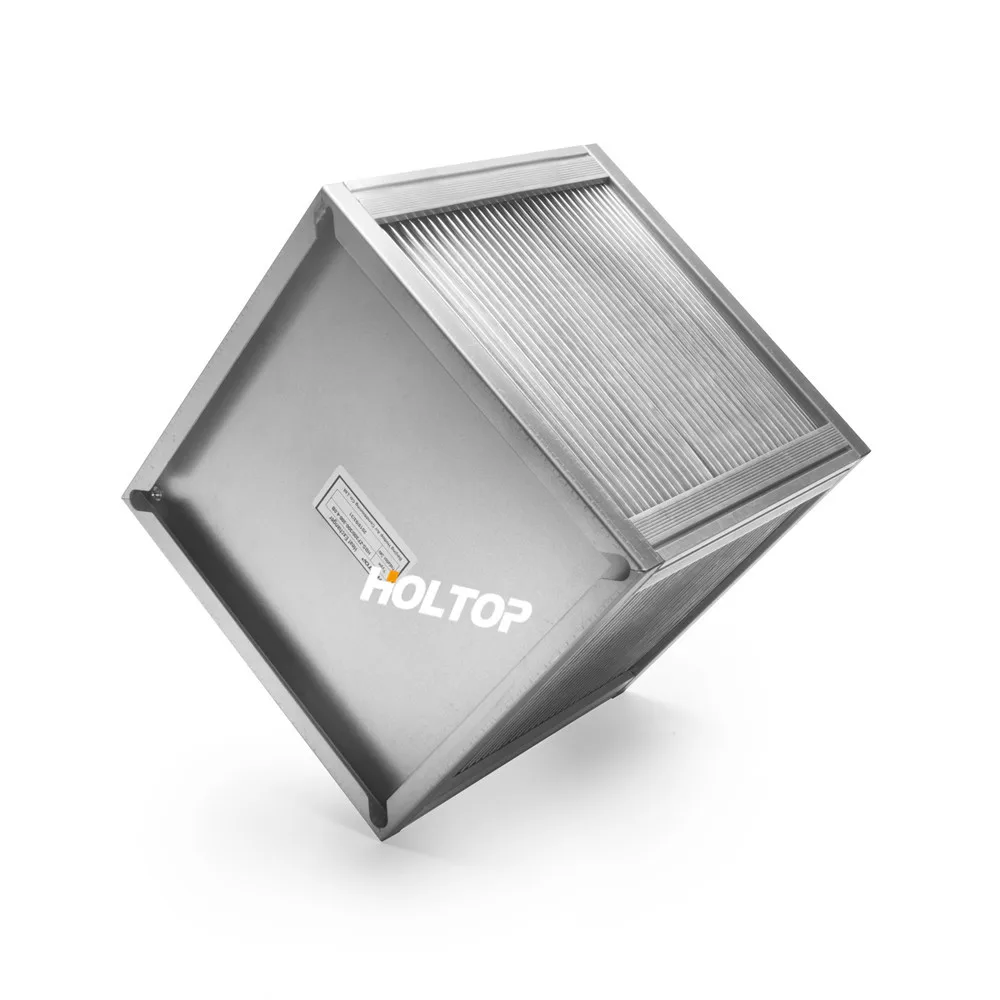

Алюминиевый Восстанавливающий сердечник теплообменник AHU
