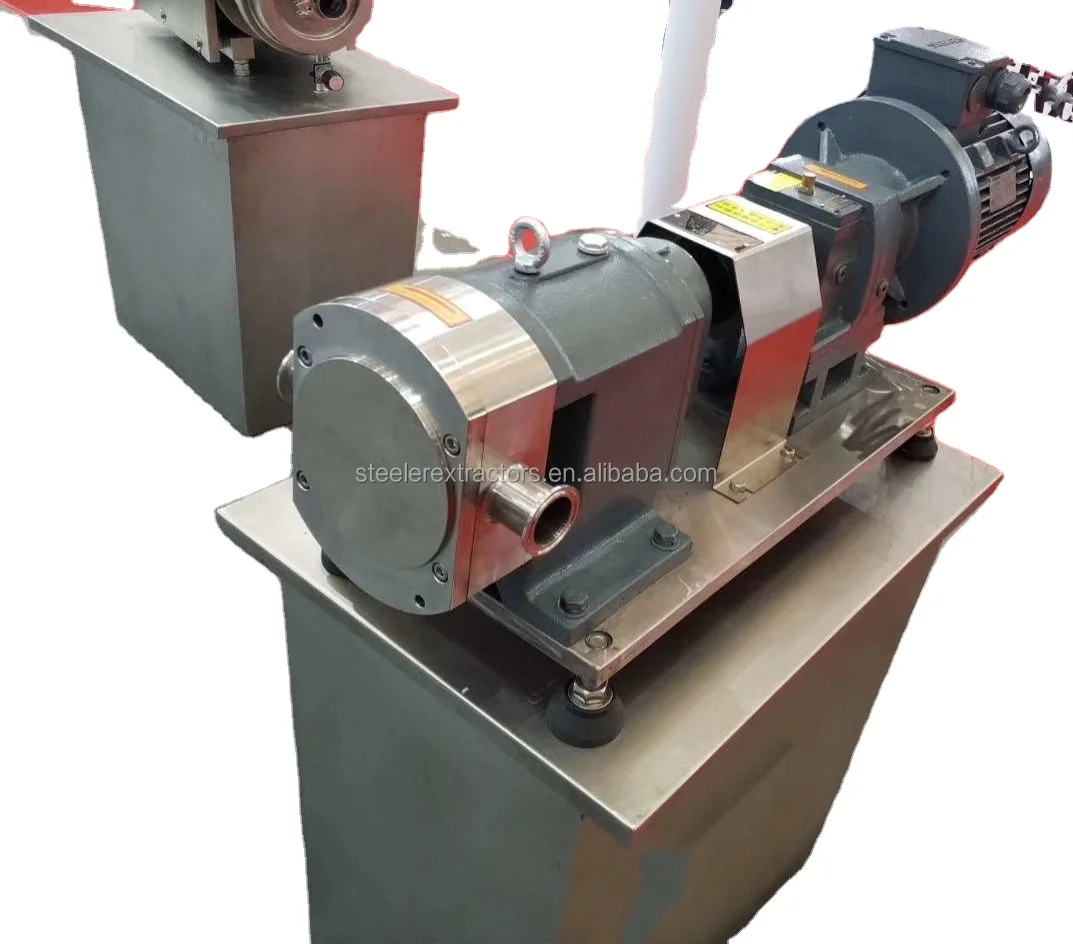

Пищевой санитарный шампунь для меда и шоколада из нержавеющей стали, роторный насос высокой вязкости
1 000,00 $

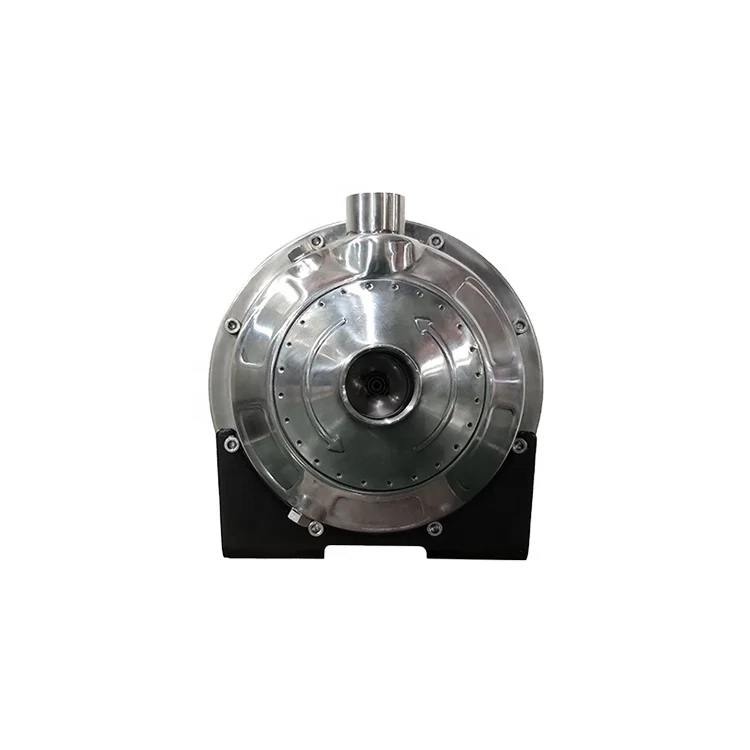

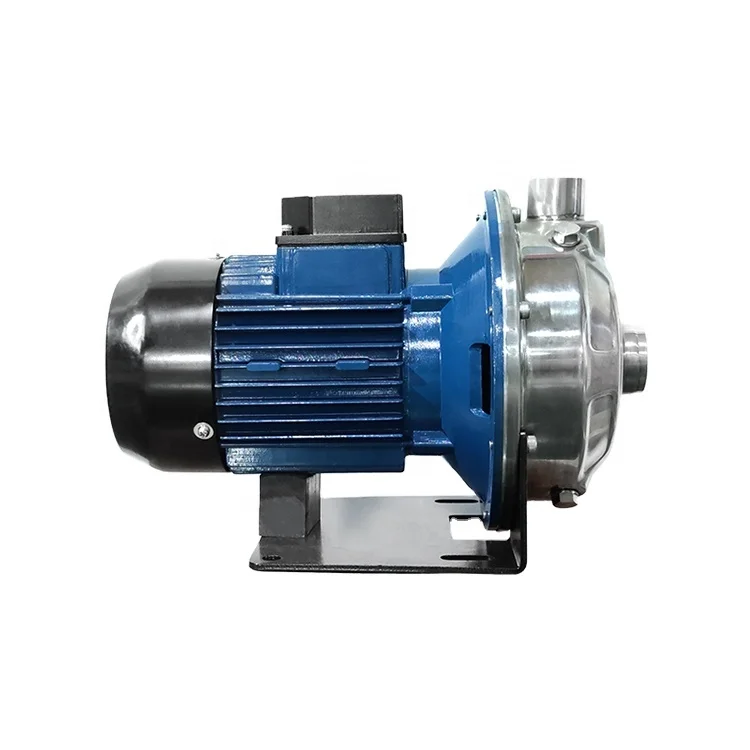

Горизонтальный одноступенчатый центробежный водяной насос CNP 60 Гц 230 В/380 В из нержавеющей стали для очистки воды
- Категория: >>>
- Поставщик: Tiger (hangzhou) Flow Systems Co. Ltd.
Сохранить в закладки 1700002354219:
Описание и отзывы
Характеристики
Recommend Products
Product Description

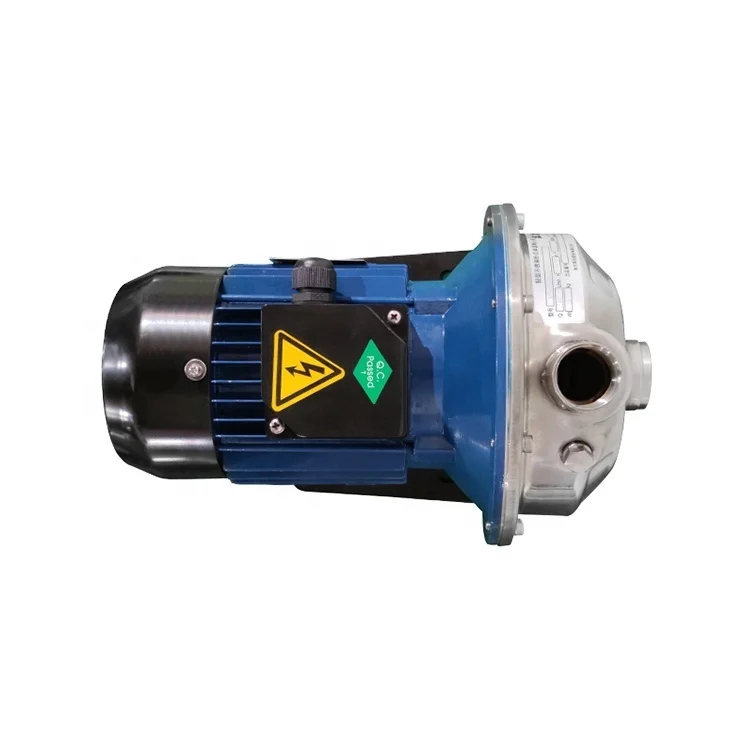

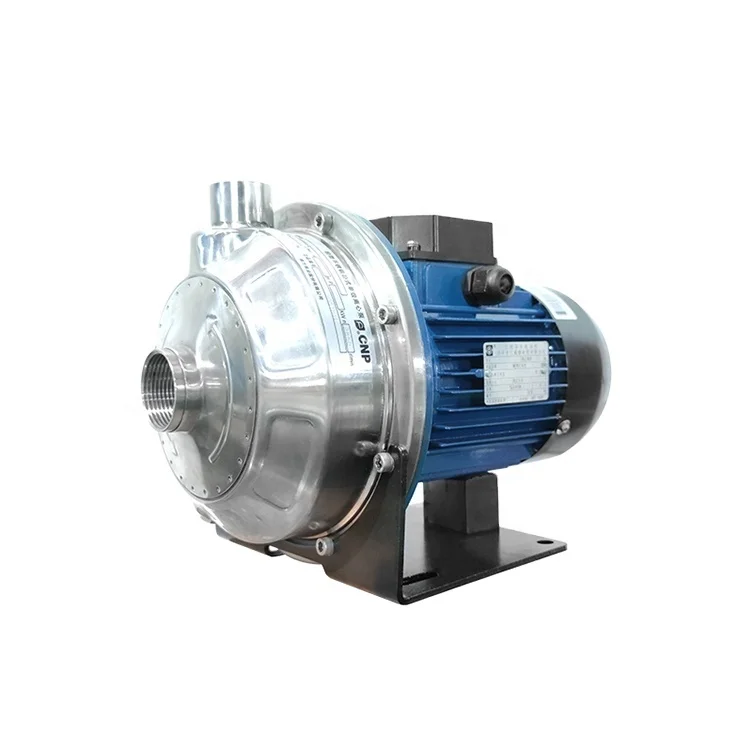

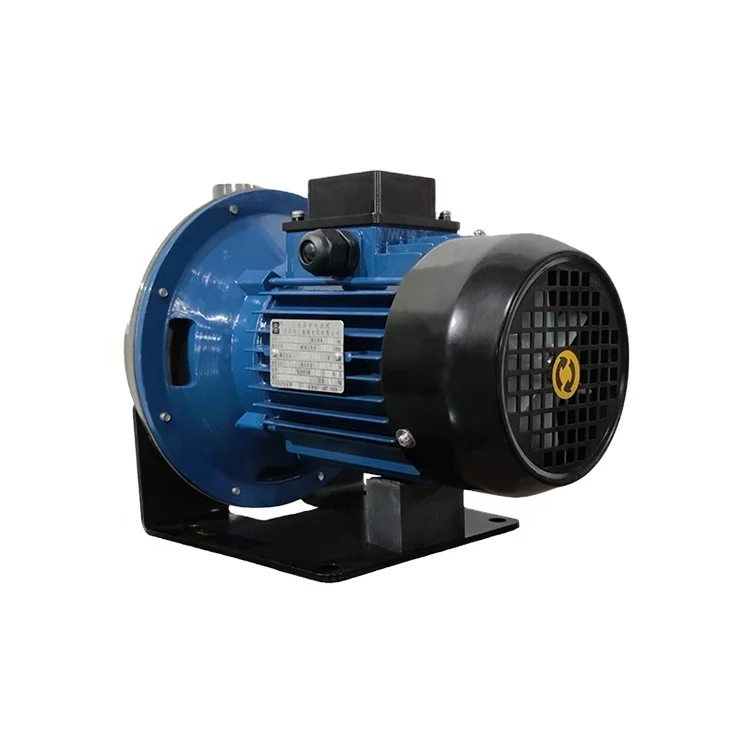

Product name | CNP MSS250 60HZ Light Stainless Steel Horizontal Single-Stage Centrifugal Booster Water Pump For Water Treatment |
Material | Stainless Steel(Except Flow Passage Components) |
Packaging | Wooden case or carton box will be provided. |
Product Description
Operating condition
Liquid temperature: -10C~+85℃
Ambient temperature:up to +40℃
Altitude: up to 1000m
Liquid temperature: -10C~+85℃
Ambient temperature:up to +40℃
Altitude: up to 1000m
Max.pressure of the system is 8bar
Motor
TEFC motor, 2-pole
Protection class: IP 55
Insulation class: F
Standard voltage：1x220v
3x380V/3x220V
Curves
Include performance curve in the technical data:
All curves are based on the measured values of 60Hz:constant motor speed 3450r/min，
Measurement is done with 20℃ air-free water, kinematic viscosity of 1mm²/sec. Curve tolerance inconformity to ISO9906：2012 Grade 3B
The operation of pump shall refer to the performance region to prevent overload of motor due to too large flow rate.
Include performance curve in the technical data:
All curves are based on the measured values of 60Hz:constant motor speed 3450r/min，
Measurement is done with 20℃ air-free water, kinematic viscosity of 1mm²/sec. Curve tolerance inconformity to ISO9906：2012 Grade 3B
The operation of pump shall refer to the performance region to prevent overload of motor due to too large flow rate.
No | Parts | Name | Material |
1 | Motor | ||
2 | Mechanical seal | Carbon/Silicon | |
3 | M6x 15/Screw | Stainless steel | AISI 304 |
4 | Seal base | Stainless steel | AISI 304 |
5 | Diffuser | Stainless steel | AISI 304 |
6 | lmpeller | Stainless steel | AISI 304 |
7 | Pump body | Stainless steel | AISI 304 |
8 | Vent | Stainless steel | AISI 304 |
9 | 0-Ring | F4 | |
10 | 0-Ring | NBR | |
11 | 0-Ring | NBR | |
12 | M 6*20/Screw | Stainless steel | AISI 304 |
13 | Nut M 10 | Stainless steel | AISI 304 |
14 | Base | Steel | A570 |
15 | Support foot | NBR |
Performance Curve
Model | Driving Motor | Q(l/min) | 120 | 160 | 200 | 250 | 330 | 350 | ||
(kw) | (hp) | Q(m3h) | 7.2 | 9.6 | 12 | 15 | 20 | 21 | ||
MSS250/1.1KW | 1.1 | 1.5 | H(m) | 18.5 | 18 | 16.5 | 15 | 12 | 11 | |
MSS250/1.5KW | 1.5 | 2 | 22.5 | 22 | 20.5 | 18.5 | 14 | 13 | ||
MSS250/2.2KW | 2.2 | 3 | 28.5 | 28 | 26.5 | 25 | 21.5 | 20.5 | ||
Product Categories
Company Profile
Packing & Shipping
FAQ
Q1: How can I get a price quote?
Answer: Leave us a message with your purchase requirement and we will reply you within one hour on working time.
Answer: Leave us a message with your purchase requirement and we will reply you within one hour on working time.
Q2:May I get a cheaper price?
Answer: A workable discount will be given if there’s a large quantity.
Q3:Is your price included freight?
Answer: Our usual price is based on FOB shanghai.If you request CIF or CNF,please let us know our delivery port,and we will quoted price accordingly.
Q4:Is OEM acceptable?
Answer: Yes, please contact us for design details.we will offer you a reasonable price and make samples for you ASAP.
Q5:What’s your quality guarantee?
Answer: We have our professional quality control workers with inspection machines. Or if you have Chinese agency, you also can ask them to do inspection in our factory before shipment.
Q6:How long is your warranty?
Answer: Our Warranty is ONE year
Q7:How long to deliver the products?
Answer: The exact delivery date need to depend on your ordered quality and quantity. Usually Small orders will be shipped within 14days after received the full payment. Large orders will be shipped within 35-40days after received 30% balance payment.
Q8: Can I visit your factory before ordering?
Answer: Yes, you're warmly welcome to visit our factory.
Q9: What's your payment term?
Answer: 70% TT as initial payment & 30% TT balance payment before shipment.
Answer: A workable discount will be given if there’s a large quantity.
Q3:Is your price included freight?
Answer: Our usual price is based on FOB shanghai.If you request CIF or CNF,please let us know our delivery port,and we will quoted price accordingly.
Q4:Is OEM acceptable?
Answer: Yes, please contact us for design details.we will offer you a reasonable price and make samples for you ASAP.
Q5:What’s your quality guarantee?
Answer: We have our professional quality control workers with inspection machines. Or if you have Chinese agency, you also can ask them to do inspection in our factory before shipment.
Q6:How long is your warranty?
Answer: Our Warranty is ONE year
Q7:How long to deliver the products?
Answer: The exact delivery date need to depend on your ordered quality and quantity. Usually Small orders will be shipped within 14days after received the full payment. Large orders will be shipped within 35-40days after received 30% balance payment.
Q8: Can I visit your factory before ordering?
Answer: Yes, you're warmly welcome to visit our factory.
Q9: What's your payment term?
Answer: 70% TT as initial payment & 30% TT balance payment before shipment.
Похожие товары
6 м, 7 м, 8 м, сборные куполы, большая геодезическая купольная палатка для кемпинга на открытом воздухе
38,00 $
Специальные дошкольные столы и стулья
Специальное предложение, мощный напольный вентилятор охлаждения воздуха 3 в 1, промышленный и Домашний Вентилятор
Электрический Интеллектуальный индукционный двигатель для двери гаража, для США
1 100,00 $ - 1 400,00 $

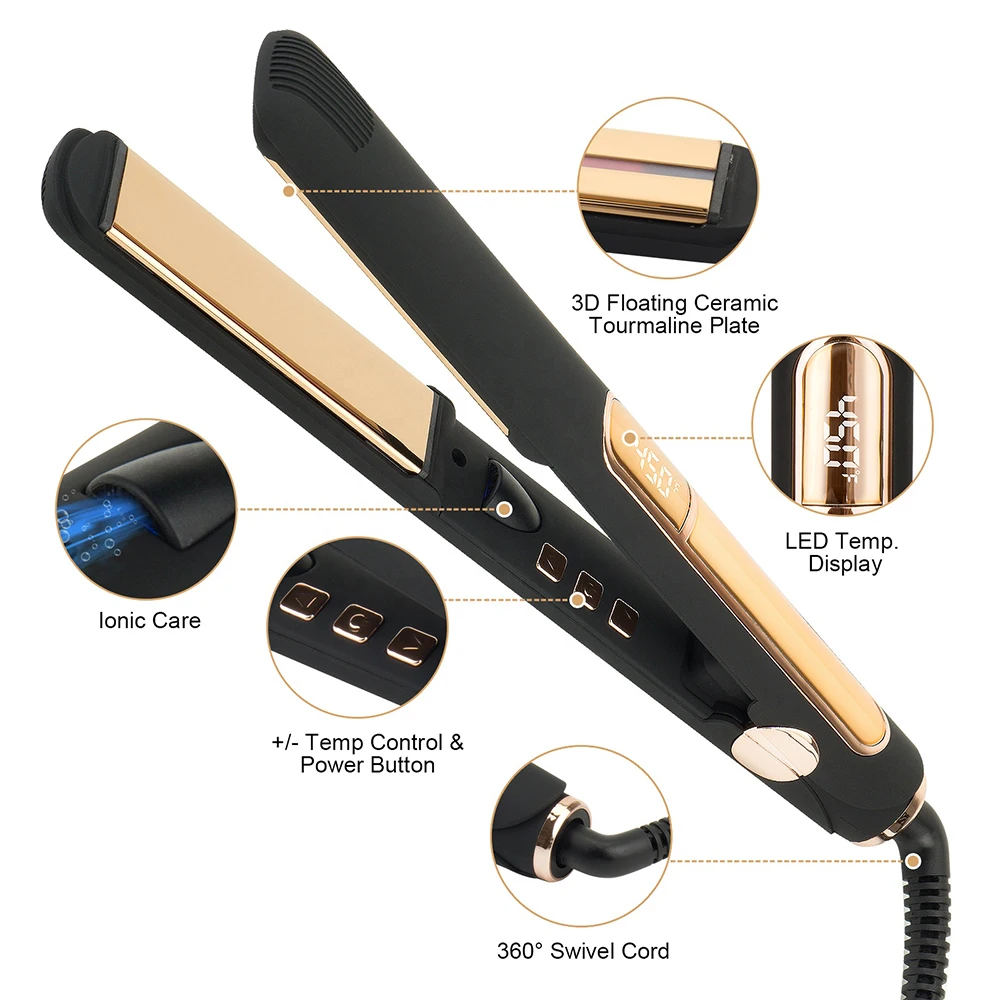

Выпрямитель для волос, паровой утюжок с четырьмя режимами регулировки температуры, керамический, специально для всех черных титановых светодиодов, OEM, разъем питания ODM
19,89 $ - 22,45 $
Высококачественный салон красоты, специальный складной массаж с хорошим обслуживанием
900,00 $ - 1 050,00 $

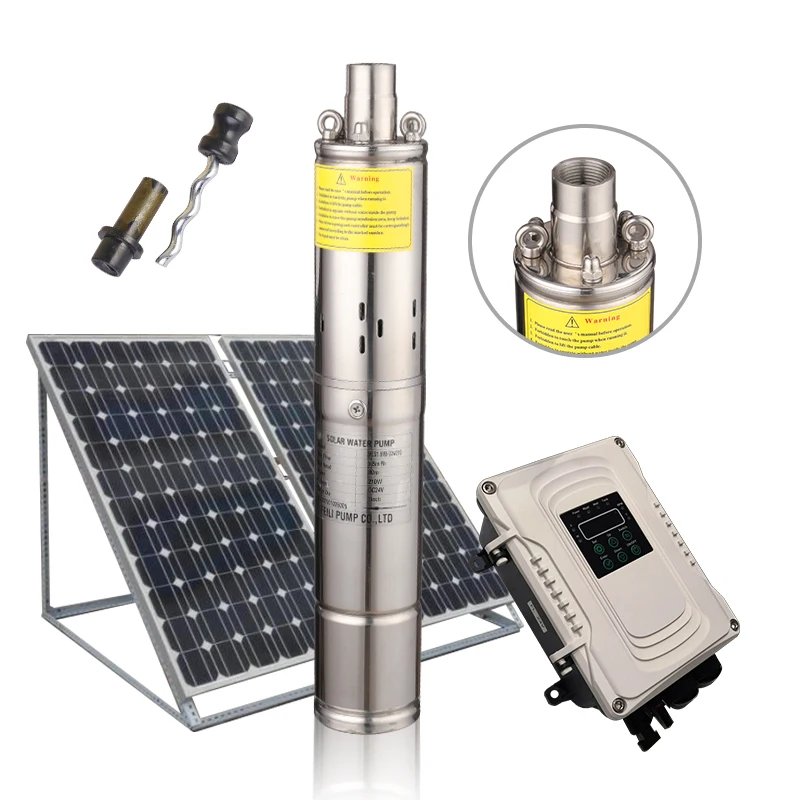

Контроллер солнечных насосов dc, погружной насос с винтовым двигателем, хорошее качество
