4 оси вращения шпинделя ATC CNC деревообрабатывающий станок 1224 автоматический 3d резьба по дереву cnc маршрутизатор
- Категория: >>>
- Поставщик: Jinan Quick-Fulltek CNC Machinery Co. Ltd.
Сохранить в закладки 1700003343418:
Описание и отзывы
Характеристики

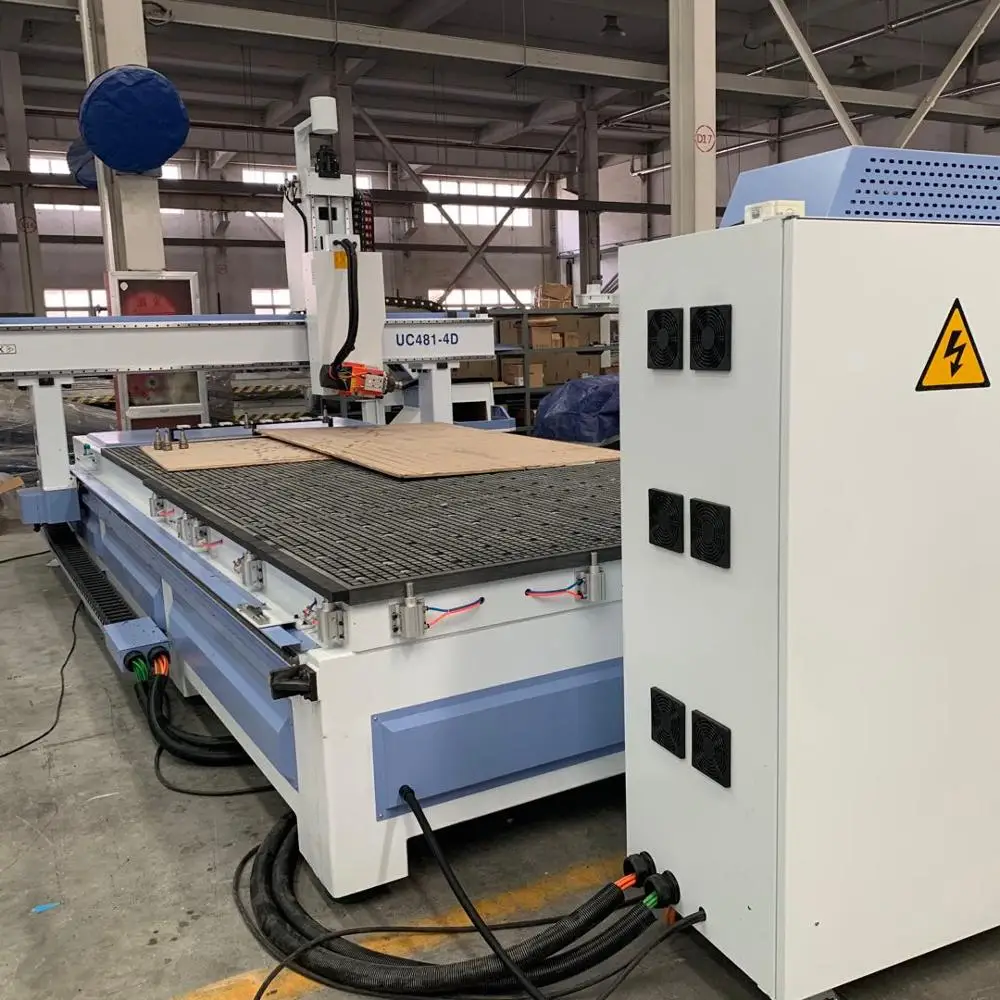

4 Axis Spindle Rotary ATC CNC Woodworking Machine 1224 automatic 3d wood carving cnc router
Product Description
4 axis customized model spindle rotary ATC CNC woodworking machine for furniture door panel cabinet etc. The spindle can rotate 0-180 degrees, suitable for processing curved materials Most of the spare parts are imported: such as 9.6kw Italian HSD spindle,Taiwan Syntec 6MB system, Japanese Yaskawa servo motor, Taiwan original guide rail, frame, etc. The newly added 8 linear tool magazines make the machine more efficient. The work schedule can be customized according to the situation of the workpiece. Working size to be customized…...

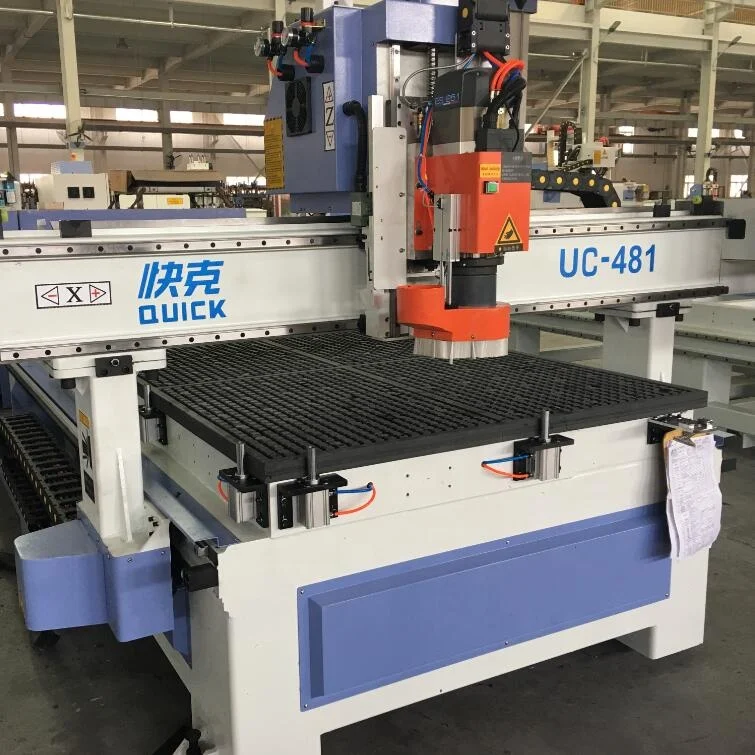

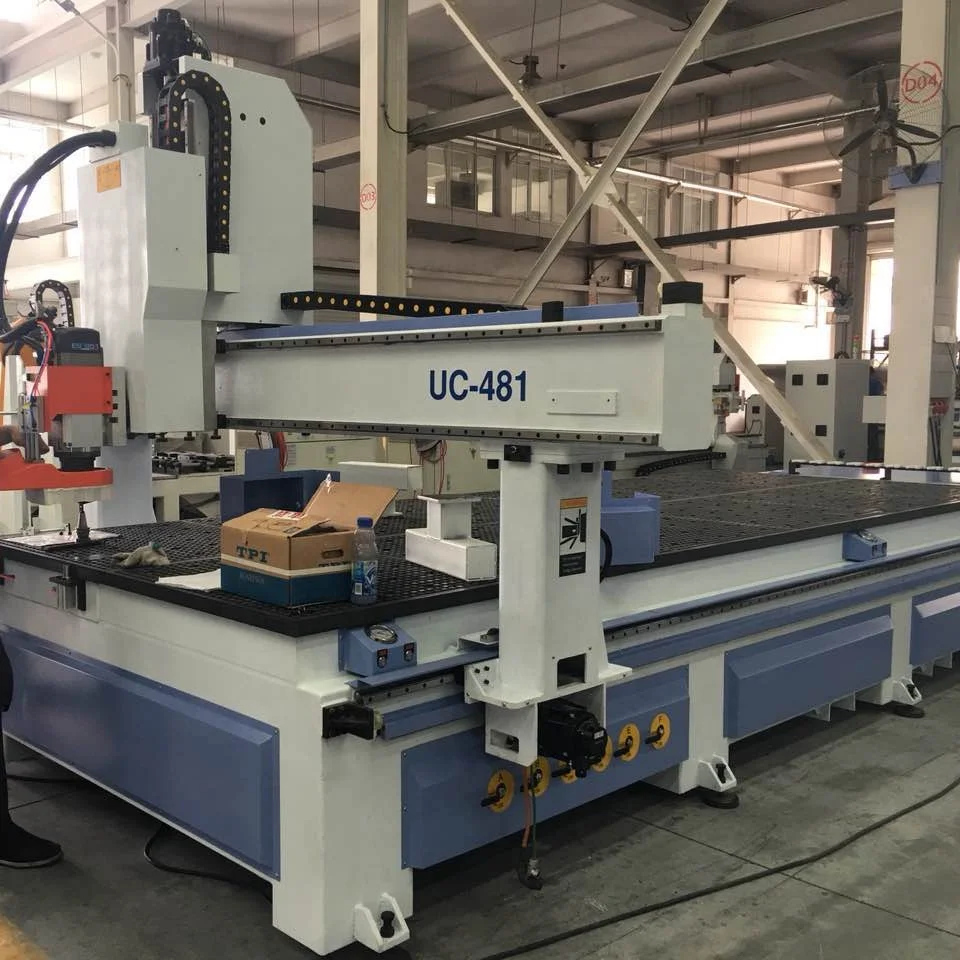

Quick-Fulltek CNC new model, the UC - 481 4 axis, with fast changeover speed, high efficiency, and most importantly, high precision and high quality
1. UC-481 with 9.6kw HSD ATC spindle and carousel tool changing magazine, the machine can change tools automatically during the work.
2. Except the spindle, we use high quality components on this machine like YASKAWA servo motors and servo drivers, Taiwan linear rails and TBI ball screw, Taiwan Syntec 6MB control system and so on.
3. Machine base is produced by CNC machine, and machine base’s five sides are produced at one same procession to make sure the machine body geometry tolerance is standard. The frame is a welded heavy steel tubular construction that supports all the other parts of the machine.
3. Machine base is produced by CNC machine, and machine base’s five sides are produced at one same procession to make sure the machine body geometry tolerance is standard. The frame is a welded heavy steel tubular construction that supports all the other parts of the machine.
Model | UC-481 4 axis |
X-Y-Z axis working area | 1220*2440*400mm |
Machine size | 3500*2200*2200mm |
Repositioning resolution | 0.02mm |
X-Y movement | Rack and pinion, gear drive/Taiwan |
Z movement | Ball screw drive/Germany |
Guide | Linear 25mm square/Taiwan |
Spindle power | 9.6KW Italy HSD (ISO30, air cooling ATC) |
Spindle speed | 24000rpm |
Inverter power | 11KW inverter |
Tool magazine | Auto 8pcs linear tools changer |
Drive motors | 850W YASAKWA Servo Motor |
Working voltage | AC380V/50-60Hz, 3-phase |
Command code | G code |
Computer interface | USB 2.0 |
Reduce | Motovario |
Software | Artcam , Alphacam copy |
Controls | Syntec 6MB |
Standard equipment included | 1.Oil lubrication system 2.Dust hood 3.vacuum table with the 7.5 kW chinese pump 4.Tool shanks 5.Positioning pins |
Optional | Vacuum cleaner 5.5 kW Becker vacuum pump |
Detailed Images
ATC spindle 9.6KW Italy HSD ATC air cooling
ER 32
Speed 18000rpm-24000rpm
ER 32
Speed 18000rpm-24000rpm
Tool changer ISO 30
fast changing speed8 pcs
Frame
The frame is made of a pentahedral machining center, which has undergone tempering treatment and vibration aging treatment; the core components are made of 16mm steel plate, and the other components are 8-10mm. The weight of the whole machine can reach 3000kgs.

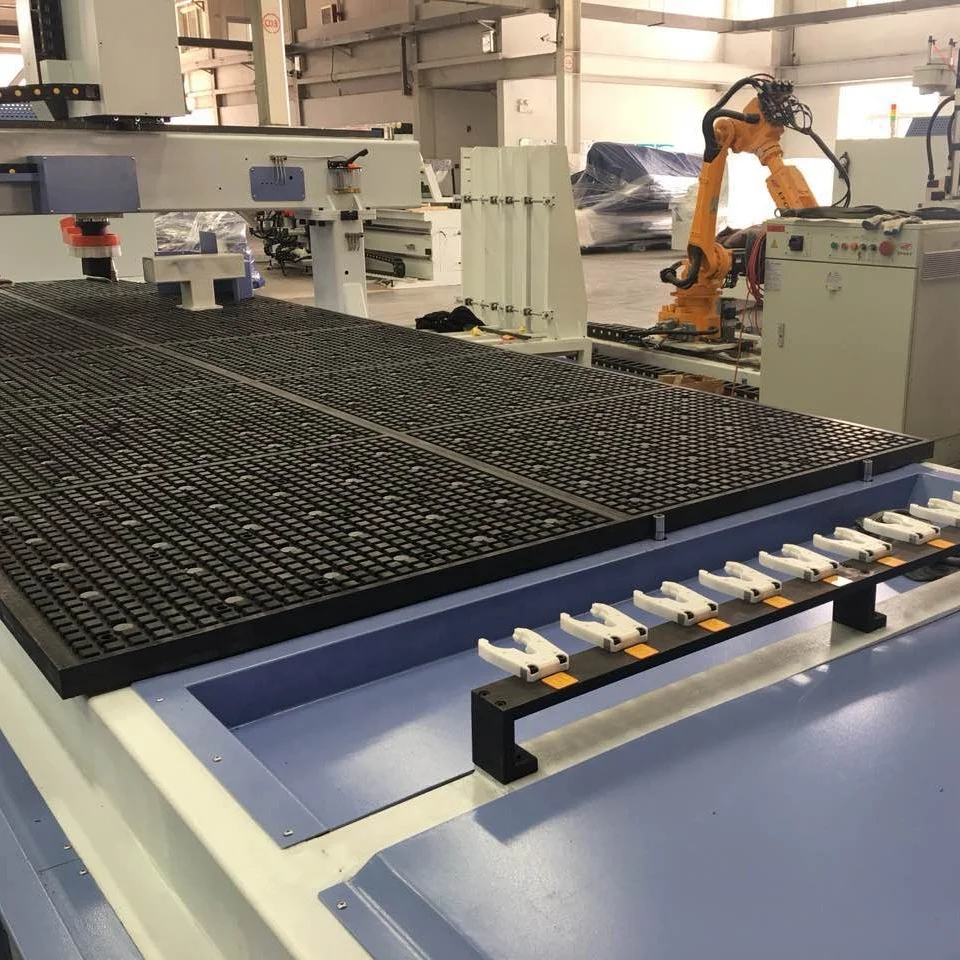

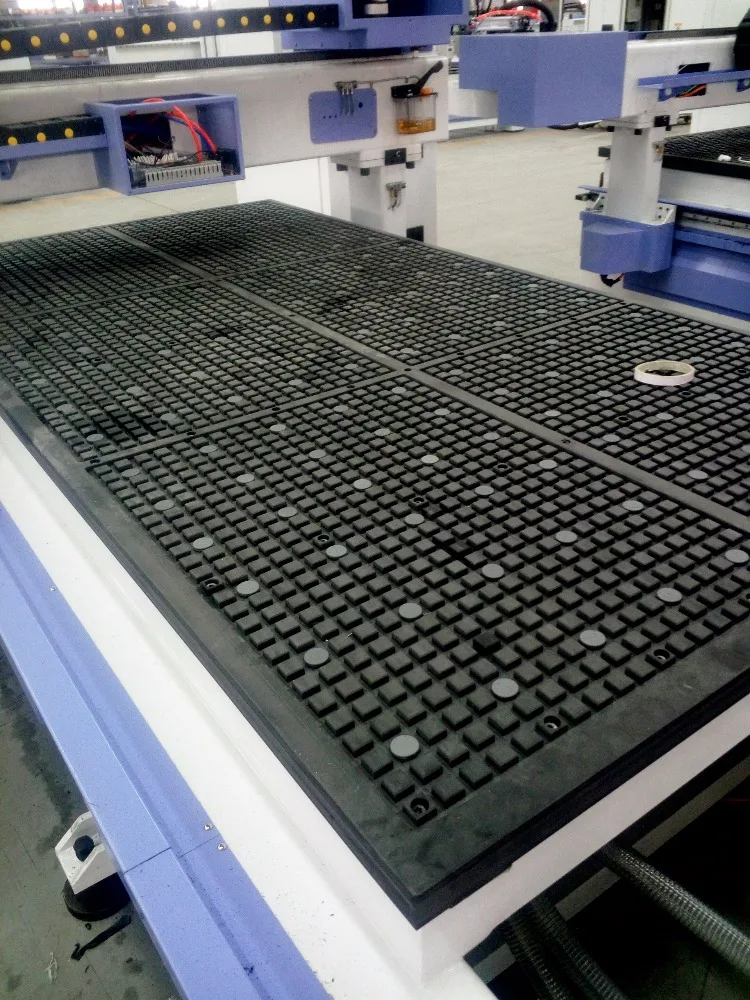

Double layer Vacuum table with 7.5kw chinese pump
The vacuum table is double layer vacuum table with high qulity PVC
Strong sealing
The vacuum table is a diamond-shaped area, and the adsorption effect is better

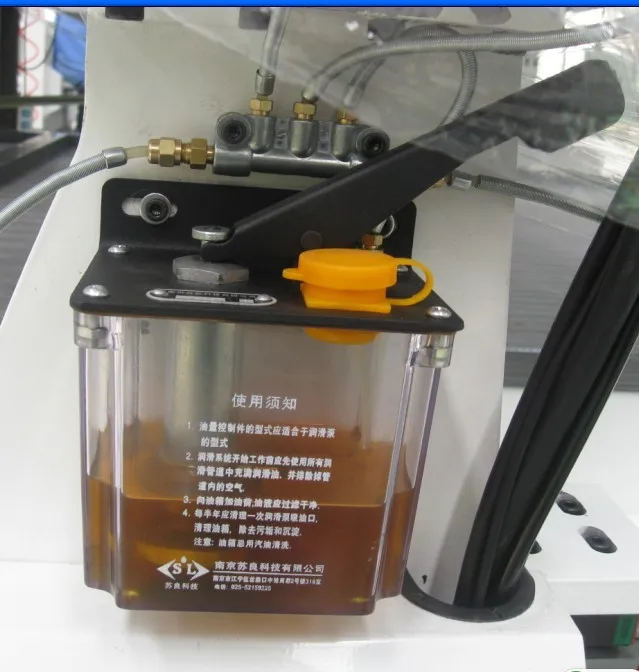

Oil lubrication system
A central oiler\t\t\t\t\t
sufficient to keep your machine lubricated.\t\t\t\t\t
When the oil tank needs filling, top up with a good quality \t\t\t\t\t
SAE 30 weight oil.\t
sufficient to keep your machine lubricated.\t\t\t\t\t
When the oil tank needs filling, top up with a good quality \t\t\t\t\t
SAE 30 weight oil.\t
Samples Show
1.Woodworking:wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc
2.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould
3.Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc.
4.Decoration:acrylic,density board,artificial stone,organic glass,soft metals like aluminum,copper, etc.
5.Cylindrical object
5.Cylindrical object
Company Introduction
Jinan Quick-Fulltek CNC Machinery Co.,Ltd, was founded in 2006, we are one of the best CNC router suppliers in China. Our products are selling well widely all over the world and have good reputations.specializes in R&D and production of various cnc equipment,such as 3 axis cnc, ATC cnc,automatic load and unload cnc,4 axis,5 axis, PTP, panel furniture cnc.All series machines are with one-year warranty. Meanwhile, customized equipment are available according to different requirements.
Facing the chances and challenges of Global Economic integration as well as being offered with opportunities Knowledge Economy Era,we are determined to achieve our dreams step by step with the advantages of high technology. We aim to be a professional,branding and international suppliers for woodworking industrial solutions.
Facing the chances and challenges of Global Economic integration as well as being offered with opportunities Knowledge Economy Era,we are determined to achieve our dreams step by step with the advantages of high technology. We aim to be a professional,branding and international suppliers for woodworking industrial solutions.

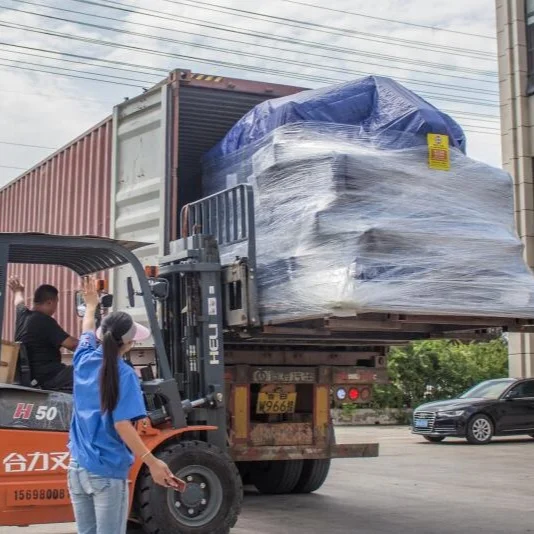

Packing and shipping
1.Whole film packaging machine
2.Anti-collision package edge
3.Fumigation-free plywood wooden box with iron binding belt
4.According to the customer's requirements for loading the whole container or LCL at Qingdao port.
4.According to the customer's requirements for loading the whole container or LCL at Qingdao port.
Certifications
The following is the patent certificate obtained by QUICK CNC, as well as CE certification, ISO 9001, etc.
Customer Photos
QUICK CNC has in different customer groups all over the world, including agents, end customers, and customer recommendations, etc.
There are the advertising industry, the woodcraft industry, furniture manufacturing industry, and metal processing industry, etc.
There are the advertising industry, the woodcraft industry, furniture manufacturing industry, and metal processing industry, etc.
QUICK CNC has established strategic alliance business relationships with partners all over the world.
Its products are sold all over the world, and are well received at home and abroad for "quality and durability".
Its products are sold all over the world, and are well received at home and abroad for "quality and durability".
Customer Feedback
QUICK CNC machines are sent all over the world, and they have also been well received by many customers
FAQ
Q: How long is your delivery time?
A: Generally it is 25-30 days, it is according to quantity.
Q: How does your factory do regarding quality control?
A: Quality is the priority. Our leaders always attach great importance to quality control from the very beginning to the end of
the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Quick CNC has been Alibaba's Gold supplier for
12 years. If you check with Alibaba, you will see that we have never got any complaints from any customers.
PS: All machines can be customized according to your requests
WELCOME TO VISIT US AND BE A AGENT OR DISTRIBUTOR!
A: Generally it is 25-30 days, it is according to quantity.
Q: How does your factory do regarding quality control?
A: Quality is the priority. Our leaders always attach great importance to quality control from the very beginning to the end of
the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Quick CNC has been Alibaba's Gold supplier for
12 years. If you check with Alibaba, you will see that we have never got any complaints from any customers.
PS: All machines can be customized according to your requests
WELCOME TO VISIT US AND BE A AGENT OR DISTRIBUTOR!
Похожие товары

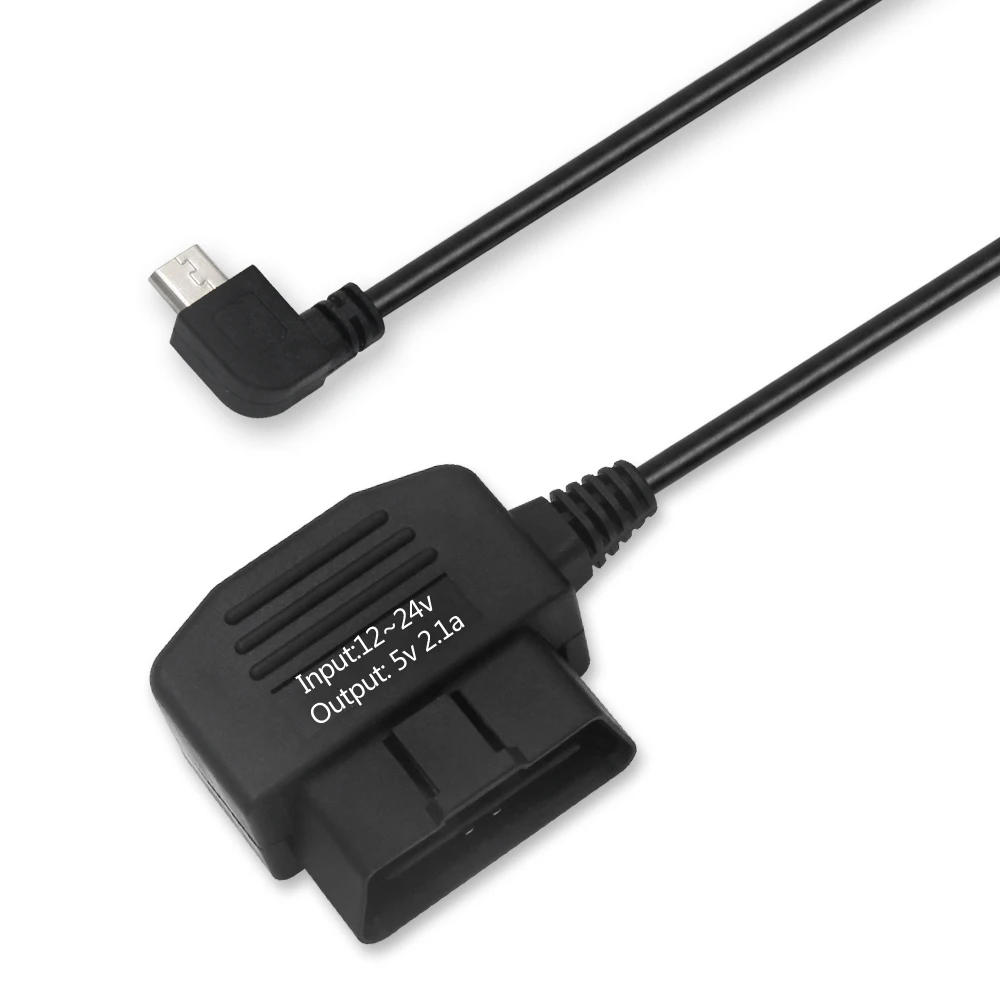

Кабель диагностического сканера 2464 24AWG с 16 контактами OBD 2 Удлинительный кабель штекер-микро 5 контактов
1,15 $ - 1,35 $

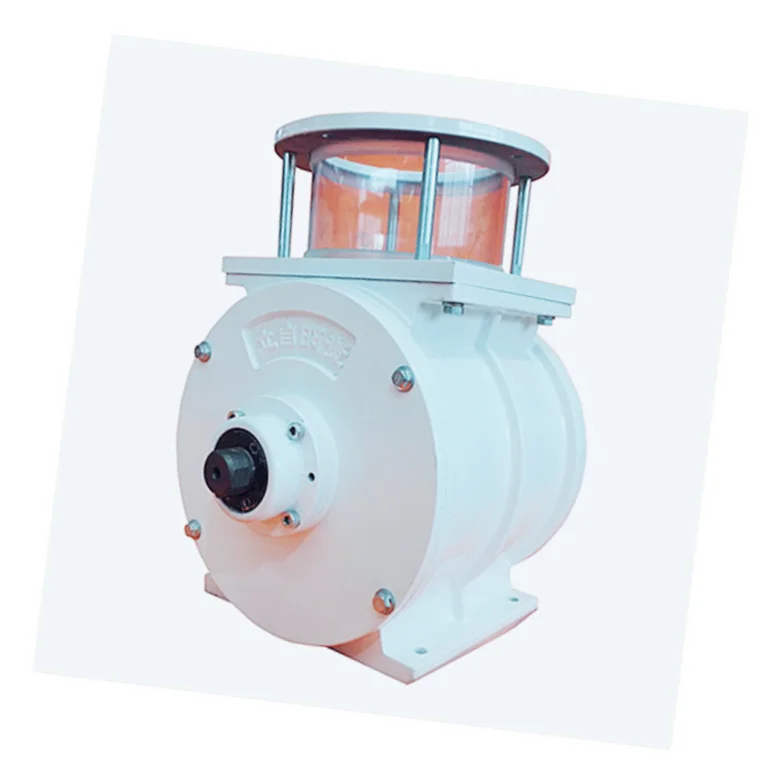

Электромагнитный поворотный подачи литой поворотный клапан низкая цена поворотный воздушный замок клапан

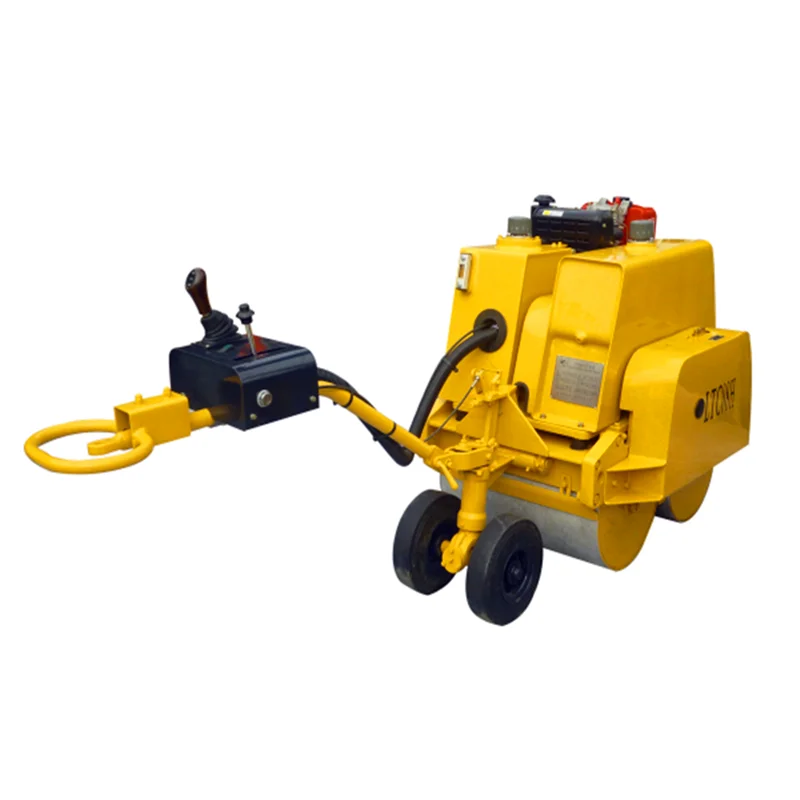

0.8ton LUTONG Mini шагающий Вибрационный ролик LTC08H
3 000,00 $ - 4 000,00 $
Чип-принт смешивающий чипованный картридж-тонер TK-580 для kyoceras FS-C5150DN

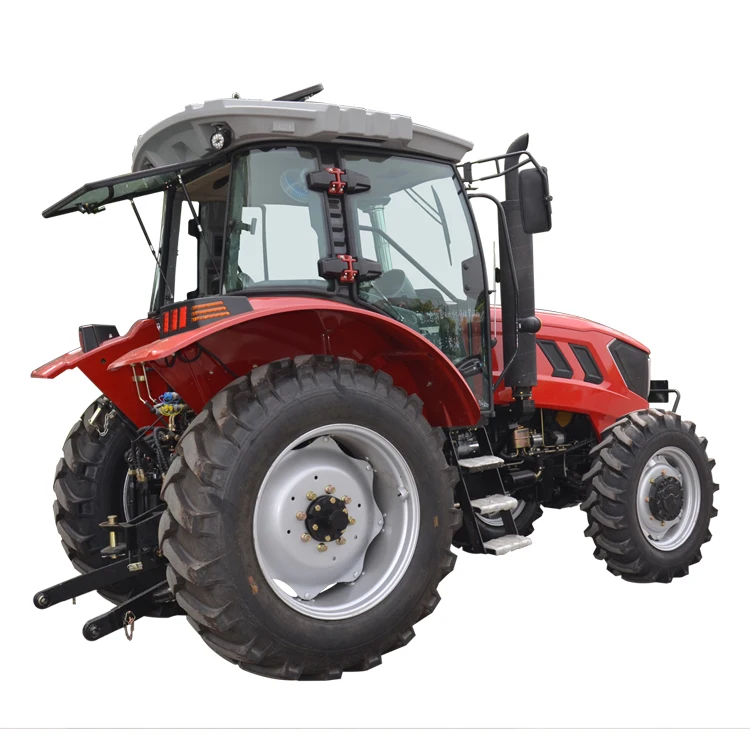

Сельскохозяйственная техника WEIFANG HUAXIA, трактор, 100 л.с., 110 л.с., 120 л.с., 130 л.с., 140 л.с., 150 л.с.
Pakistan supplier custom made unbranded high quality composite carbon hockey sticks

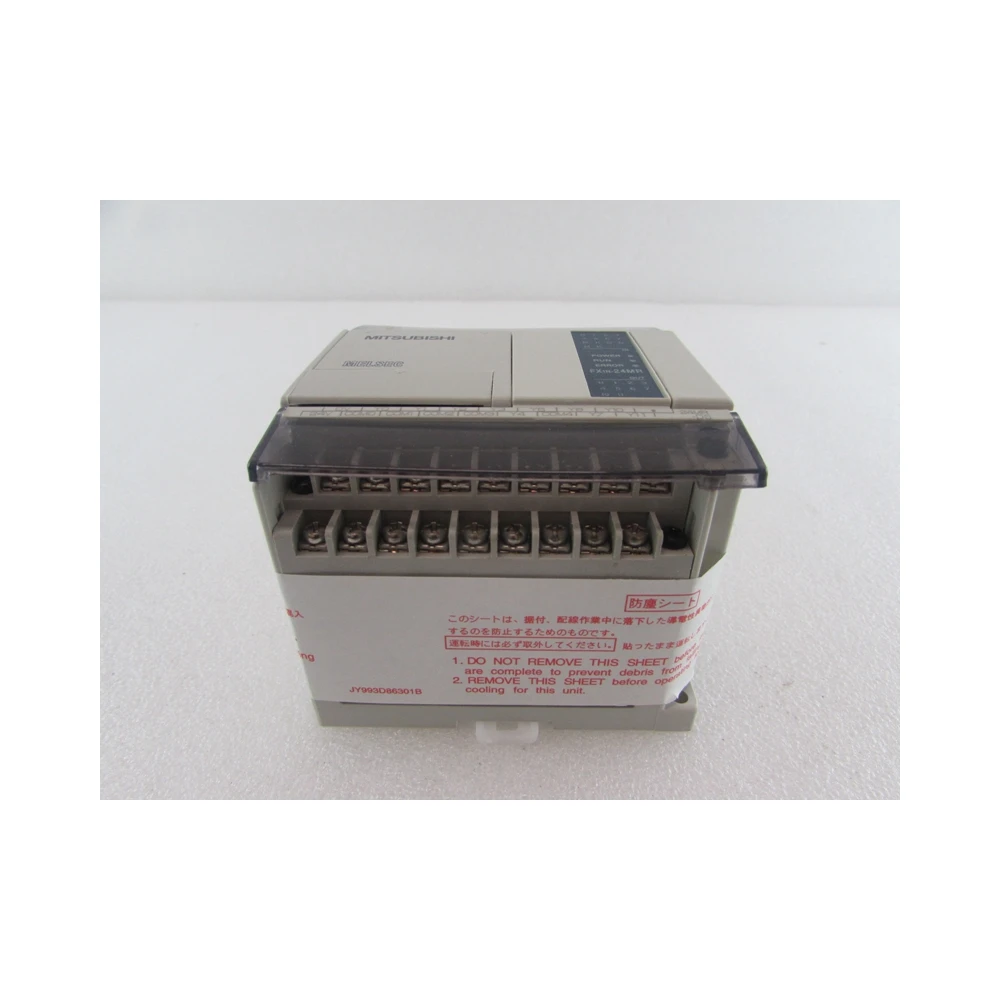

Mitsubishi plc fx3u лучший и Дешевый plc FX2N-8AD
