Автоматическая Паровая стиральная машина для мотоциклов
- Категория: Electronics Production Machinery >>>
- Поставщик: VIET NAM LINKS COMPANY LIMITED
Сохранить в закладки 1700003524949:
Описание и отзывы
Характеристики
Products Description
Features:
1.Prewash of the motorbike by the HANDY NOZZLE [5], HANDY BRUSH and SOAP to remove dust in specific parts including fenders, wheel rims, calipers, drive sprockets, in which the machine can not wash.
2.Move the motorbike into right position of the machine. Hold the hand grips inplace with the hand grip holder of the machine.
3.Press the START BUTTON [2] so that the machine can begin the process of washing. Total duration of washing is 1 minute and 30 seconds.
4.Observe the machine during it wash the motorbike.
If anything abnormal occurs, Push THE EMERGENCY BUTTON [1] to stop the system, then check.
To release the EMERGENCY BUTTON, do CLOCKWISE TWIST.
5.After washing, the motorbike will automatically moved out the machine. Dry the bike by CLOTH and AIR GUN [7], start the engine, and let it run for several minutes.
6.STOP BUTTON [3]: Use when you want to temporarily stop the washing process, to adjust the motorbike to the right position, or tighten the han grips holders
7.LIGHT BUTTON [4]: Use when you want to see clearly the process inside the system
8.BACK & FORTH BUTTON [6]: Use to move the hand grips holder machine back and forth
2.Move the motorbike into right position of the machine. Hold the hand grips inplace with the hand grip holder of the machine.
3.Press the START BUTTON [2] so that the machine can begin the process of washing. Total duration of washing is 1 minute and 30 seconds.
4.Observe the machine during it wash the motorbike.
If anything abnormal occurs, Push THE EMERGENCY BUTTON [1] to stop the system, then check.
To release the EMERGENCY BUTTON, do CLOCKWISE TWIST.
5.After washing, the motorbike will automatically moved out the machine. Dry the bike by CLOTH and AIR GUN [7], start the engine, and let it run for several minutes.
6.STOP BUTTON [3]: Use when you want to temporarily stop the washing process, to adjust the motorbike to the right position, or tighten the han grips holders
7.LIGHT BUTTON [4]: Use when you want to see clearly the process inside the system
8.BACK & FORTH BUTTON [6]: Use to move the hand grips holder machine back and forth
Specifications
Product name | Automatic Motorbike Wash |
Machine Dimension (L x W x H) | 4.5x1.95x2.3 (m) |
Frame structure | Galvanised steel frame |
Weight | 1270 kg |
Door | Aluminum |
Steam pressure | 8 bar – 10 bar |
Space Requiremeny | 2.2m x 4.6m |
Adaptable vehicles | All motorbikes with handle bar width less than 31.50 inches |
Power | 3 Phase, 380 Voltz |
Power consumption | ~ 0,34 Kw /vehicle |
Steam temperature | 80oC – 120oC |
Water consumption | ~ 120 litres |
Washing time | 03 minutes / vehicle |

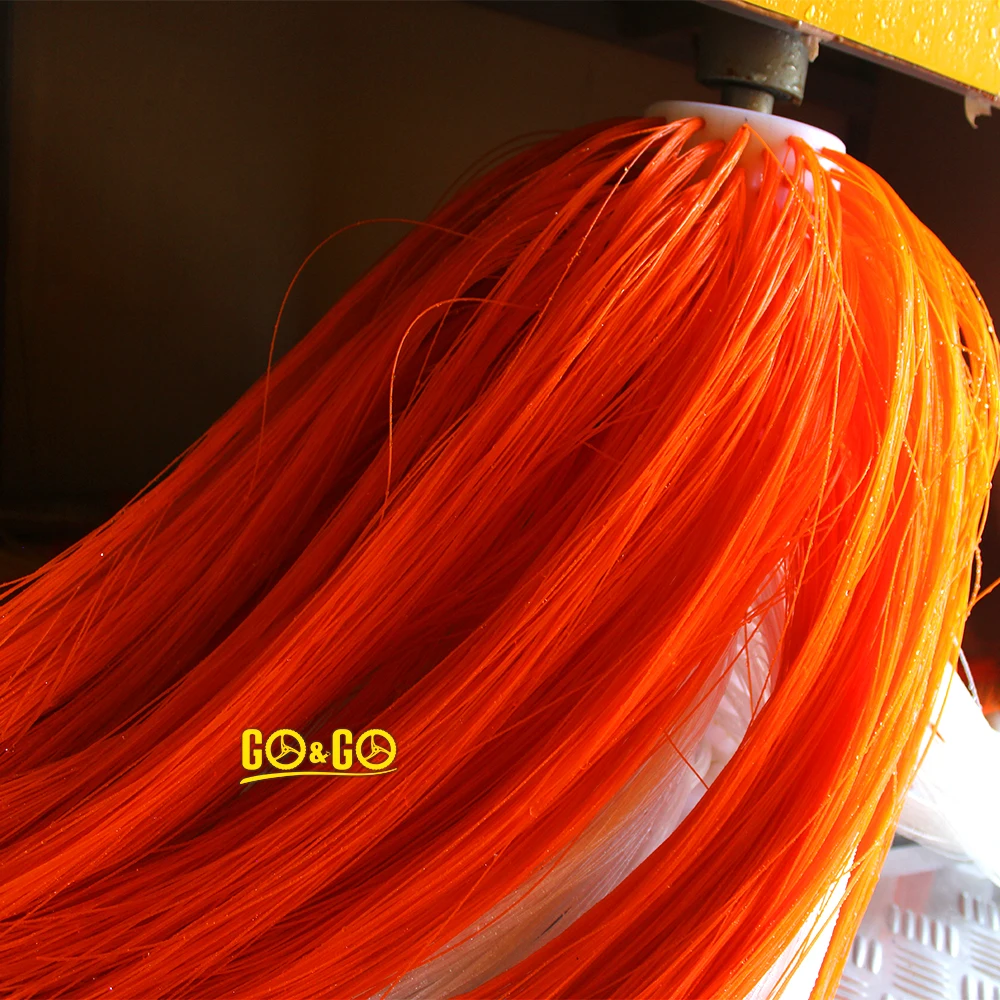

Vertical side brushes | 02 pcs |
Wheel brushes | 02 pcs |
Automatic motor counting system | Included |
Nozzles | 16 pcs |
Drying system | Included |
Customized logo | >5 |

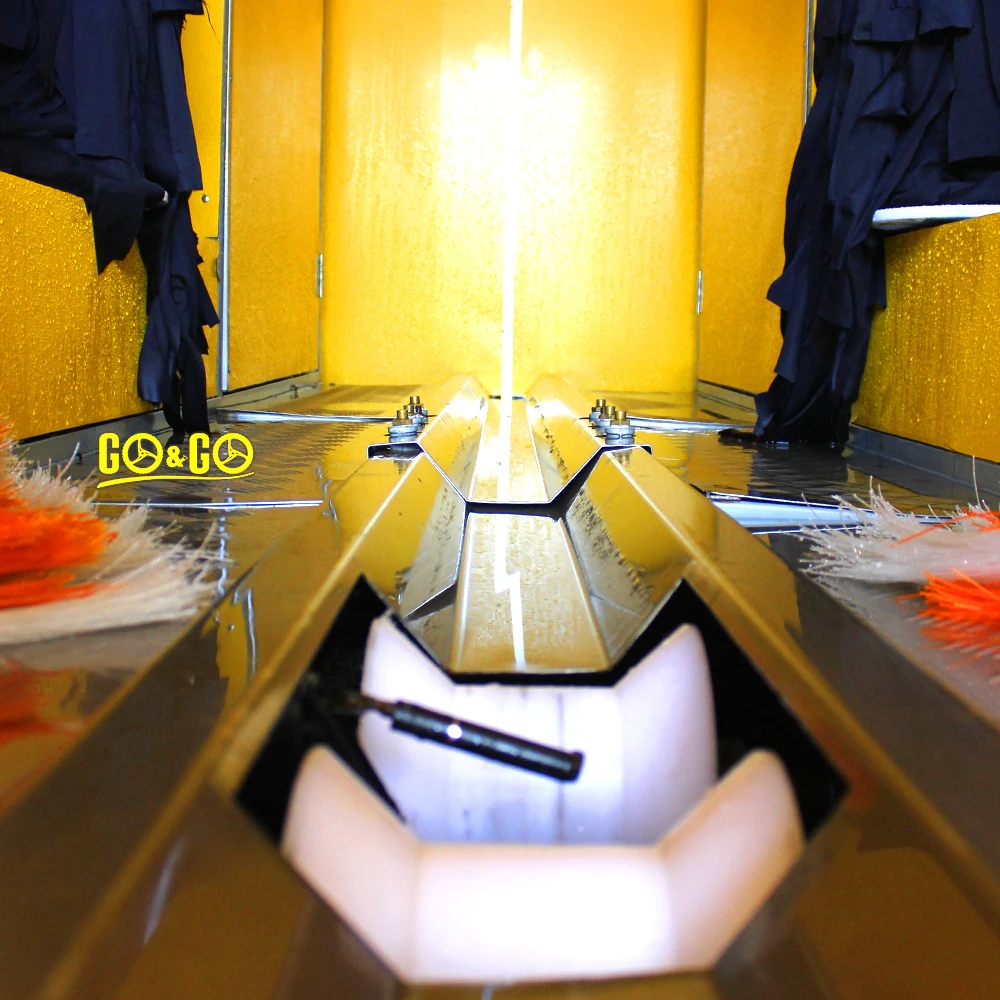

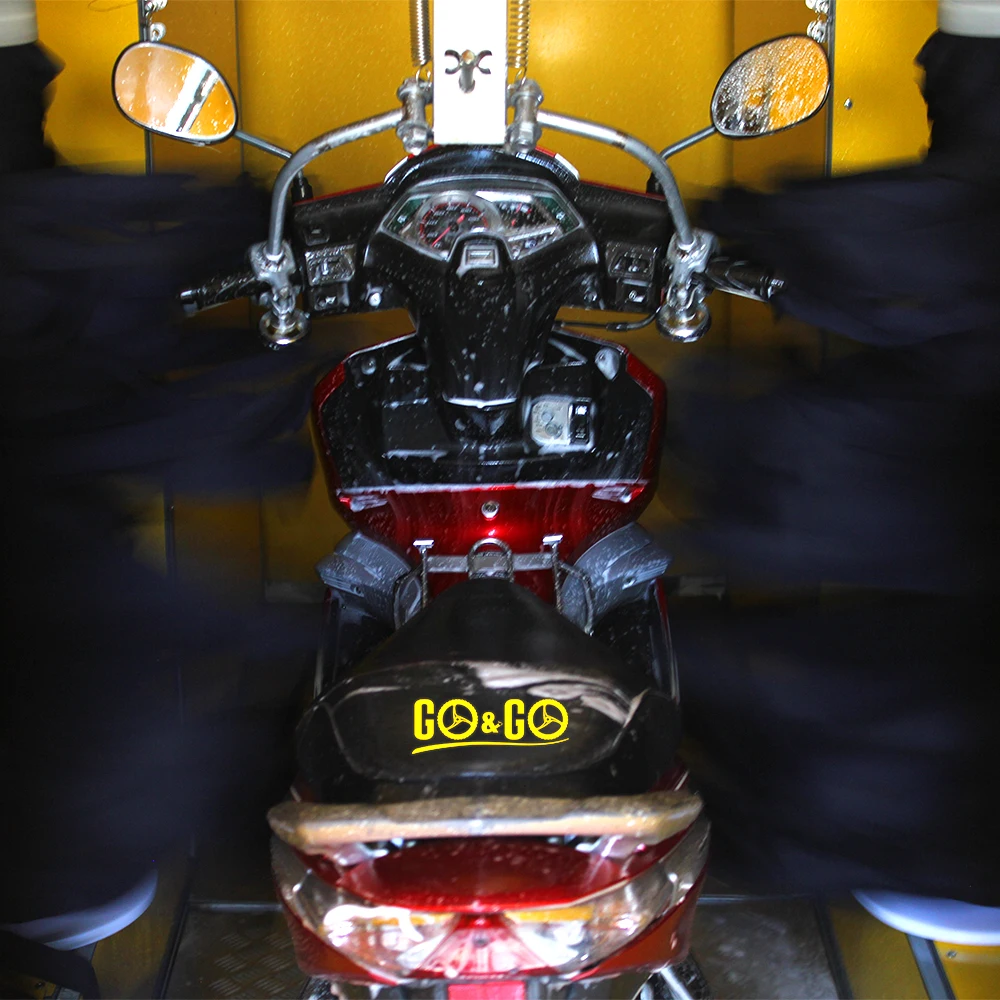

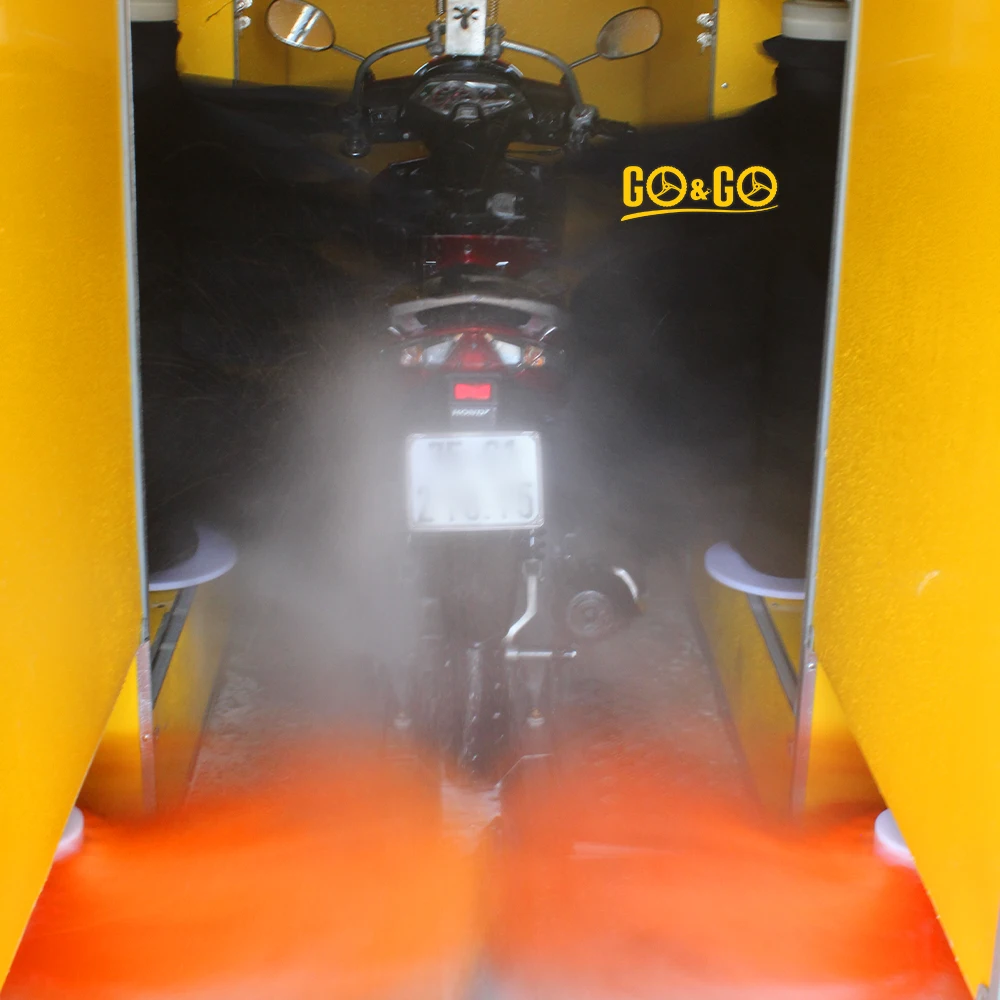

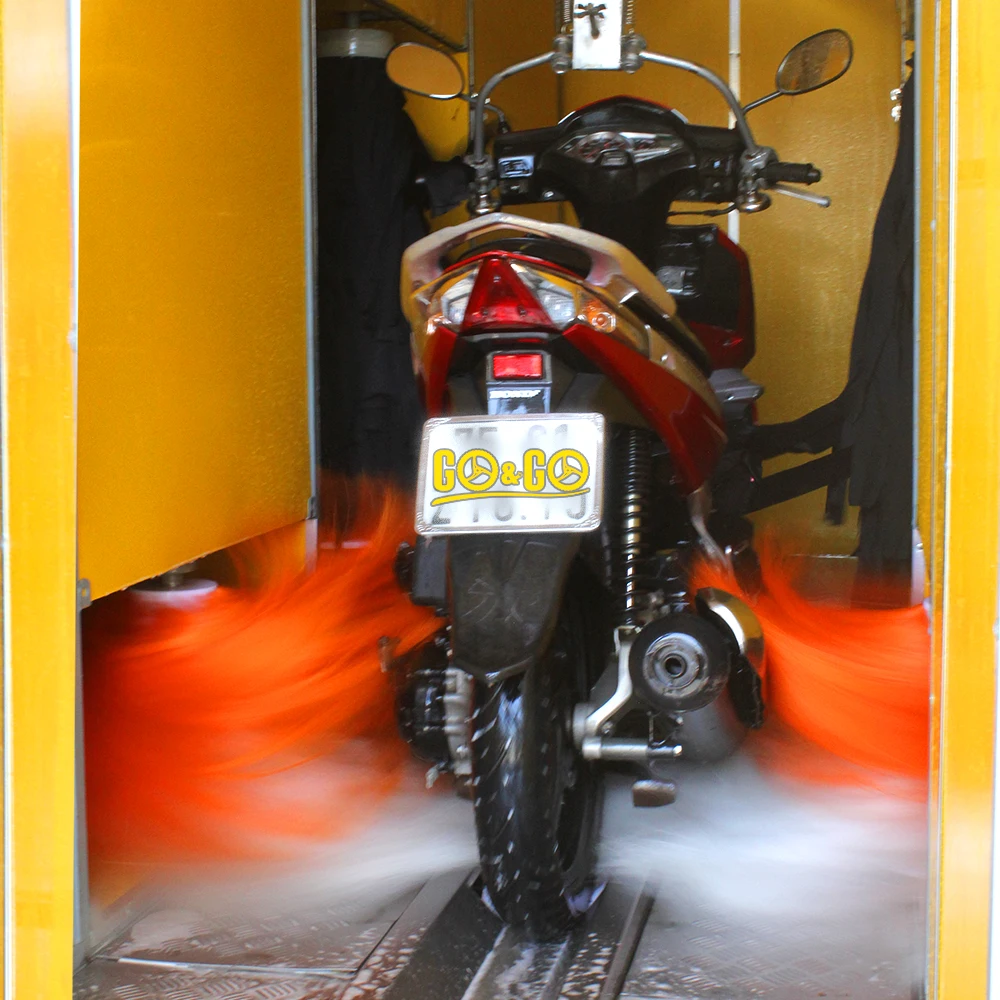

Details Images
Installation Instructions
1.Prewash of the motorbike by the HANDY NOZZLE [5], HANDY BRUSH and SOAP to remove dust in specific parts including fenders, wheel rims, calipers, drive sprockets, in which the machine can not wash.
2.Move the motorbike into right position of the machine. Hold the hand grips inplace with the hand grip holder of the machine.
3.Press the START BUTTON [2] so that the machine can begin the process of washing. Total duration of washing is 1 minute and 30 seconds.
4.Observe the machine during it wash the motorbike.
If anything abnormal occurs, Push THE EMERGENCY BUTTON [1] to stop the system, then check.
To release the EMERGENCY BUTTON, do CLOCKWISE TWIST.
5.After washing, the motorbike will automatically moved out the machine. Dry the bike by CLOTH and AIR GUN [7], start the engine, and let it run for several minutes.
6.STOP BUTTON [3]: Use when you want to temporarily stop the washing process, to adjust the motorbike to the right position, or tighten the han grips holders
7.LIGHT BUTTON [4]: Use when you want to see clearly the process inside the system
8.BACK & FORTH BUTTON [6]: Use to move the hand grips holder machine back and forth
2.Move the motorbike into right position of the machine. Hold the hand grips inplace with the hand grip holder of the machine.
3.Press the START BUTTON [2] so that the machine can begin the process of washing. Total duration of washing is 1 minute and 30 seconds.
4.Observe the machine during it wash the motorbike.
If anything abnormal occurs, Push THE EMERGENCY BUTTON [1] to stop the system, then check.
To release the EMERGENCY BUTTON, do CLOCKWISE TWIST.
5.After washing, the motorbike will automatically moved out the machine. Dry the bike by CLOTH and AIR GUN [7], start the engine, and let it run for several minutes.
6.STOP BUTTON [3]: Use when you want to temporarily stop the washing process, to adjust the motorbike to the right position, or tighten the han grips holders
7.LIGHT BUTTON [4]: Use when you want to see clearly the process inside the system
8.BACK & FORTH BUTTON [6]: Use to move the hand grips holder machine back and forth
Product packaging
Company Profile
Go & Go is the leading unit in Vietnamese Market for manufacturing and transferring auto-washing technology. We create effective business models that help our customers and employees become wealthy based on new market-leading technologies.
OUR ACTIVITIES
* Consulting business model investment of car wash & care.
* Produce, supply, and install automatic car wash equipment.
* Distribute car accessories and cleaning agents.
* Franchise 5S car wash & care chain stores.
* Provide high-quality car wash & care service at home.
* Produce, supply, and install automatic car wash equipment.
* Distribute car accessories and cleaning agents.
* Franchise 5S car wash & care chain stores.
* Provide high-quality car wash & care service at home.
STAFF
We are always proud to have been continually building a team with strong logical thinking and competence. The criteria for
building our team include 3 elements: Wisdom – Power – Love. At Go&Go, our employees can create all optimal conditions to devote themselves and appreciated for their achievements. Besides, they can upgrade a comprehensive level of thinking, skills, as well as professional knowledge.
building our team include 3 elements: Wisdom – Power – Love. At Go&Go, our employees can create all optimal conditions to devote themselves and appreciated for their achievements. Besides, they can upgrade a comprehensive level of thinking, skills, as well as professional knowledge.
As a pioneer group using VIETNAMESE INTELLIGENCE AND TECHNOLOGY to create unique BUSINESS MODELS, which help VIETNAMESE become
successful businessmen. We are proud to bring these enriching models to ALL OVER THE WORLD.
successful businessmen. We are proud to bring these enriching models to ALL OVER THE WORLD.
We ensure the best quality in each device & service provided to our customers:
* Serve and support customers with all our enthusiasm.
* Create a great working environment for employees: Solidarity – Positivity – Good income – Long term engagement.
* Serve and support customers with all our enthusiasm.
* Create a great working environment for employees: Solidarity – Positivity – Good income – Long term engagement.
Our values are reflected in how we run our business: always think POSITIVELY and ENTHUSIASTICLY.
* Enthusiastic at work
* Enthusiastic with teammates
* Enthusiastic with customers
* Enthusiastic with partners
* Enthusiastic at work
* Enthusiastic with teammates
* Enthusiastic with customers
* Enthusiastic with partners
Contact Us
Contact Information
Address: 196 Nguyen Van Huong, Thao Dien Ward, District 2, Ho Chi Minh City
Mobile : + 84 917.471.249
+84 913.350.550
Email: tramlnq@vinalinksgroup.com
Похожие товары
Японский профессиональный автоматический закрепитель жесткости

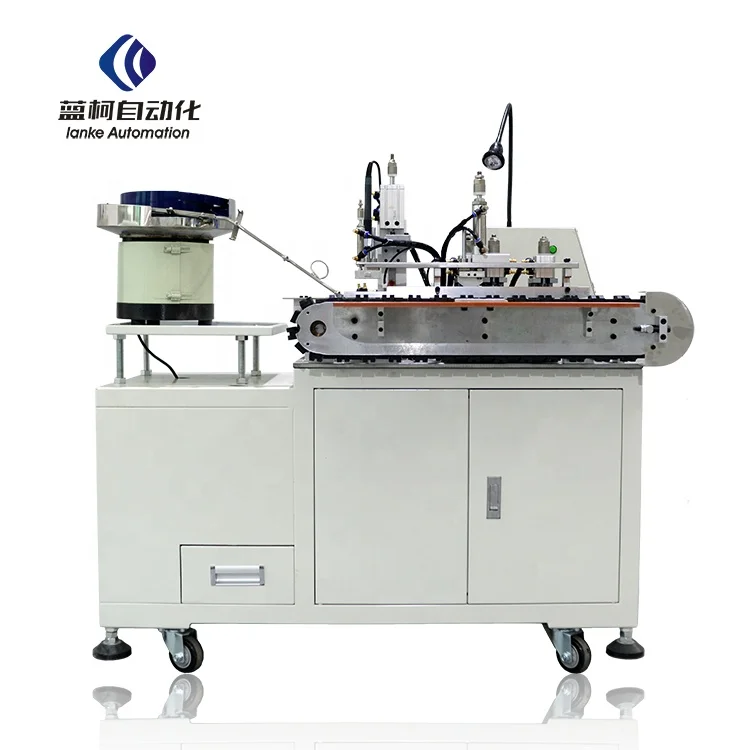

Автоматический USB-кабель, паяльная машина для usb-кабелей передачи данных
3 600,00 $

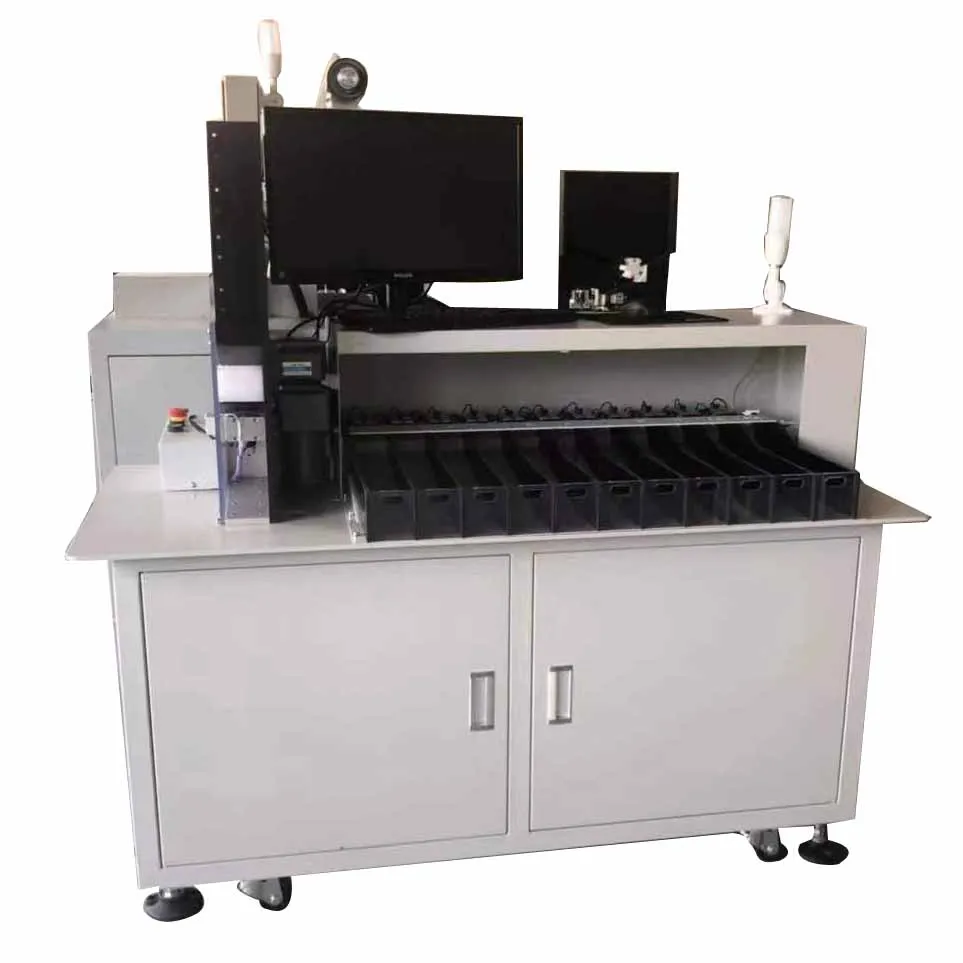

Лабораторная Автоматическая цилиндрическая сортировочная машина для аккумуляторных батарей 11 каналов 18650, 26650 и 32650

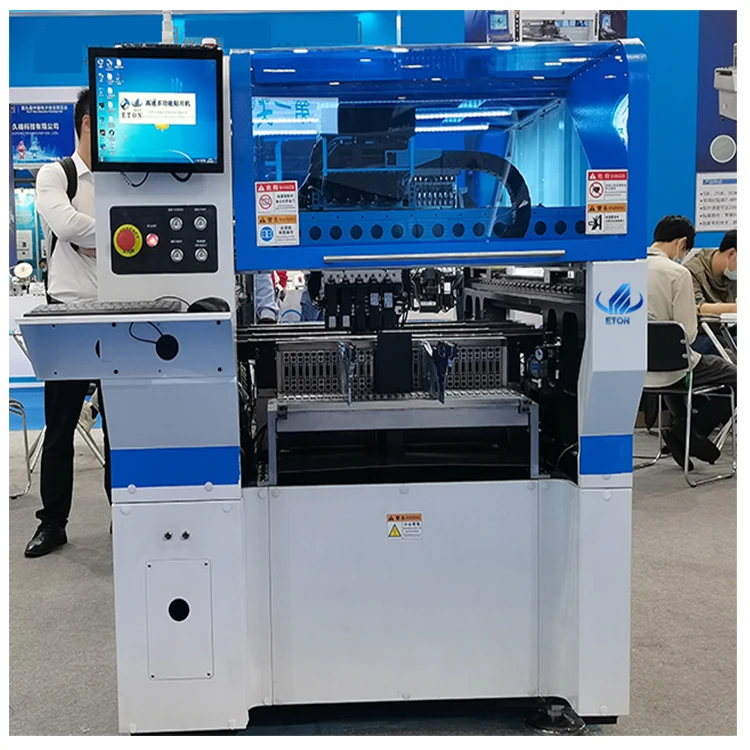

ETON светодиодные лампы делая машину светодиодный захвата и установки машины
Новейший Spi VA722 ультра паяльная паста инспектора высокоточная машина
51 000,00 $

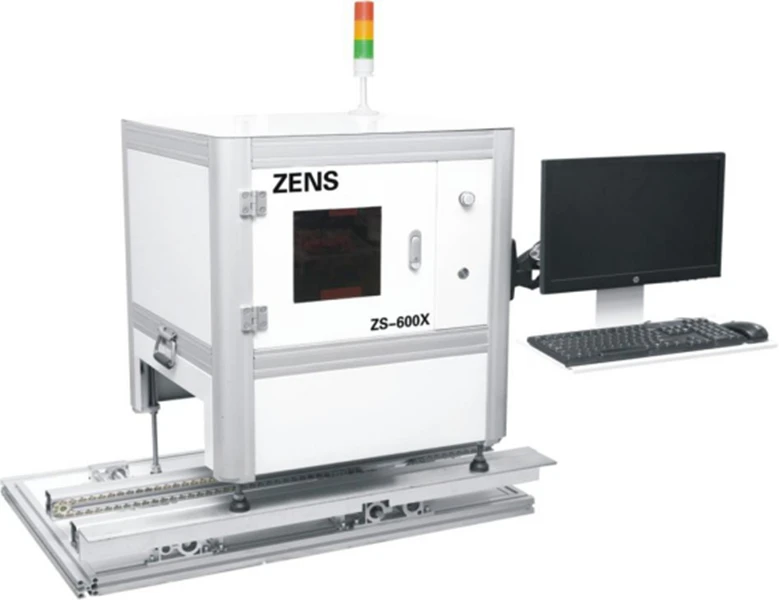

Автоматическая вилка оборудование AOI ZS-600X для печатной платы SMT/SMD испытаний SMT оборудование AOI

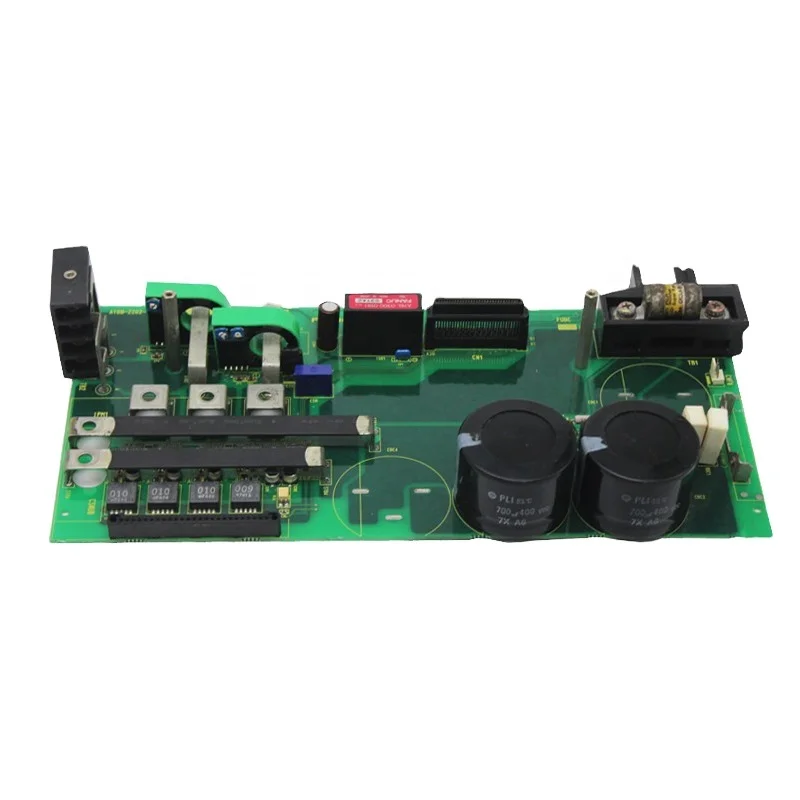

Fanuc серии 90% новый печатная плата A16B-2202-0680 для станка с ЧПУ по обработке листового металла
