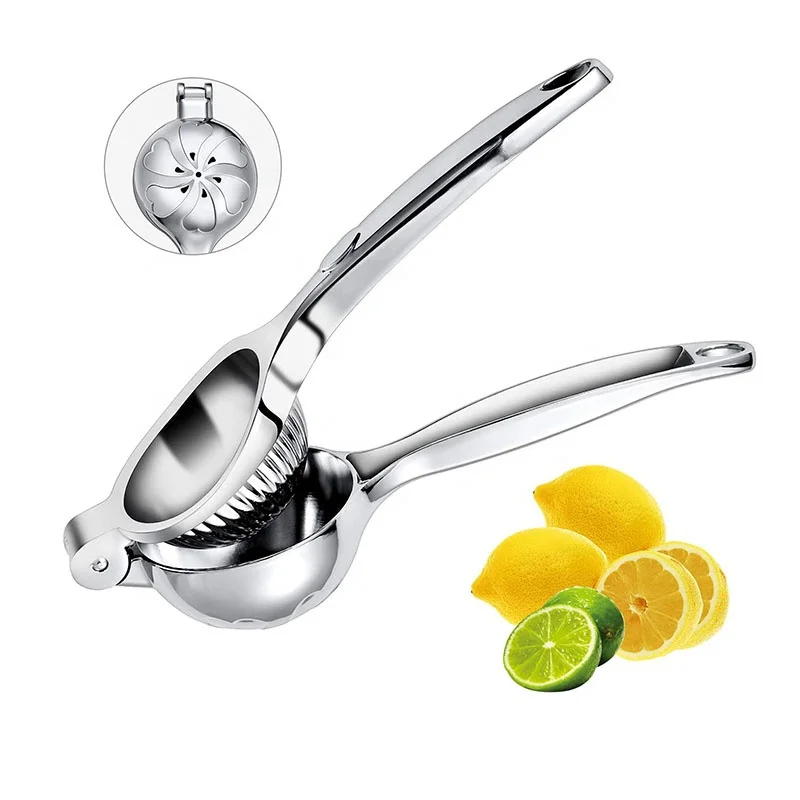

Инструменты для фруктов и овощей, приспособление из нержавеющей стали для лимона, кухонные инструменты, соковыжималка для лимона
0,57 $ - 0,66 $
Автоматическое цифровое оборудование для измерения индекса кислорода
- Категория: >>>
- Поставщик: Qinsun Instruments (shanghai) Co. Ltd.
Сохранить в закладки 1700005286549:
Описание и отзывы
Характеристики
Product Description

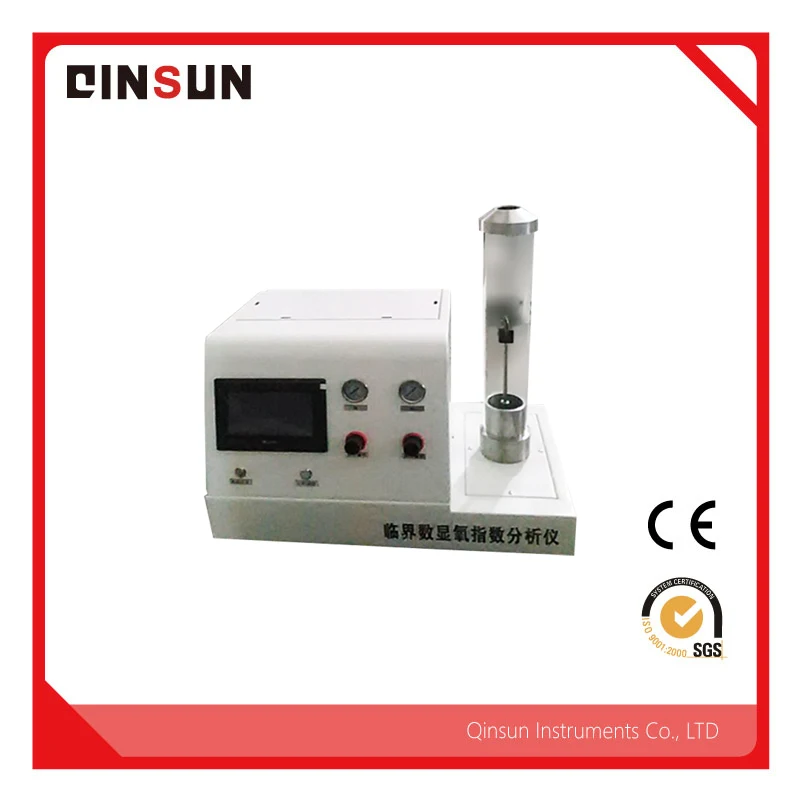

Automatic Fabric Digital Limiting Oxygen Index Test Equipment Manufacturers F101A is designed according to ISO4589.1-2006, and it applies to analysis the minimum oxygen concentration needed to maintain combustion of the sample when the sample is under under the test conditions specified in oxygen and nitrogen mixed gas.
This Automatic Fabric Digital Limiting Oxygen Index Test Equipment Manufacturers F101A is installed with England import Oxygen sensor, automatic control the oxygen and nitrogen flow with mass flow control meter. It is very easy and quick to operate. Used from evaluating homogeneity of solid materials, laminates, foam, film and thin film in the specified conditions of flammability.
This Automatic Fabric Digital Limiting Oxygen Index Test Equipment Manufacturers F101A is installed with England import Oxygen sensor, automatic control the oxygen and nitrogen flow with mass flow control meter. It is very easy and quick to operate. Used from evaluating homogeneity of solid materials, laminates, foam, film and thin film in the specified conditions of flammability.
Automatic Fabric Digital Limiting Oxygen Index Test Equipment Manufacturers F101A Test Standards: | ||
ASTM D 2863 | Standard Test Method for Measuring the Minimum Oxygen Concentration to Support Candle-Like Combustion of Plastics (Oxygen Index) | |
ISO 4589-2 | Plastics – Determination of burning behaviour by oxygen index – Part 2: Ambient- temperature test | |
ISO 4589-3 | Plastics - Determination of burning behaviour by oxygen index - Part 3: Elevated-temperature test | |
CEI 20-22/4 | Tests on electric cables under fire conditions-Part 3: Tests on bunched wires or cables | |
Features:
1. Paramagnetic Cell to measure exact oxygen concentration.
2. Auto & Manual mode (Select control and analysis by personal computer or user).
3. Automatic Mass Flow Controller.
4. Precision display window on the software to facilitate easy reading of oxygen concentrations.
High Accuracy
1. Specimen Holder facilitating separation and attachment of test sample.
2. Sample support suited to hard or smooth samples.
3. Shortest gas route to fast indicate test results.
4. DAQ System designed to display all test results to exactly match with each standard (It can be make stronger measuring and more correct & fine test result and also more powerful repeatable performance).
2. Sample support suited to hard or smooth samples.
3. Shortest gas route to fast indicate test results.
4. DAQ System designed to display all test results to exactly match with each standard (It can be make stronger measuring and more correct & fine test result and also more powerful repeatable performance).
Product Paramenters
Product Name | Automatic Fabric Digital Limiting Oxygen Index Test Equipment Manufacturers F101A |
Brand | Qinsun |
Model | F101A |
Certificate | CE, ISO, ASTM |
Combustion tube inner diameter | 100mm |
High combustion tube | 450mm |
Flowmeter accuracy | 2.5 grade |
Pressure gauge accuracy | 2.5 grade |
Gas source | GB3863 prescribed oxygen,GB3864 prescribed nitrogen |
Test environment | Temperature:10—35℃ ,Humidity:45[%]—75[%] |
Input pressure | 0.2—0.3Mpa |
Sample type | Self-supporting material and non-self-supporting material |
Display | Digital |
Working pressure | 0.05—0.15Mpa |
Standards | ASTM D 2863, ISO 4589-2, CEI 20-22/4 |
Details Images
Product Usage
The Automatic Fabric Digital Limiting Oxygen Index Test Equipment Manufacturers F101A determines the flammability characteristics of the materials used in the production of electric cables. The oxygen percentage is detected by a paramagnetic transducer (O2 accuracy <0.1%), and the combustion occurs inside the glass column. The operator is fixing only the O2 ratio, while the N2 flux is kept constant by proportional valve of the electronic system. Two units separated, one to check the measurements and one to feed oxygen and nitrogen to the column where the testing sample is placed.
Related Products
Packing&Shipping

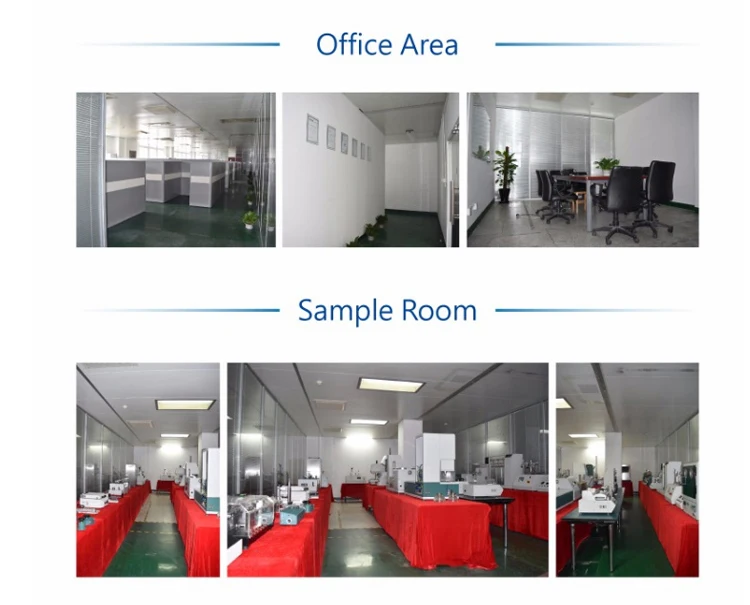

Company Introduction
Qinsun Instruments Co., LTD specialize in the research and development of high quality lab instrument for textile testing industry. Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory, academic research institute and textile lab worldwide.
FAQ
Q1. Is your company a trading company or factory?
A1: Factory + trade (integration), has 6 years focusing on test instruments field, 6 years
exporting experience.
Q2. After an order is placed, when to deliver?
A2: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q3. What’s the payment term?
A3:T/T, L/C and other payment terms could be negotiated.
Q4. What's the warranty and after-sales service?
A4: 12 months warranty. Feedback to you within 24h and help you to repair your problem controller freely, even it's not from our factory.
Q5. What the standards do you adopt?
A5: We have been adopting the world standards and regulation such as ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, and CSA.
Q6. How do you pack and ship instruments?
A6: Usually covered with foam and film, and then packaged in standard export cartons/plywood boxes.Sea / Air / International Express can be selected according to customer needs.
Q7. What's the cooperation Process?
A7: Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
A1: Factory + trade (integration), has 6 years focusing on test instruments field, 6 years
exporting experience.
Q2. After an order is placed, when to deliver?
A2: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q3. What’s the payment term?
A3:T/T, L/C and other payment terms could be negotiated.
Q4. What's the warranty and after-sales service?
A4: 12 months warranty. Feedback to you within 24h and help you to repair your problem controller freely, even it's not from our factory.
Q5. What the standards do you adopt?
A5: We have been adopting the world standards and regulation such as ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, and CSA.
Q6. How do you pack and ship instruments?
A6: Usually covered with foam and film, and then packaged in standard export cartons/plywood boxes.Sea / Air / International Express can be selected according to customer needs.
Q7. What's the cooperation Process?
A7: Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
Why Choose Us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
2. Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Похожие товары

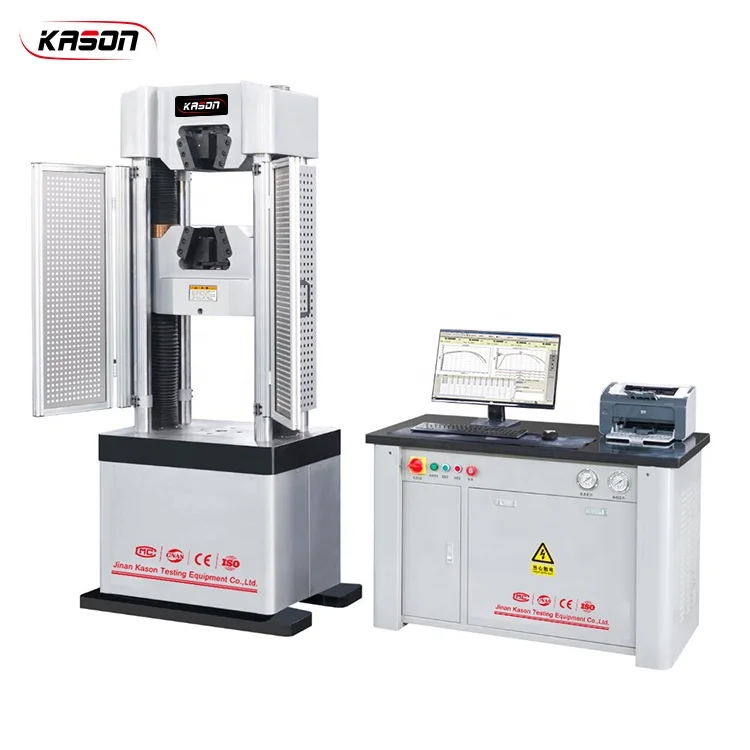

Электронное оборудование для испытания на растяжение, производитель пластикового материала
Manufacturer VLF AC Hipot test equipment 0.1hz vlf high voltage generator vlf hipot test set 90kv

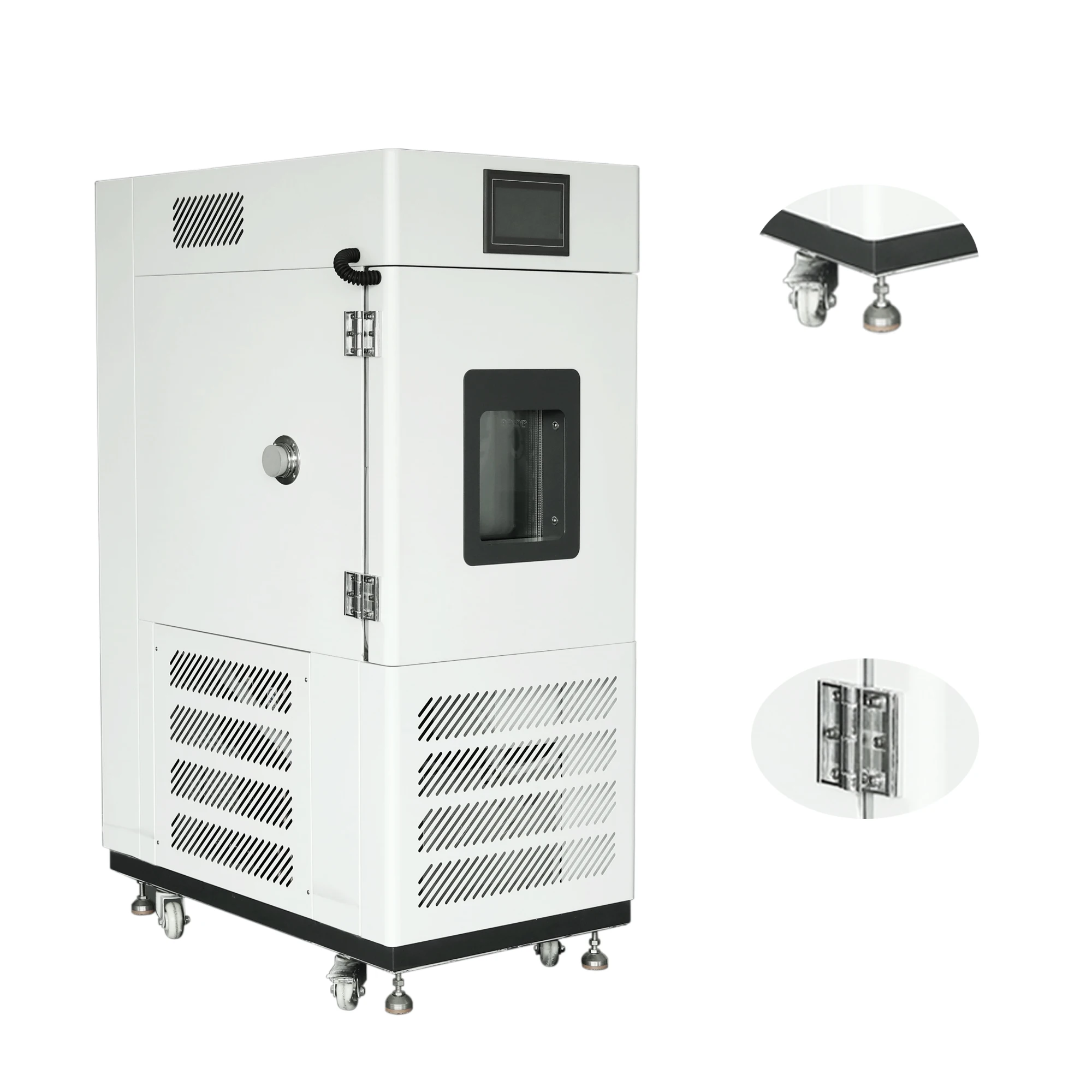

LIYI производитель климатических камер температура влажности испытательное оборудование поставщик
