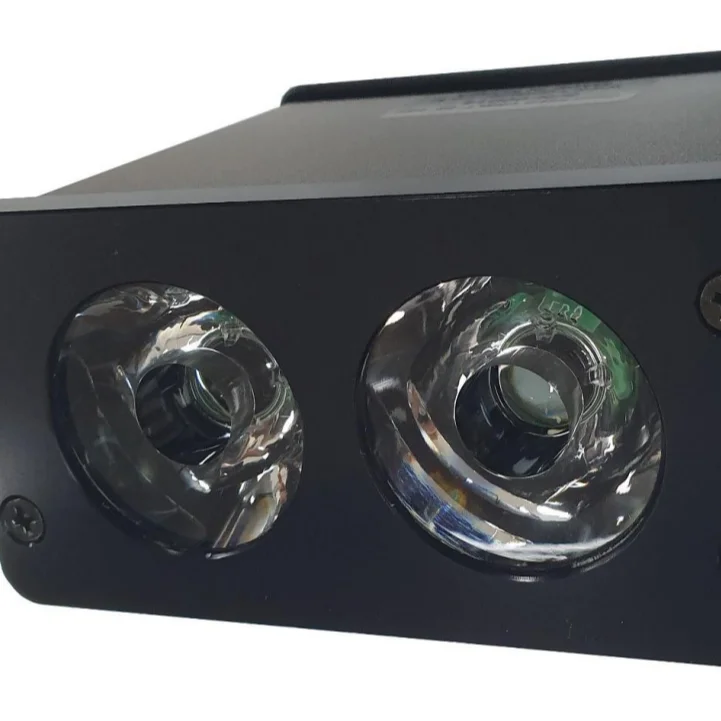

Сделано в Корее ИК осветитель с 2 светодиодами наиболее подходящий для высокопроизводительных устройств TPCAM H10 или H20

Сохранить в закладки 1700005877072:


Цена:77 649,25 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Products Description






A. Model and Specifications
Model Spec. CSSL7-02-H20
IR LED Product

B. Electrical Properties
- Charging input voltage : +12VDC / 4A
- Battery : Samsung SDI, ICR18650, Li-ion, 2 Cell 2600mAh
- Hour of use : Approximately 50,000 times at full charging
- Control signal : Open Collector
- Trigger input range : ~ 3Hz (Don’t use over the range)

C. Structure and Components
- Illuminator on time : 80mS
- Wave length : 735nm ~ 745nm
- Size : 105mm X 88.5mm X 49mm

D. Operational Environment
- Temperature: -20℃ ~ +60℃
- Humidity: not more than 90%
- Atmosphere : 1 atm
- Storage temperature : -30℃ ~ +80℃.

E. LED Divergence Angle
- Approximately 5° of horizontal and vertical


Specification


Category
Description
Place of Origin
South Korea
Brand Name
ComLASER
Model Number
CSSL7--2-H20
