Автоматическая паяльная паста GKG принтер SMT Трафаретный печатная машина для производства светодиодных печатных плат

Сохранить в закладки 1700007032609:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики


 Automatic Solder Paste Printer SMT Stencil Printer Pcb Printing Machine for LED Pcb Production



Product show

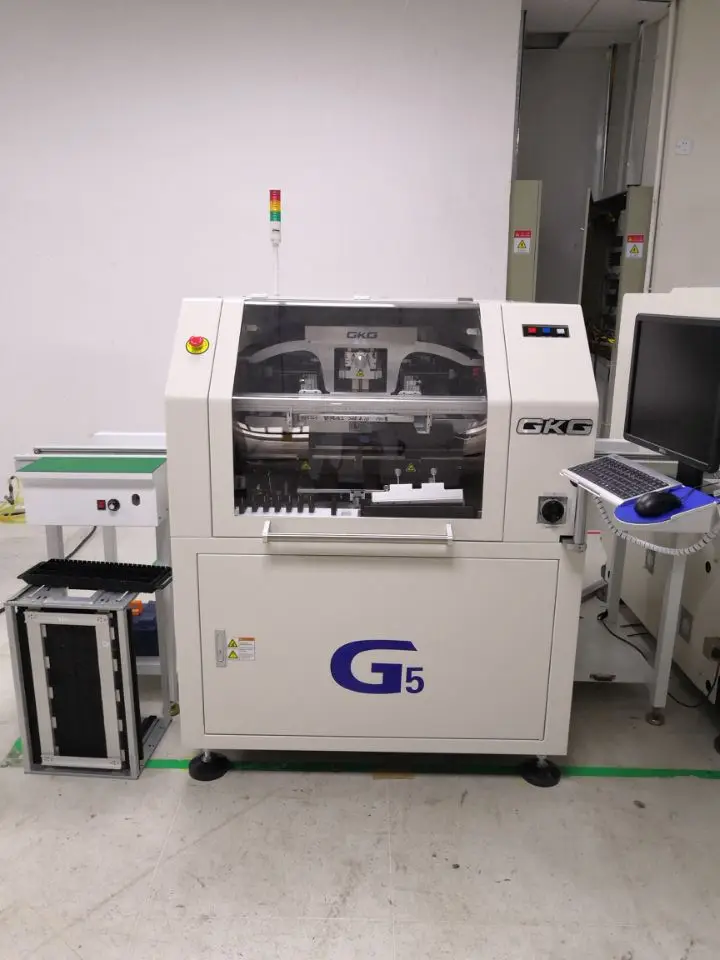

 GKG G5.jpg








Product Description












































































































Screen Frames



Min size



370*370mm



Max size



737*737mm



Thickness



20-40mm(Steel mesh aluminum frame height)



PCB Max size



400*340mm



PCB Min size



50*50mm



PCB Thickness



0.4-6mm



PCB Warpage



Max.PCB diagonal 1%



Transport Height



900±40mm



Transport Direction



L-R/R-L/L-L/R-R



Transport Speed



1500mm/s(Max).Program Control



Transport Height



One stage



Conveyor Width adjustment



Automatic



I/O Interface



SMEMA



PCB Location



Support System



Magnetic PIN/Support Block/Manual UP-Down table







Clamping System



Patented over the top clamping /side clamping



Print head



Two independent motorised print heads



Squeegee Pressure



0.5-10KG(Program Control)



Print Speed



6-200mm/sec



Print Mode



One/Twice Print



Squeegee Type



Rubber/Steel Squeegee Blade(Angle 45°/55°/60°)



Cleaning System



reinforced vacuum absorption,dry,dry,vacuum three modes



CCD FOV



8*6mm



Adjustment



X:±3mm,Y:±7mm ,θ:±2°



Vision



Look Up/Down Option Structure/CCD/Geometry Pattern-match
