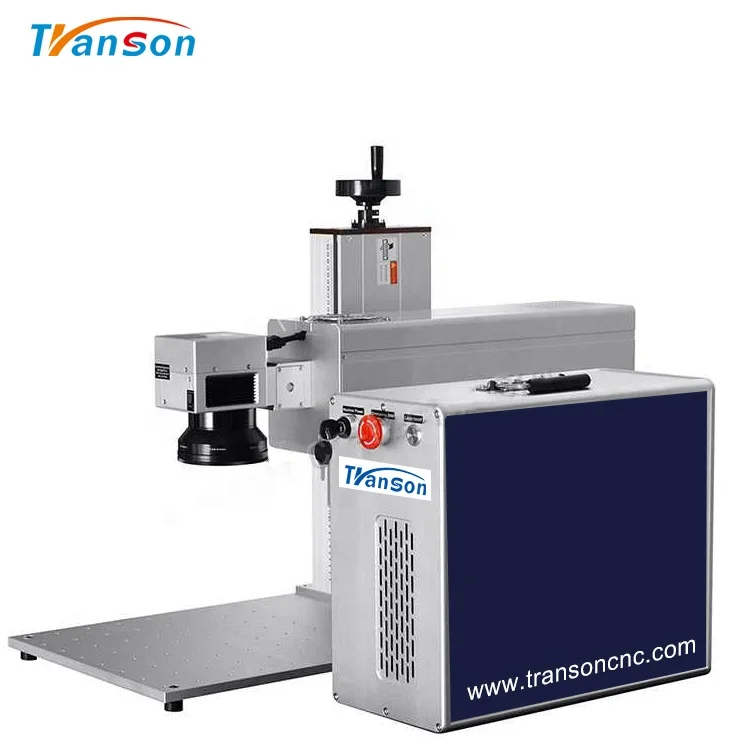

Высокоскоростной мини УФ лазер 3 Вт 5 Низкое тепловыделение маркировочная машина для пластиковых ПВХ мешков стеклянных металлических бутылок

Сохранить в закладки 1700007910731:


Цена:5 199,00 $ - 5 399,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Product Description


3W 5W Water Cooling UV Laser Marking Machine
UV laser marking machine is a technology very different from CO2 and Fiber laser technology. UV laser wavelength is 355nm, it is a blue laser beam, which know as cold laser engraving because it can engrave with a low rate of heat without heat the material like fiber or co2 laser does. So UV laser marking machine are widely use for clear and high precision mark for plastic and other materials reactive to heat.

Features:
1, Mini enough, easy carry and move around.
2, The marking height and angle can be adjusted according to the object size and height.
3, Total height 1500mm, scan head can up and down, left right 180 degree .
4, Suit production line mass marking work.
5, With inner and out red dot pointer
6, Foot pedal include
7, Standard with touch screen computer, no need connect to extra computer
8, Original JCZ control card and easy operate EZCAD software
9, JPT UV laser source 3W 5W 10W optional
10, Two years warranty and whole life maintenance.



Specification


Type
UV Laser Marking Machine
Power
3W 5W optional
Laser Brand
JPT UV laser, water cooling
Galvometer
Sino-Galvo
Marking Area
200mm*200mm
Optional Marking Area
110mm*110mm/150mm*150mm/300mm*300mm
Marking Depth
≤0.5mm
Marking Speed
7000mm/s
Minimum Line Width
0.012mm
Minimum Character
0.15mm
Repeated Precision
±0.003mm
Life-span of Fiber Laser Module
100 000hours
Beam Quality
M2 <1.5
Focus Spot Diameter
<0.01mm
Output Power of Laser
10%~100% continuously to be adjusted
System Operation Environment
Touch screen Controller, no need extra computer
Cooling Mode
Air cooling--Built-in
Temperature of Operation Environment
15℃~35℃
Power Input
220V / 50HZ / single phase or 110V / 60HZ / single phase
Power Requirement
<400W
Communication Interface
USB
Package Dimension
77*44*78cm
Gross weight
105KG
Optional (Not free of charge)
Rotary Device, Moving Table, other customized Automation


Product details




JPT Brand UV 3W Laser Source
UV laser wavelength is 355nm, it is a blue laser beam, which know as cold laser engraving because it can engrave with a low rate of heat without heat the material like fiber or co2 laser does. So UV laser marking machine are widely use for clear and high precision mark for plastic and other materials absorb heat.
Optional: 5W 10W 15W UV laser source.


EZCAD Software
Support ai,dxf,dst,plt bmp,jpg,gif,tga,png,tif and other file formats
Support TrueType fonts,single line fonts (JSF),SHX fonts,dot matrix fonts (DMF),1D bar codes and 2D bar codes.
Flexible variable text processing,changing text in real time during processing,can directly read and write text files, SQL databases and Excel files.


CWUL-05 Industrial Chiller
China famous S&A brand CWUL-05 water chiller specially for UV laser source.


Sino-Galvo High Speed Scan Head
High speed scan head, with two outer red dot pointer, the max marking speed is 12000mm/s.


Optional Parts


Different optional parts for choice
This flying UV laser marking machine can also use as normal UV laser marker to mark object one by one. Then above optional parts for choice.


Application

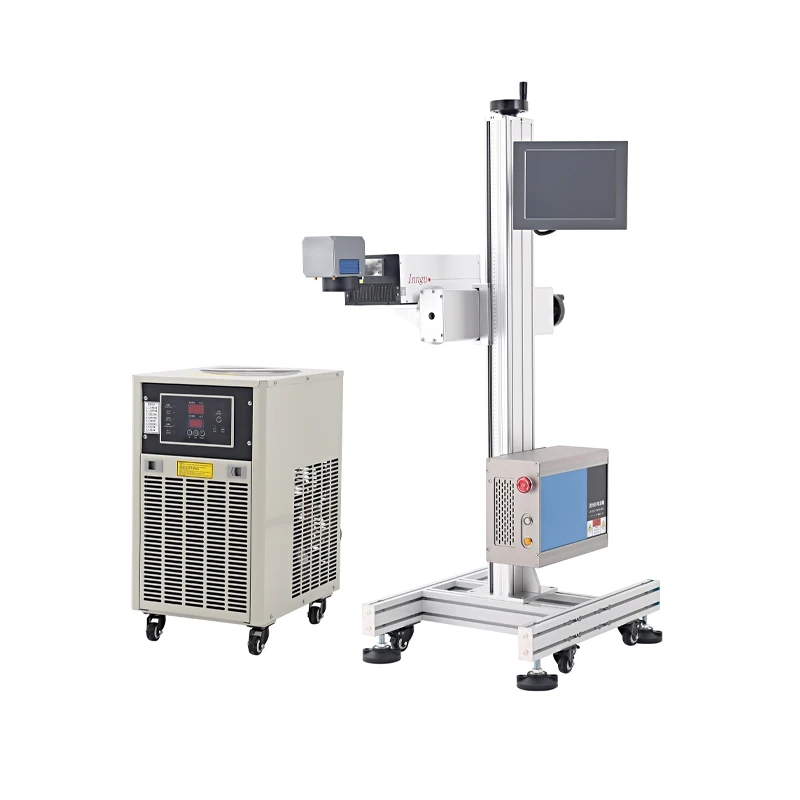

3W 5W 10W Laser Flying Marking Machine For Production Line

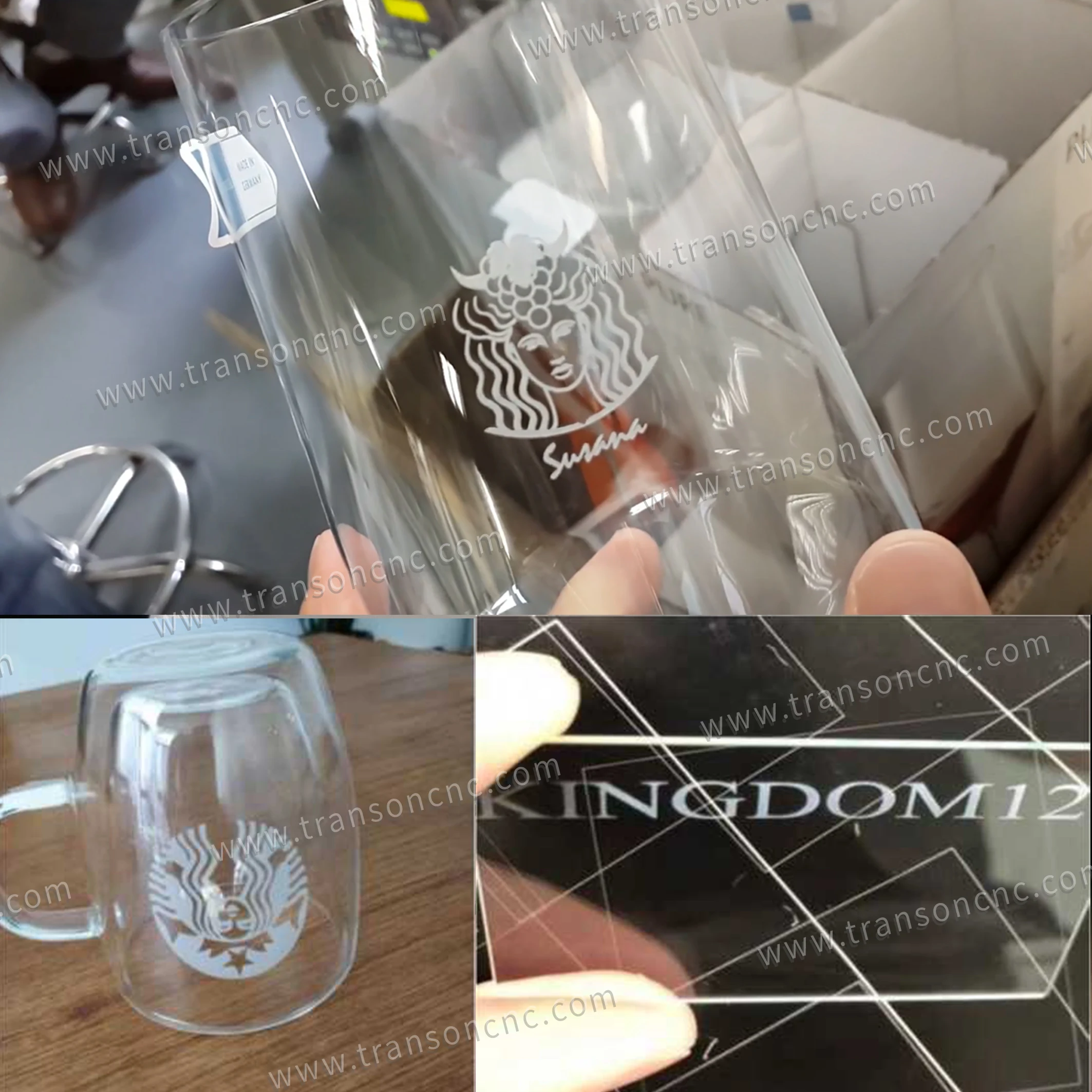

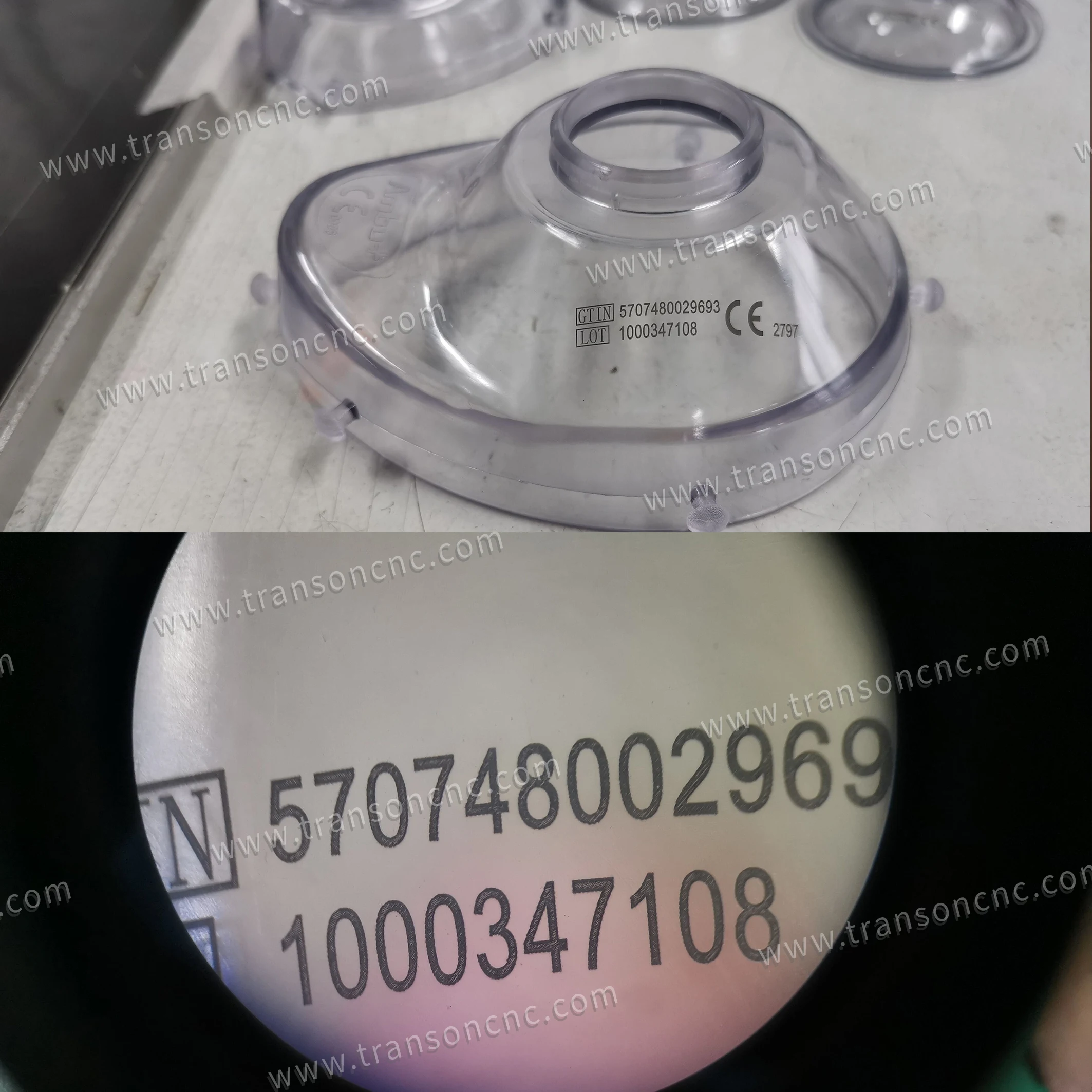

This is a UV laser flying laser marking machine, UV laser can mark on all kinds of metal and part non-metal materials. It can used for online character, company name, Batch No., Exp. Date, series number, QR code marking on pouches, aluminium cans, HDPE pipes, etc.
When not use on production line, it can also use as normal fiber laser marking machine. can use widely in the electronics separation components, integrated circuit, electrical engineering circuit, mobile communication, hardware, tools, kitchen wares, tool fittings, precise apparatus, eyeglasses and clock, computer keyboard, jewelers accessories, plastic buttons, water heating fittings, sanitary ware, PVC pipelines, medical apparatus and packing container, etc.




Company Profile


Jinan Transon CNC Equipment Co., Ltd is an integrated CNC automation equipment manufacturer found in 2010. We specialized in manufacture of fiber laser cutting machine, fiber laser marking machine, CO2 laser marking machine, CO2 laser engraving and cutting machine, cnc router and cnc plasma cutter, and we support OEM.

After 10 years growth, Transon CNC has won an excellent reputation in the global market. Our CNC machines have sold to more than 100 countries and we have some long-term cooperate agents in Euro, Asia and South America. We are looking for distributors all over the world, welcome worldwide customer come to visit our factory to cooperate.










FAQ


FAQ:

Q1: Are you a factory or trading company?
A: We are a manufacturer found in 2010, all our CNC machines are assemble and calibrate by our full experience engineers.

Q2: Where are you located? How can we visit you?
A: We welcome worldwide customer visit us anytime. Factory locates in Jinan city of Shandong, in the north of China, near Beijing and Qingdao.

Q3: What's your payment terms? Delivery time and MOQ?
A: We accept T/T(bank transfer), L/C, Paypal, West union Alibaba Trade Assurance.
Usually we need 50% as deposit, balance paid before shipment.
Delivery Time: 7-10 days after payment
MOQ: 1set

Q4: What's your quality control system?
A: All our CNC machines are with CE certificate. Our QC department will do full test of each machine after finish, and send you test video and photos for confirm before delivery.

Q5: What's your after-sales service?
A: 1) Warranty 1 year for whole machine. Reci laser tube 360-540 days, fiber laser source 2-3 years.
2) Whole life technical support.
3) Engineers available service machinery overseas, include field install, training,etc.
3) 7X24 hours online support.

Q6: If I don't know how to use the machine, can you teach me?
A: Yes, sure. There is a U memory disc send together with the machine including machine install video, some video of how to use machine, user manual and software user manual . 99% users can know how to operate it. In case anything need help, please contact us anytime.
1) Online call or video call (Email, Skype, Whatsapp, Wechat, Phone)
2) Remote desktop software (Team viewer)
