Высокое качество профиль Омега канала цилиндр реечный профилегибочная машина
- Категория: Board Making Machinery >>>
- Поставщик: Botou Sanyangtongtai Machinery Co. Ltd.
Сохранить в закладки 1700010493760:
Описание и отзывы
Характеристики
Products Description

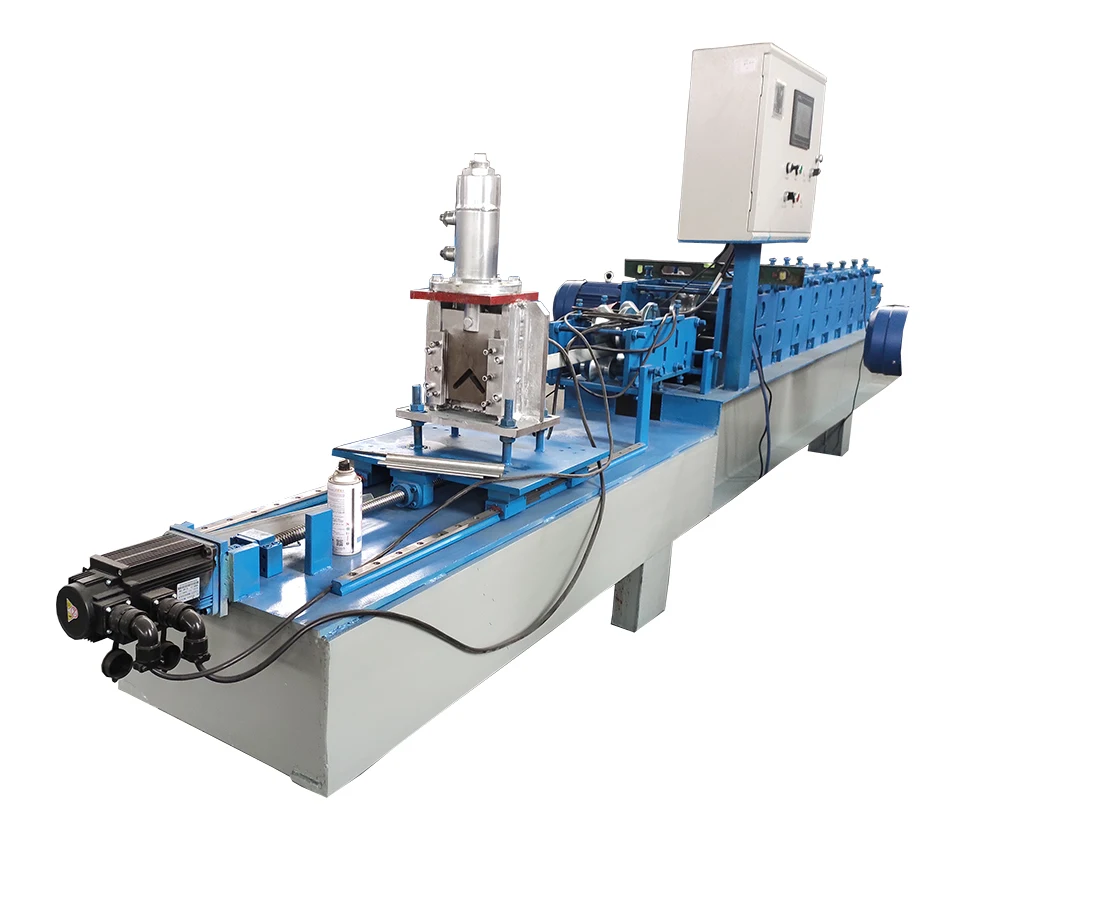

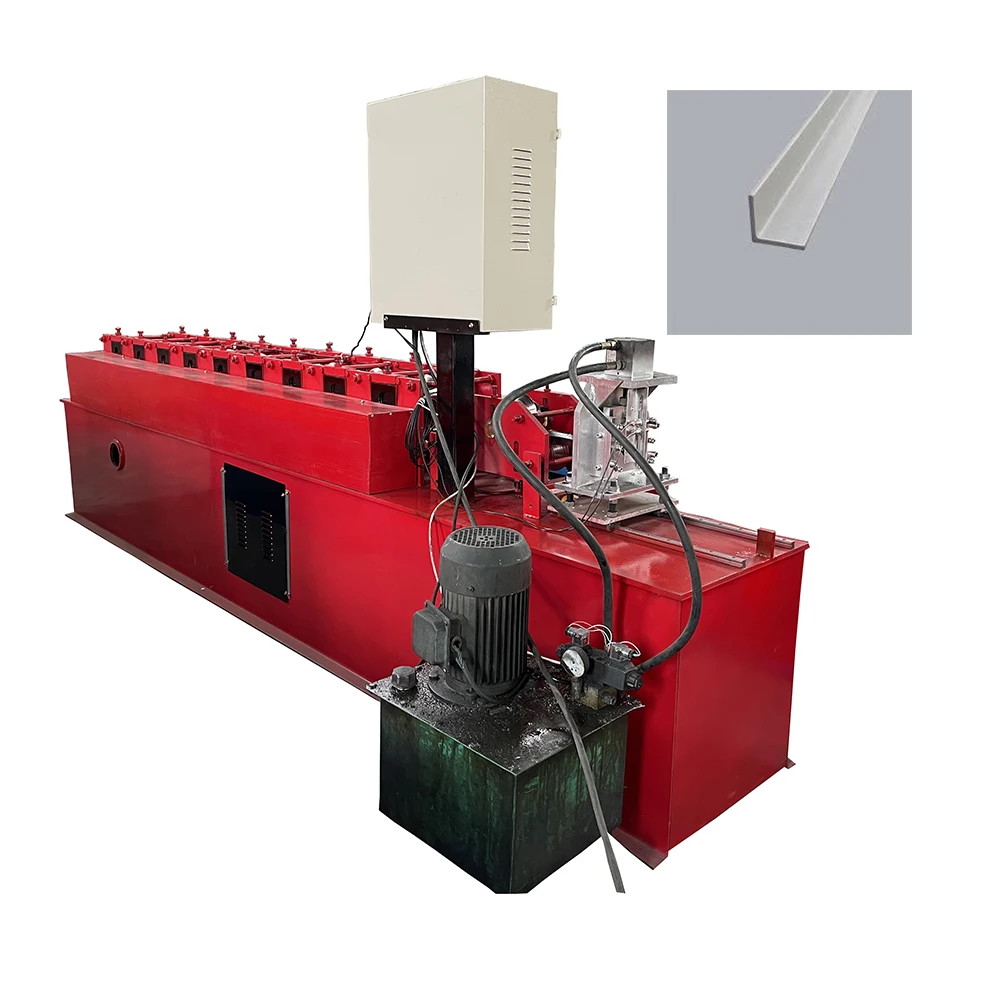

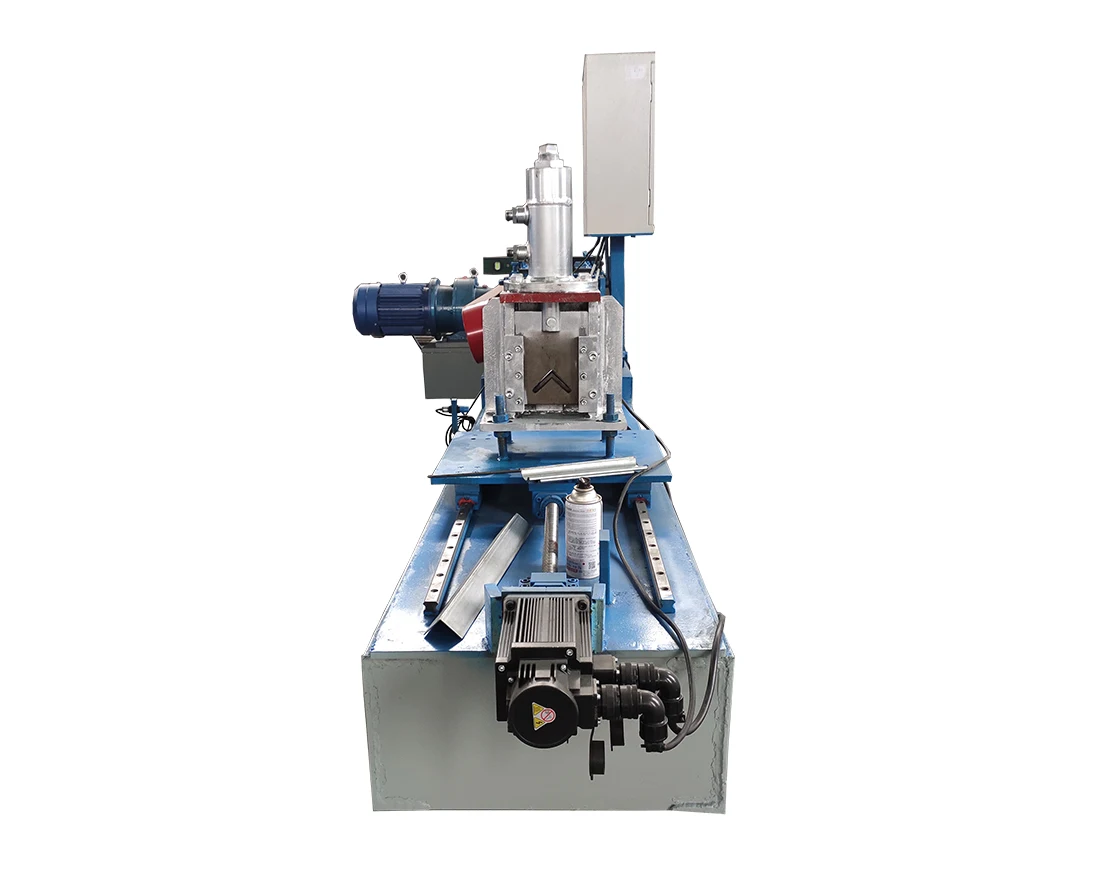

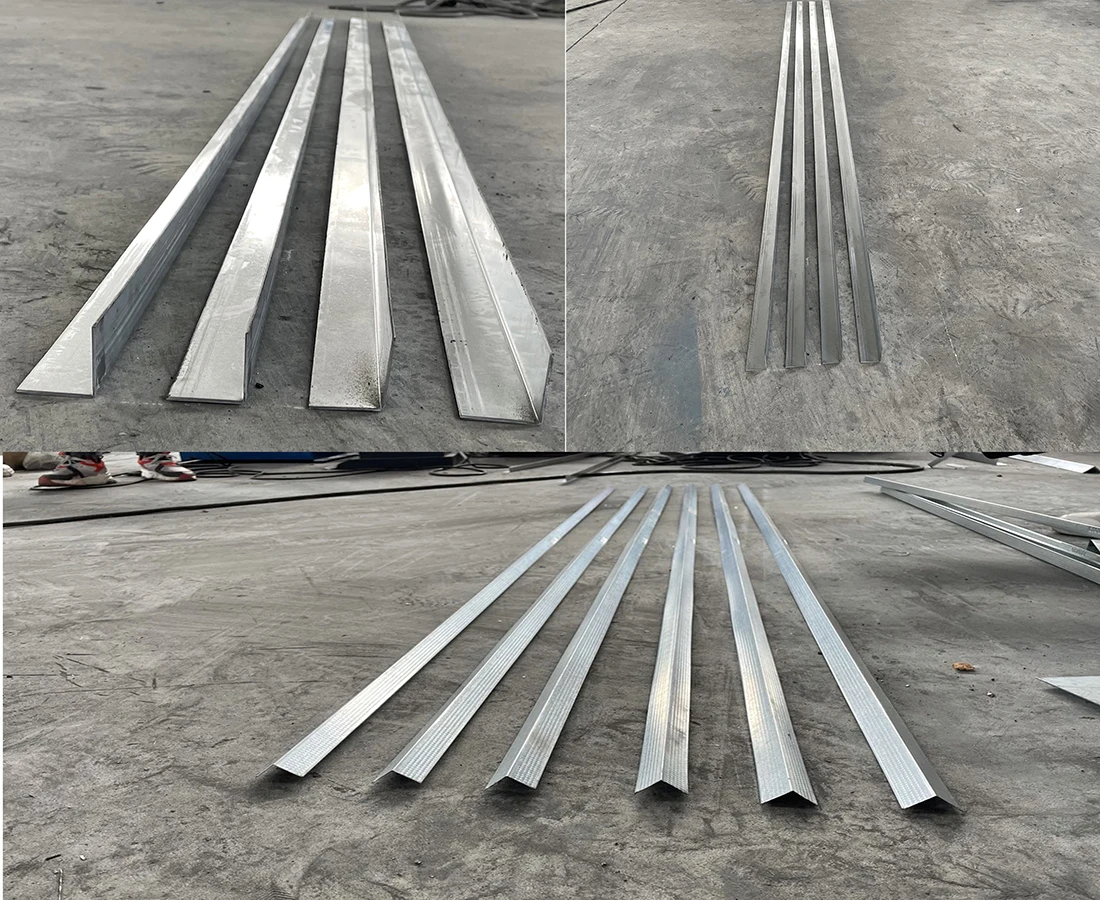

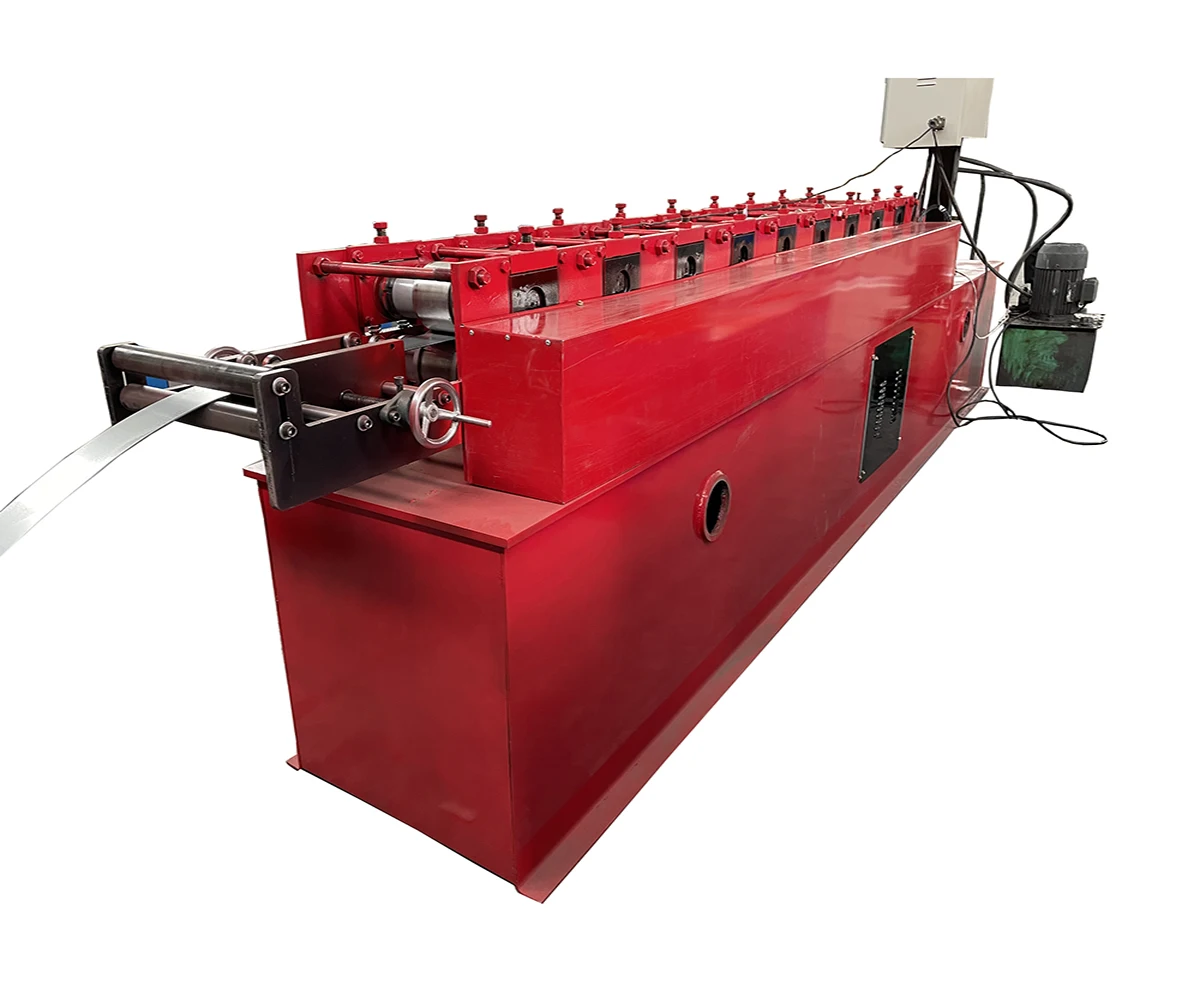

Angle corner bead V shape roll forming machine
Angle corner bead roll forming machine is used for producting angle profile for ceiling roof ,generally it will be used together with omega and channels or metal stud ,material thickness for angle is 0.3-0.6mm , about machine productivity ,we can customized as your need
Product Paramenters
working flow
Decoiler--Feeding table --Roll forming machine -Hydraulic cutting blade --PLC control box --Runout table
NO | Item | Specification | ||||
Raw material | GI | |||||
Material thickness | 0.3-0.6MM | |||||
Machine | Roller stations | 10 | ||||
Shaft | Solid ,55mm | |||||
Shaft material | 45# steel with Cr12 chromed , | |||||
Roller material | High grade 45# steel with Cr12 quenched | |||||
Middle plate thickness | 14mm | |||||
Machine size | 4.3*0.8*1.0m | |||||
Productivity | 30-50m/min | |||||
Cutter | Material | Cr12 | ||||
Method | Hydraulic cutting | |||||
Driving way | Chain 1 inch | |||||
Motor | 4KW | |||||
Hydraulic oil pump | 3KW | |||||
Voltage | 380V ,50HZ ,3 Phase | |||||
PLC | Delta from Taiwan | |||||
Invertor | Delta | |||||
Screen | Touch screen ,Delta | |||||
Encoder | Omron from Japan | |||||
Language | Chinese ,English or as your need | |||||
Details Images
Company Profile
Botou Sanyangtongtai Automation Equipment Manufacture Co.,ltd is a leading manufacturer for steel plate coiling
machinery,cold-bending & rolling steel plate shaping machineries and automatic production lines.The products are mainly used in steel structure industry for producing C&Z type purlin,colored wall and floor protecting steel plate, thermal insulating plate and load-bearing plate of buildings, and other complementary thin wall cold-bending shaped seel plates,expressway railings, colorfuldecorating and protecting steel plates for high-grade steel stucture residendces.
machinery,cold-bending & rolling steel plate shaping machineries and automatic production lines.The products are mainly used in steel structure industry for producing C&Z type purlin,colored wall and floor protecting steel plate, thermal insulating plate and load-bearing plate of buildings, and other complementary thin wall cold-bending shaped seel plates,expressway railings, colorfuldecorating and protecting steel plates for high-grade steel stucture residendces.
Certifications
Main market
Shipping
FAQ
Q1. What's your payment terms and delivery time?A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after
your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will
arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine. If the broken parts can't
repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond
the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the
equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour). 2) Fly to Shanghai Airport: By high
speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will
arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine. If the broken parts can't
repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond
the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the
equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour). 2) Fly to Shanghai Airport: By high
speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
Похожие товары
Производственная машина в Китае
280 000,00 $ - 300 000,00 $

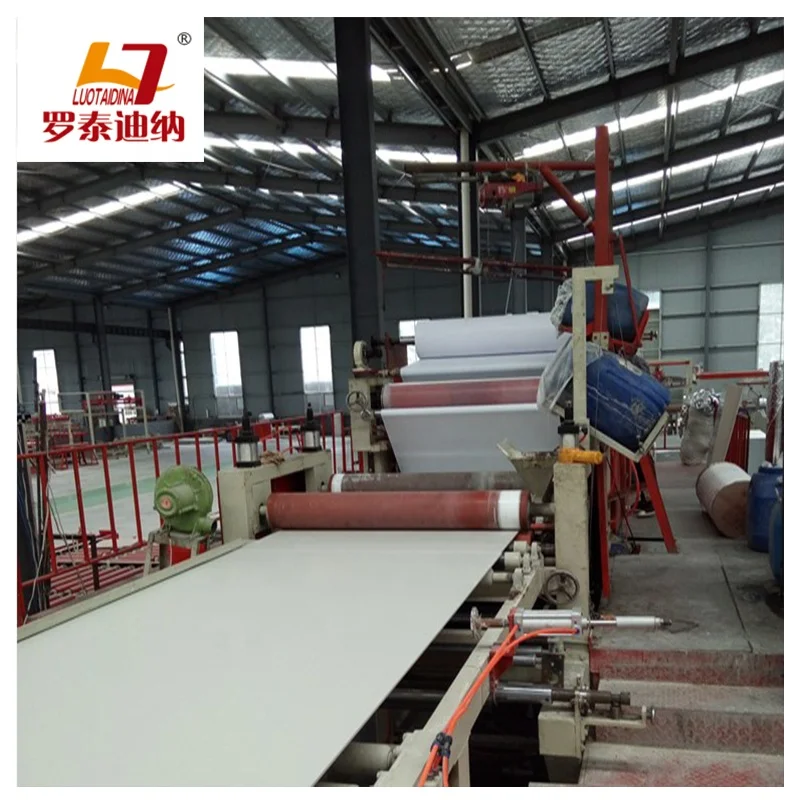

Машина для производства гипсокартона ПВХ потолочной плитки по заводской цене
Машина по изготовлению гипсокартона гипсокартонный лист/Гипсокартон/светолдиодная потолочная панель производственная линия
120 000,00 $

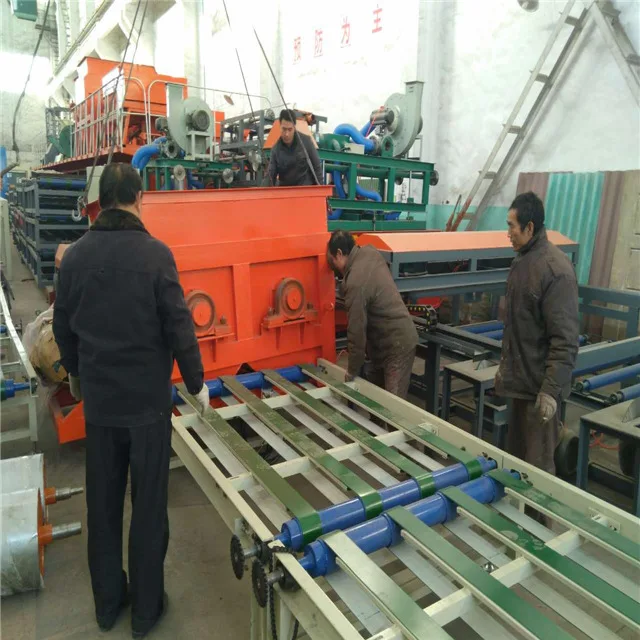

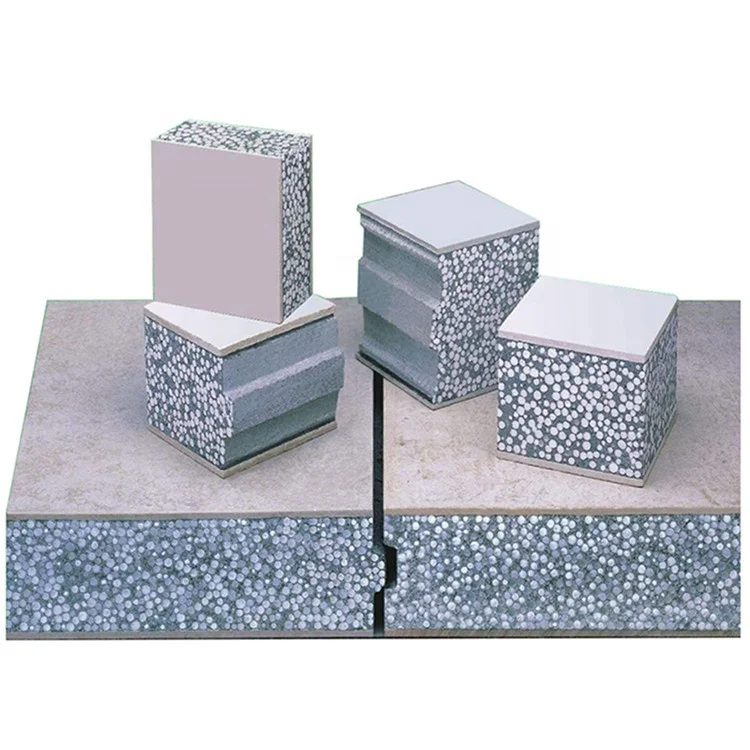

Сборный бетон, легкий пенополистирол, цемент, сэндвич, полый сердечник, стеновая панель, машина

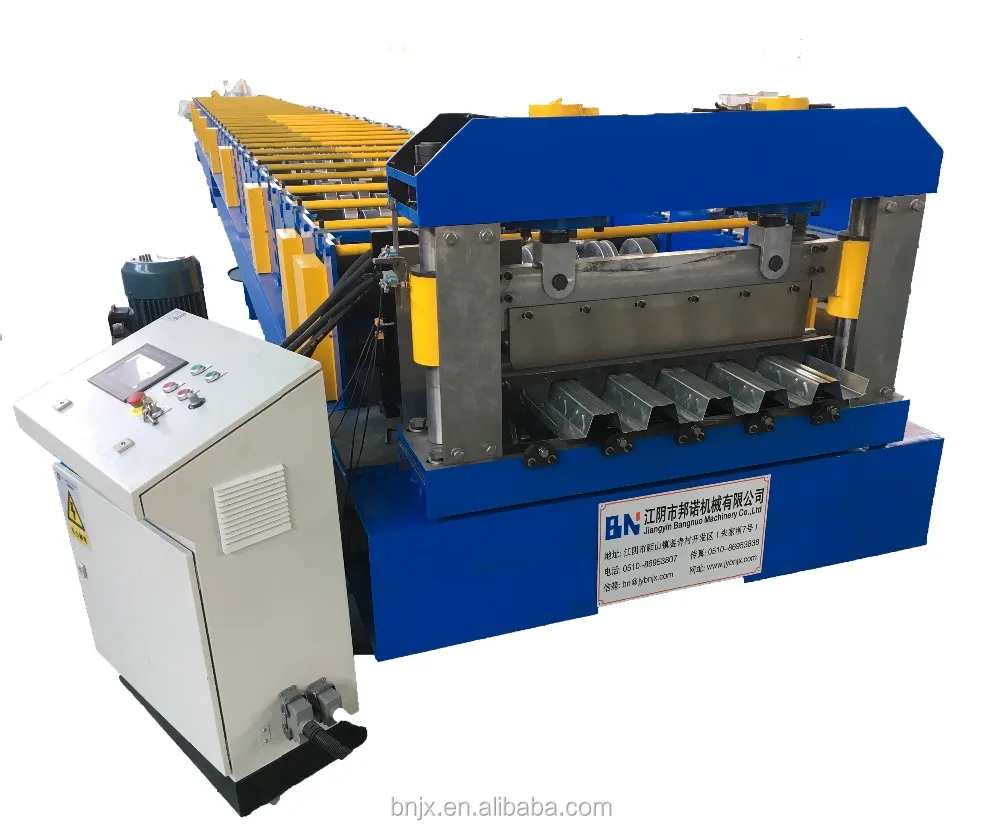

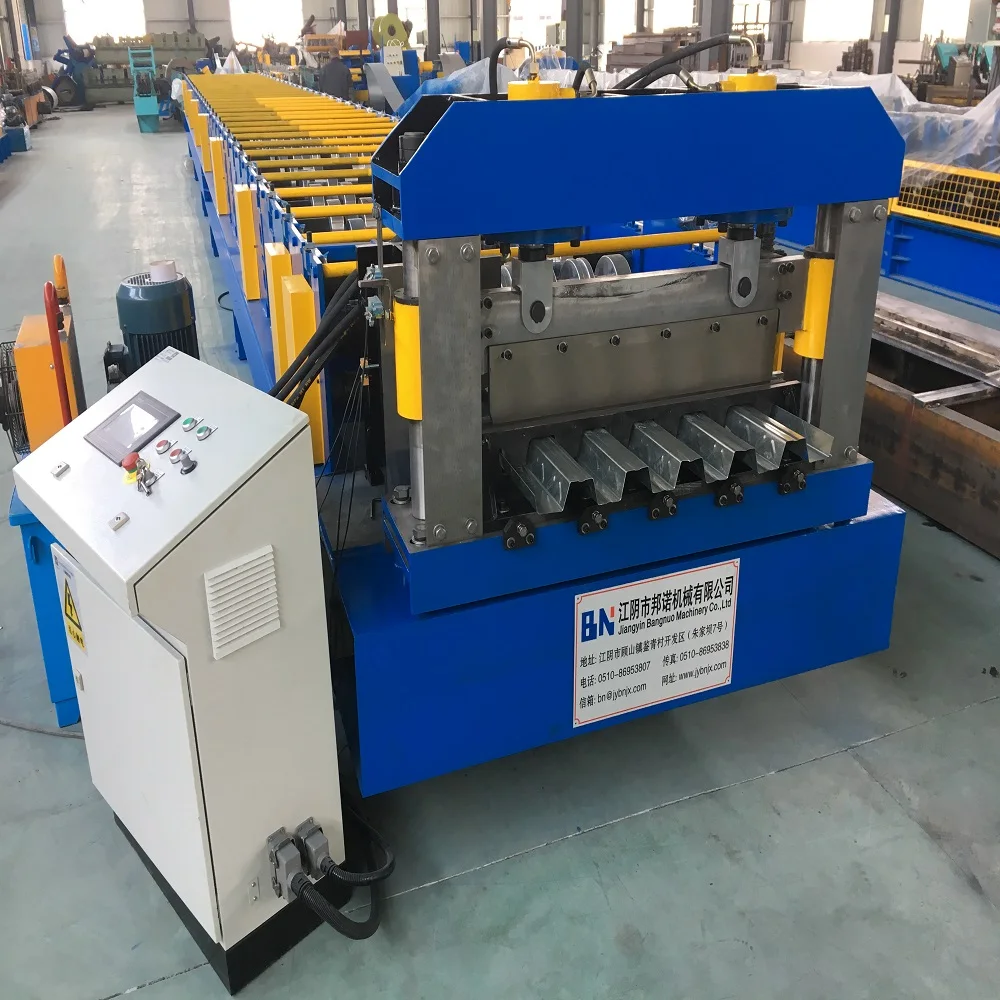

Машина для профилирования напольных покрытий/машина для изготовления металлических стальных напольных плиток
36 000,00 $

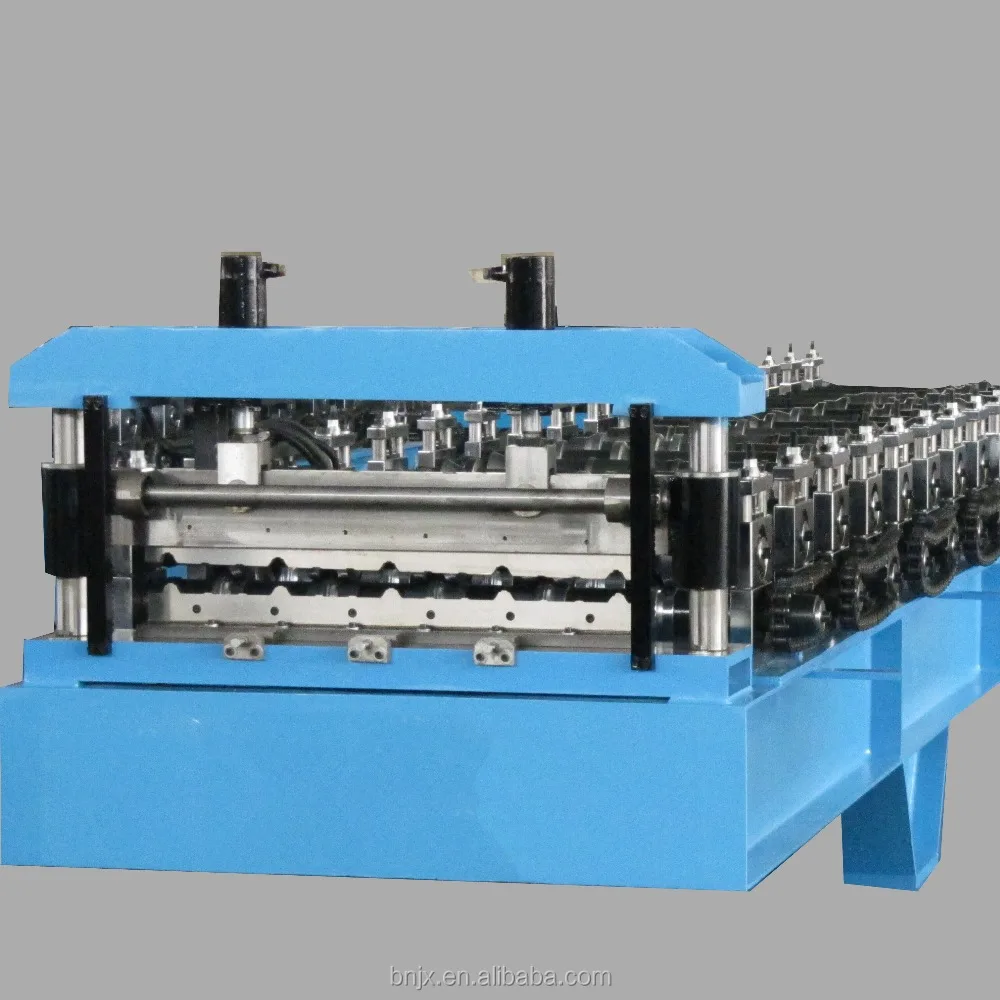

Известный поставщик, распродажа, лучший гофрированный оцинкованный алюминиевый цветной стальной профиль, машина для изготовления металлического кровельного листа
