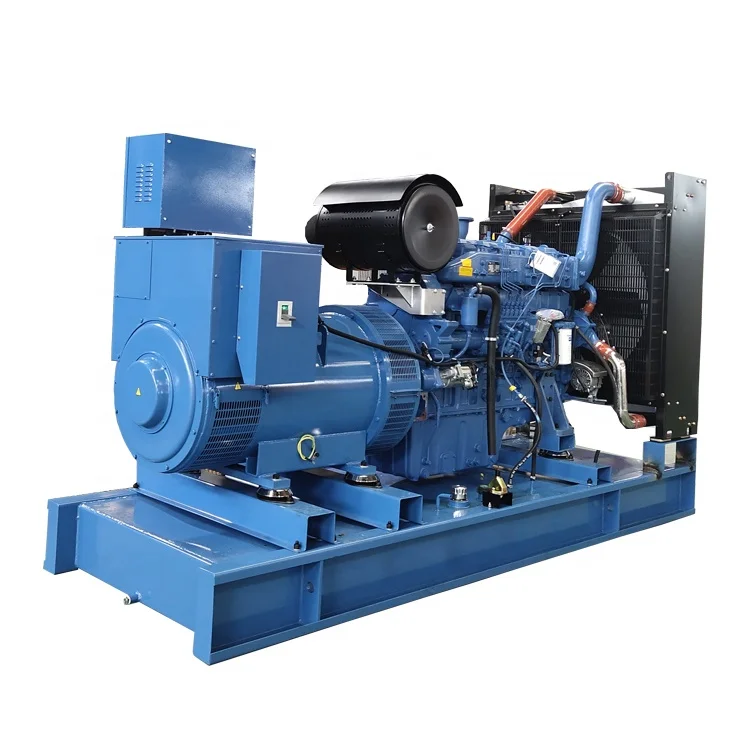

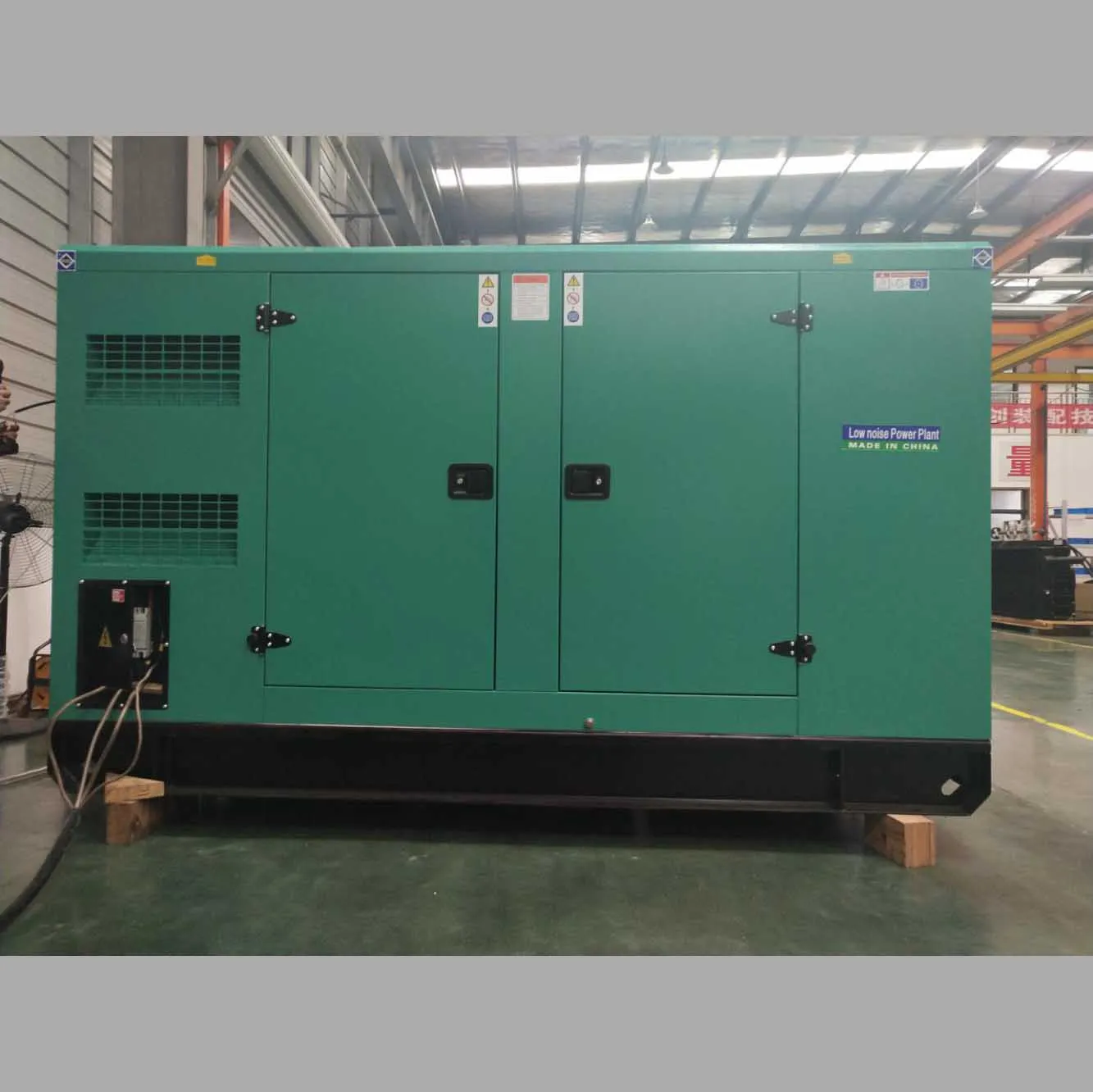

Горячая Распродажа бесшумная Дизельная генераторная установка 200 кВт дизельный генератор 250 кВА
10 500,00 $ - 13 230,00 $
Генератор переменного тока 5 кВт 8 10 20 30 ST STC генератор
- Категория: Diesel Generators >>>
- Поставщик: Mindong Shengyuan Electromechanical Co. Ltd.
Сохранить в закладки 1748163443:
Описание и отзывы
Характеристики

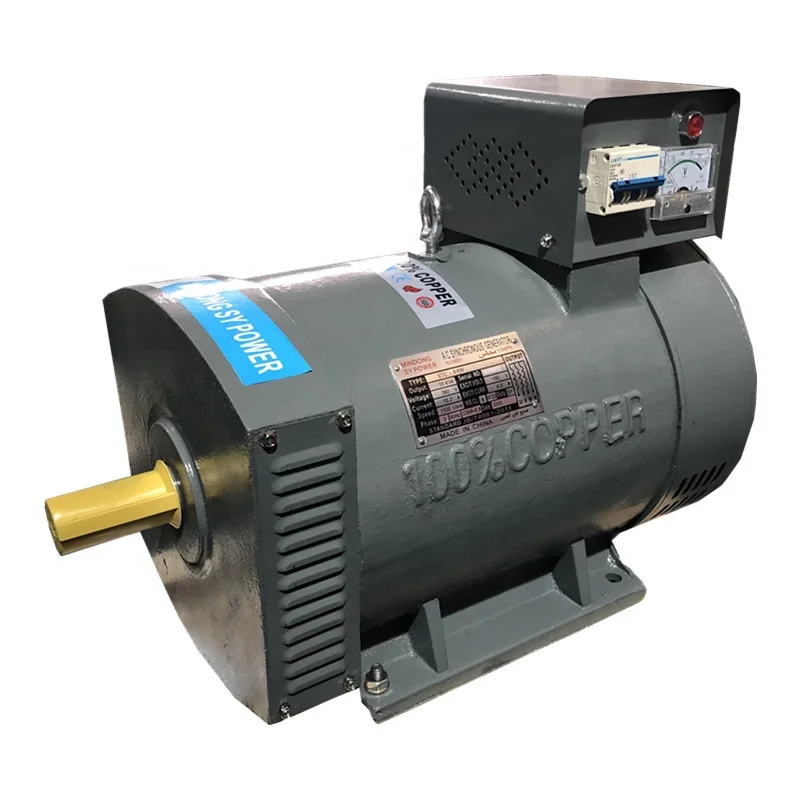

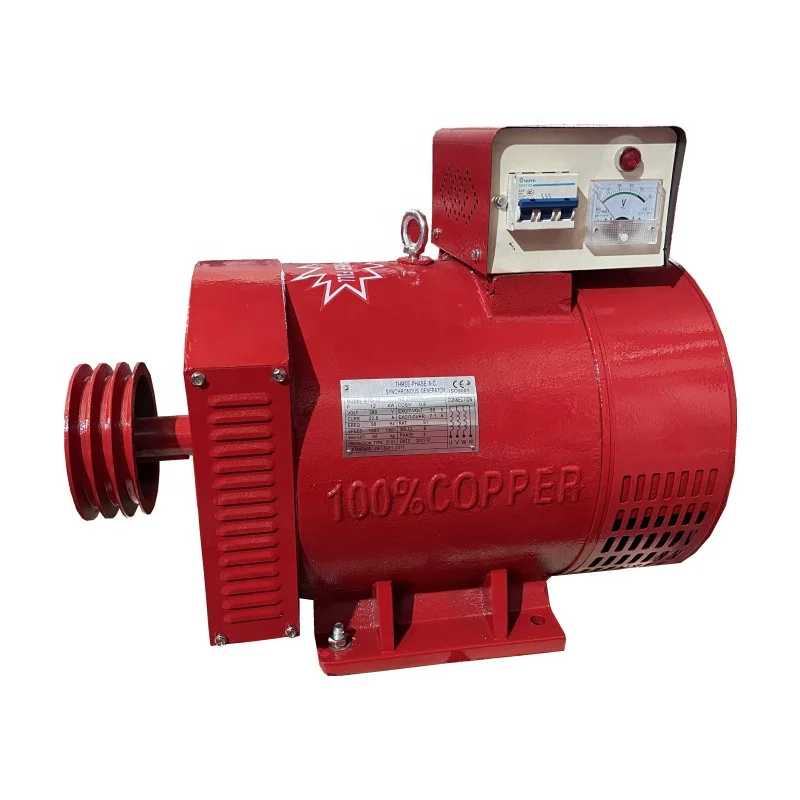

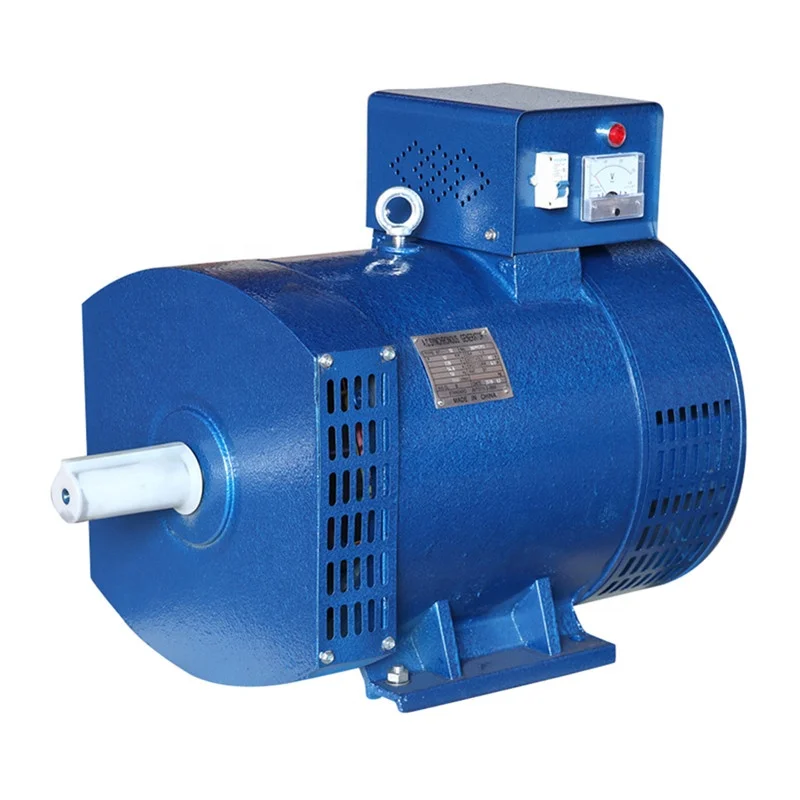

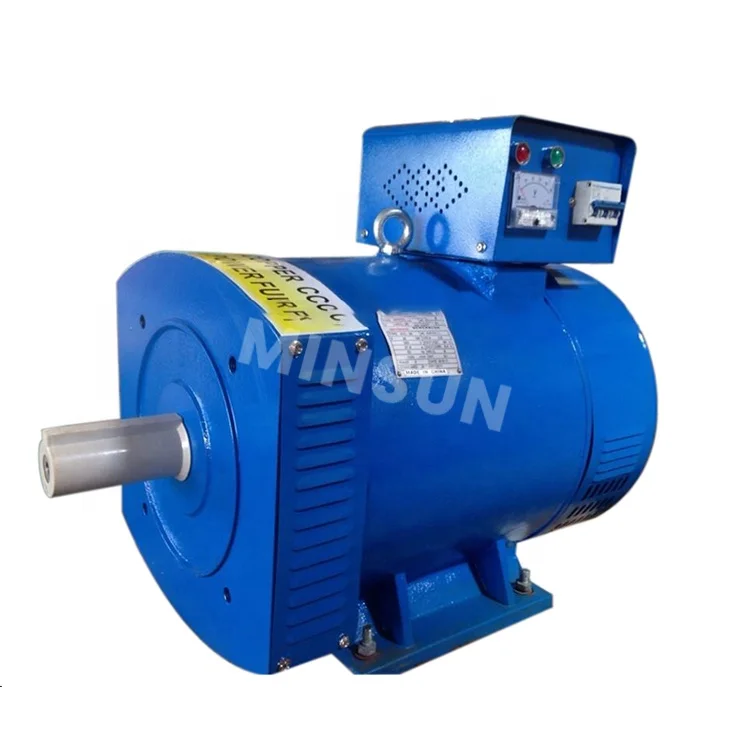

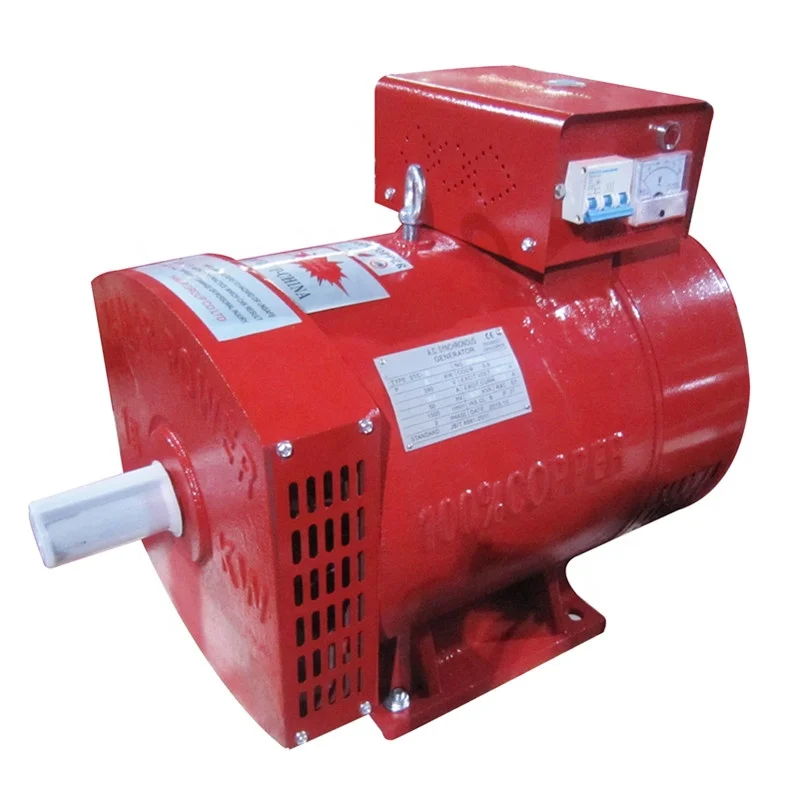

AC Dynamo Generator heard Alternator 5kw 8kw 10kw 20kw 30kw ST STC Alternator for Generator
Product Information
Model | Output (kW) | Voltage(V) | Current（A） | Power factor | Speed | Pole number | Dimensions (cm) | Weight(kg) | ||
KVA | kW | (cos) | (r.p.m) | |||||||
ST-2 | 2 | 2 | 230 | 8.7 | 1.0 | 1500/1800 | 4 | 51*29*42 | 50 | |
ST-3 | 3 | 3 | 230 | 13 | 1.0 | 1500/1800 | 4 | 51*29*42 | 50 | |
ST-5 | 5 | 5 | 230 | 21.7 | 1.0 | 1500/1800 | 4 | 61.34.5*48.5 | 80 | |
ST-7.5 | 7.5 | 7.5 | 230 | 32.6 | 1.0 | 1500/1800 | 4 | 61.34.5*48.5 | 80 | |
ST-10 | 10 | 10 | 230 | 43.5 | 1.0 | 1500/1800 | 4 | 65*40*53 | 95 | |
ST-12 | 12 | 12 | 230 | 52.2 | 1.0 | 1500/1800 | 4 | 65*40*53 | 100 | |
ST-15 | 15 | 15 | 230 | 65.2 | 1.0 | 1500/1800 | 4 | 70.5*42.5*58 | 125 | |
ST-20 | 20 | 20 | 230 | 87 | 1.0 | 1500/1800 | 4 | 70.5*42.5*58 | 135 | |
ST-24 | 24 | 24 | 230 | 104.3 | 1.0 | 1500/1800 | 4 | 70.5*42.5*58 | 145 | |
Model | Output (kW) | Voltage(V) | Current（A） | Power factor | Speed | Pole number | Dimensions (cm) | Weight(kg) | ||
KVA | kW | (cos) | (r.p.m) | |||||||
STC-3 | 3.8 | 3 | 400 | 5.4 | 0.8 | 1500/1800 | 4 | 51*29*42 | 70 | |
STC-5 | 6.3 | 5 | 400 | 9 | 0.8 | 1500/1800 | 4 | 61.34.5*48.5 | 120 | |
STC-7.5 | 9.4 | 7.5 | 400 | 13.5 | 0.8 | 1500/1800 | 4 | 61.34.5*48.5 | 130 | |
STC-10 | 12.5 | 10 | 400 | 18.1 | 0.8 | 1500/1800 | 4 | 65*40*53 | 140 | |
STC-12 | 15 | 12 | 400 | 21.7 | 0.8 | 1500/1800 | 4 | 65*40*53 | 155 | |
STC-15 | 18.8 | 15 | 400 | 27.1 | 0.8 | 1500/1800 | 4 | 70.5*42.5*58 | 192 | |
STC-20 | 25 | 20 | 400 | 36.1 | 0.8 | 1500/1800 | 4 | 70.5*42.5*58 | 202 | |
STC-24 | 30 | 24 | 400 | 43.3 | 0.8 | 1500/1800 | 4 | 70.5*42.5*58 | 212 | |
STC-30 | 37.5 | 30 | 400 | 54.1 | 0.8 | 1500/1800 | 4 | 79*49*66 | 257 | |
STC-40 | 50 | 40 | 400 | 72.2 | 0.8 | 1500/1800 | 4 | 79*49*66 | 290 | |
STC-50 | 62.5 | 50 | 400 | 90.2 | 0.8 | 1500/1800 | 4 | 79*49*66 | 344 | |
1. Altitude: not exceed 1000m.
2. Cooling air temperature: 258~313K (-15 ℃ ~40 ℃ ).
3. Relative air humidity: not exceed 90%.
TZH series generators have five advantages comparing with STC series generators: Compound excitation,simple circuit,high reliability,easy maintenance. Excellent dynamic characteristics, when load or unload suddenly, the circuit's light will not twinkle. Strong starting system,even if the motors of its 70% capacity volume they can be directly started and the switch will not trip. Approaching sine voltage wave and regulated power supply,output voltage can be safely used on computers. The devitation of the 3-phase line voltage will be less than 3% when the generators undertake unbalanced loading.
Main characteristic:
Insulation: Class B or F
Drip-proof type: IP21
Tight in construction for casting frame; Steel construction is optional
Steady voltage regulation are good in 5% speed variation,load from no-load to full-load
Dimensions are adopted IEC standard
Excellent in apperance
Operating Conditions:
Cooling air temperature : -15°C-40°C
Above sea level: not exceed 1000m
Relative air damping: not exceed 90%.
2. Cooling air temperature: 258~313K (-15 ℃ ~40 ℃ ).
3. Relative air humidity: not exceed 90%.
TZH series generators have five advantages comparing with STC series generators: Compound excitation,simple circuit,high reliability,easy maintenance. Excellent dynamic characteristics, when load or unload suddenly, the circuit's light will not twinkle. Strong starting system,even if the motors of its 70% capacity volume they can be directly started and the switch will not trip. Approaching sine voltage wave and regulated power supply,output voltage can be safely used on computers. The devitation of the 3-phase line voltage will be less than 3% when the generators undertake unbalanced loading.
Main characteristic:
Insulation: Class B or F
Drip-proof type: IP21
Tight in construction for casting frame; Steel construction is optional
Steady voltage regulation are good in 5% speed variation,load from no-load to full-load
Dimensions are adopted IEC standard
Excellent in apperance
Operating Conditions:
Cooling air temperature : -15°C-40°C
Above sea level: not exceed 1000m
Relative air damping: not exceed 90%.
Product Display
Product Details
Related Products
Company Profile
Mindong shengyuan electromechanical Co., Ltd (FOR SHORT "MINSUN" ) was founded in 2000, loac ated in Fu'an city, Fujian province. Minsun is a hightech enterpries which integrateds the research, devel opment, assembly, production, sales and service of diesel generator set and alternators.Our partners are all from world-famous and Chinese famous engine manufactuers such as UK engine, USA engine, DEU TZ, LOVOL, FAWDE, YANGDONG, SDEC etc. Meanwhile we also have the production line for brushless alternator and brush alternator, such as ST/STC SERIERS, MINSUN STAMFORD.
We are providing comprehensive stable and timely solutions for elecricity power supplying systerm in a llapplication fields (i.e. Railway, Mining, Petroleum, Petrifaction, Communication, Rental, Government, Mi litary, Factories and Real Estate etc.). Till now, our products and solutions have been normally operated i n more than 30 regions and countries all over the world.
We are providing comprehensive stable and timely solutions for elecricity power supplying systerm in a llapplication fields (i.e. Railway, Mining, Petroleum, Petrifaction, Communication, Rental, Government, Mi litary, Factories and Real Estate etc.). Till now, our products and solutions have been normally operated i n more than 30 regions and countries all over the world.
Packaging & Transportation
FAQ
1. What's the power range of generator?
2. What's the delivery time?
A: 30% T/T deposit in advance, 70% balance before shipping; or L/C at sight.
alternator generator
A: 3KW to 1000KW
A: 3KW to 1000KW
2. What's the delivery time?
A: 30 working days after advance payment confirmed.
3. What's your payment terms?
A: 30% T/T deposit in advance, 70% balance before shipping; or L/C at sight.
4. What's your warranty?
A: 1 year
5. What's your MOQ?
A: alternator is 10sets; diesel generator set is 1set.
