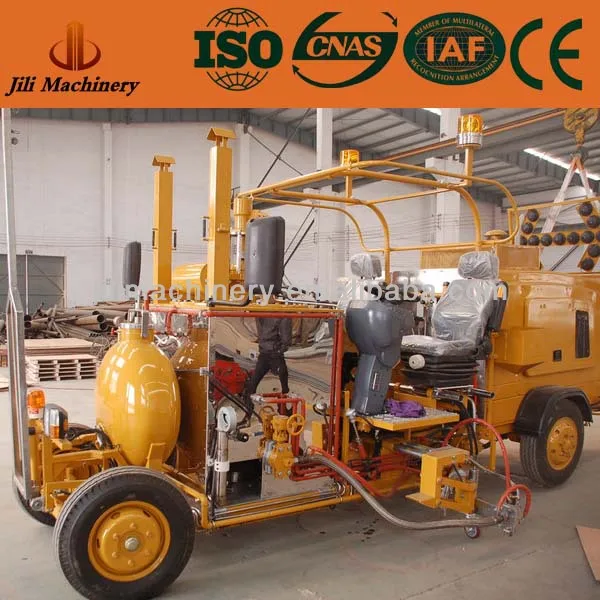

Hot melt extrusion type surface road marking machine
It can mark both multi-dot line and flat line.
It is a type of general machine which is flexible to operate and has the better effects of vibrating, reflect and drainage.
Technical Parameters for JLCRJ Driving Type Hot melt extrusion type surface road marking machine
No | Item | Specifications |
1 | Engine | 37kw diesel engine |
2 | Heating mode | Liquefied gas fuel heating or conducting oil heating or automatic temperature control heating |
3 | Marking Mode | Equipped with one extrusion marking shoe |
4 | Standard Configuration | 150mm Marking shoe |
5 | Marking Shoe=Line Width | 100/200/250/300mm (Optional) |
6 | Marking thickness | 1.0-2.0mm(adjustable) |
7 | Paint Tank | 325L |
8 | Glass Beads Bin | 120L |
9 | Air Compressor | 0.6m3/min |
10 | Control system | Digital intelligent control |
11 | Size and Weight | 5100*2450*2300mm 3500 kg |

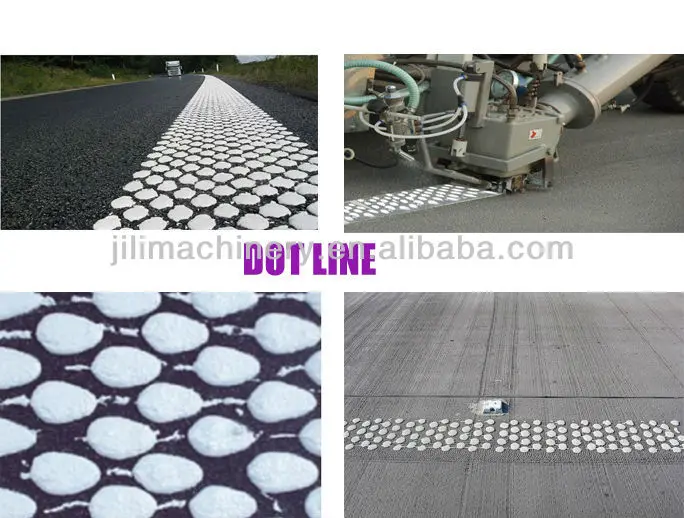

Line Samplefor Hot melt extrusion type surface road marking machine
Pre Heater
1) Pre heater and thermoplastic marking machine relationship
Pre-heater, always matched with thermoplastic marking machine, is main equipment for thermoplastic paint lines marking construction.
Pre-heater is used for heating, melting, and stirring thermoplastic marking paints continuously, preparing hot melt paints for the thermoplastic machine during long distance road lines marking work.
2) How to use the pre heater
During the construction, put powder coating (additives) into the pre-heater firstly.
The heating temperature must be controlled between 180 °C ~ 210 °C.
Keep stirring while melting, until the paint into a homogeneous liquid state. And then, the hot-melt material is ready to be discharged into the thermoplastic machine for marking construction.
The melting paint quality affects directly to the traffic lines marking quality, so the pre-heater is a key part during thermoplastic paint road lines construction, and essential device for thermoplastic paints heating and melting...
For JLCRJ Driving Type Hot melt extrusion type road surface line marking machine , it usually match JLZFR450 Pre heater
Technical Parameters
Model | JLZRF450 |
Power | 18HP diesel engine |
Paint tank | 225Lx2 |
Heating system | Diesel fuel injection type heating |
Dimension | 1660x1600x1850mm,1270kg |
Optical part | Conduction oil heat preservation system /automotive temperature control system |
Hot melt extrustion pavement marking machine
Our Factory
JILI machinery supply three kind of road marking paint machine according to the paint material :
1. Thermoplastic road marking machine series;
2. Cold paint road marking machine series
3. Two-component road marking machine series
According to different marking ways , the thermoplastic road marking machine can be divided into 3 type:
1. Thermoplastic screeding type
2.Thermoplastic extrusion type
3. Thermoplastic spraying type
The working type could be driving type marking, self propelled type marking or hand push marking .
The thermoplastic road marking equipments needs a set of numerical equipments to compelet the construction .
It is usually including the following parts.
1. Thermoplastic pre heater
2. Road marking machine
3. .Pre-marking machine
4. Primer
The cold paint road marking is different from thermoplastic road marking . It can complete only by one unit road marking machine.
It can be divided into high pressue airless type and low pressure air spray type .
The working type could be driving type marking, self propelled type marking or hand push marking
We would like to be helpful for your road constricon. Any question or need, pls contact us
