HXXM 400 пресс машина для брикетирования угольных шаров по низкой цене
- Категория: >>>
- Поставщик: Zhengzhou Hengxing Heavy Equipment Co. Ltd.
Сохранить в закладки 1773611149:
Описание и отзывы
Характеристики

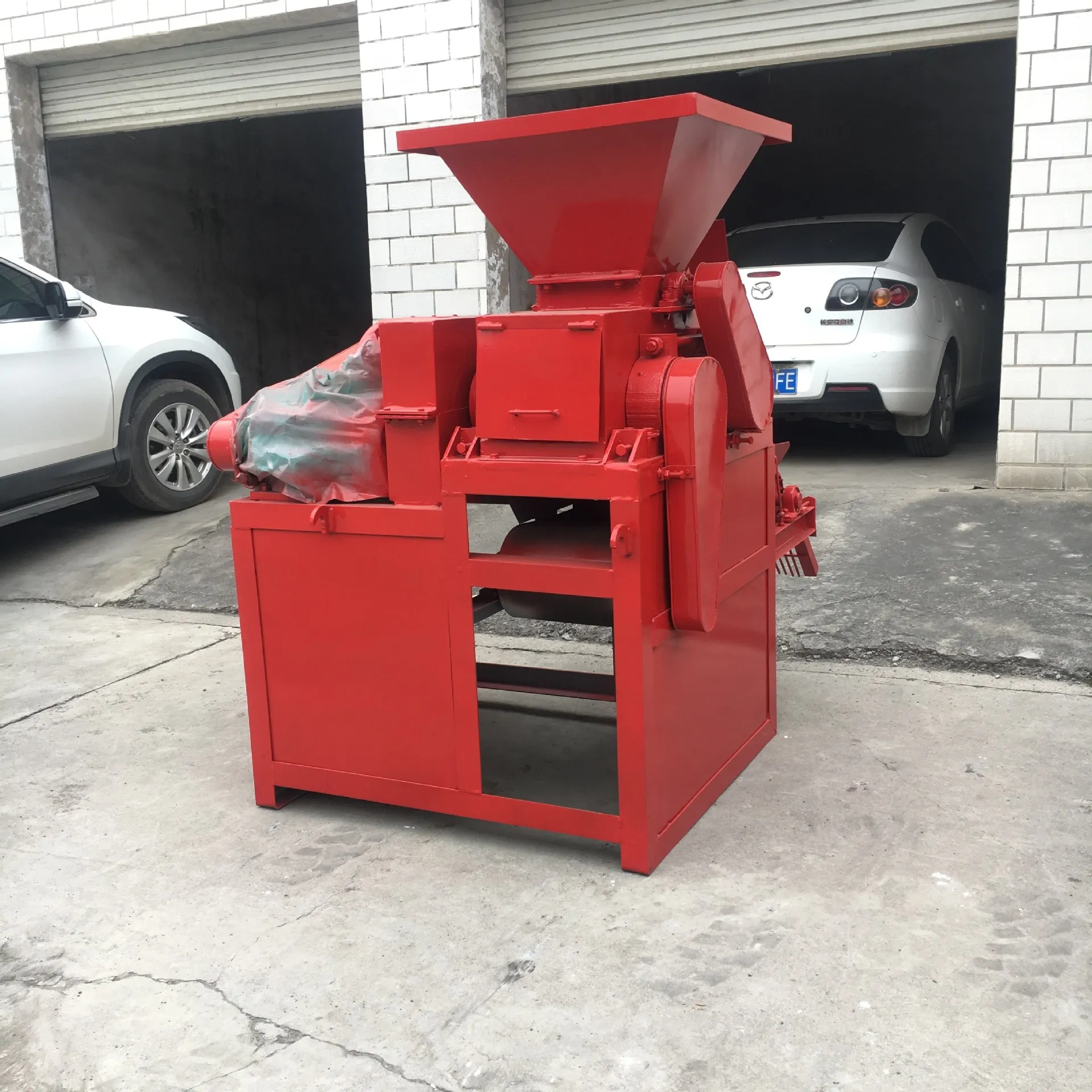

HXXM 400 Low Price Coal Ball Press Machine For Briquetting
Product Description

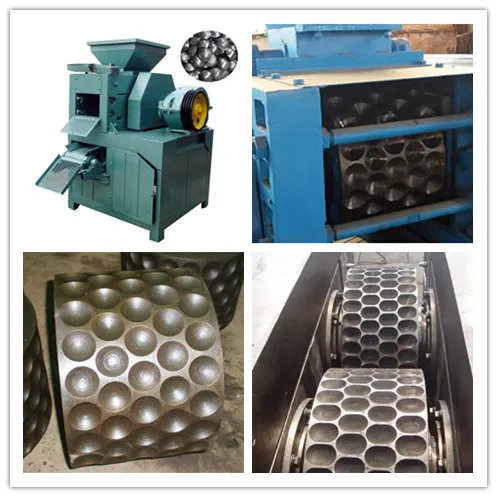

Introduction to the coal ball press machine
coal ball press machine is used for making coal fines, coke fines, charcoal powder, carbon black, iron ore fines, cast iron fines, mill scale, manganese ore fines, phospho gypsum powder into briquettes. These briquettes can be designed of oval shape, egg shape, pillow shape etc. This machine is widely used in coal industry and metallurgy industry.
Applicable raw material:
Coal, coal powder, coal slurry, charcoal dust, charcoal fine, metal powder, metal scrap, limestone, copper sludge, iron oxide, peat, mineral powder, carbon black, white coal, lignite coal, brown coal.
Coal Ball Press machine Working Principle:
1.Main part of charcoal briquetting machine is provided with motive power by electromagnetic speed motor,through belt pulley, cylindrical gear reducer, transmit to the main drive shaft by bar pin coupling.
2. Drive shaft and driven shaft of charcoal briquetting machine use the open gear to ensure synchronous operation,behind the driven shaft bearing block, set a hydraulic device.
Coal Ball Press Technical data :
briquette machine Model | HXXM-360 | HXXM-400 | HXXM-500 | HXXM-650 | HXXM-750 | HXXM-850 | HXXM-1250 | Remark |
| ||
| |||||||||||
Capacity | hour | 4T/h | 8T/h | 11T/h | 18T/h | 25T/h | 35T/h | 70T/h |
|
| |
Annual | 10000T | 20000T | 30000T | 50000T | 70000T | 100000T | 200000T |
|
| ||
Roller width | 250mm | 280mm | 300mm | 336mm | 400mm | 500mm | 650mm | (65Mn) |
| ||
Roller diameter | 360mm | 400mm | 500mm | 650mm | 750mm | 850mm | 1250mm |
|
| ||
| |||||||||||
Motor Power | 7.5kw | 11-15kw | 18.5-22kw | 20-30kw | 45kw | 75kw | 130kw | According to the material |
| ||
| |||||||||||
Main shaft speed(rpm) | 18 | 15 | 13 | 13 | 13 | 10 | 10 |
|
| ||
Reducer | ZQ350 | ZQ400 | ZQ500 | ZQ650 | ZQ750 | ZQ850 | ZQ1250 | Standard type |
| ||
ZQ400 | ZQ500 | ZQ650 | ZQ750 |
|
|
| strengthen type |
| |||
Pressure form | Wedge constant pressure | Wedge constant pressure | Wedge constant pressure | Wedge constant pressure | Wedge constant pressure | Wedge constant pressure | Wedge constant pressure | select any type |
| ||
| |||||||||||
Axle seat coupling bar | Axle seat coupling bar | Axle seat coupling bar | Axle seat coupling bar | Axle seat coupling bar | Axle seat coupling bar | Axle seat coupling bar |
| ||||
|
| Hydraulic and constant pressure | Hydraulic and constant pressure | Hydraulic and constant pressure | Hydraulic and constant pressure | Hydraulic and constant pressure |
| ||||
| |||||||||||
| |||||||||||
Roller Material | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | casting | select |
| |
| |||||||||||
| |||||||||||
Alloy steel | Alloy steel | 9cr2Mn | 9cr2Mn | 9cr2Mn | 9cr2Mn | 9cr2Mn | forging, |
| |||
Alloy steel | Alloy steel | Alloy steel | Alloy steel | Alloy steel | pressure casting |
| |||||
Structure form | double roller single pressure | double roller single pressure | double roller single pressure | double roller single pressure | double roller single pressure | double roller single pressure | double roller single pressure | select any type |
| ||
four roll double pressure | four roll double pressure | four roll double pressure | four roll double pressure | four roll double pressure | four roll double pressure | four roll double pressure |
| ||||
Shape | customized | customized | customized | customized |
|
|
| Usually |
| ||
size | 30-60mm | ||||||||||
Features of the coal ball press machine:

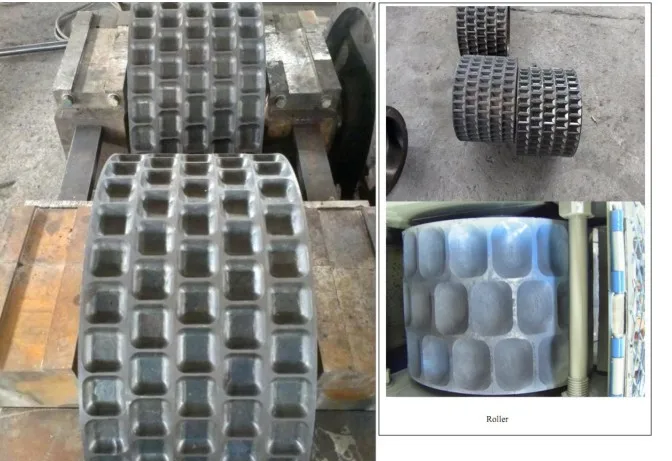

1 The roller is made by hard materials with good wear resistance and long life time
2 The service life of wearing parts is up to 4000 hours
3 The machines electricity coal reduce by 60%
4 The machine is easy to operate and maintain
5 The molding materials are energy saving, easy to transport
6 The final products are smokeless, non-toxic, none peculiar
7The end outlet shape of products can be all shapes

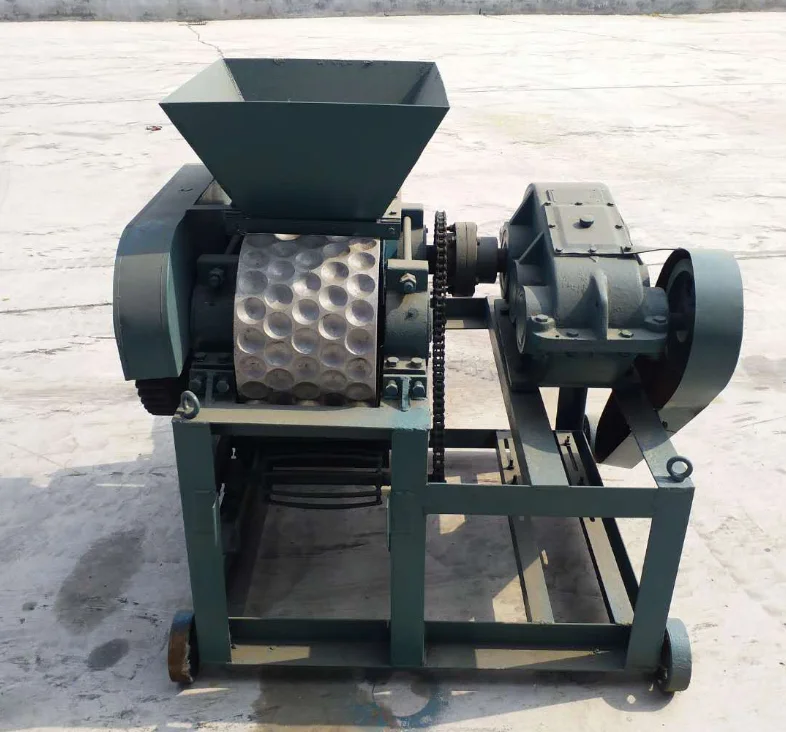

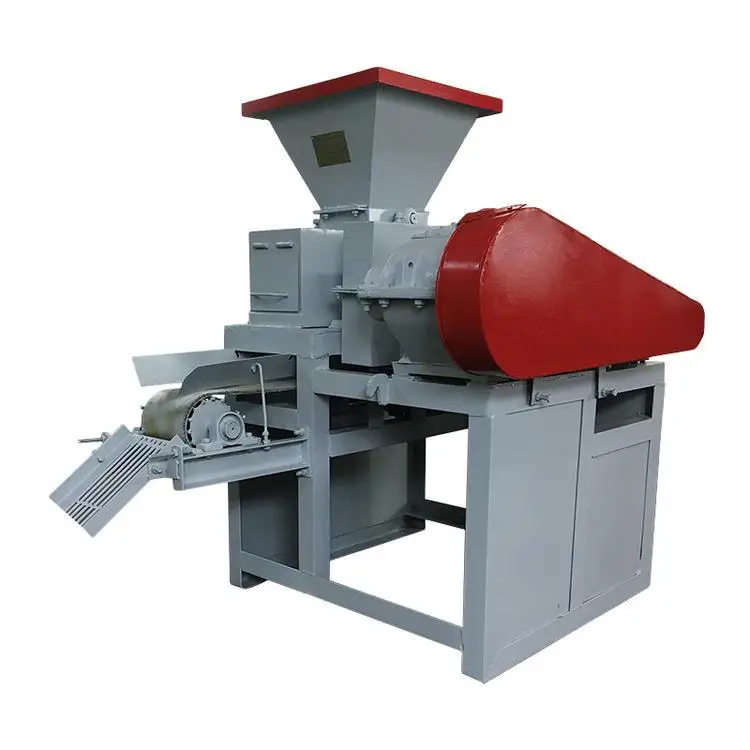

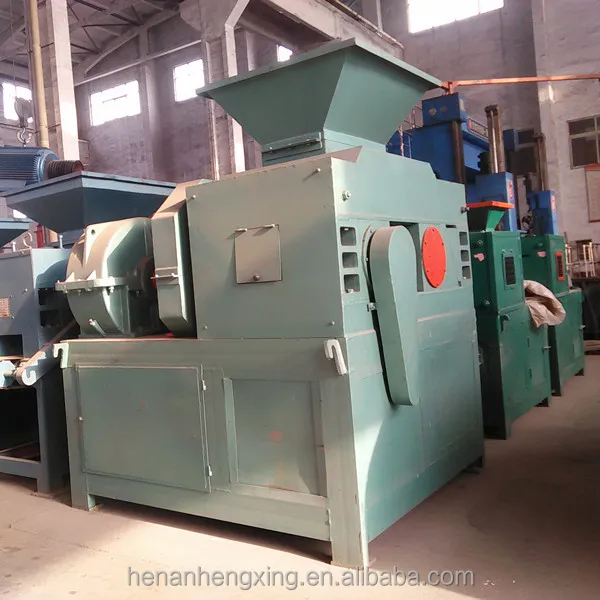

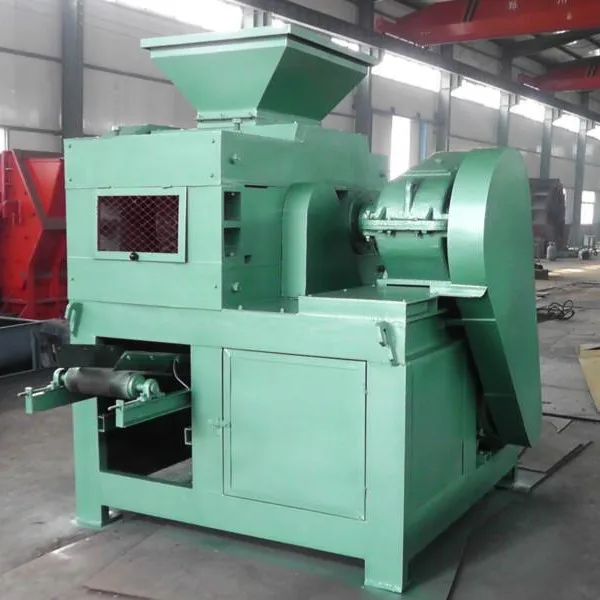

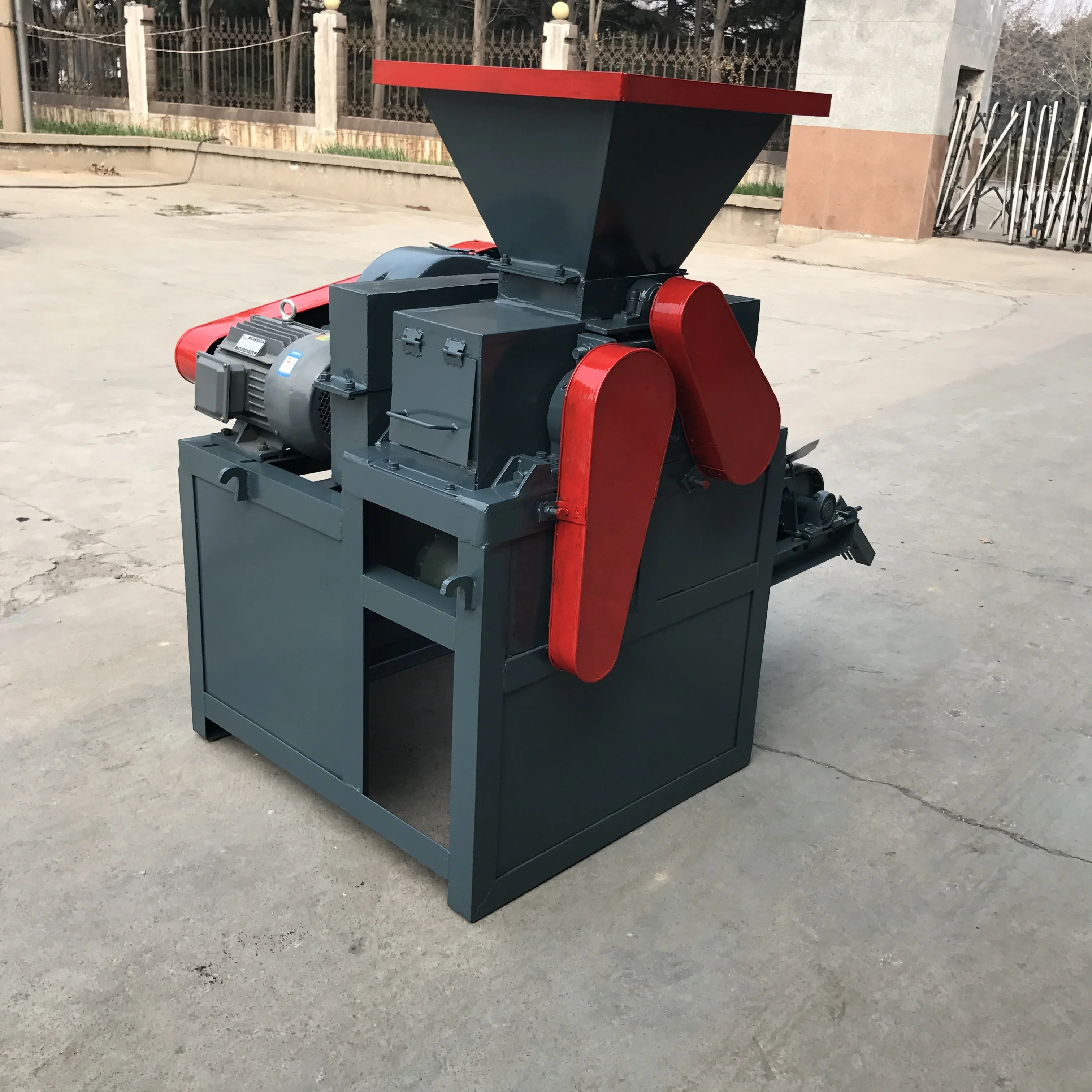

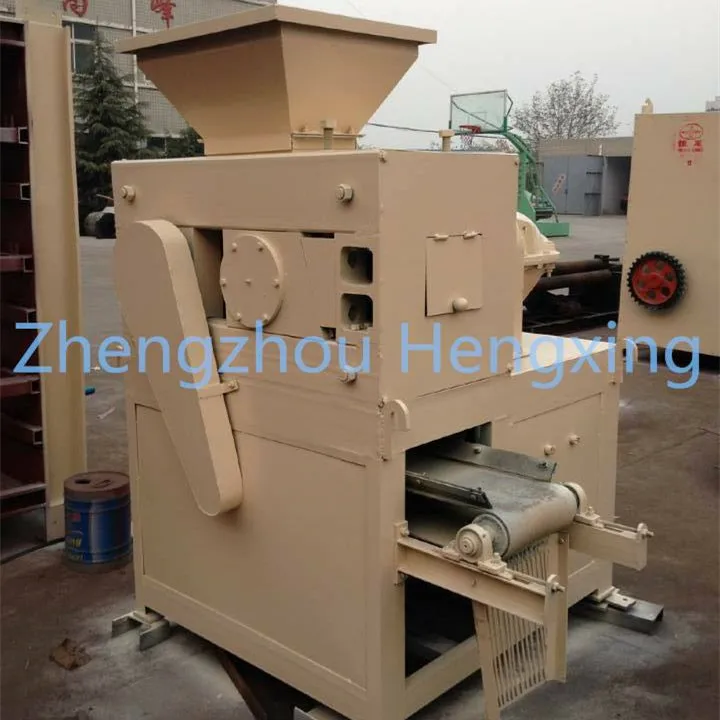

Our Facotyr coal ball press from stock :
Packaging & Shipping
The coal ball press machine will start delivery in 30 days after payment. It will be packed in the export standard container, its main motor and spare parts will be put in the water-proof and sealed wooden case.
We promise that the coal ball press machine will be shipped to you timely and safely.
Our Services
Hengxing equipment can provide turkey service for customers, such as engineering consultation, engineering design, equipment manufacturing, packing & transportation, installation & commissioning personnel training etc.
About Spare Parts
Hengxing equipment will be dedicated to provide our customers with genuine spare parts with high quality. With our technological advice, the life cycle of your machine can be prolonged and sustained significantly with high effectiveness.
About Training
Hengxing equipemnt could offer excellent facilities and comfortable environment and training services to different customers. The training should include product training, safety training, operation training, maintenance know-how, technical know-how training, and regulations training, etc. All of the training is customized to fulfill every customer’s expectations. Training programs can be conducted in our workshop, or at customer’s site.
About Installation and Commissioning
Hengxing equipment are able to guide the overall installation of whole set production line, including crushing production line and cement equipment production line, etc., which will allow you to start the normal operation of equipment immediately. After installation,we will make inspection of the whole machine commissioning and operation condition and provide you testing data report of installation.
FAQ
Why choose us?
1We have special Machinery Research Institute
2Our product quality has been in line with international level
3Our products are exported to ninety countries and regions
4We are dedicated to providing best solutions and turnkey projects
5A variety of honor to witness, 100% professional
6We provide you with all-round, one stop services
Contact:
Sara
Mobile phone : (whatsapp number): 0086137 8347 1727
Skype: sarapang6
Wechat: sarapang6
Company Website: www.superballmill.com
Email: sales006*zzhxmachine.com
