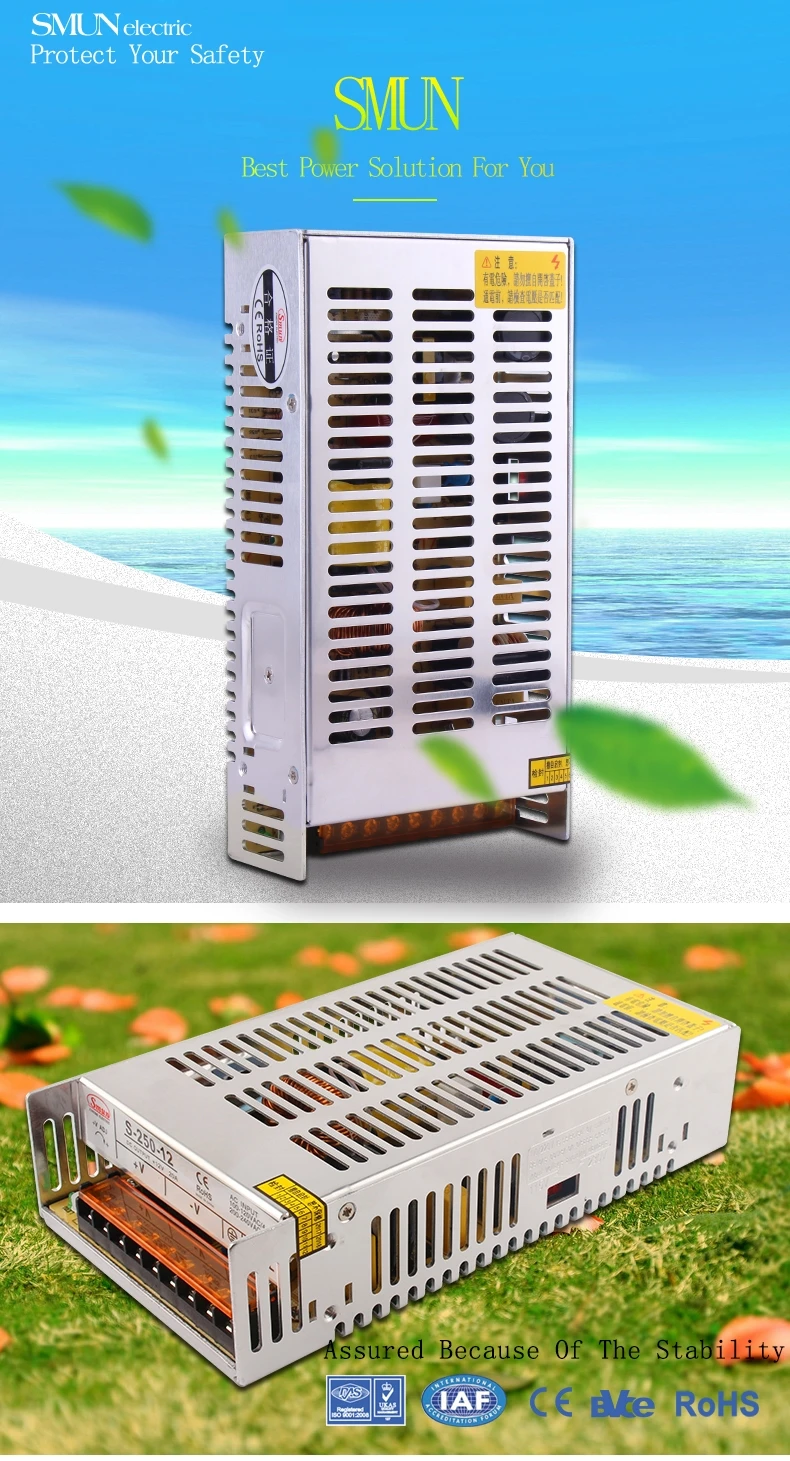

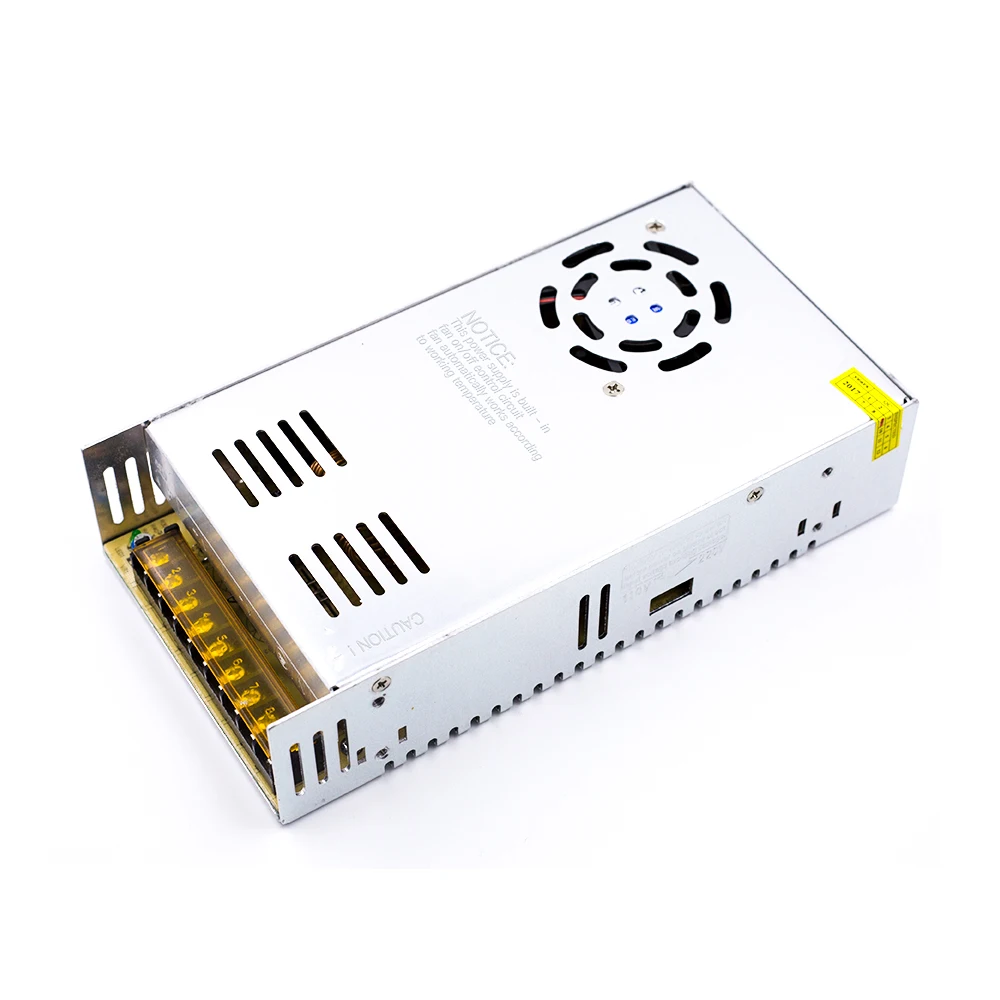

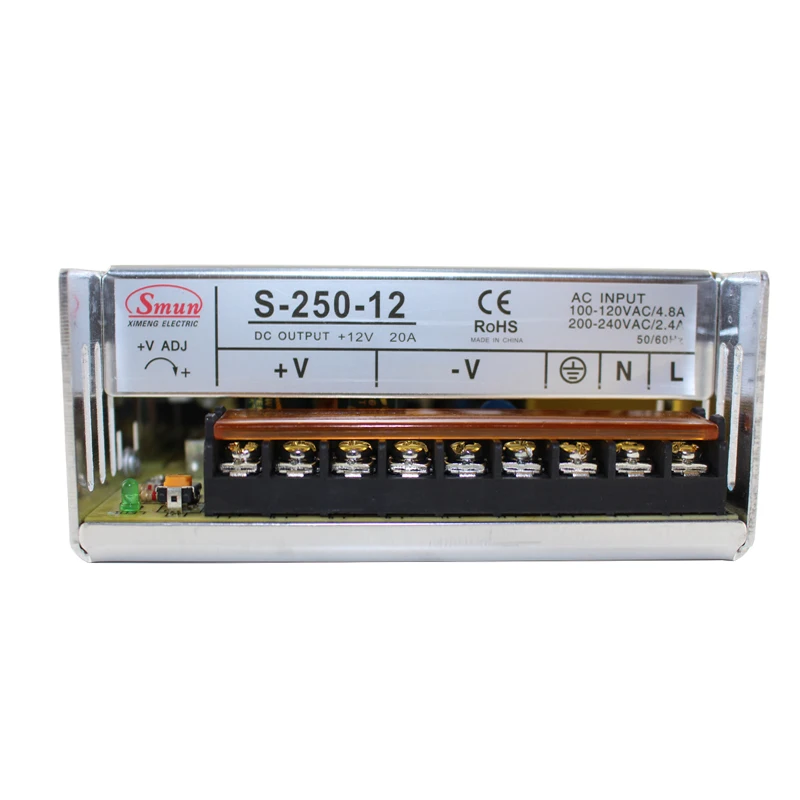

Смун S 250 12 110V/220V до 12V 20A 240 Вт источник постоянного тока с режимом Переключения источника питания для 3D принтер

Сохранить в закладки 1817124232:


Цена:11,50 $ - 15,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


















































































































































Model

S-250-12S-250-15S-250-24S-250-48
OutputDC output Voltage12V15V24V48V
Voltage tolerance±1.0%±1.0%±1.0%±1.0%
Rated Current20A15A10A5.2A
Related Power240w250w250w250w
Wave&Noise120mVp-p120mVp-p120mVp-p200mVp-p
Adjustable range for DC Voltage±10%±10%±10%±10%
Set up,rise,hold up time200ms  100ms  30ms
InputVoltage Range85 ~132VAC  170-264VAC  47-63HZ 240-370VDC
Input Current4A/115VAC 2A/230VAC
Efficiency82%82%82%82%
AC inrush currentCold start current  15A/115V 30A /230VAC
Leakage current<0.5mA/240VAC
ProtectionOverloadRelated output power 105-150% start overload protection
Protection type: cutoff output, recovery after restart power
Over voltage13.8V-16.2V17.2V-20.2V27.6V-32.4V55V-64.8V
Hiccup mode,recovers automatically after fault condition
EnvironmentWorking temp humidity-10~+60°C 20%~90%RH
Stor temp, humidity-20~+85°C 20%~90%RH Non-condensing
SafetyWithstand voltageI/P-O/P:1.5KVAC  1min
I/P-FG:1.5KVAC 1min
O/P-FG:0.5KVAC 1min
StandardSafety standardFit UL1012
ReferDesign refer to GB4943,UL60950,EN60950
EMC standardDesign refer to GB9254,EN55022 Class A

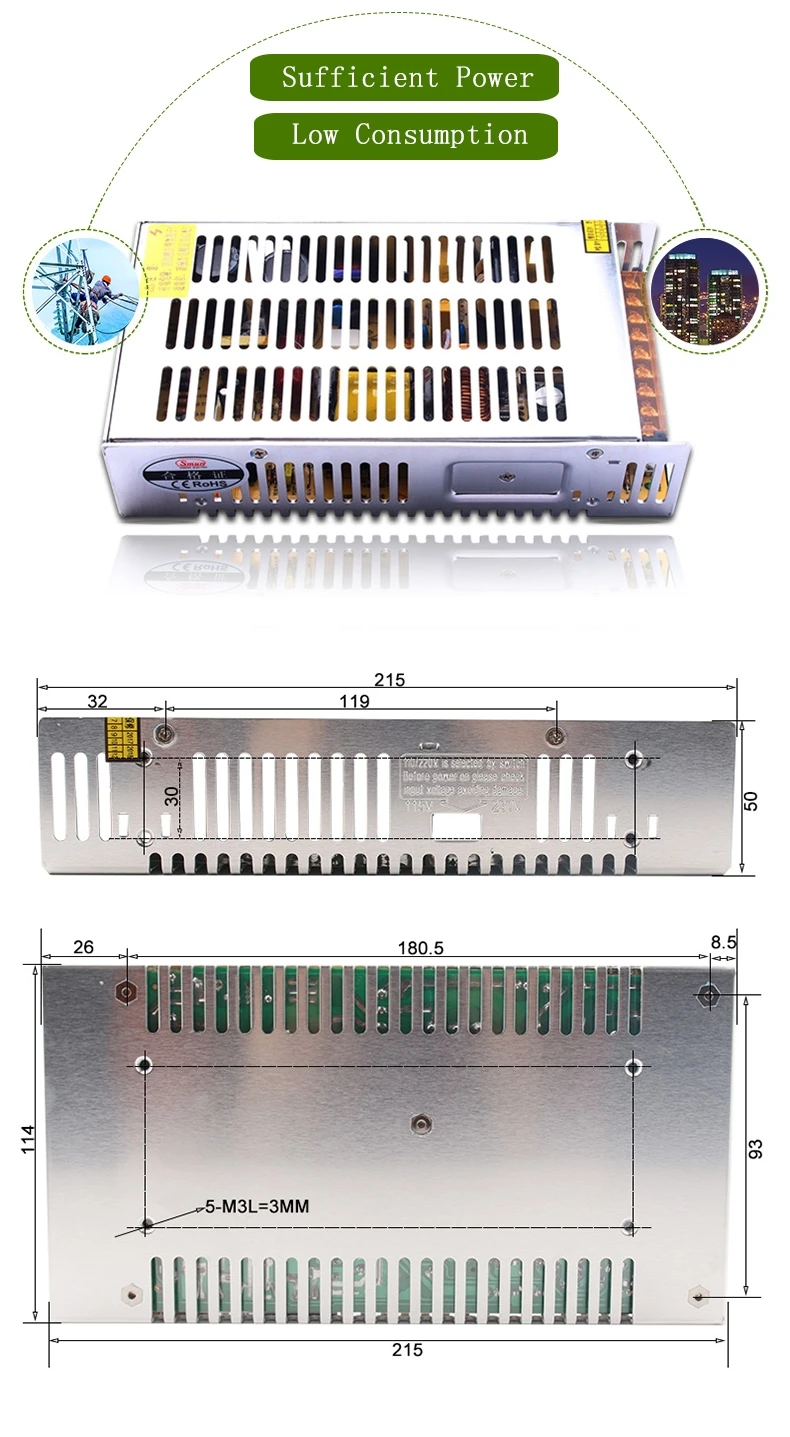

SizesizeL215*W115*H50mm
Package0.95kg, 16pcs/16kg
