LZZBJ71 35W (LZZW 35) 33kv внешний трансформатор тока сухого типа
- Категория: >>>
- Поставщик: Ghorit Electrical Co. Ltd.
Сохранить в закладки 1832384039:
Описание и отзывы
Характеристики
Product Description

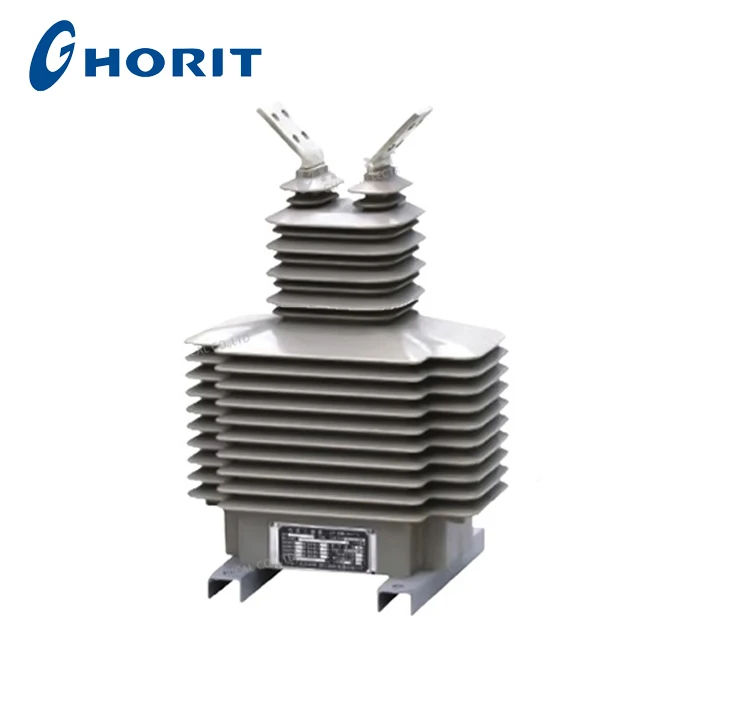

LZZBJ71-35W (LZZW-35) current transformer
Description
This series current transformer of the type LZZBJ71-35W is casting resins and fuIly enclosed. it is used for metering electric energy and current relay protection in the electricaI system up to rated frequency 50Hz or 60Hz and rated voltage 35KV. The transformers can be executed according to the standards IECIB5 and GB 1208—2006.
Type description
Construction
This current transformer is fully enclosed and posts type product. It has a good ability of antipollution and moisture proof. It is small and light. it can be mounted in any position you like.
Technical data
Rated insulation level: 40.5/95/185 KV;
Rated secondary current: 5A,1 A;
AItitude:≤3000m;
Rated secondary current: 5A,1 A;
AItitude:≤3000m;
Power factor of load: C0SΦ=0 8(1agging);
Ambient temperature: -25°C~+40°C;
If being requsition,it can be-40°C;
Ambient temperature: -25°C~+40°C;
If being requsition,it can be-40°C;
AntipolIution class: lV.
| type | rated primary current (A) | accuracy class | rated output (VA) | short time thermal current (KA/S) | rated dynamic current (KA) | ||
| 0.2 | 0.5 | 10P10 | |||||
| LZZBJ71-35W | 15 | 0.2/10P15 0.5/10P15 | 10 | 20 | 50 | 2.25/2 | 5.6 |
| 20 | 3.0/2 | 7.5 | |||||
| 30 | 4.5/2 | 11.25 | |||||
| 40 | 6.0/2 | 15 | |||||
| 50 | 7.5/2 | 18.75 | |||||
| 75 | 11.25/2 | 28 | |||||
| 100 | 15/2 | 37.5 | |||||
| 150 | 31.5/1 | 80 | |||||
| 200 | 31.5/2 | ||||||
| 300 | 31.5/3 | ||||||
| 400 | 31.5/3 | ||||||
| 500 | 31.5/3 | ||||||
| 600 | 15 | 30 | 50 | 31.5/4 | 80 | ||
| 800 | |||||||
| 1000 | 40/4 | 100 | |||||
| 1200 | |||||||
| 1250 | |||||||
| 1500 | |||||||
| 1600 | |||||||
| 2000 | |||||||

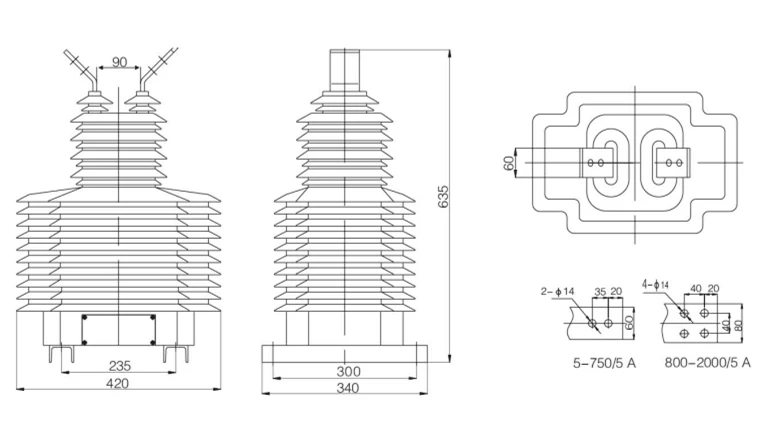

Overall dimension
FAQ
Q: If I'm interested in your products when I can get quotation and detail information after send the inquiry?
A:All enquiries will be replied in 24 hours.
Q:Your products seems perfect but what's the difference between you and other suppliers? Because I found some cheaper price!
A: The price is based on the quality all our products are in high quality. And most of the companies' products price are different. Thus, I think First compare the quality Second compare the price is the best way!
Q:I know your quality is perfect but in our market normal quality are more popular what can I do?
A: Please don't worry, we can provide a series of quality of products, you can choose the best one to meet your market,we will try our best to support you. I believe we can provide products meet all your requirements in GHORIT.
Q:Can I get a sample before the order because I really don't how is your products quality?
A: Of course! We also think sample order is the best way to build trust. We offer free sample service ! Do not hesitate to send inquiry to get the free sample!
Q:What's the delivery time? Because we really need them is urgently?
A: 3~7days For sending sample order. .15days for regular order , we will never eat our words.
Q:What's the warranty period for your products?
A: For One year warranty.
Q:How to send a inquiry for more information?
A: You can find a textbox at bottom of page then send inquiry through it, also can find our contact below
Company Information
Ghorit Electric Co., Ltd. is located in Xinguang Industrial Zone, Yueqing, Zhejiang Province, China, enjoys convenient transportation.Ghorit covers 26,000 m2 including a construction area of 12,000 m2, integrates R&D, manufacture, sale and service, also has built a new production base in Shanghai.
Ghorit mainly produces and sells high-voltage electrical components and related equipments.
Ghorit has passed ISO9001. Ghorit adhere to the tenet of " survival based on high-quality products". with strong technical force, advanced production technology, perfect detection means and super product quality, Ghorit keeps on expanding the markets and has won a high reputation among the customers.
Trade Term:
Trade terms: FOB, CIF,EXW
Payment terms: T/T, L/C, Western Union, Paypal
Payment condition: 30% as deposit paid in advance, the balance paid before shipping.
Delivery time: within 20 working days after receive deposit and confirm details
packing: neutral carton, wooden case or as required
Delivery: by sea, by train, by air, by express delivery
Packaging & Shipping
Похожие товары
2021 Новая мода мужские однотонные 100% хлопок одиночный Джерси 180GSM пустой быстросохнущая дышащая индивидуальный логотип наивысшего качества
1,70 $ - 2,20 $

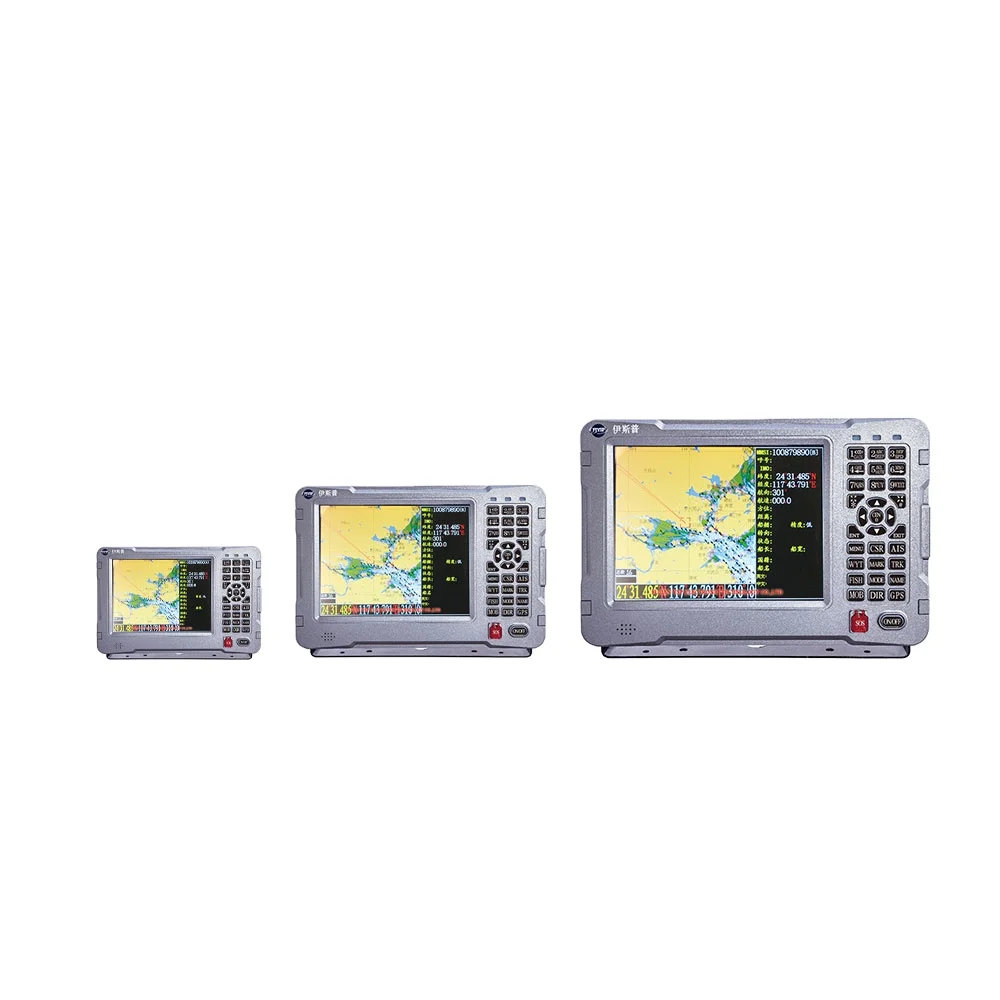

YSP, персонализированный морской gps-навигатор, морской gps-навигатор
500,00 $ - 600,00 $
Качественные гибридные семена красного чили с хорошей устойчивостью к болезням
1,00 $

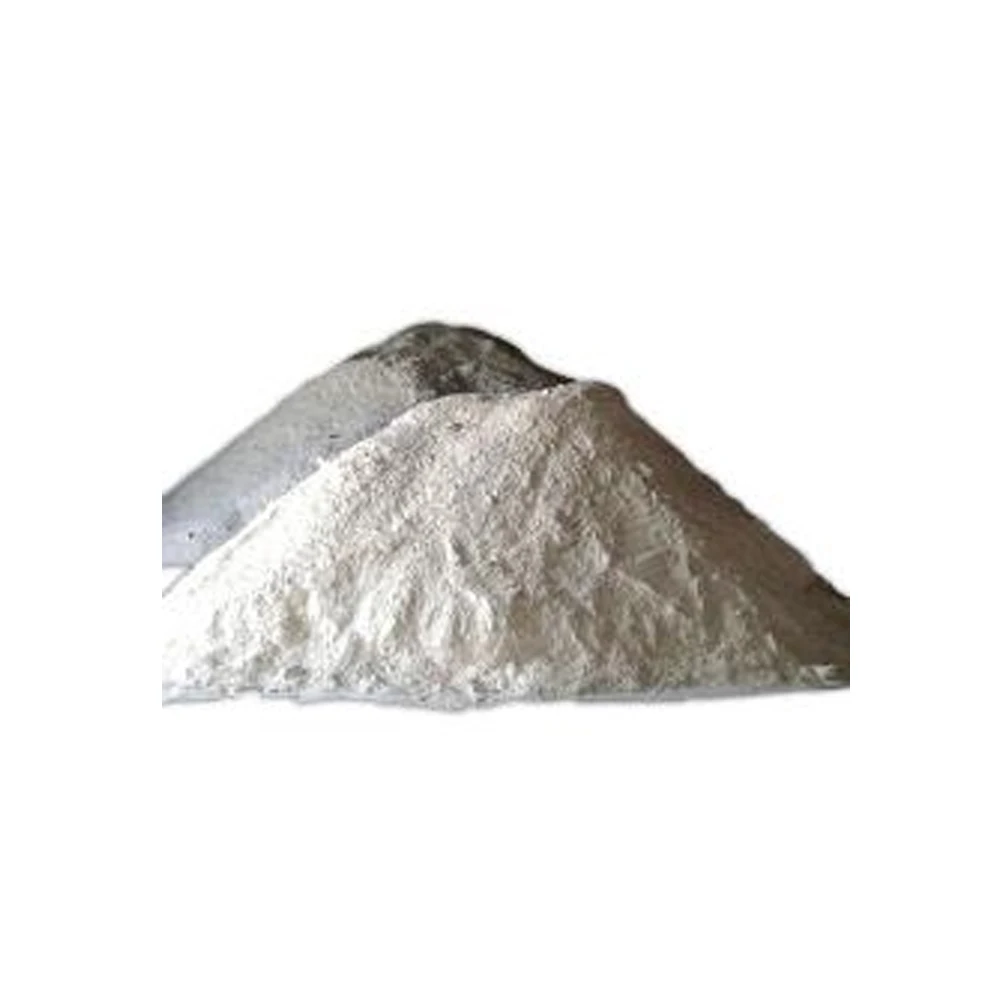

Высококачественные минералы, лучшие стеклянные отрасли для порошка фрита Калия по низкой цене
90,00 $ - 100,00 $

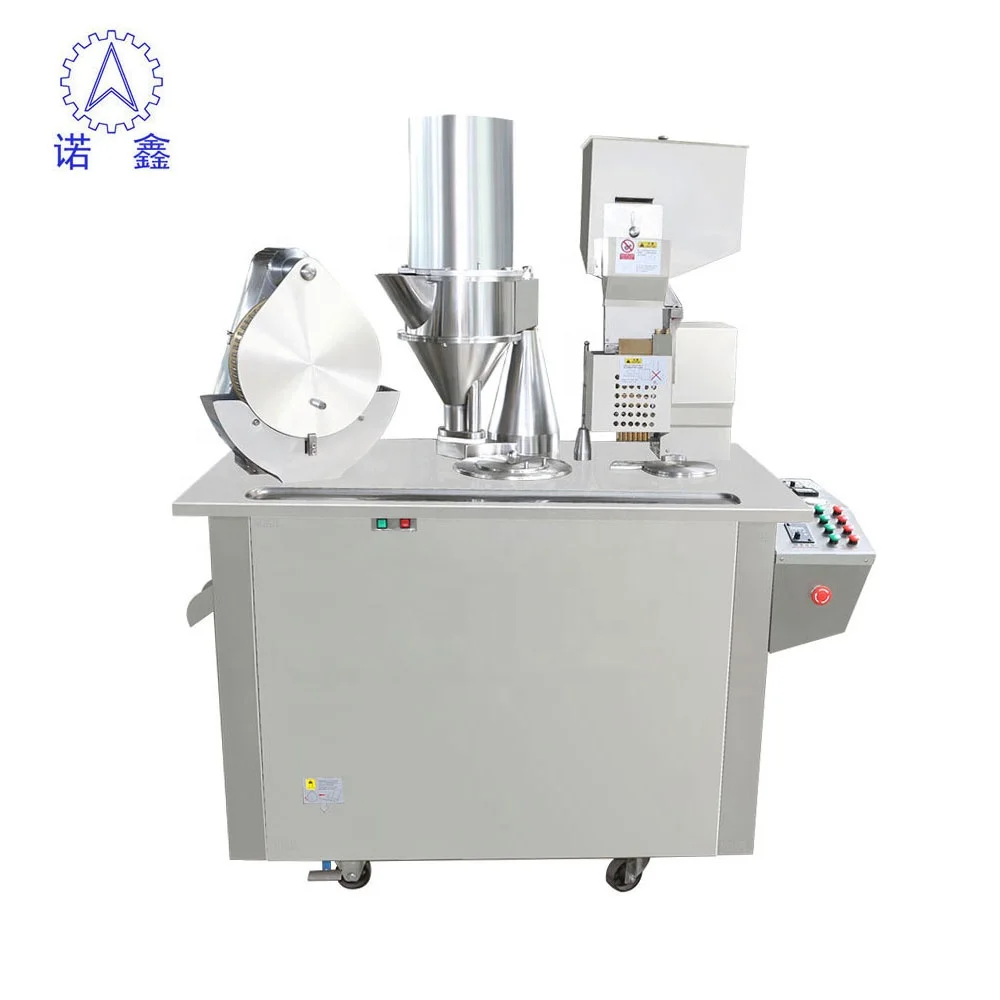

JTJ-I небольших капсул машина для изготовления
Полная станция MATO MTS802R, полная станция без отражателя

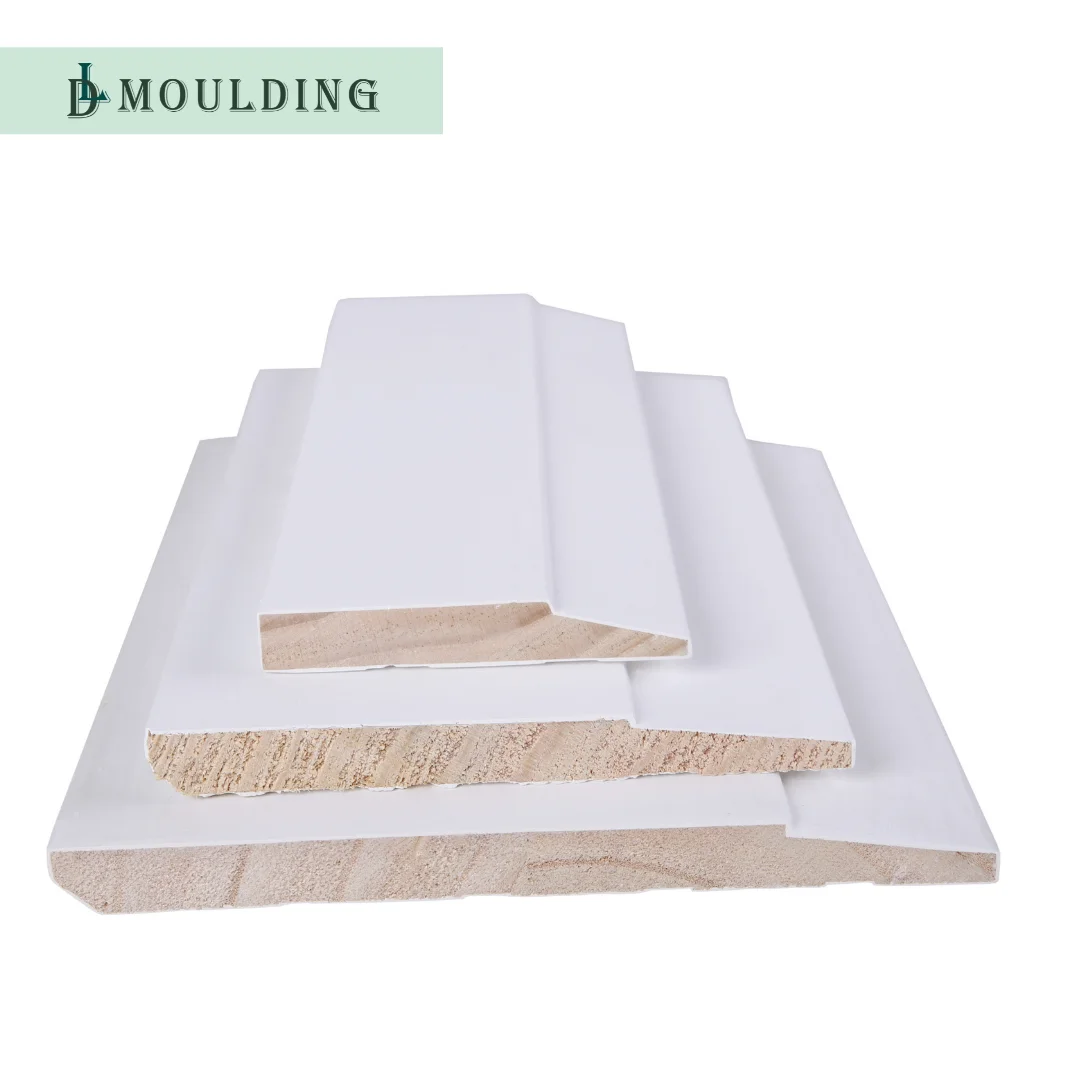

Белого цвета пальцы дерева плинтус
