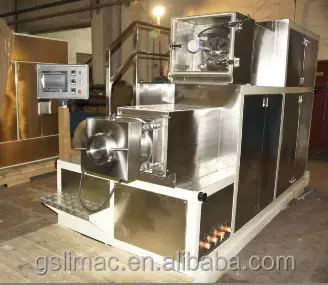

Дуплексный одночервячный плоттер 1000ES DRVP для мыльной машины

Дуплексный одночервячный плоттер 1000ES DRVP для мыльной машины

Категория: Other Chemical Equipment >>>
Поставщик: Lanzhou Limac Machinery Works Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Type	Name	Capacity (kg/h)	Worm diameter (mm)	Power (kW)
4000ES-SRVP	Duplex twin-worm plodder	4000	300	45+45
3000ES-DRVP	Duplex single-worm plodder	3000	350	37+37
2000ES-DRVP	Duplex single-worm plodder	2000	300	30+30
1000ES-DRVP	Duplex single-worm plodder	1000	250	22+22
500ES-DRVP	Duplex single-worm plodder	500	200	11+11

Totally new plodders Series ES can be used both for production low and high TFM soaps.

The new plodders have innovated speed reducer design, cooling-water system/jacket design and worm design, so that the machine has reduced driving torque, uniform pressure and no backflow of soap inside the worm barrel, resulting in high productivity, easy to operate, and lower labor-intensity. The plodder is auto-protected by intelligent-control, so it has much long service life.

Level probe inside the vacuum chamber is to control the start/stop of the upper extruder.

Pneumatic clutches for upper and lower extruders are supplied by Eton, USA.

Switches and other electric components are supplied by Schneider, France.

Frequency adjustable A.C. drive is supplied by Allen-Bradley, USA.

Operation panel is supplied by Rittal, Germany.

Touch screen by EM, Taiwan.PLC by Allen Bradley, USA.

Level probe by E+H, Germany.

33Ton h toilet or translucent soap finishing line-
