Introduction

1.It can be used to support 18-22AWG ( 0.3 to 0.9 mm ) strands of wire diameter, material using press-fit type tin copper terminal and has a 94V-0 flame retardant thermoplastic shell value.

2.The plug connector and the plate seat connector used and can provide active locking function, ensures a secure connection.

3.With the LED lighting application continuously high speed develops, manufacturers committed to the development of installation and maintenance cost lower lighting system solutions. The introduction of non polar plug and socket connector increases the lines on the board function, to provide customers with a complete set of connectivity solutions, which can quickly, flexibly connected lighting module.

wiring harness connector    strip light connector led strip connector

SApplications:

  Application

• The Hermaphroditic Blade and Receptacle connector is a new SMT connector and is intended for use with in-line board-to-board applications.


• LED lighting modules


• Incandescent lighting strips


• Channel lettering

MT Poke-In Lighting Connector  push in wire connectors

 Key Feature  eatures for butt splice connector

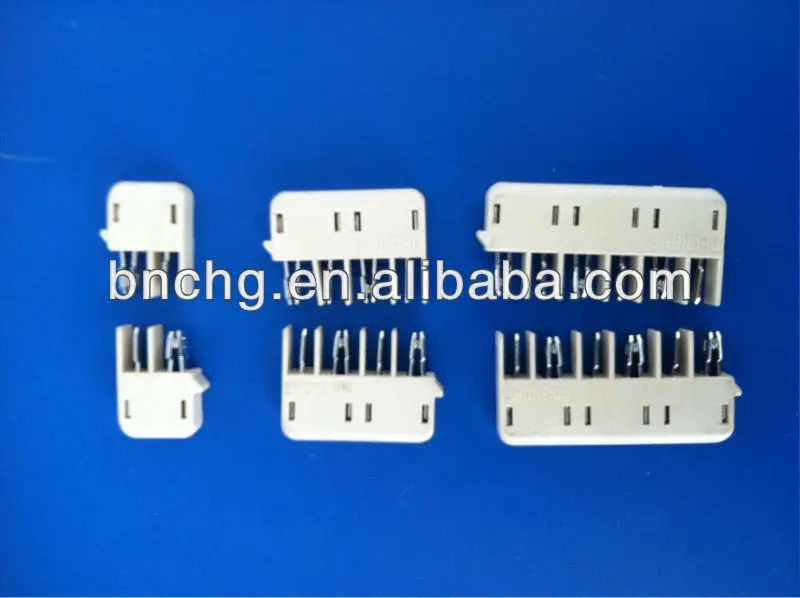

• Available in 2, 4,and 6 positions


• Connector mates to itself


• Single part to be stocked andplaced onto pcb per position


• Connector mates and unmates horizontally and vertically


• Connector can be articulated from 90° to 180°

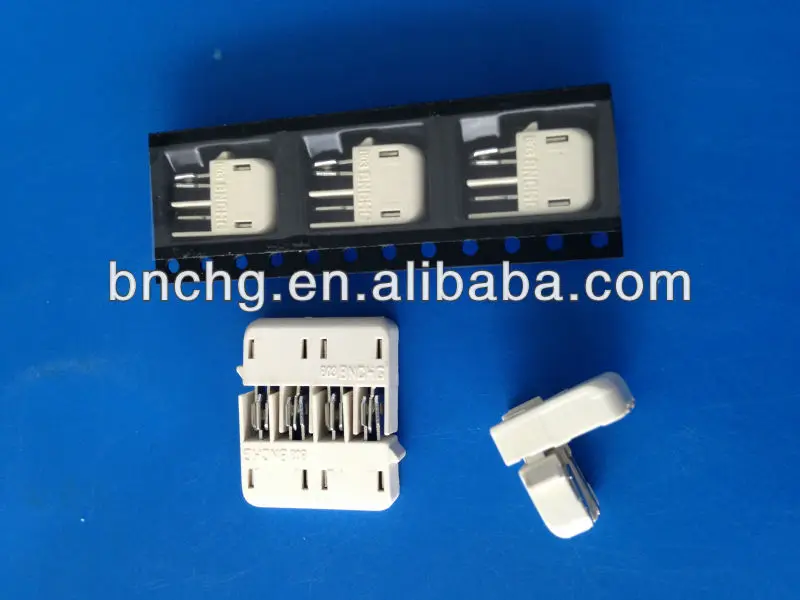

• Tape and reel packed for high speed SMT processes


• Low profile flat surface is compatible with SMT and reflow processing


•  Rounded corners to minimize shadowing


• Redundant SMT pads


• Solder pad footprint

ire Junction power conector   electrical connectors

4 wire connectors   u type press wire conector

Specification

d connector 4-pin  Types of connectors  Automatic connector of harness of wire     Automatic connectors of ecectric wire

Play-wire connector     U type wire connector   Press wire connector

Advantages

1. Compared with the traditional polar design, it can provide a more flexible LED printed circuit board belt installation.

2.New connector can be horizontally or vertically sliding combined with the two circuit board to complete the connection.

3.Terminal reels of packaging, to facilitate high-speed terminal operation.

About Payment

a.100%TT  in advance .(Order less than 4000 USD)

b.70%TT in advance, the balance against the copy of B/L at sight

c. Negotiable

About Shipping

1.The packages normally will be shipped out 3--7working days after the payment confirmed

2.The packages can also be shipped by DHL/TNT/UPS/EMS/FedEx,  you are welcome to choose the way you like

3.We are not responsible for any accidents, delays or other issues caused by the forwarder.

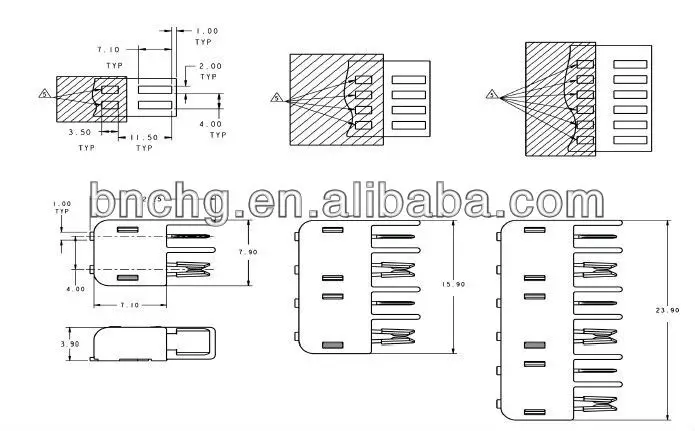

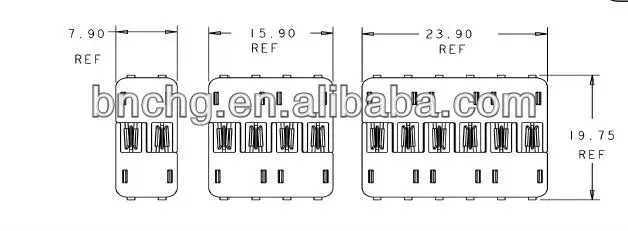

Drawing
