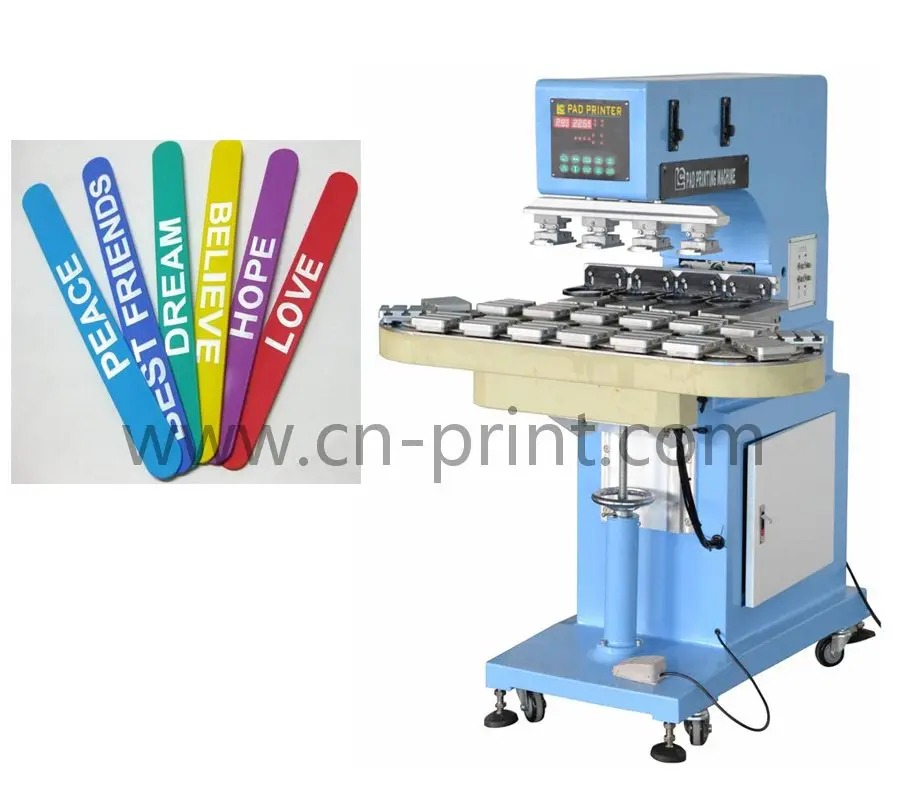

Автоматическая высокоскоростная 4-цветная игрушка Lego ручка для более легкого принтера печатная машина
2 168 718,00 ₽ - 2 710 897,50 ₽

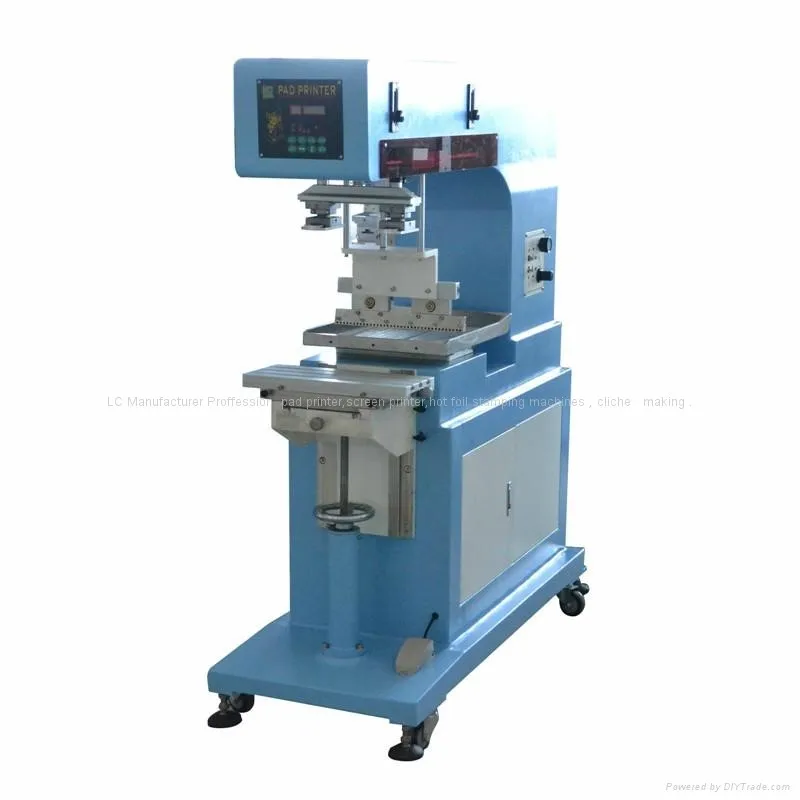

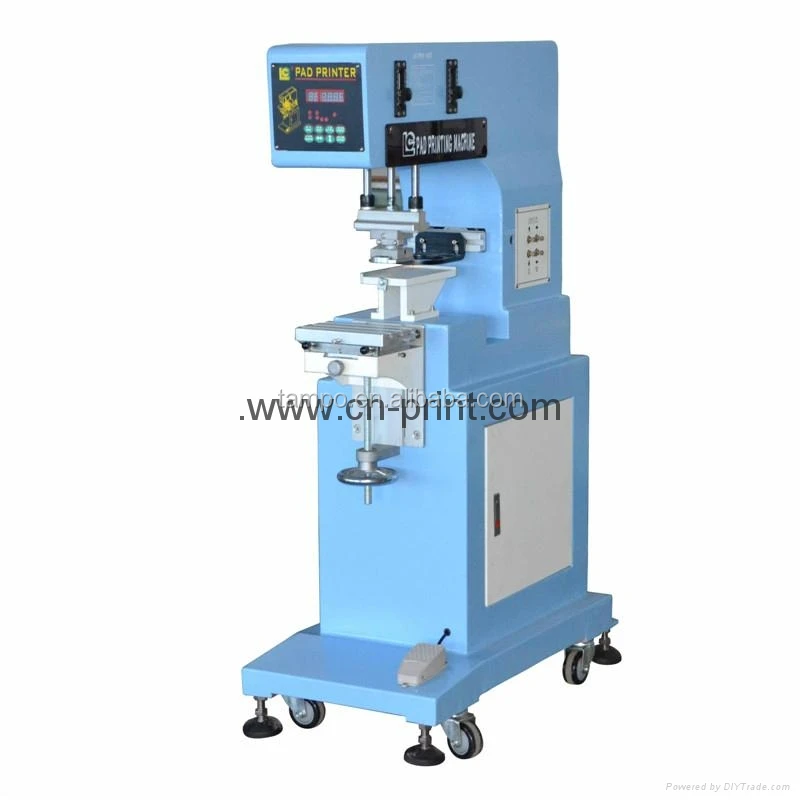

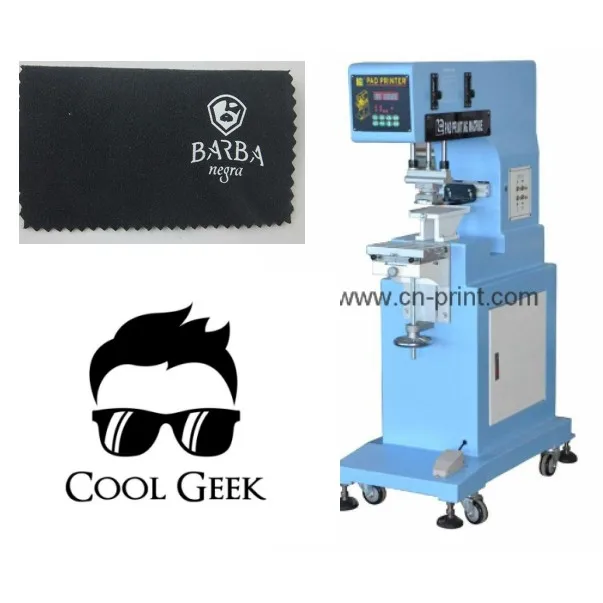

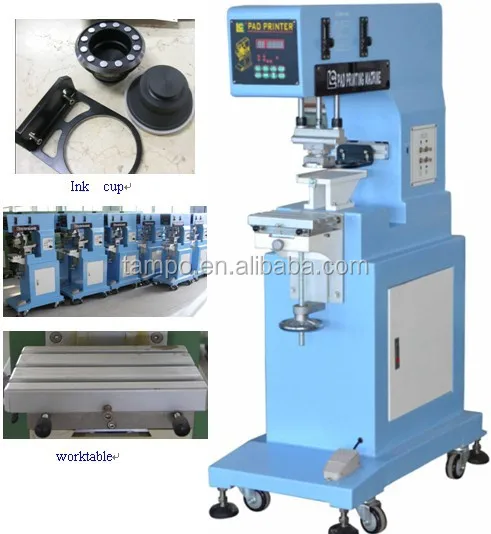

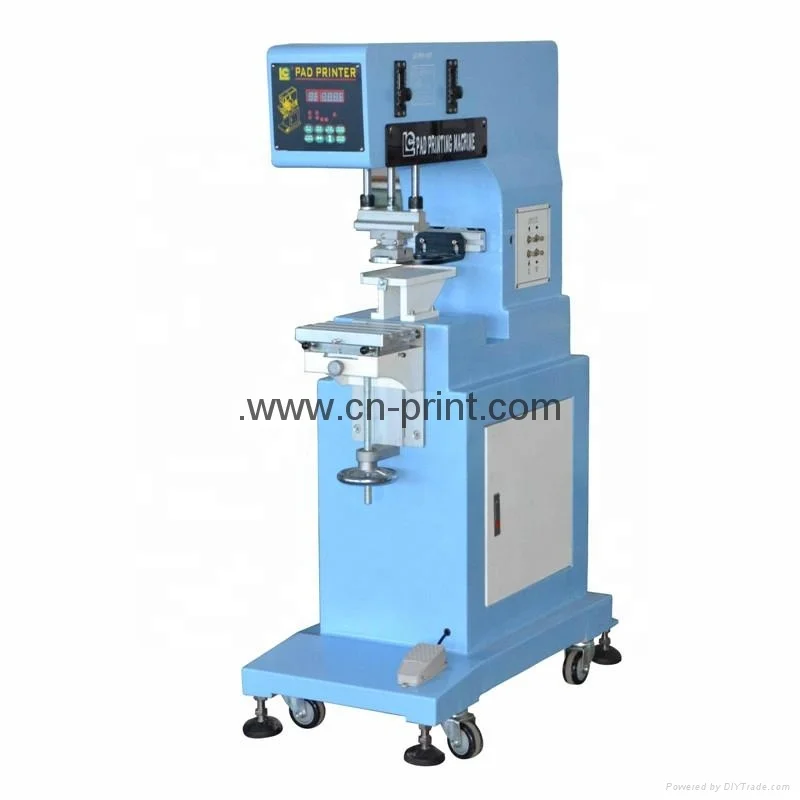

Один Цвет Pad принтер стартовый комплект LC PM1 100T коврик для мыши печатная машина керамическая чаша
- Категория: Pad Printers >>>
- Поставщик: Luen Cheong Printing Equipment Ltd.
Сохранить в закладки 1850721165:
Описание и отзывы
Характеристики
Products Description
2. Operation: Pneumatic
3. Printing Colors: 1
4. Max. Printing area: 80*90mm
5. Plate area: 100*200 mm2
6. Sealed ink cup diameter: 60 or 90 mm
7. Max printing speed: 2000PCS/H
8. Wattage: 220V/ 50Hz 110V/60Hz
9. Air pressure: 6 Bar
10. Machine size: 960×460×1400mm
11. Machine weight: 94kg
Model Name | LC-PM1-100T |
Operation | Pneumatic |
Printing Colors | 1 |
Max. Printing area | 80*90 mm |
Plate area | 100*200 mm2 |
Sealed ink cup diameter | 60 or 90 mm |
Max printing speed | 2000PCS/H |
Wattage | 220V/ 50Hz 110V/60Hz |
Air pressure | 6 Bar |
Machine size | 960×460×1400mm |
Machine weight | 100 KG |
Range Of Application:
It is applied for print various kind of material,such as metal,glass,chinaware,plastic and so on.It also suitable for small
printing area like plane, cambered and irregular surface,such as the button in mobile phone,golf ball and the ball
head,toys,pen,mouse,electronic appliance,crafts and so on
printing area like plane, cambered and irregular surface,such as the button in mobile phone,golf ball and the ball
head,toys,pen,mouse,electronic appliance,crafts and so on
The wolfram steel scraper which is made by the newest Nanotechnology is used on the sealed cup pad printer,with a degree of HRC63
of the hardness on the surface,it also have high resistance and can be used for almost 3,000,000 times.This type of the machine is
more environmental and can save more ink when compare with the traditional ink-well pad printer.
of the hardness on the surface,it also have high resistance and can be used for almost 3,000,000 times.This type of the machine is
more environmental and can save more ink when compare with the traditional ink-well pad printer.
1.Controlled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.

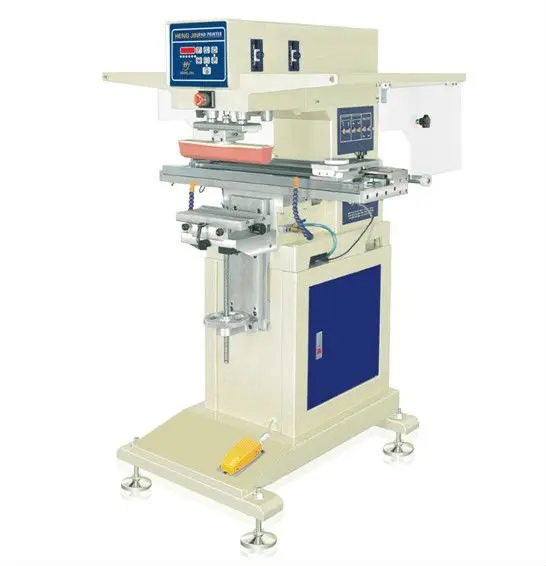

Machine Structure

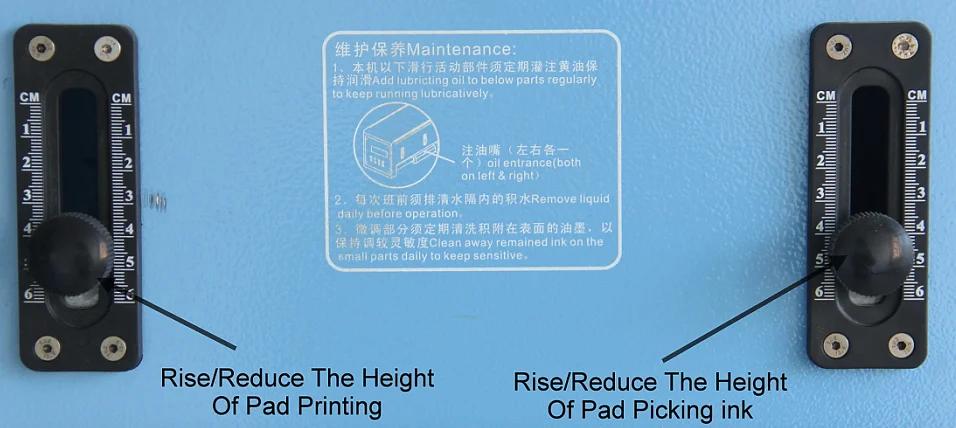

Adjusting the vertical stroke length of pad
Adjusting the vertical stroke length of pad
Adjusting the ink scraping stroke length
Adjusting the ink scraping stroke length
Speed Panel
Ink Supply System

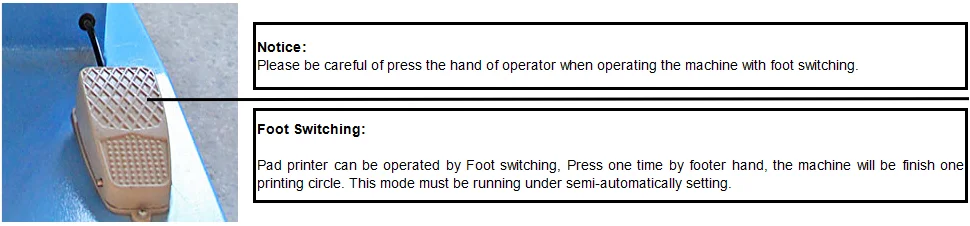

Foot Switching
Operation Process
1.Power connect：First connect power with machine. Please confirm locating Voltage；
2.Air connecting：Most of LC brand pad printer need compressor to provide air source, Please order one set compress air in your plant. Please keep your and anything from pad combine parts because it maybe move after connecting with compress air.

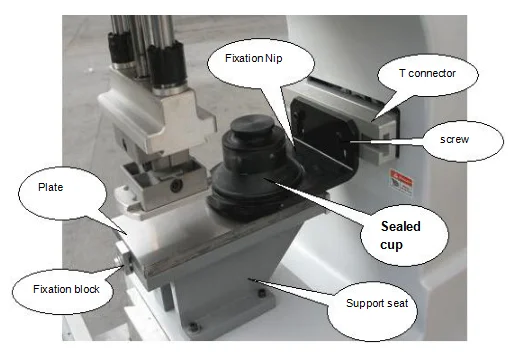

3.Installed plate and sealed cup：
Standard steel plate must be used with sealed cup pad printer. Steel plate and sealed cup is alone package to avoid hitting in the transport and put into tool box. After you receiving the machine, Please install steel plate and sealed cup onto pad printer.
2.Air connecting：Most of LC brand pad printer need compressor to provide air source, Please order one set compress air in your plant. Please keep your and anything from pad combine parts because it maybe move after connecting with compress air.
3.Installed plate and sealed cup：
Standard steel plate must be used with sealed cup pad printer. Steel plate and sealed cup is alone package to avoid hitting in the transport and put into tool box. After you receiving the machine, Please install steel plate and sealed cup onto pad printer.
4.Adding ink and thinner:
Different base need different type ink and thinner, Please take a test before printing,After you choose one type ink and thinner, Please mixing ink and thinner according to a percen:5:1 and adding into sealed cup( first open the cover of sealed cup) with ink adjustment blade .

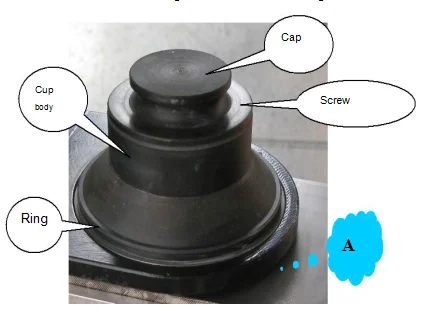

Please see the photo of sealed cup ,the cap can be open to add ink and thinner. When printing, ink and thinner move onto the surface of steel plate with sealed cup together. The solvent closed inside and do not volatilize to the air and avoid breath by operator. It will not hurt their health. The Viscosity of ink will not change to ensure printing quality stabilization.
After installing sealed cup and steel plate, first move sealed cup , the commonly state is you can move freely
Different base need different type ink and thinner, Please take a test before printing,After you choose one type ink and thinner, Please mixing ink and thinner according to a percen:5:1 and adding into sealed cup( first open the cover of sealed cup) with ink adjustment blade .
Please see the photo of sealed cup ,the cap can be open to add ink and thinner. When printing, ink and thinner move onto the surface of steel plate with sealed cup together. The solvent closed inside and do not volatilize to the air and avoid breath by operator. It will not hurt their health. The Viscosity of ink will not change to ensure printing quality stabilization.
After installing sealed cup and steel plate, first move sealed cup , the commonly state is you can move freely

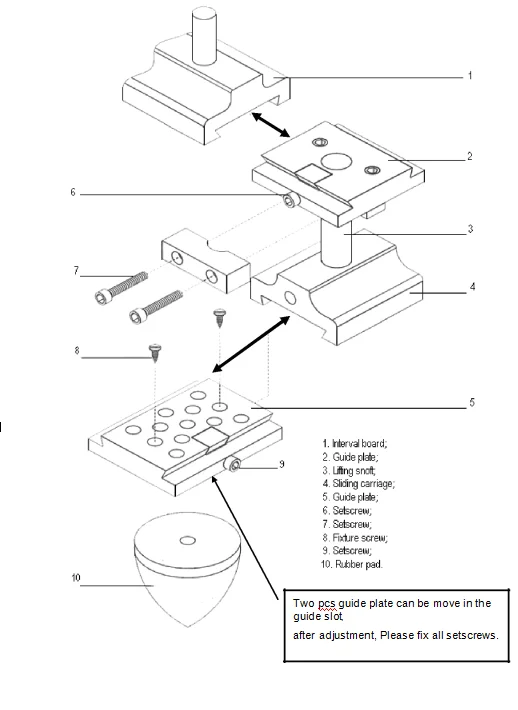

It is important to choose one suitable rubber pad. The rough principles the outline of printing design is similar with the cross section of rubber pad. The size of cross section can cover total design. First taking out the guide plate from pad seat, fix the screw through the hole with screwdriver , then installing it back to the pad seat. The guide plate can be adjusted along the front-back and left-right direction so that the rubber pad can cover all design.

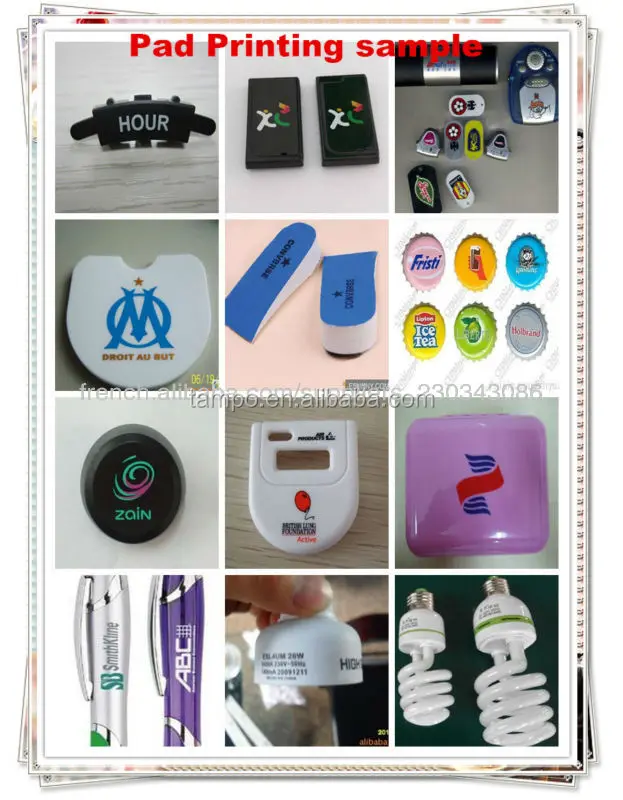

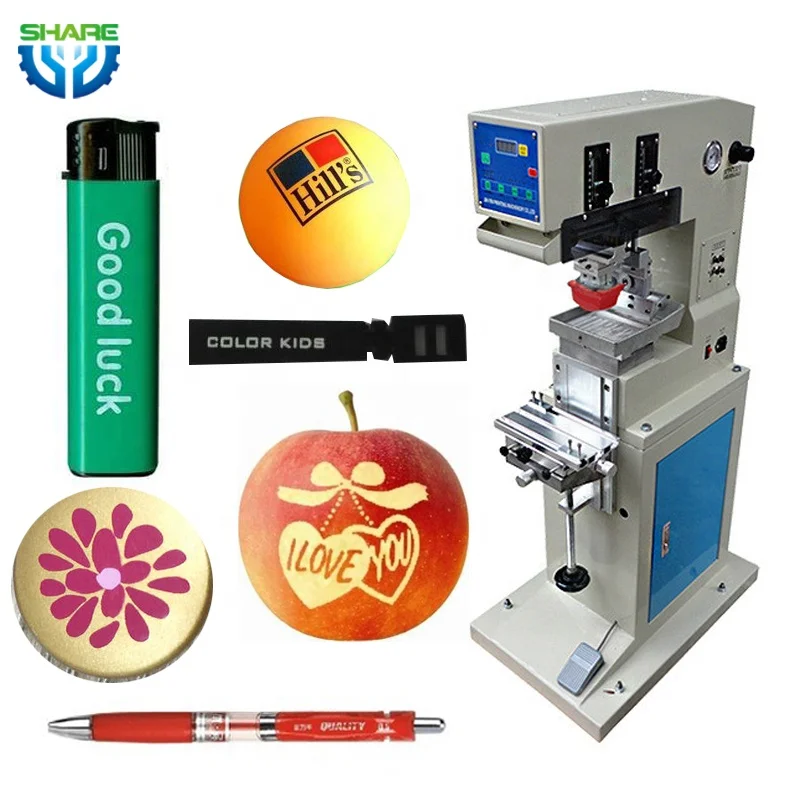

Our printing samples

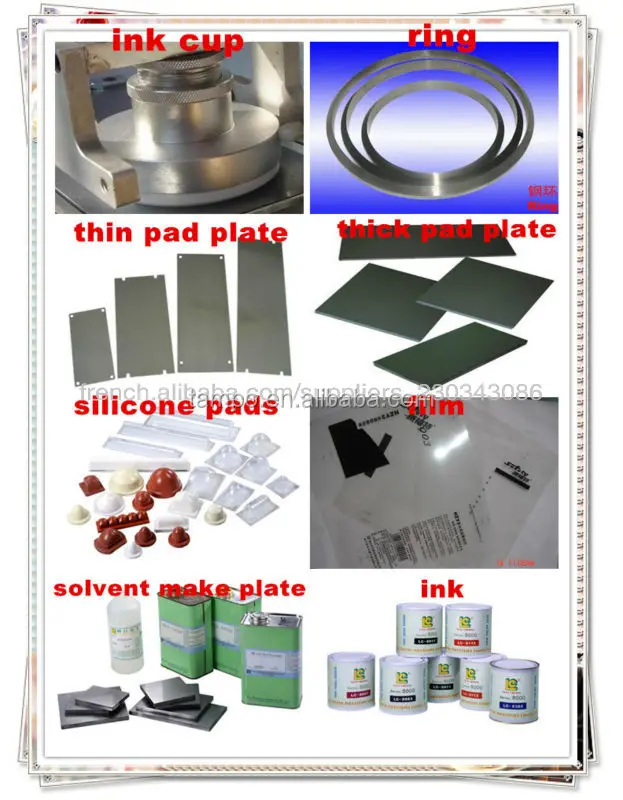

Related Equipment
Steel Sheet
Ink Roller
Ink

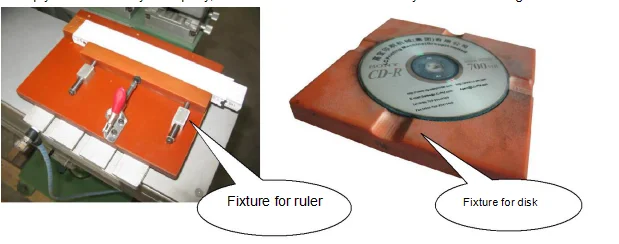

Fixture
It is very important to make fixture according to your objects to be printed. It have two functions: one is fasten the position, the other is overprinting the process of multi-colour pad printer. Some simply fixture made by resin putty, Precision fixture must be made by Lathe and milling machine
Packaging and Shipping
1.Package:Machine wrapped with PVC film, package in wooden case or according to your request
2.Shipping:The package can be shipped by sea or air plane
3.Loading seaport: Shenzhen port, China
4.Price term:FOB Shenzhen, CFR, CIF, FCA, EXW etc Type of payment:Alibaba Trading Assurance
Company Information
Factory
Warehouse
