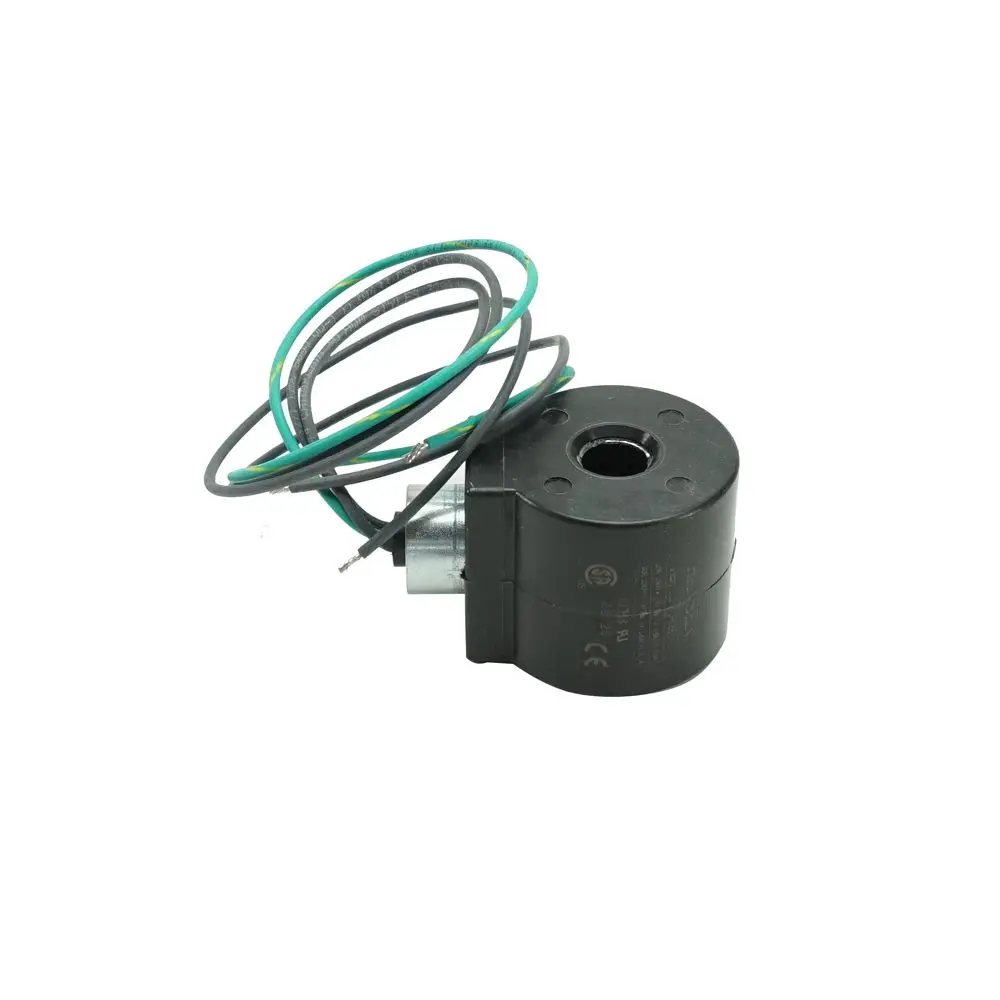

Для катушки электромагнитного клапана Hansen 70-1086 230 В
180,00 $

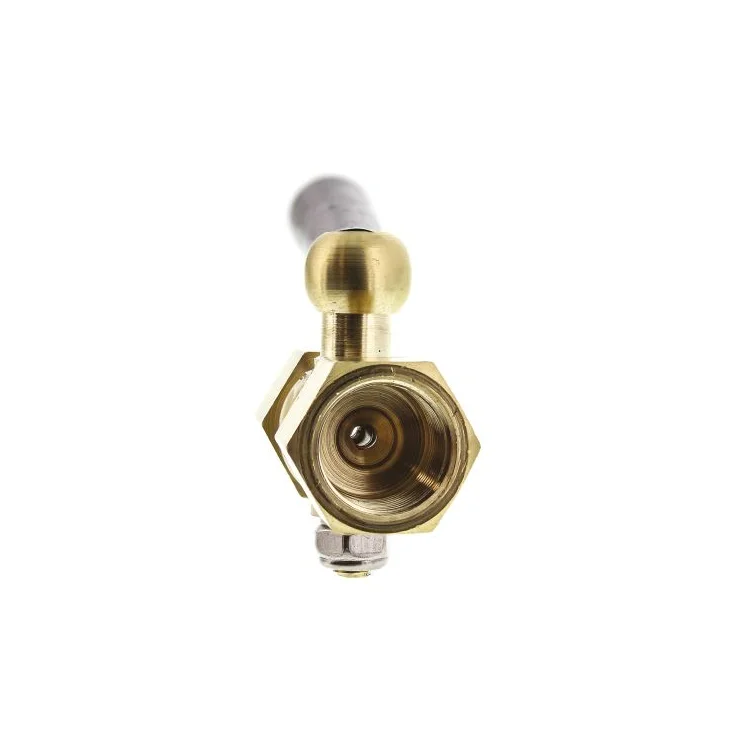

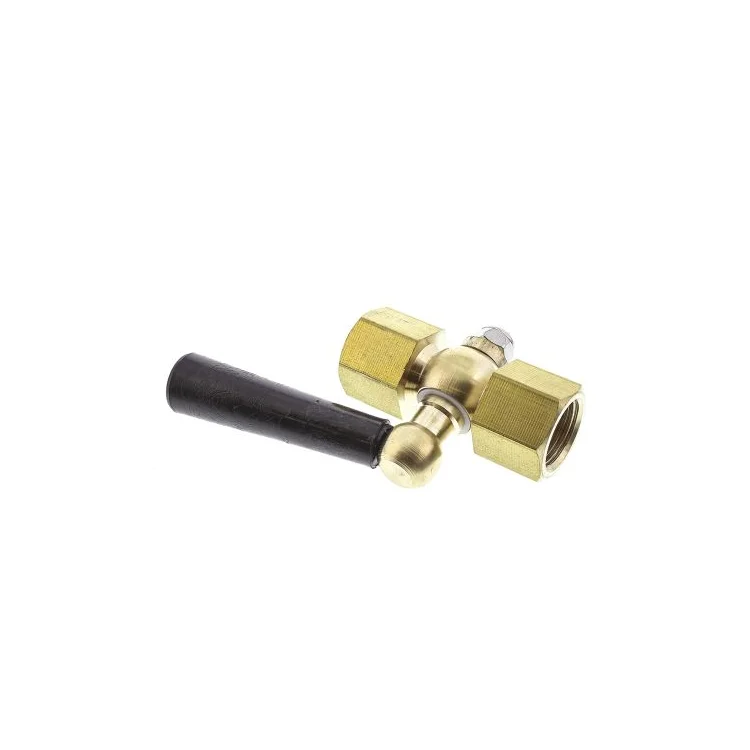

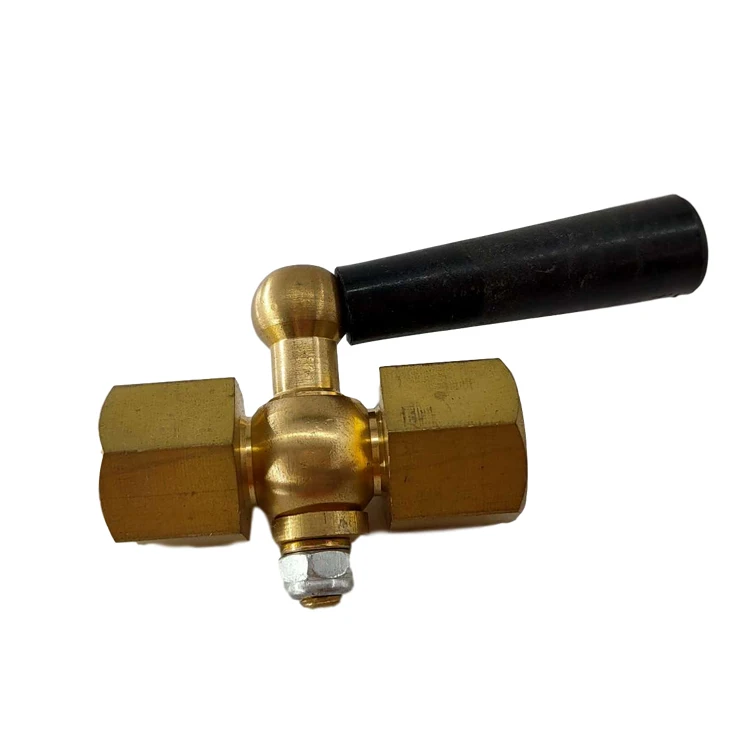

Gauge Cock PN 16 DN15
- Категория: >>>
- Поставщик: Hubei Hi-Tek Valve And Fitting Co. Ltd.Hubei Ltd.
Сохранить в закладки 1883112992:
Описание и отзывы
Характеристики
Product Description
tem | Brass Gauge Cock |
size: | 1/2 X 1/2 |
valve material | brass 58-3 |
Sealing material | PTFE |
Pressure | 16 bar |
Products detail
HI-TEK GAUGE COKE SPECIFICATION TABLE
Part No. | Size | thread connection | Pressure |
HK-2FF0102 | 1/2" | BSPT Female*Female | 16 bar |
HK-2FF0308 | 3/8" | BSPT Female*Female | 16 bar |
HK- 2FF0308 | 1/4" | BSPT Female*Female | 16 bar |
HK-2FM0102 | 1/2" | BSPT Female*male | 16 bar |
HK-2FM0308 | 3/8" | BSPT Female*male | 16 bar |
HK-2FM0104 | 1/4" | BSPP Female*male | 16 bar |
HK-2FMG2015 | 1/2 X M20*1.5 | BSPP*G Female*male | 16 bar |
HK-2FFG2015 | 1/2 X M20*1.5 | swivel nuts connection | 16 bar |
HK-3FFG2015 | 1/2 X M20*1.5 | nuts connection | 25 bar |
HK-3FMG2015 | 1/2 X M20*1.5 | nuts connection | 25 bar |
Note: Accept customization, NPT and other threads | ||||||||||
Application
Used on water pipes and steam pipes when pressure venting is required to remove the pressure in hydraulic machines, compressors, process plants, clean air & non crystallized liquids.
Note:
●The Gauge Cock is to be installed as per approved installation rules of technology. The connection to the pipeline is always on the hexagon side.\t\t\t\t\t\t\t
●Suitable flat seal has to be installed between the Gauge Cock and the Pressure Gauge.\t\t\t\t\t\t\t
●As an alternate, the Pressure Gauge can be tightened by screwing into the Gauge Cock with suitable thread sealant.
●Suitable flat seal has to be installed between the Gauge Cock and the Pressure Gauge.\t\t\t\t\t\t\t
●As an alternate, the Pressure Gauge can be tightened by screwing into the Gauge Cock with suitable thread sealant.
Operation & Maintenance :\t\t\t\t\t\t\t
●Switching between the settings “Operation, Venting and Blowing-off” should be as per shown in the illustrations.\t\t\t\t\t\t\t
●During operations of the Gauge Cock like, operation at low or extreme temperatures, re-adjustment of the Cock may be required to guarantee the tightness.\t\t\t\t\t\t\t
●Re-adjustment is done by carefully unscrewing the collar nut clock with the help of an adjustable spanner.\t\t\t\t\t\t\t
\t\t\t
●Switching between the settings “Operation, Venting and Blowing-off” should be as per shown in the illustrations.\t\t\t\t\t\t\t
●During operations of the Gauge Cock like, operation at low or extreme temperatures, re-adjustment of the Cock may be required to guarantee the tightness.\t\t\t\t\t\t\t
●Re-adjustment is done by carefully unscrewing the collar nut clock with the help of an adjustable spanner.\t\t\t\t\t\t\t
\t\t\t
Customers feedback
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer and trading company . We have specialized in manufacturing fittings and valves for more than 12 years.
Q: Can you OEM?
Yes, we can OEM according to your drawings.
Q: How long is your delivery time?
A: In stock -- 1 to 7 days
No stock -- 7 to 30 days
Depending on the quantity
Q: Do you provide samples ? Is it free or extra?
A: Yes, we could offer the sample. You need to pay for it and the freight cost.
B: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance, balance before shipment.
If you have another question, pls feel free to contact us as below:
A: We are manufacturer and trading company . We have specialized in manufacturing fittings and valves for more than 12 years.
Q: Can you OEM?
Yes, we can OEM according to your drawings.
Q: How long is your delivery time?
A: In stock -- 1 to 7 days
No stock -- 7 to 30 days
Depending on the quantity
Q: Do you provide samples ? Is it free or extra?
A: Yes, we could offer the sample. You need to pay for it and the freight cost.
B: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance, balance before shipment.
If you have another question, pls feel free to contact us as below:
Похожие товары

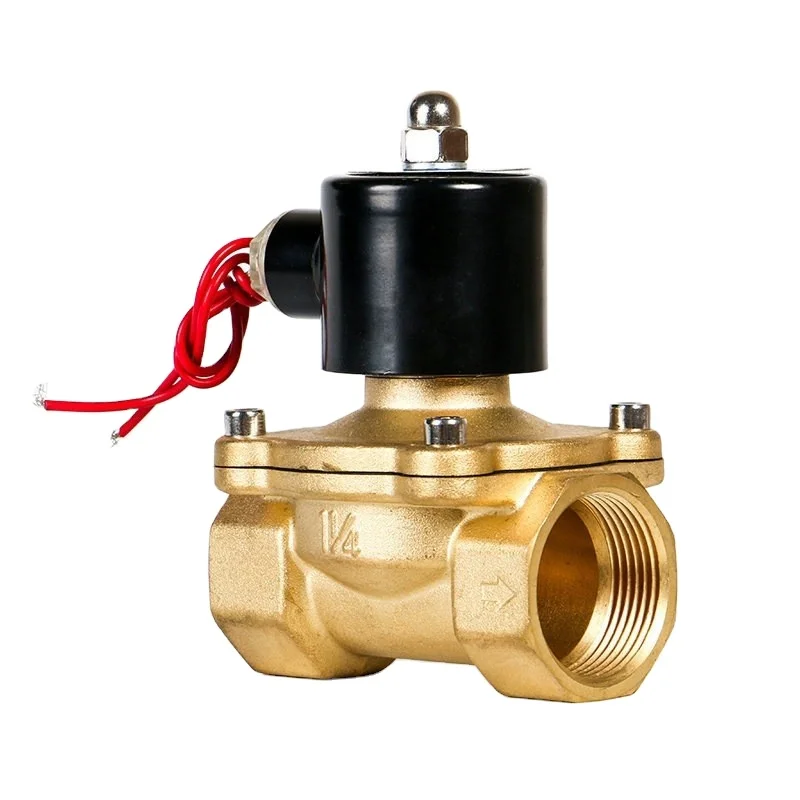

Поставка от производителя YAOSHENG латунный электромагнитный клапан 2W-160-15 DC12V DN15
21,45-23,65 $
Поршневые клапаны
130,00 $

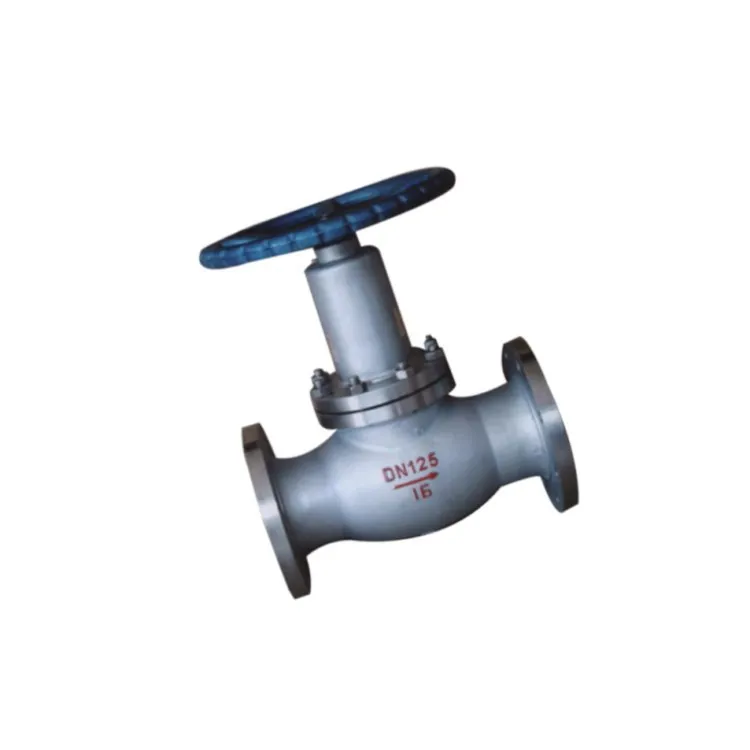

High Quality Brass Globe Valve DN15 - DN50 1/2 4 Inch With Handwheel

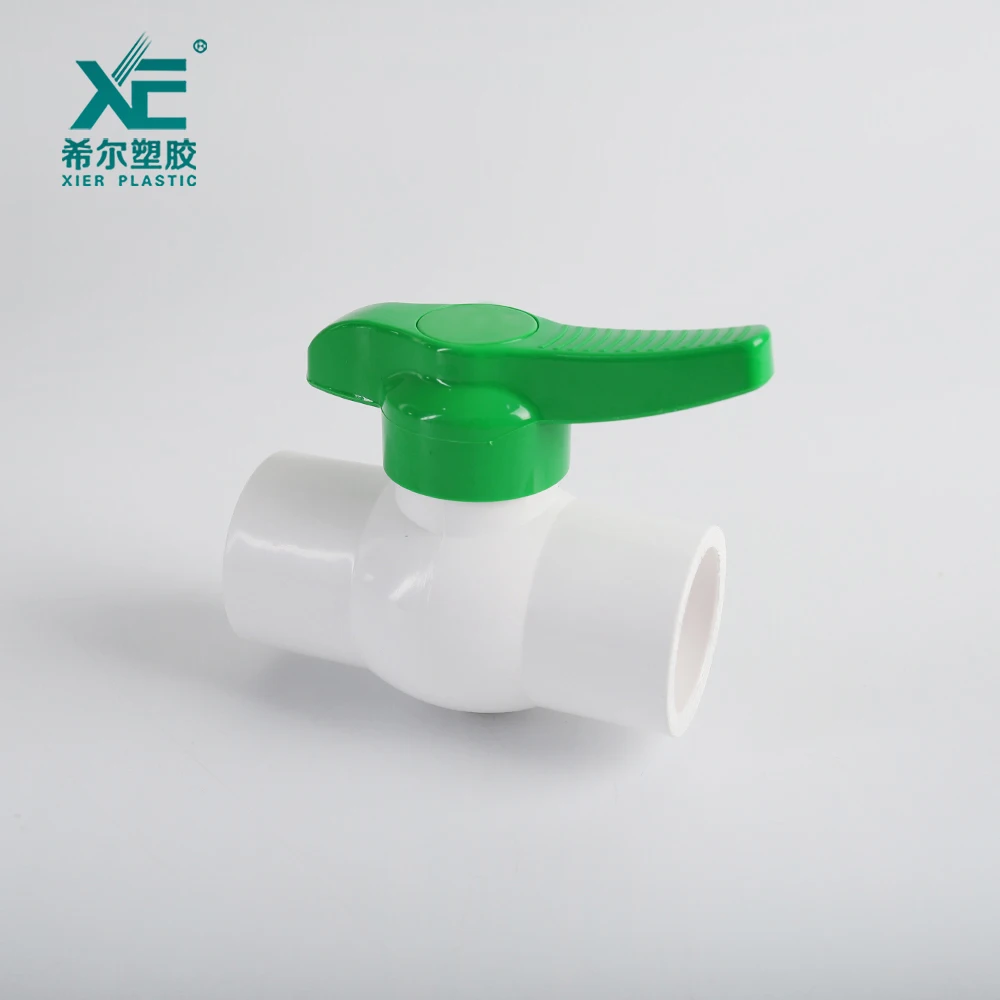

Прямая поставка с завода уникальный полезный пользовательский мини ПВХ Промышленный Компактный шаровой клапан резьбой
