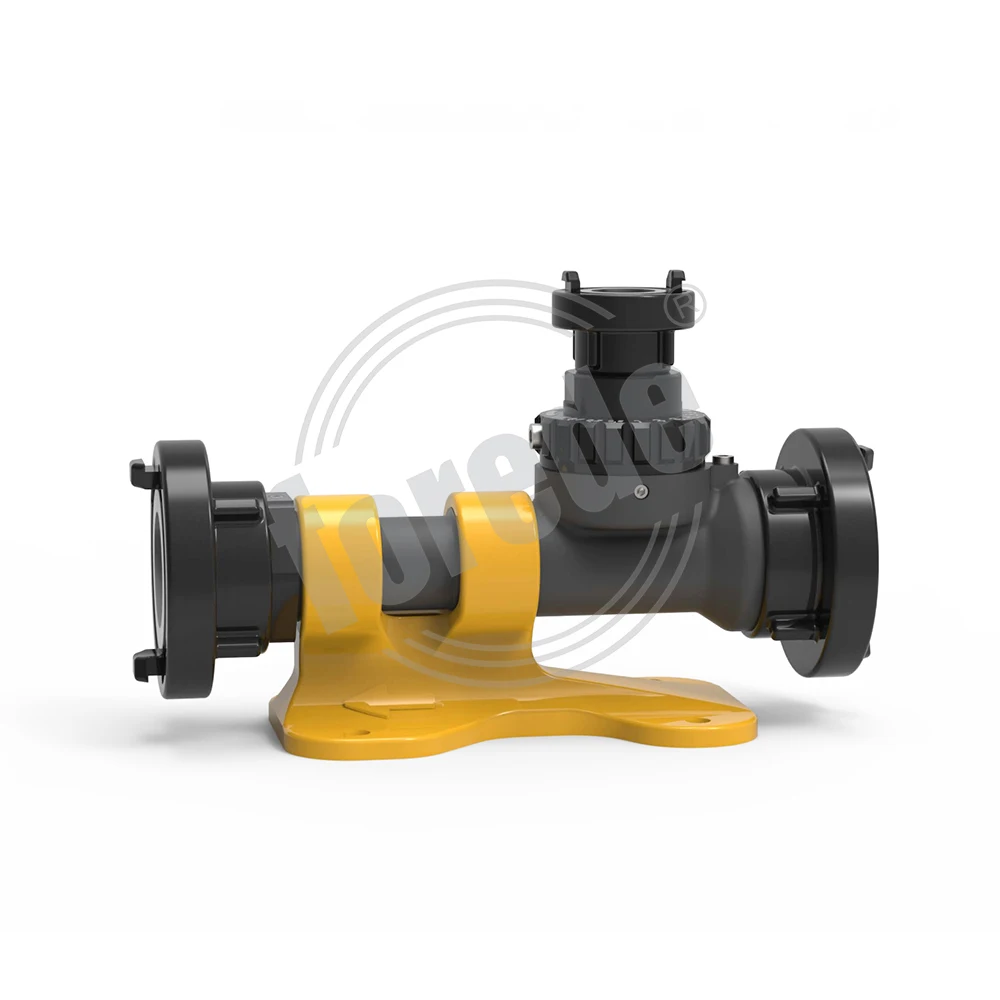

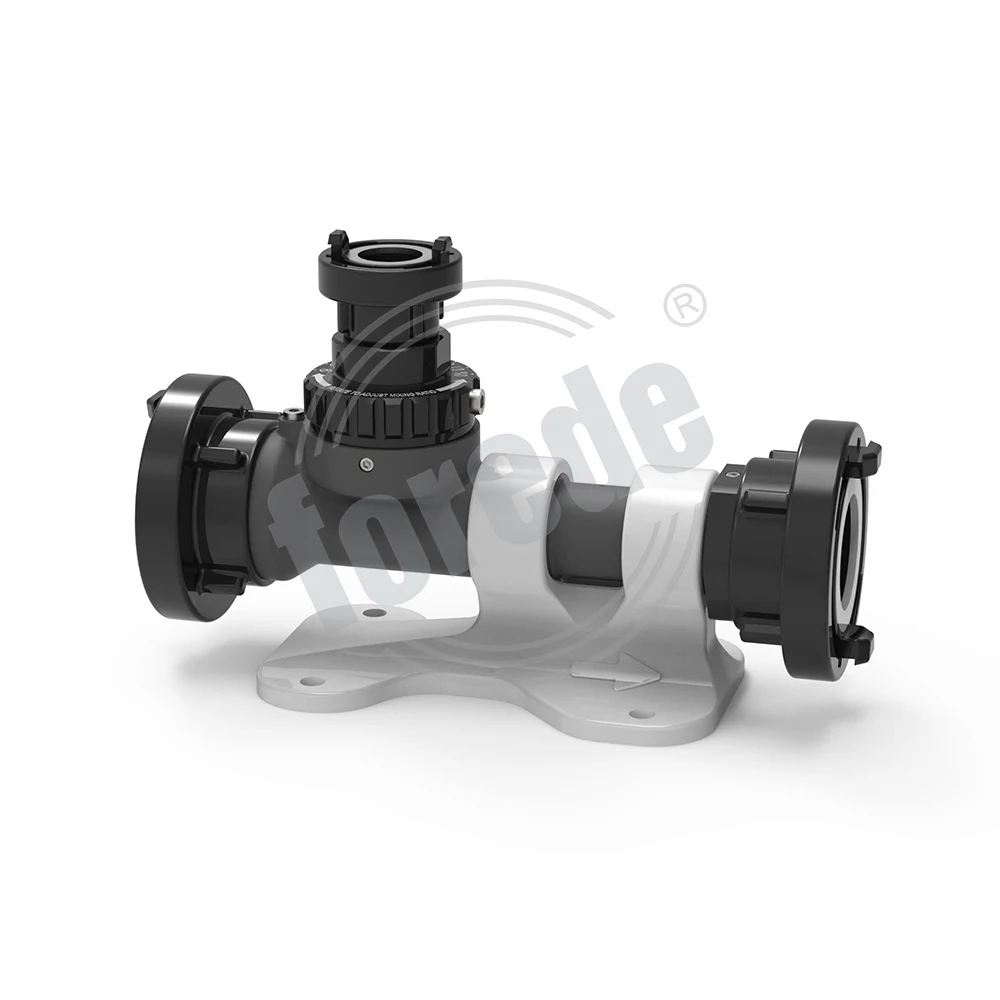

1. Standard Hydrant Monitor PS Series
Technical Data and Cost:
Water Monitor (PS Series) | PS20 | PS30 | PS40 |
Flow capability (Liters / Second) | 20 | 30 | 40 |
Working Pressure (bar) | 8 | 8 | 8 |
Max. Pressure (bar) | 10 | 10 | 10 |
Range (meters) | ≥48 | ≥55 | ≥60 |
Horizontal Rotation Range | 0°— 360° | 0°— 360° | 0°— 360° |
Vertical Range | ±70° | ±70° | ±70° |
2. Standard Hydrant Monitor PL Series (for water or foam jetting)
Technical Data and Cost:
Water / Foam Monitor (PL Series) | PL24 | PL32 | PL40 |
Flow capability (Liters / Second) | 24 | 32 | 40 |
Working Pressure (bar) | 8 | 8 | 8 |
Max. Pressure (bar) | 10 | 10 | 10 |
Range (meters) for water | ≥40 | ≥45 | ≥50 |
Range (meters) for foam | ≥45 | ≥50 | ≥55 |
Horizontal Rotation Range | 0°— 360° | 0°— 360° | 0°— 360° |
Vertical Range | ±70° | ±70° | ±70° |
Expansion rate (foam) | ≥6 | ≥6 | ≥6 |
3. Electric Hydrant Monitor (including electric cabinet / controlling panel)
Technical Data and Cost:
Water Monitor (PSKD Series) | PSKD20 | PSKD40 |
Flow capability (Liters / Second) | 20 | 40 |
Working Pressure (bar) | 8 | 8 |
Max. Pressure (bar) | 10 | 10 |
Range (meters) | ≥48 | ≥60 |
Horizontal Rotation Range | 0°— 360° | 0°— 360° |
Vertical Range | -15°to 70° | -15°to 70° |
Power(V) | DC24 | DC24 |
Inlet Flange | DN100 / 4” | DN100 / 4” |
