Качественная Экструзионная мини пленка из полиэтилена и нейлона производства

Сохранить в закладки 1906373331:


Цена:7 000,00 $ - 7 500,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Product Description

Product Application

Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance.

\t
Model
\t
TP45
\t
Diameter of screw
\t
Φ45
\t
Max width of Film
\t
100-500mm
\t
Single-face Thickness of film
\t
0.008-0.10mm
\t
Output
\t
50kg
\t
L/D
\t
30:1
\t
Power of main motor
\t
11kw
\t
Power of Traction main motor
\t
1.5kw
\t
Total Power
\t
25kw
\t
Outline diameter
\t
2300 x 2000 x 2300mm
\t
weight
\t
1800kg
Detailed Images

Machine Parts

Name: Main Driving Motor
Brand: Siemens Brand
Original: Germany
CE Standard, Longer Life, High Quality

Main Features

Name: Gearbox
Brand: Ruigao
Original: Hangzhou
it is hard surface gearbox. with Oil Lubrication system and water cooling system

Machine Parts

Name: Fast Screen Changer
Brand: Ruigao
Original: Chinese
It is 45 Steel Materials, very stronger, non leakage

Main Features

Name: Double vent air ring
Brand: Ruigao
Original: Chinese
It is aluminum double vent air ring, which cool the film faster. And it is controlled by LG inverter



Main Features

Name: Main Extruder Cover
Brand: Ruigao
Original: Chinese
It is with Stainless Cover for each separate parts, which can save power consumption. and Ceramic heater for faster heating. more efficent

Main Features

Name: Traction Driving Motor
Brand: RuiGao
Original: Chinese
The turbine Motor is controlled by inverter

Main Features

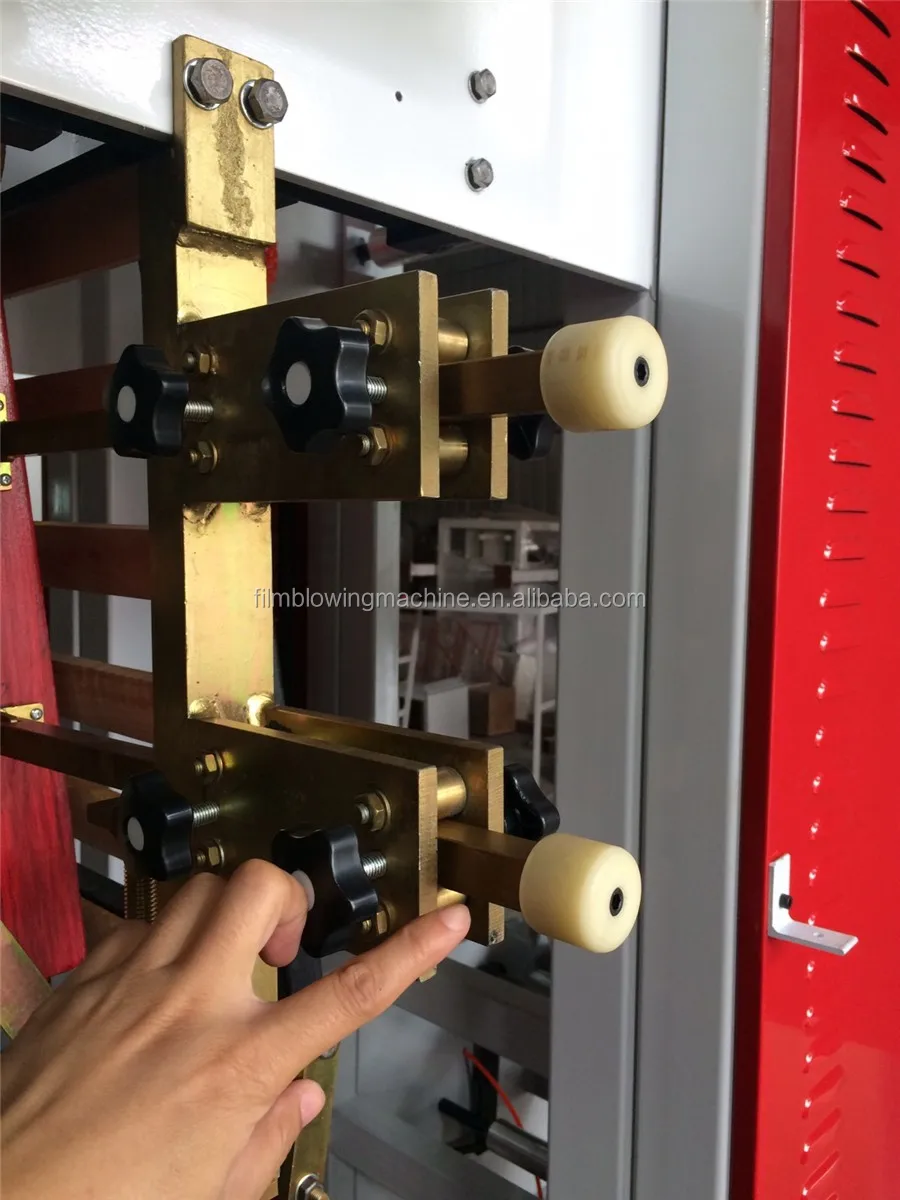

Name: Gusset Parts
Brand: RuiGao
Original: Chinese
The gusset parts is copied from Taiwan

Main Features

Name: Electric Box
Brand: RuiGao
Original: Chinese
It is Taiwan Design for whole parts, best quality electric parts

LG brand Inverter


Omron brand Temperature controller


Transparent Film tube


Related Products

Taiwan Type High Quality PE Film Blowing Machine

100% Response Rate

High Speed 4 color Flexo PP PE non woven Plastic Shopping T shirt bag printing machine Price

100% Response Rate

HDPE Bag Making Machine

100% Response Rate

1,Q: Your factory is trading company or factory?
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer.
We are Factory, so we have cost advantage than others

2, Q: How do your company control the machine quality?

A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.

3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.

4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.
Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.
