BTMA-PC 200x300, модель молотковой дробилки, цена, измельчитель грунтовых камней, китайская фабрика для Африки, распродажа
206 028,21 ₽ - 211 450,01 ₽
Ударная Машина для производства песка высокая эффективность низкое обслуживание и длительный срок службы!
- Категория: >>>
- Поставщик: Shanghai Jianye Heavy Industry Co. Ltd.
Сохранить в закладки 1936183984:
Описание и отзывы
Характеристики
Products Description
JY6X vertical shaft crusher
This jaw crusher is the most elemental equipment as the primary crusher in the crushing plant. It is good at crushing various materials with a compression below 320 MPa. This jaw crusher series has been widely applied in the fields like mining, construction, metallurgy, highway construction, railway construction and water conservancy due to its high capacity, stable performance, easy maintenance and low cost. Compared with other crushers, the jaw crusher has additional superiorities like the low reduction ratio, the even granularity and the rugged structure. This is definitely your best choice for the primary crushing equipment in a complete crushing plant.

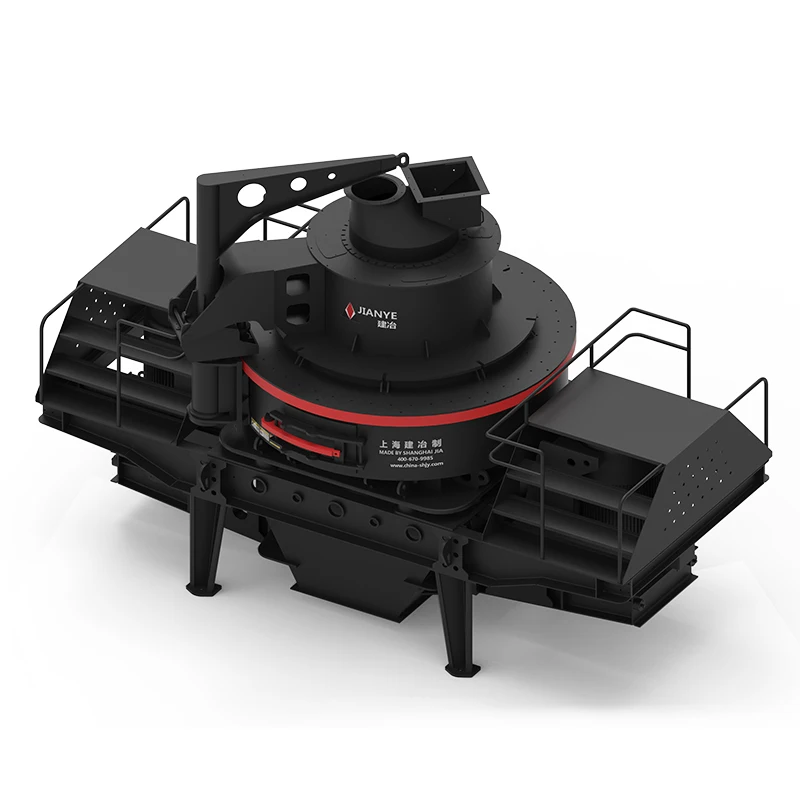

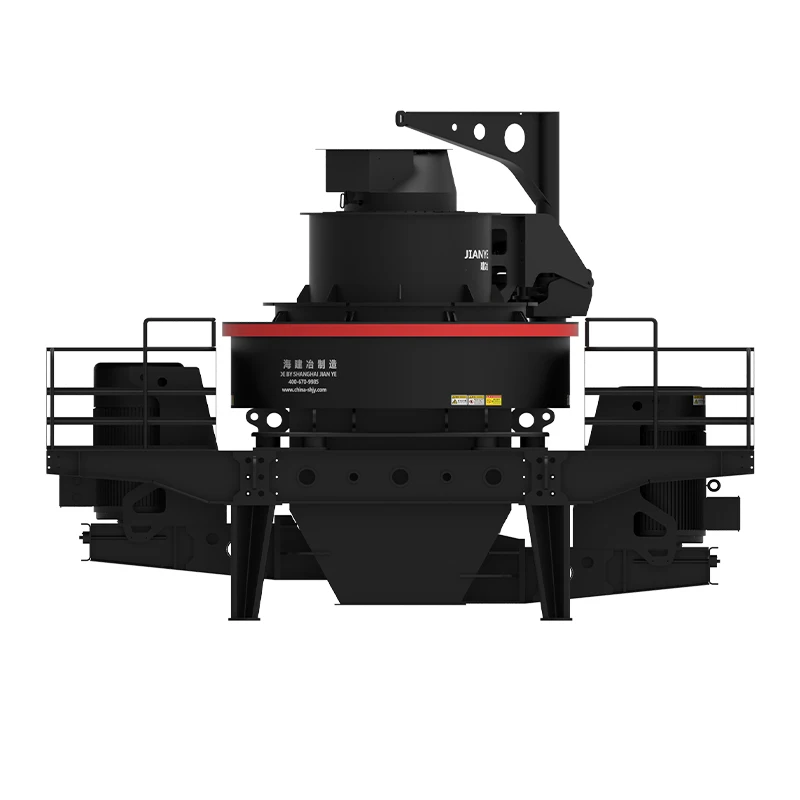

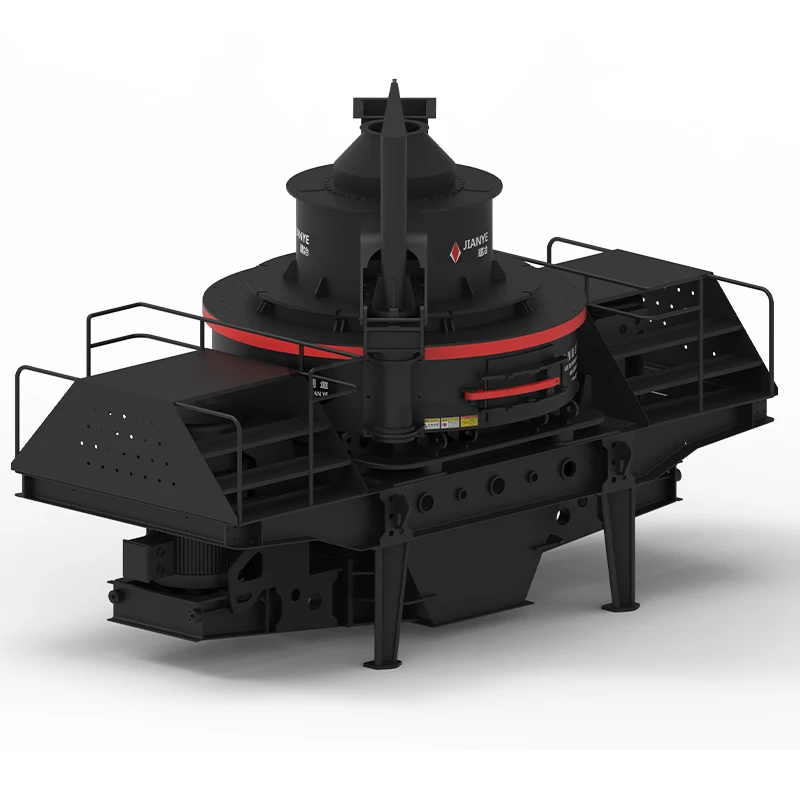

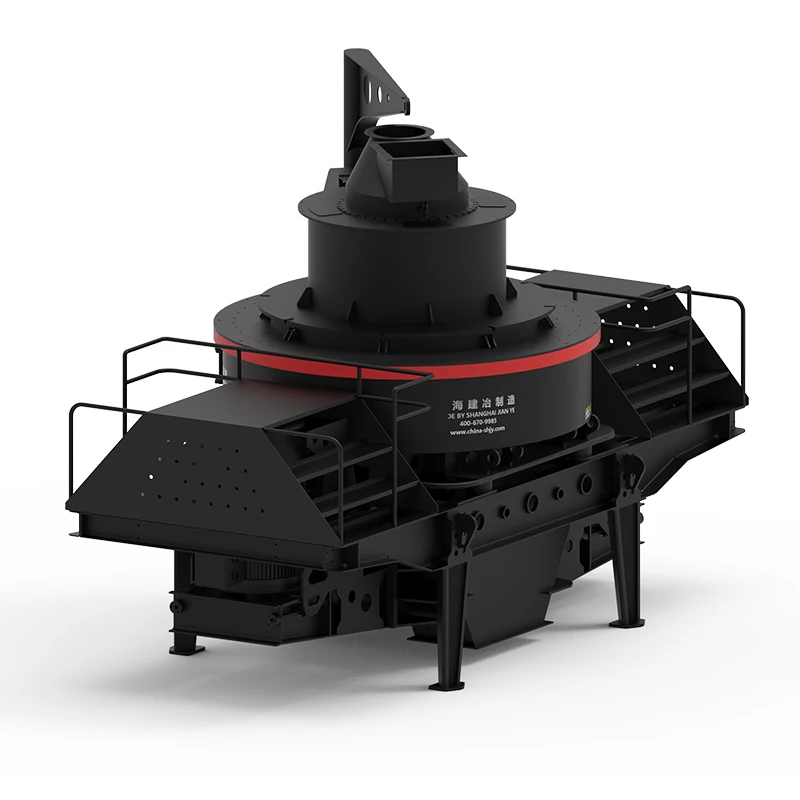

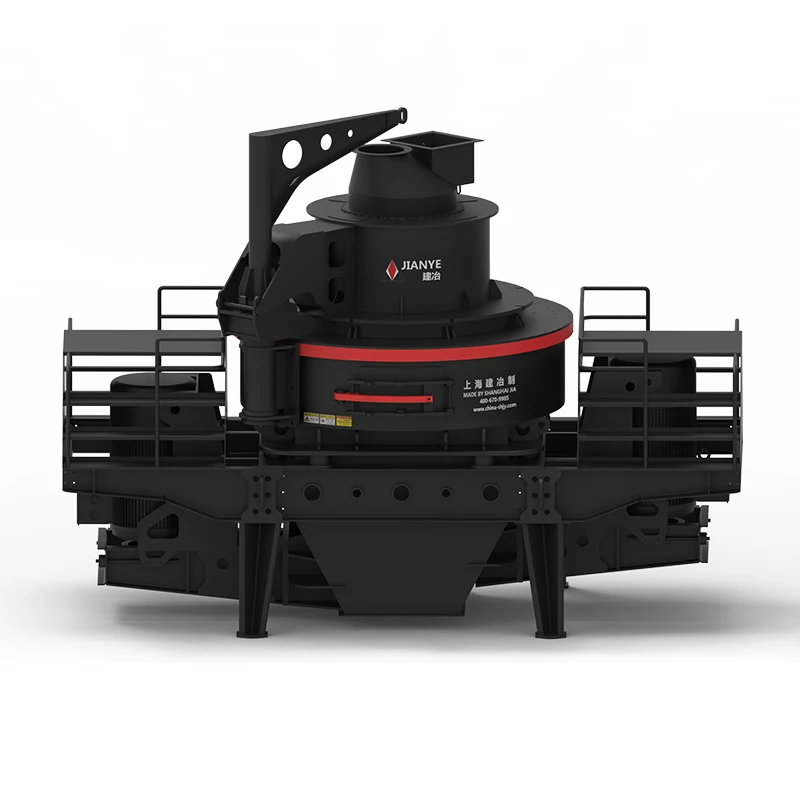

JYS sand making machine
JYS sand making machine is a kind of crusher which is suitable for machine-made sand production. Its fine crushing ability has been publicly recognized. The vertical shaft impact breaking is a good combination of the crushing mode of stone striking and stone striking iron, which improves the sand making efficiency, has the advantages of rapid sand forming, less wear-resistant parts loss and relatively low investment, so it is a sand making machine equipment with investment value.
Product Paramenters
Feeding size：<40mm
Capacity：30-700t/h
Application field：It is suitable for gravel, rock, construction waste, tailings, bauxite, quartz and other materials fine crushing or sand making, and can also be used for aggregate shaping
Scope of application：Pebbles, rocks (diabase, granite, limestone, basalt, gneiss, etc.), construction waste, gangue, mine
tailings, etc
Capacity：30-700t/h
Application field：It is suitable for gravel, rock, construction waste, tailings, bauxite, quartz and other materials fine crushing or sand making, and can also be used for aggregate shaping
Scope of application：Pebbles, rocks (diabase, granite, limestone, basalt, gneiss, etc.), construction waste, gangue, mine
tailings, etc
It can crush more than 700 kinds of materials
Working principle
The motor drives the belt wheel to makes the movable jaw plate up and down by eccentric shaft. When the movable jaw rises, the angle between the fixed jaw and movable jaw gets larger, and the materials can be crushed to the required fineness. When the movable jaw plate is down, the angle between the fixed jaw and movable jaw becomes smaller. The movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring, and then the crushed materials are discharged from the lower outlet of the crushing cavity.
Equipment advantage
1. Large processing capacity and high output -- compared with the domestic similar sand making equipment, the output of 6xvertical shaft impact crusher is increased by 30%.
2. Stable performance: compared with similar domestic sand making equipment, 6x vertical shaft impact crusher has low maintenance frequency and short time.
3. Low energy consumption: compared with similar domestic sand making equipment, the energy consumption of 6x vertical shaft impact crusher is reduced by 25%.
4. Low consumption of wearing parts --- ideal impact angle, reasonable material impact speed design and less friction between wear-resistant parts, 30% lower than the operation cost of domestic similar products, directly reduce the use cost of 6x series impact crusher, and greatly improve the profit margin of 6x vertical shaft impact crusher.
5. The finished product has good grain shape, which is hexahedral polyhedron, and is suitable for shaping machine-made sand and stone. It has been proved by many customers that the comprehensive effect of sand making and shaping is improved by 30% compared with other domestic equipment with the same power.
2. Stable performance: compared with similar domestic sand making equipment, 6x vertical shaft impact crusher has low maintenance frequency and short time.
3. Low energy consumption: compared with similar domestic sand making equipment, the energy consumption of 6x vertical shaft impact crusher is reduced by 25%.
4. Low consumption of wearing parts --- ideal impact angle, reasonable material impact speed design and less friction between wear-resistant parts, 30% lower than the operation cost of domestic similar products, directly reduce the use cost of 6x series impact crusher, and greatly improve the profit margin of 6x vertical shaft impact crusher.
5. The finished product has good grain shape, which is hexahedral polyhedron, and is suitable for shaping machine-made sand and stone. It has been proved by many customers that the comprehensive effect of sand making and shaping is improved by 30% compared with other domestic equipment with the same power.
Product packaging
Model | lmpeller speed(r/min) | Feed size (mm) | Power (KW) | Throughput (t/h) | Dimensions (mm) |
JY6X9026 | 1200-1500 | ≤40 | 132*2 | 100-210 | 4510x2400x2860 |
JY6X1040 | 1100-1420 | <40 | 200*2 | 120-300 | 5570x2520x3120 |
JY6X1150 | 1070-1190 | <50 | 250*2 | 180-460 | 5570x2520x3120 |
JY6X1263 | 900-1100 | <50 | 315*2 | 260-700 | 5700x2950x3490 |
Model | lmpeller speed(r/min) | Feed size (mm) | Power (KW) | Throughput (t/h) | Dimensions (mm) |
JYS6020 | 1460-2100 | ≤30 | 60-110 | 30-100 | 3600x2150x2800 |
JYS8623 | 1380-1810 | <40 | 150-220 | 60-180 | 4520x2580x3300 |
JYS9928 | 1200-1580 | <40 | 180-320 | 100-220 | 4720x2700x3460 |
JYS1238 | 1100-1360 | <40 | 220-400 | 150-380 | 4980x2970x3680 |
Wrapping and delivery
customer site
Our machine has been sold to Germany, Australia, Japan, Mexico, Philippines, Indonesia, Russia, Uganda, Uzbekistan, Poland, etc. and our products are well received by customers.
All machine has a 1-year quality assurance. As long as the machine has any problem (non-human factors) within one year, we will repair or change with new one for free. Please rest assured to buy and use!
Video introduction
Shanghai Jianye Heavy Industry Co., Ltd. is an international mining machinery supplier which is integrating manufacturing, R & D and sales. Its products include crushing and sand making equipment, industrial grinder mill, screening and washing equipment, mobile crushing plant etc. These equipment are mainly used in sand and stone aggregate processing, mining, construction waste recycling, industrial powder making, etc.
Product certification certificate
Our own factory
AFTER-SALES SERVICE AND CONCEPT
PRODUCTION LINE PROFILE
Our Company Has Reliable Products And Experienced Service Team. 1et The Internet Techinology Apply To Every Tache Of Pro-Duct Andoperation. Sale By Internate Actively, Provide The Atest Product Information And Technical Service. We Believyou-Not Only Need a Product, Butalso Good After Service. Based On The Techinology And Quality Products,We Would Provide The Gratfed, Save Worry, Disburden Service For Ouicustomers.PRE-SALE
1.Guide Our Customers To Deploy The Most Useful Equipment Item According To Theirs Requiryment.
2.Provide Technical Date,Including Equipment Bill, Layout, Base Specification And Installation Picture To Consult,
3.Design And Manufacture Product According To The Customers'Special Requestment.
4.Dispatch The Technical Person To Reach The Locale To Layout Field, Design The Best Installtion Flow And Scheme To Consult For Free.
3.Design And Manufacture Product According To The Customers'Special Requestment.
4.Dispatch The Technical Person To Reach The Locale To Layout Field, Design The Best Installtion Flow And Scheme To Consult For Free.
SALE
1 Product According To The Standard Of Technology Strictly. 2.Experiment The Machine By The Operating Regulate,
3.Verify The Product Before Leaving Factory Strictly, 4.Organize Shipping By The Contract In Time.
3.Verify The Product Before Leaving Factory Strictly, 4.Organize Shipping By The Contract In Time.
AFTER-SALES
1 Dispatch Special Worker After Service To Arrive Locale To Guide The User To Install And Debug, Experiment Circulate, Train Operating Persons For Free.
2. Guarantee Of Repair, Replacement And Refund Of Substandard Products, The Period Of Guarantee Is 1 Year(Except Abrasion In Normal, Wearing Parts, The Damaged Parts By Misoperation) If The Equipment Appears Fault During Guarantee, Our Company Woulde To Reach The Locale After Take The User's Telephone, Remove The Fault, Ensure The User's Produce Innormal.
