Product Description
600*1200mm led panel light
Technology index
| LED Type | 384pcs LEDs (SMD2835) |
| Power Consumption | 72W |
| Color Temperature | 2700-8000K |
| Luminous Flux | 5400lm-5700lm |
| Color | warm white / neutral white /cool white |
| Dimension | 600x1200x12mm |
| Beam Angle | >120degree |
| CRI | >75 (Typically 75.6-76.8) |
| Power Factor | >0.99 (Typically 0.991-0.995) |
| Input Voltage | AC110-240V |
| Frequency Range | 50-60Hz |
| Material of Body | aluminum alloy frame and PMMA cover |
| IP rating | IP40 |
| Operating Temperature | -20~60degrees Celsius |
| Net Weight | 2100±100g |
| Dimmable Feature | Optional |
| Life Span | 50,000hours |
| Warranty | 3years |

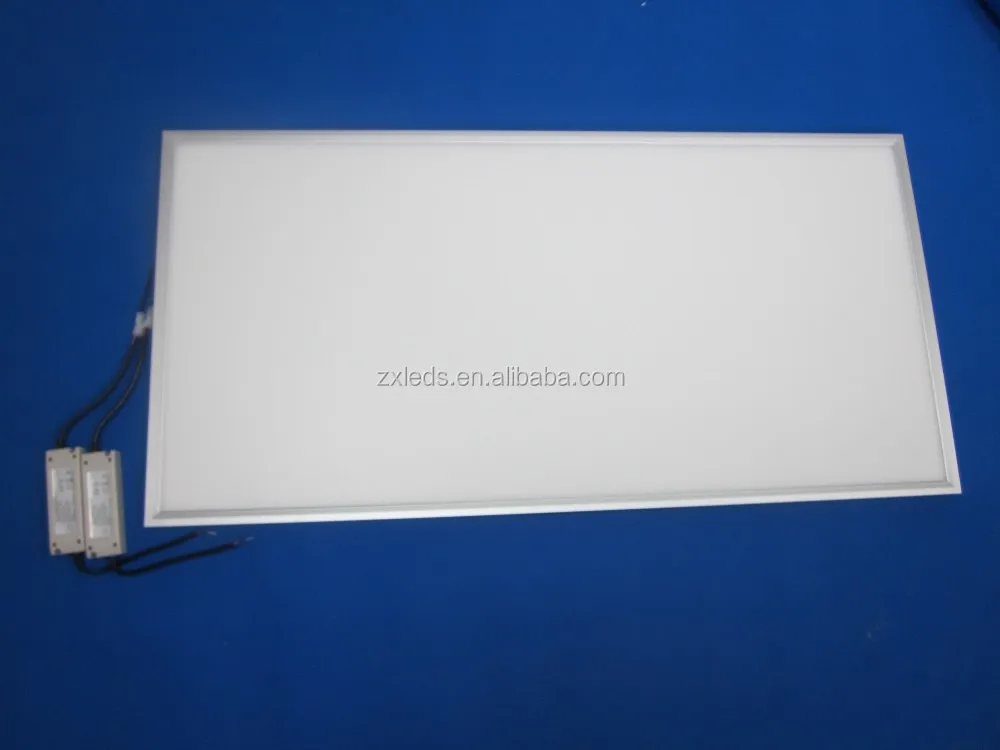

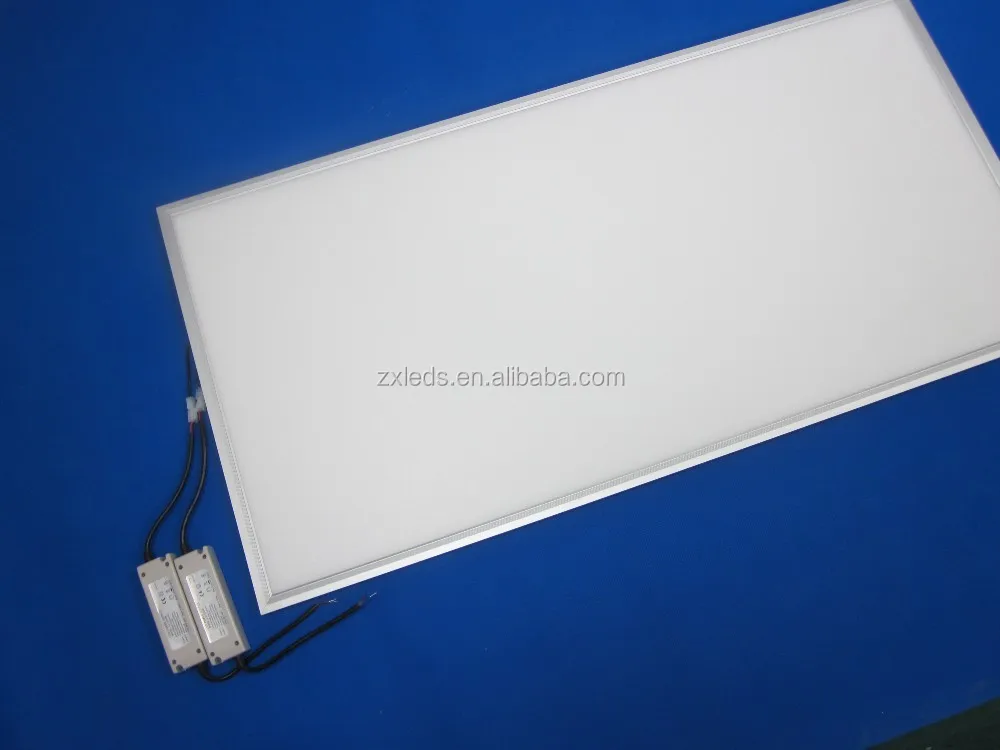

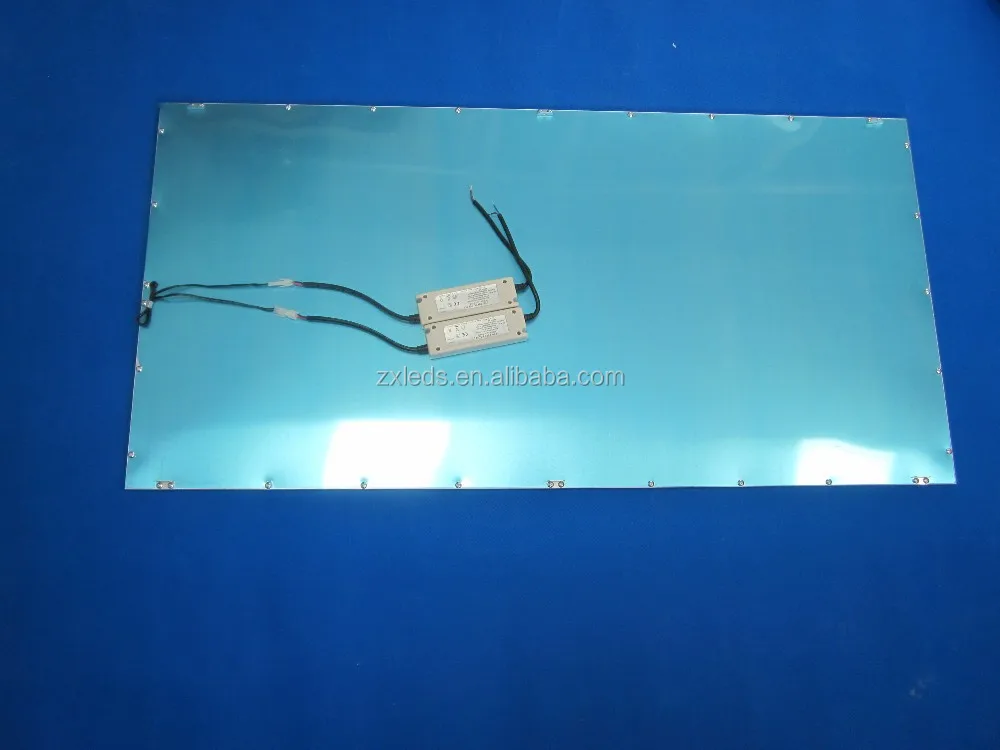

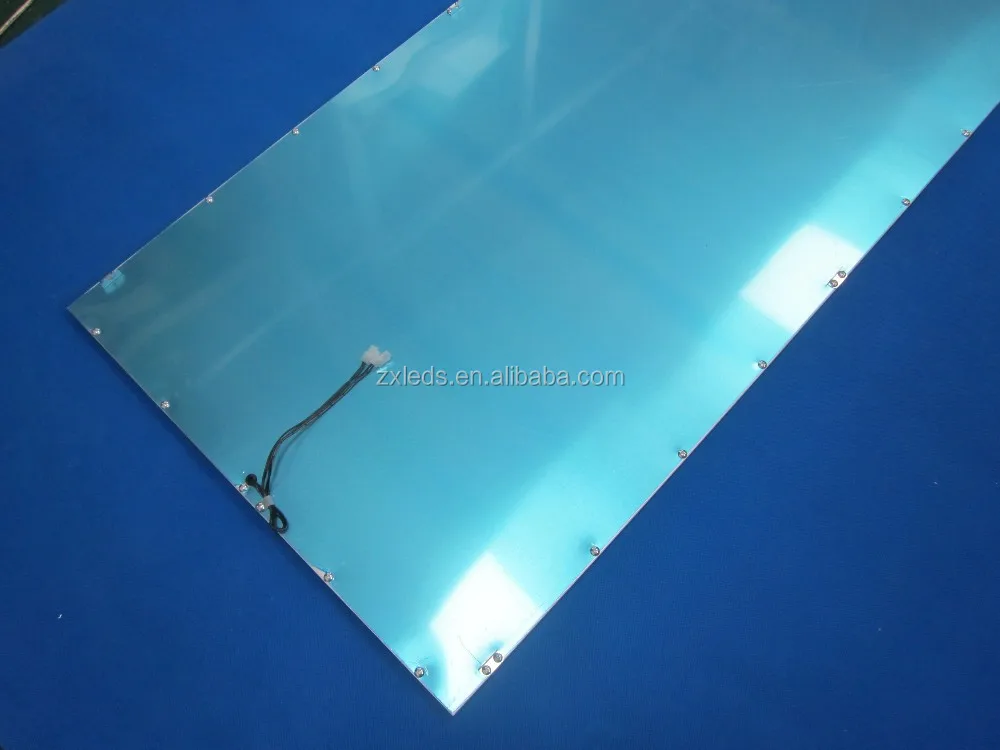

Relly product photos
Features:
1. Energy Saving. Saving 55%-70% electricity cost to traditional Panels.
2. Advanced super longlife and stable driver.
3. Professional thermal management.
4. Instant on, no warm up time required.
5. No noise, no flickering.
6. No UV or IR radiation in the beam, mercury free.
7. Anti-shock, anti-moisture.
8. Aluminum alloy 6063 body and leading light transmitting Optical PMMA cover.
9. Exquisite small appearance. Easy to install with mounting brackets.
10. Eco-friendly. No mercury and harmful materials
Warranty : 3 Years All products we sell,if in warranty period,we repair and replace for free,if not in warranty period we repair and replace for the cost of thecomponents. If customers want to replace the fail products that are not covered by warranty terms,we give 5% discount in price for customer to buy new,for the same products only.
Luminous Distribution Diagram:
Illuminance Diagram:
LED Life Prediction
Package:
Inner Box: 1280×680×55mm (1pc/box) Net Weight: 9.5 KG Gross Weight: 10.7KG
Outer Carton: 1300×700×130mm (2boxes/carton) Net Weight: 21.4KG Gross Weight: 24 KG
2 boxes packed in a Carton
Installation Method:
1. Recessed
2. Ceiling Mounted
3. Suspended
Attention on Installation:
1. Panel lights should be installed by trained electronic technician.
2. Please check all the accessories when open the cartons.
3. The distance between the light and any flammable materials must be more than 0.2m. The distance between the upper part of the installed light and the ceiling must not be less than 2 cm. Don not install into ceilings or walls that contain heat source. The main cable must not connect with the low voltage cable or the surface-mounted lights.
4. Guide the lights' connecting cables through the drilled hole, and fix the surface-mounted lights with the pre-fitted clips. Make sure that these are securely connected to the base material.
5. When laying the cables, make sure that the cables and plugs are not subjected to any tensile or twisting forces. Do not kink cables. Output cables should be laid separately and at a distance from other cables.
6. After installation, connect the transformer to the mains supply
7. Proceed by connecting the wiring cables to the lights. Usually, the brown (or black) wire is the Live wire, connect it with the terminal marked "L". The blue wire is Naughty wire; connect it with the terminal marked "N".
8. Use the dedicated LED drivers only, do not connect to other loads
9. Do not remove the label of the lights and drivers.
Maintenance:
1. Before to clearing the panel lights, please make sure it have been powered OFF.
2. Use a dry or slightly moistened cloth for cleaning.
3. Never use any chemicals or abrasives for cleaning.
Company Information
FAQ
FAQ:
Q: 1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 5-7 days for order quantity below 500pcs..
Q: 3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample cheking is available
Q: 4. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, Fedex or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q: 5. How to proceed an order for led light?
A: Please contact me if you are interested in our LED light, Send inquiry to me or talk with me online.Then I can quote you according to your requirement.
You could buy same samples for checking, or place bulk order directly.
Q: 6. How to proceed the order if want to print my logo on led light product?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for your second confirmation. if mockup is ok, finally we will go to mass production.
Q: 7. Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty for free charge after sale.
If you have inquiry about our other product,please feel free to contact us.
Похожие товары

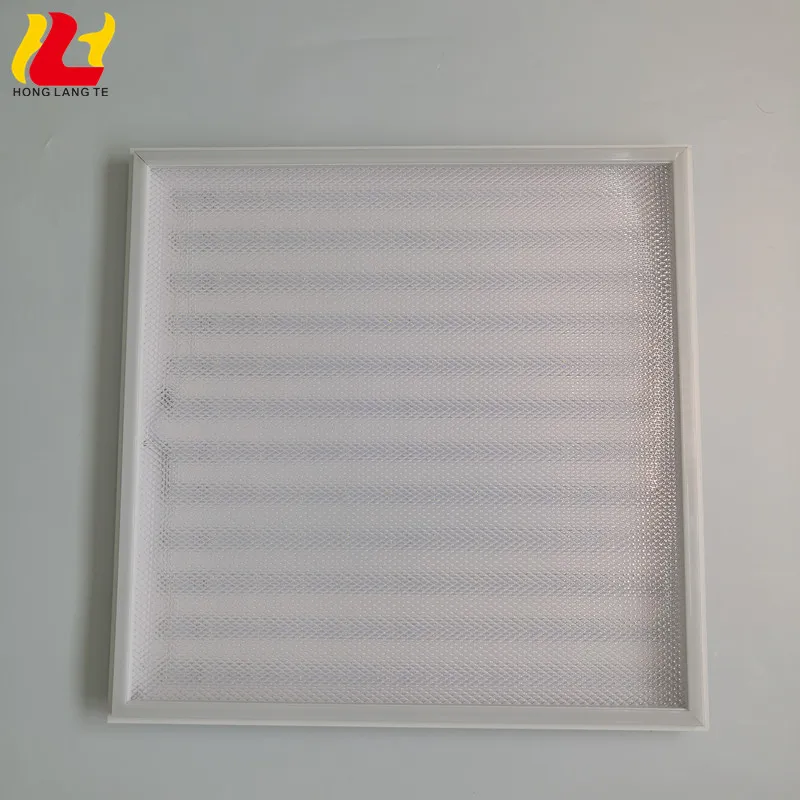

Маленькая настраиваемая Светодиодная панель dali с регулировкой температуры цвета, акриловая Светодиодная панель 30x90 120x15 см с изменением цвета для смыва
8,34 $ - 8,72 $

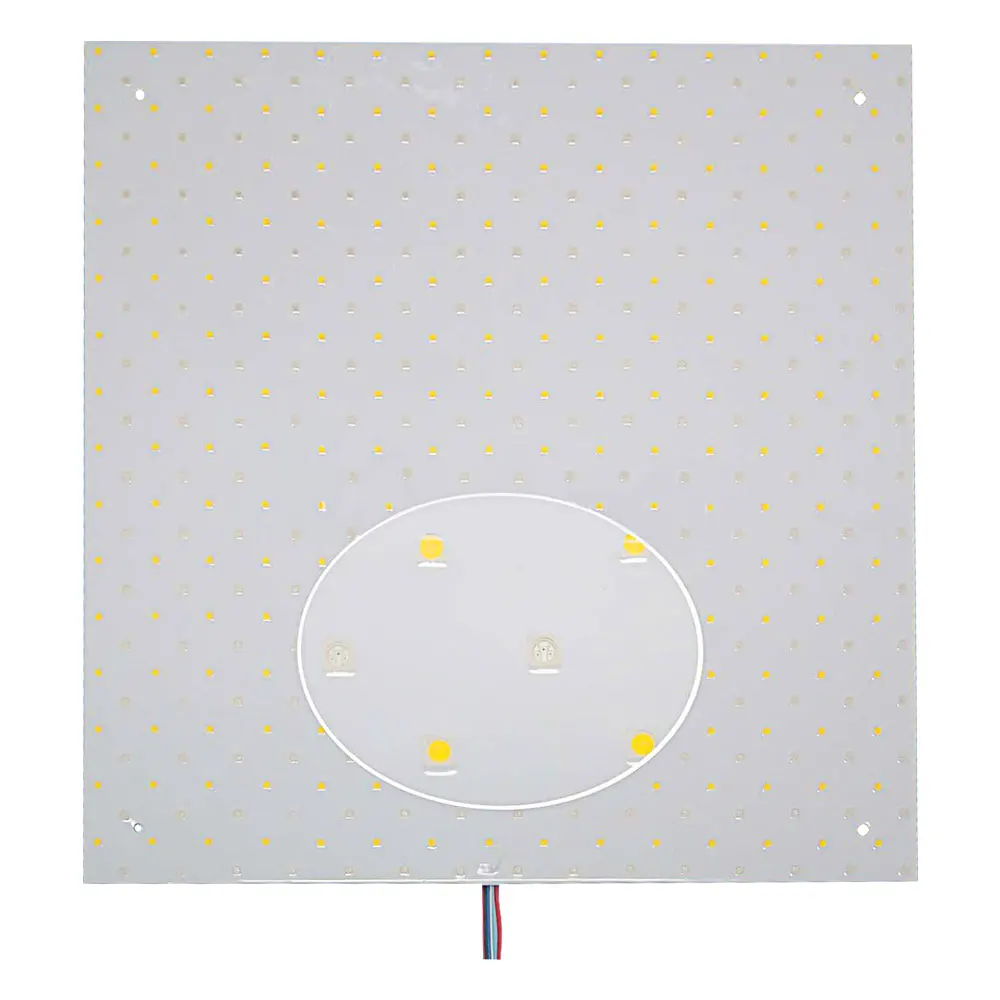

Светодиодная панель освещения LGP диффузор драйвер SKD & CKD аксессуары

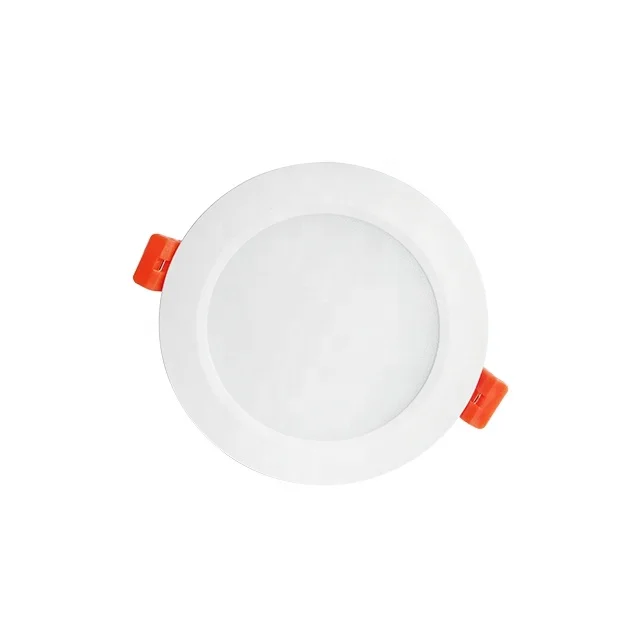

Встроенный умный светодиодный потолочный светильник Halo Zigbee, белый, работает с Alexa
8,60 $ - 11,00 $
Suspended Plum Blossom Style Light Line Effect Embedded Decorative Pendant Modern Grille LED Ceiling Light 29.5X59.5mm
7,80 $ - 8,10 $

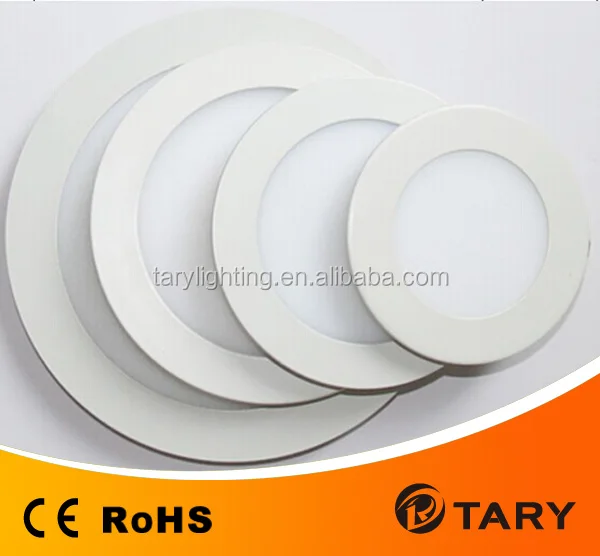

3 Вт 6 Вт 9 Вт 12 Вт 16 Вт 18 Вт 24 Вт тонкая Светодиодная панель, 2016 Заводская Самая низкая цена тонкая Светодиодная панель

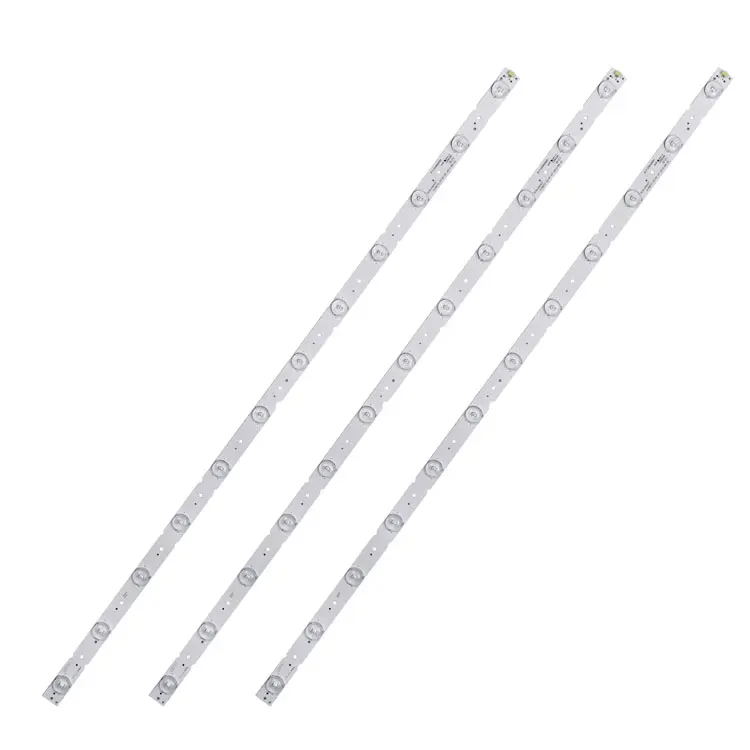

SMD2835 12 LED ТВ подсветка полосы KJ39D12-ZC14F-07 для JAMESON JS-39100ED/T390HVN01.0
