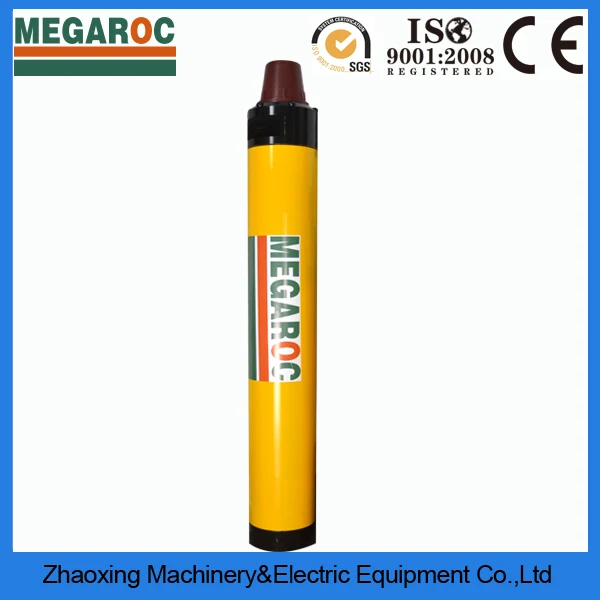

QL 6 inch Dth hammer for drilling 152mm drill bit
Product Description

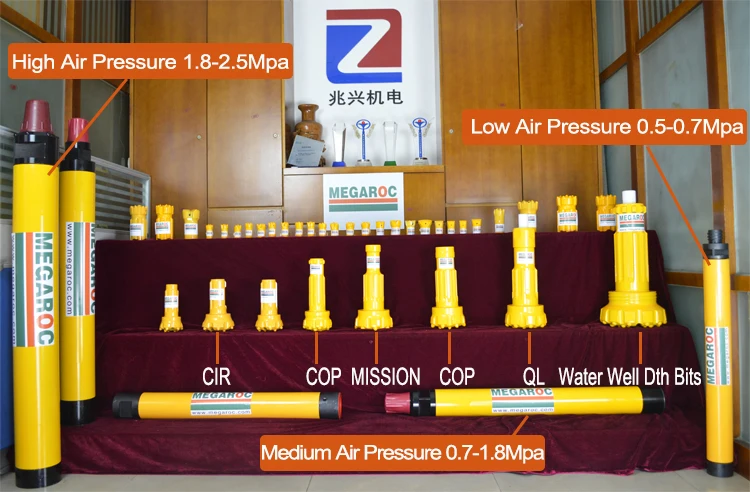

Dth Hammer Types:
Low air pressure: 0.5-0.7Mpa
Middle air pressure : 0.7-1.8Mpa
High air pressure:1.8-2.5Mpa

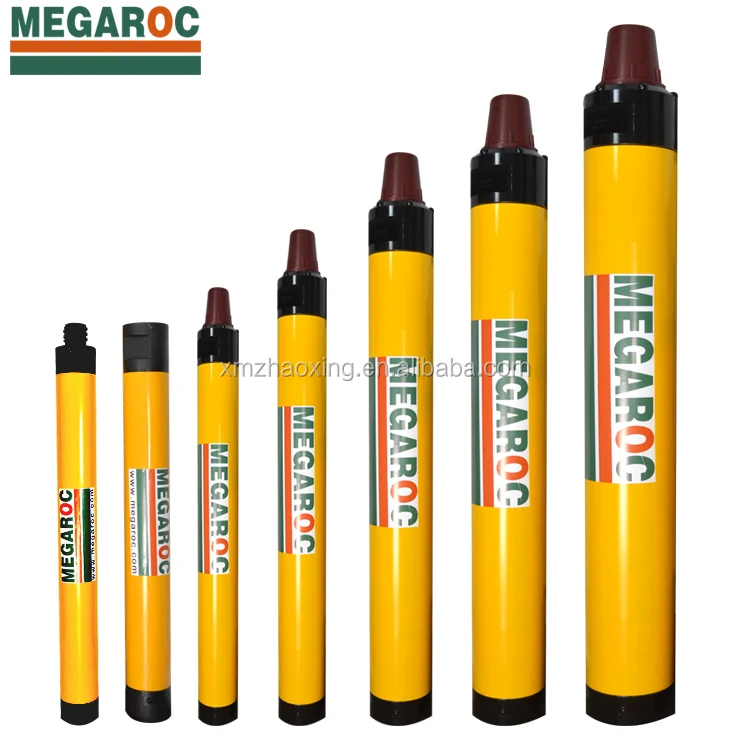

Dth hammer models :
| DTH hammer type | MHD35 | MHD45 | MSD4 | MQL4 | |
| Length(less bit) mm | 930mm | 1030 | 1084 | 1097 | |
| Weight(less bit) kg | 25kg | 39 | 40.5 | 41 | |
| External diameter mm | Φ82mm | Φ99 | Φ99 | Φ99 | |
| Bit shank | DHD3.5 | COP44 DHD340 | SD4 | QL40 | |
| Hole range(mm) | Φ90-110 | Φ110-135 | Φ110-135 | Φ110-135 | |
| Connection thread | API 2 3/8” Reg. | API 2 3/8"Reg | API 2 3/8"Reg | API 2 3/8"Reg | |
| Working pressure | 1.0-1.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | |
| Impact rate at 1.5-1.7Mpa | 28Hz | 27Hz | 27Hz | 27Hz | |
| Recommended Rotation speed | 25-40r/min | 25-40r/min | 25-40r/min | 25-40r/min | |
| Air consumption | 1.0Mpa | 4.5m3/min | 6.0m3/min | 6.0m3/min | 6.0m3/min |
| 1.8Mpa | 9.0m3/min | 10.0m3/min | 10.0m3/min | 10.0m3/min | |
| 2.4Mpa | 15.0m3/min | 15.0m3/min | 15.0m3/min | ||
| DTH hammer type | MHD55 | MHD55C | MSD5 | MQL5 | |
| Length(less bit) mm | 1214 | 1160 | 1175 | 1156 | |
| Weight(less bit) kg | 76.5 | 72.5 | 72.5 | 73 | |
| External diameter mm | Φ125 | Φ125 | Φ125 | Φ125 | |
| Bit shank | COP54 DHD350R | HD55C DHD350Q | SD5 | QL50 | |
| Hole range(mm) | Φ135-155 | Φ135-155 | Φ135-155 | Φ135-155 | |
| Connection thread | API 2 3/8"Reg | API 2 3/8"Reg | API 3 1/2"Reg | API 3 1/2"Reg | |
| API 3 1/2"Reg | API 3 1/2"Reg | ||||
| Working pressure | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | |
| Impact rate at 1.5-1.7Mpa | 25Hz | 25Hz | 25Hz | 25Hz | |
| Recommended Rotation speed | 20-35r/min | 20-35r/min | 20-35r/min | 20-35r/min | |
| Air consumption | 1.0Mpa | 9.0m3/min | 9.0m3/min | 9.0m3/min | 9.0m3/min |
| 1.8Mpa | 15.0m3/min | 15.0m3/min | 15.0m3/min | 15.0m3/min | |
| 2.4Mpa | 23.0m3/min | 23.0m3/min | 23.0m3/min | 23.0m3/min | |
| DTH hammer type | MHD65 | MSD6 | MQL6 | MHD85 | |
| Length(less bit) mm | 1248 | 1261 | 1212 | 1492 | |
| Weight(less bit) kg | 100 | 100 | 95 | 188 | |
| External diameter mm | Φ142 | Φ142 | Φ146 | Φ180 | |
| Bit shank | COP64 DHD360 | SD6 | QL60 | COP84 DHD380 | |
| Hole range(mm) | Φ155-190 | Φ155-190 | Φ155-190 | Φ195-254 | |
| Connection thread | API 3 1/2"Reg | API 3 1/2"Reg | API 3 1/2"Reg | API 4 1/2"Reg | |
| Working pressure | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | |
| Impact rate at 1.5-1.7Mpa | 23Hz | 23Hz | 23Hz | 20Hz | |
| Recommended Rotation speed | 20-30r/min | 20-30r/min | 20-30r/min | 20-30r/min | |
| Air consumption | 1.0Mpa | 10.0m3/min | 10.0m3/min | 10.0m3/min | 15.0m3/min |
| 1.8Mpa | 20.0m3/min | 20.0m3/min | 20.0m3/min | 26.0m3/min | |
| 2.4Mpa | 28.5m3/min | 28.5m3/min | 28.5m3/min | 34.0m3/min | |
| DTH hammer type | MSD8 | MQL8 | MSD10 | MHN100 | |
| Length(less bit) mm | 1463 | 1465 | 1502 | 1510 | |
| Weight(less bit) kg | 192 | 182 | 290 | 288 | |
| External diameter mm | Φ180 | Φ180 | Φ226 | Φ226 | |
| Bit shank | SD8 | QL80 | SD10 | NUMA100 | |
| Hole range(mm) | Φ195-254 | Φ195-254 | Φ254-311 | Φ254-311 | |
| Connection thread | API 4 1/2"Reg | API 4 1/2"Reg | API 4 1/2"Reg | API 6 5/8"Reg | |
| API 6 5/8"Reg | |||||
| Working pressure | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | |
| Impact rate at 1.5-1.7Mpa | 20Hz | 20Hz | 18Hz | 18Hz | |
| Recommended Rotation speed | 15-25r/min | 15-25r/min | 15-25r/min | 15-25r/min | |
| Air consumption | 1.0Mpa | 15.0m3/min | 15.0m3/min | 22.0m3/min | 22.0m3/min |
| 1.8Mpa | 26.0m3/min | 26.0m3/min | 40.0m3/min | 45.0m3/min | |
| 2.4Mpa | 34.0m3/min | 34.0m3/min | 55.0m3/min | 60.0m3/min | |
| DTH hammer type | MHD1120 | MSD12 | MHN120 | MNH125 | |
| Length(less bit) mm | 1900 | 1880 | 1900 | 1900 | |
| Weight(less bit) kg | 480 | 487 | 485 | 480 | |
| External diameter mm | Φ275 | Φ275 | Φ275 | Φ275 | |
| Bit shank | DHD1120 | SD12 | NUMA120 | NUMA125 | |
| Hole range(mm) | Φ305-445 | Φ305-445 | Φ305-445 | Φ305-445 | |
| Connection thread | API 6 5/8"Reg | API 6 5/8"Reg | API 6 5/8"Reg | API 6 5/8"Reg | |
| Working pressure | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | |
| Impact rate at 1.5-1.7Mpa | 16Hz | 16Hz | 16Hz | 16Hz | |
| Recommended Rotation speed | 15-25r/min | 15-25r/min | 15-25r/min | 15-25r/min | |
| Air consumption | 1.0Mpa | 30.0m3/min | 30.0m3/min | 30.0m3/min | 30.0m3/min |
| 1.8Mpa | 56.0m3/min | 56.0m3/min | 56.0m3/min | 56.0m3/min | |
| 2.4Mpa | 78.0m3/min | 78.0m3/min | 78.0m3/min | 78.0m3/min | |
Advantages of dth hammer:
1. More efficient energy transfer.
2. Faster drilling speed, 15%-30% higher than others.
3. Lower air consumption and lower oil consumption. oil consumption is about 10% lower than others
4. Direct factory price.

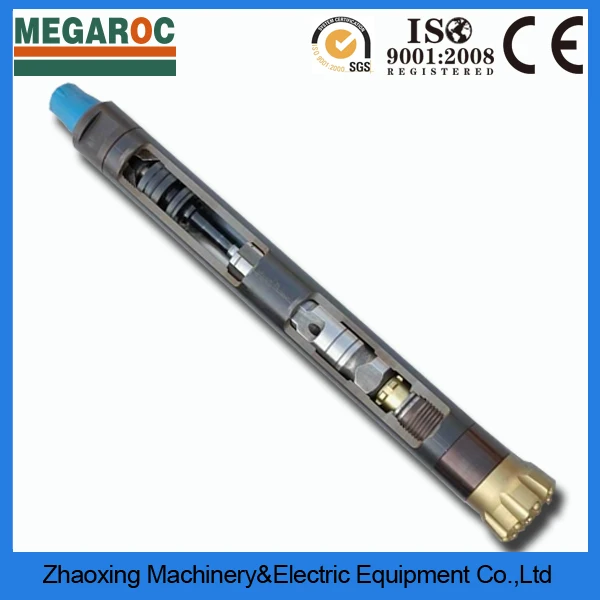

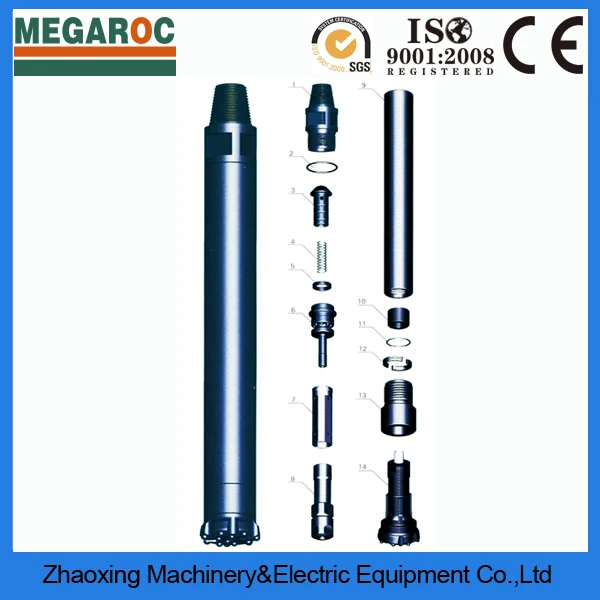

Advantages of dth hammer spare parts :
1.Valveless air distribution. More reliable.
2.Simple design of the piston, long life.
3.Fewer internal parts, simple structure, longer life, less failure and easier to maintain because all the parts are heat treated.
4.Easy to disassemble because the top sub, the drive chuck and the external cylinder are connected by multi-step thread.

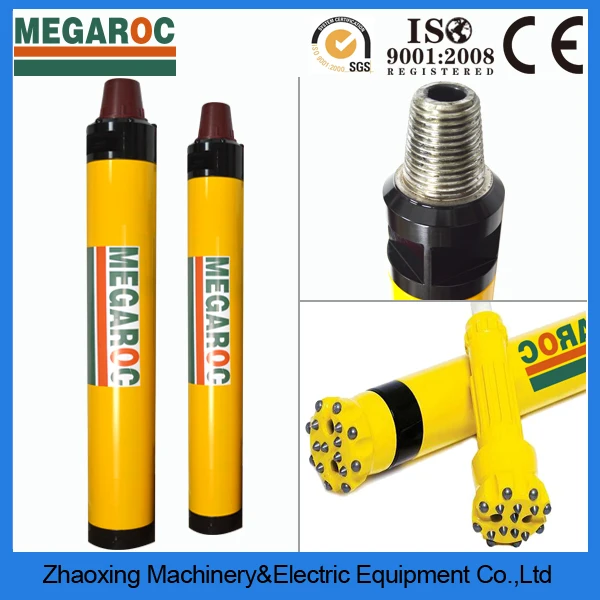

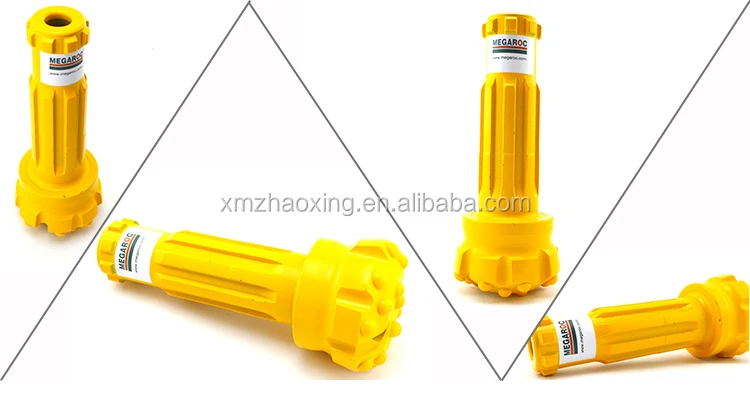

Dth Bits Types:
Dth Bits Specifications
| Specification: | Diameter: (mm) | Weight: (kg) |
| Low air pressure DTH bits CIR type | 68 ~ 200 | 2.6 ~ 48 |
| Middle air pressure BR & COP type | 76 ~ 110 | 3.8 ~ 15 |
| 3 inch high Air pressure DTH bits(COP32/BR3/HD35/IR3.5/COP34/QL30) | 85 / 90 / 95 / 100 / 105 | 4.2 ~ 5.5 |
| 4 inch high Air pressure DTH bits(HD45/DHD340A/COP44/SD4/QL40/HM4) | 105 / 110 / 115 / 120 / 127 | 9 ~ 12 |
| 5 inch high Air pressure DTH bits(HD55/DHD350R/COP54/SD5/QL50/HM5) | 133 / 140 / 146 / 152 / 165 | 15 ~ 18.5 |
| 6 inch high Air pressure DTH bits(HD65/DHD360/COP64/SD6/QL60/HM6) | 152 / 165 / 178 / 190 / 203 | 26 ~ 36 |
| 8 inch high Air pressure DTH bits(HD85/DHD380/COP84/SD8/QL80/HM8) | 195 / 203 / 216 / 254 / 305 | 33 ~ 95 |

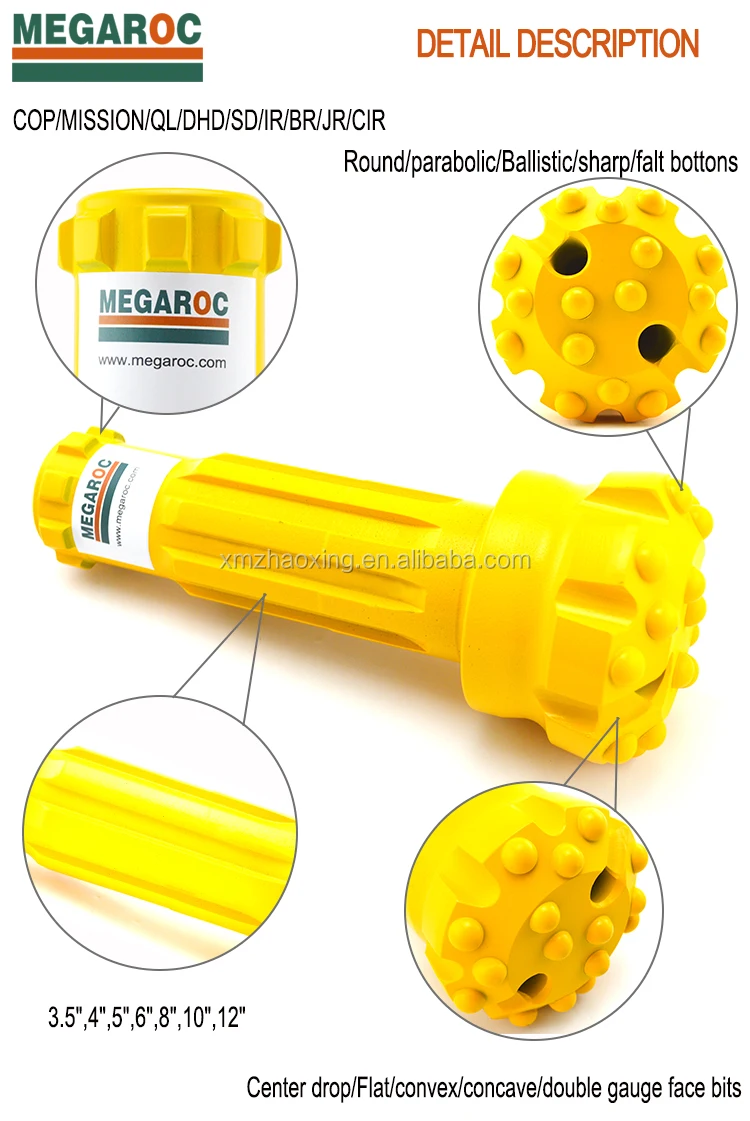

Dth Bits Detail

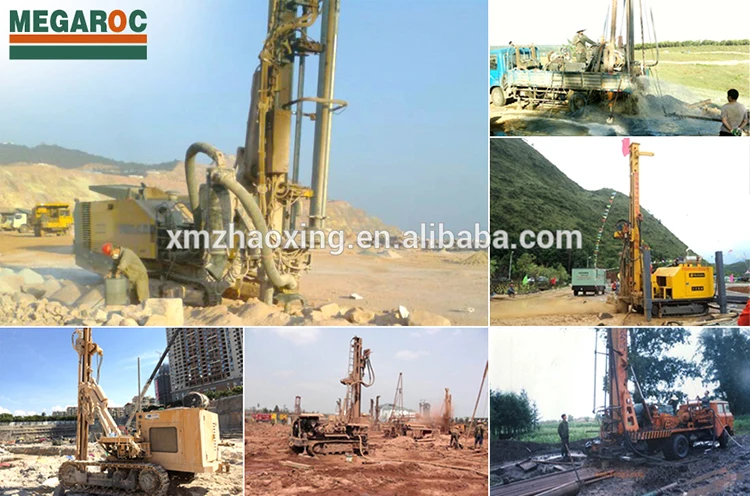

The application cases of dth hammer :
Since our company has been established in 1996, we have served a number of large mining projects including blast holes, anchoring geothermal bore holes, quarring, well drilling and accumulated a wealth of practical experience.And Our DTH hammer can be used in different types of drilling machine
Warranty of dth hammers:
In the early use if the dth hammer, rupture appears on parts such as external cylinder, piston and drive chuck ect. the broken parts can be compensated according to the situation.
Packaging & Shipping
Dth hammer shipping details:
Internal package : By carton box with foam ,one pc dth hammer per carbox
External package: By wooden box, one pc dth hammer per wooden box.
Round-sealed package can prevent damaging during delivery.
Delivery ways of dth hammers:
Sample order can delivery by Air or International express, such as DHL, UPS, Fedex, ect.
Batch orders can delivery by Air , By truck or by Sea
We can choose most favorable delivery ways for our customers
Related Products:
Also we can offer drill rig, air compressor, dth bit, rod, ect.

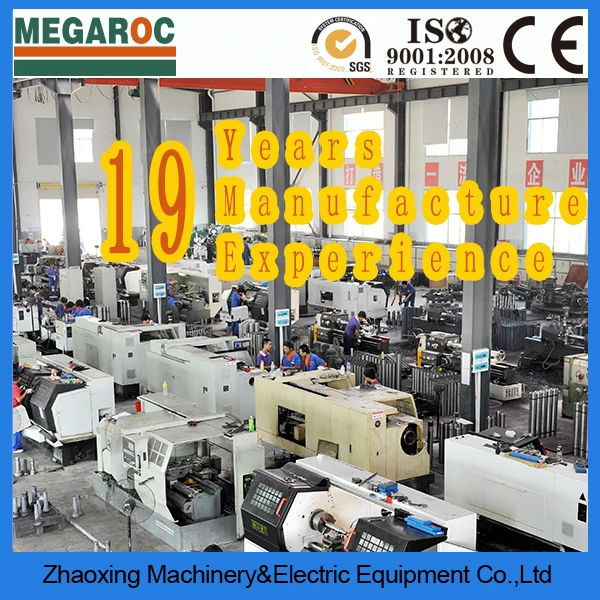

Factory
Factory:
Advance equipment
Professional technicians
Strict production process
Company Information
Company Introduction
About the Company strength:
Xiamen Zhao Xing Electrical Equipment Co., Ltd. was established in 1996, with extensive experience in drilling area. We specializes in providing drilling solutions for our customers to improve efficiency and cost savings.
ZHAOXING is worth of your choice!
Passion and professinal team
We have cultivated a contingent of well-trained,experienced maintenance engineers,s-
trong service team, in order to provide a guarantee of normal production;
we have accumulated a number of outstanding drilling rigs and drilling tools
suppliers, we are familiar with drilling products market, we are here to
provide low-cost, high-efficiency drilling services solution capacity.
Certificate
After-Sales Service
1. Technical Support will be available in any time
2. Our sales team will response for your question within 24 hours (Holidays Excluded)
customer visit
FAQ
The information about dth drill bit you may like to know before order:
1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2. Handling time for an order
Based on order quantity, normally it takes 20 days for production.
in 3 working days after receiving the advance payment
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
Похожие товары

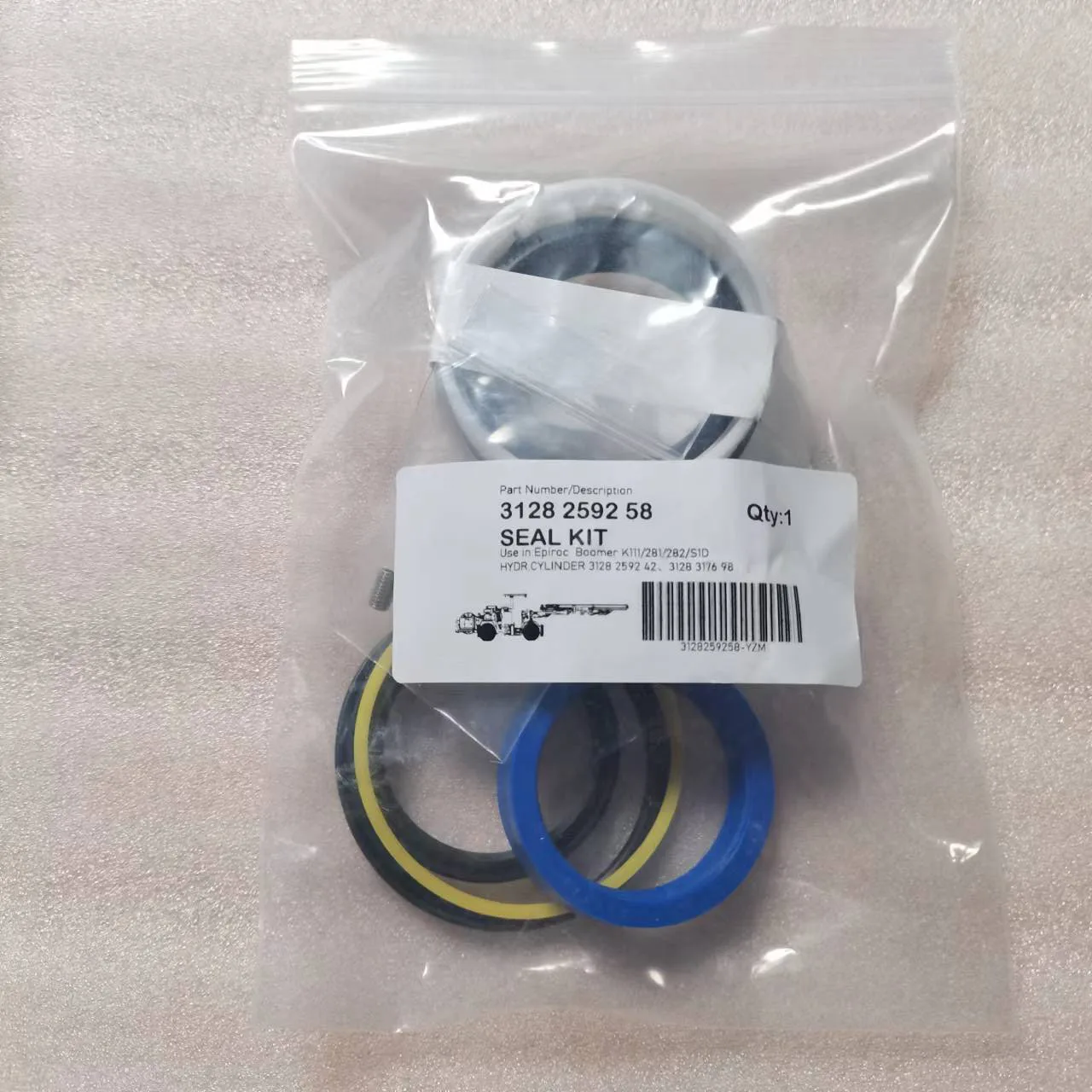

3128259258/Cylinder Seal Repair Kit/ Drilling Rig Parts
2,00 $
Штанга сверла SDK 3 фута 800 мм с перфорацией
4,50-10,00 $
LONGXI хорошее качество лидер продаж направляющая выдвижного ящика экскаватора PC200 гусеничный ролик
32,00-38,00 $
Цена от производителя API 6A катушка обсадной трубы и насадка на обсадную трубу для устья нефтяных скважин

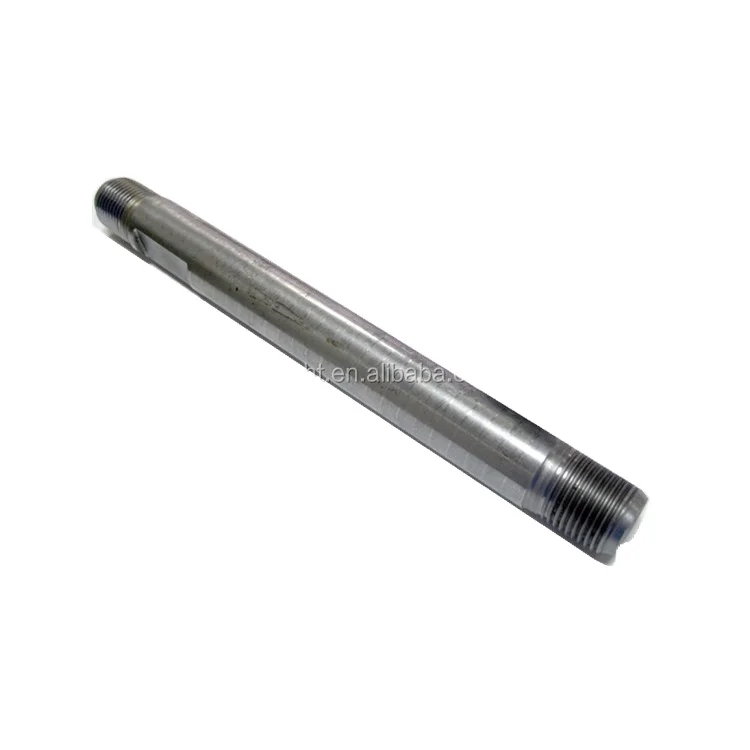

API 11B Oil Well Polished Rod
48,00-50,00 $
Оригинальный гидравлический цилиндр 3222321529 для продажи
3 283,00 $

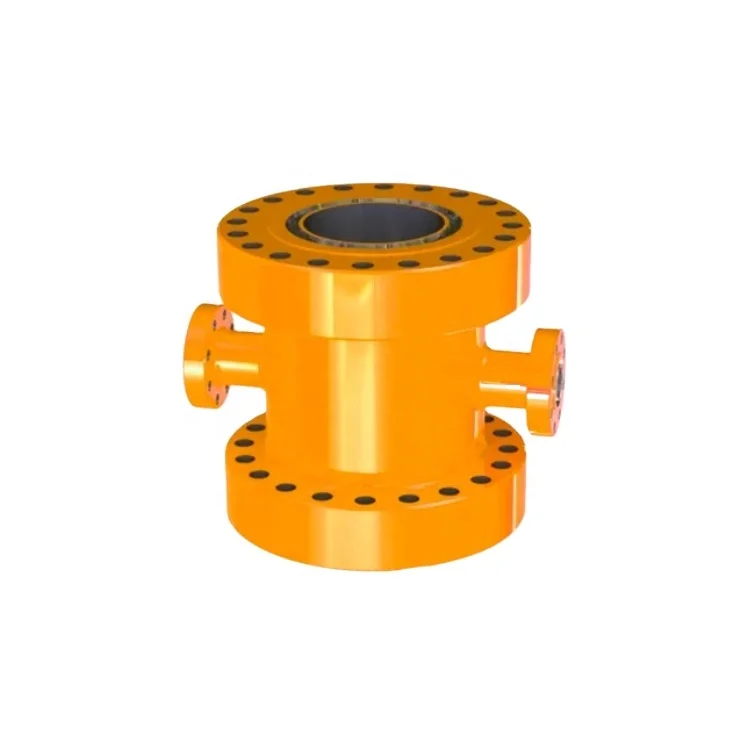

API 6A Casing Head Adapter Assy Hanger Spool With Flange
