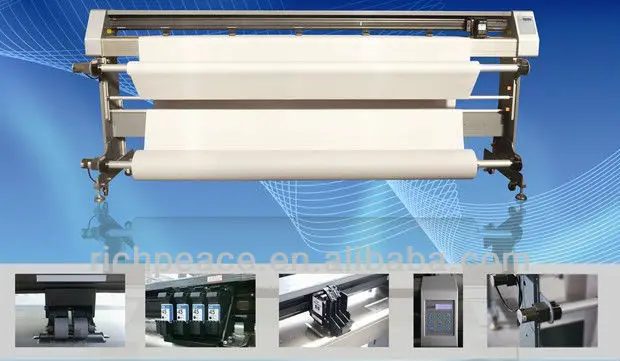

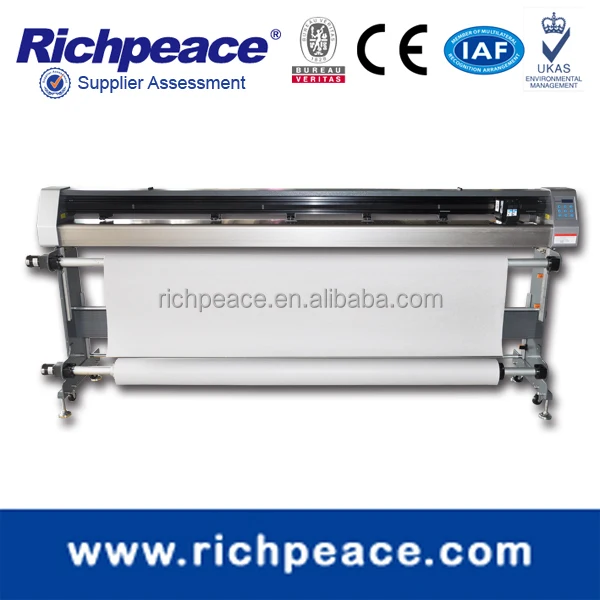

 Richpeace  garment  Paper Pattern Cutting Plotter

 Main features: garment  Paper Pattern Cutting Plotter

Stable and high speed printing, 140sqm maximum.

• The unique front & back paper-feeding structure, suitable for a variety of paper. (front feeding available too)
• Easy to install, easy to operate.
•  Use Original HP45 ink cartridges, easy to replace, and cheap.
• Servo motors, closed-loop locating, prolong machine life.

Main Functions:  garment  Paper Pattern Cutting Plotter

Easy Installation, plug and play

Compatible to most popular CAD software, HP-GL format, e.g. AutoCAD, Coreldraw, Richpeace, Gerber

Front loading paper, smaller footprint, save room space. Width of plotter can even made to order, fullfil customer's space consideration, from 1.2m to 3m.

Super fast printing, mandatory in any offices require speedy output, highest 140sq.m / hr.

Use original reliable high quality HP inkjet cartridge and print head technology. (HP51645A)

Connect with USB cable or LAN cable

Automatic inkjet cartridge cleaning

Simplified structure to reduce mechanical stress

Auto alarm when paper jam and paper runs out

Infrared sensor keeps machine paper feedingand receiving accurately garment  Paper Pattern Cutting Plotter

• Model & Specifications garment  Paper Pattern Cutting Plotter
  Model	RP-MJ180
  Max Plotting Width	1830mm
  Max Plot Width	1850mm
  Cartridges No.	2 or 4
  Receiving Paper System	Auto paper receiving
  Max paper weight	35kgs
  Frame-To-Frame Alignment	1mm
  Max. Plotting speed	72m²/h (2 cartridges),HP45 ink box,140 m²/h (4 cartridges),
  Ink Box Type	HP45 INK BOX
  Plot precision	0.025
  Paper Medium type	30-120g paper
  Communication	USB port, LAN port
  Motor type	Servo motor
  Data Format	HPGL
  Environmental conditions demand:    garment  Paper Pattern Cutting Plotter
  Power	AC220V(110V) / 50Hz  ±10%
  Storage temperature	-20 °C ~ 50 °C
  Working temperature	0 °C ~ 40 °C

Richpeace Group Co., Limited. takes the responsibility of developing high-tech industrial standard, concentrates on reforming and advancing the traditional industry by new technology, advanced and applicable techniques under the corporate idea of  "lead by science and technology, then industry advances; make every effort, then gain the prosperous and the first class; honestly operate, then true love returns". Richpeace Group became such a high-tech enterprise with 12 companies directly under or stock-controlling. The directly under or stock-controlling companies has been nation-famous in textile and garment industry.

Through the years operation, Richpeace invested has formed the operating structure of technique's pluralism, series of products, sales networking, and international marketing, constructed 6 informationized textile and garment industrial terrace of computerized embroidery, computerized garment, computerized knitting, computerized quilting, computerized shuttle, and industry automatic control systems, developed self-owned intellectual property right of high-tech products of hundreds of products kinds, 24 series, and 6 classes. Richpeace has 24 patents in textile, garments, and embroidery industry, hundreds of software copyrights, 6 corporation's standards, and over 20 honors. And Richpeace has over 20 selling channels, 13 professional network stations. Main products exported to over 50 countries and regions such as North America, Europe, Southeast Asia, and Africa, with more than 20 international agents.
