Product Description

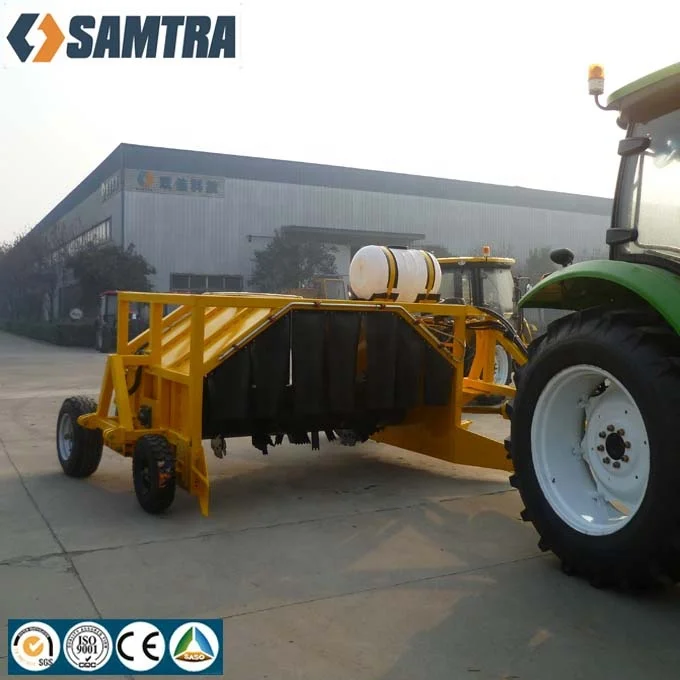

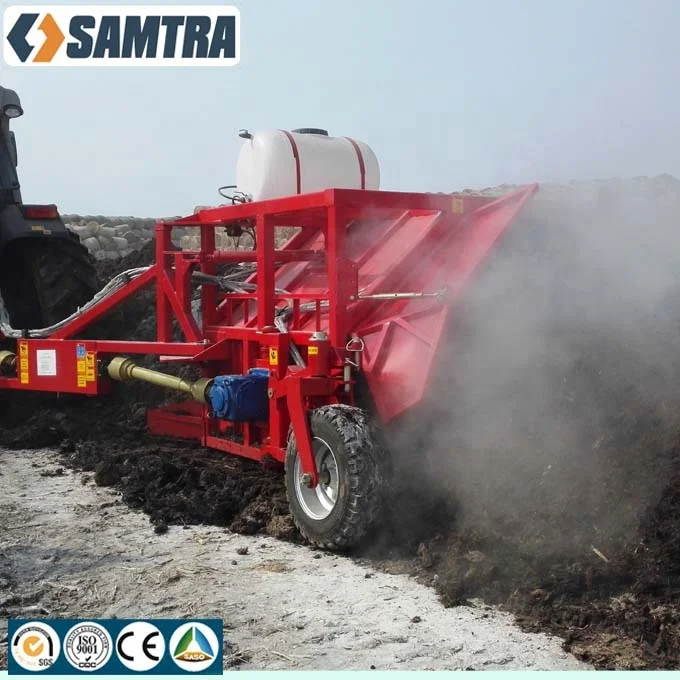

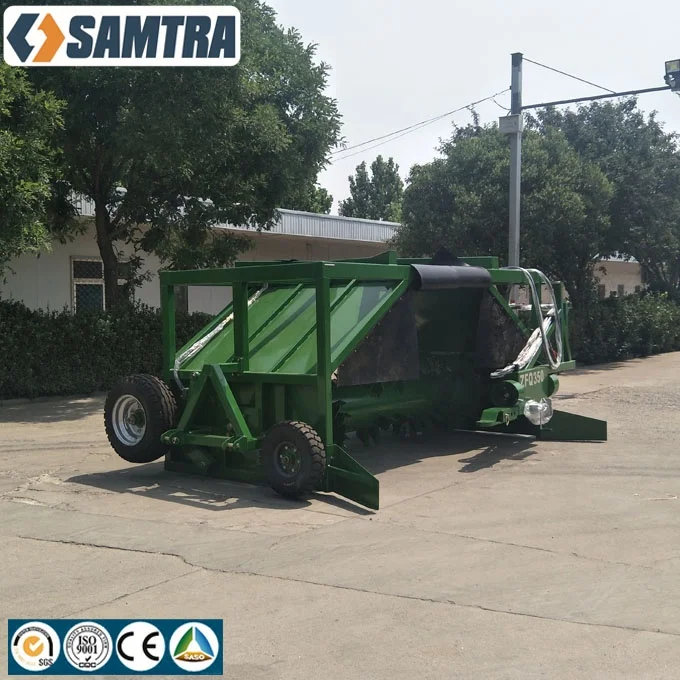

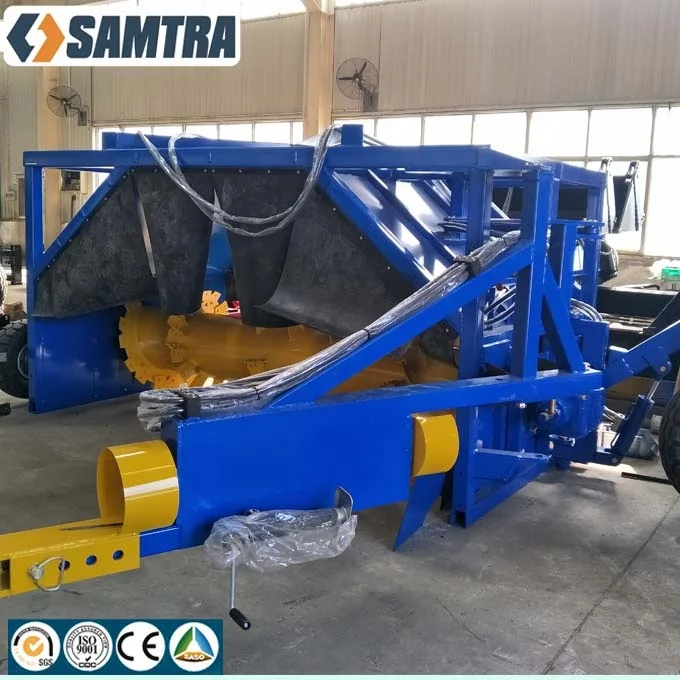

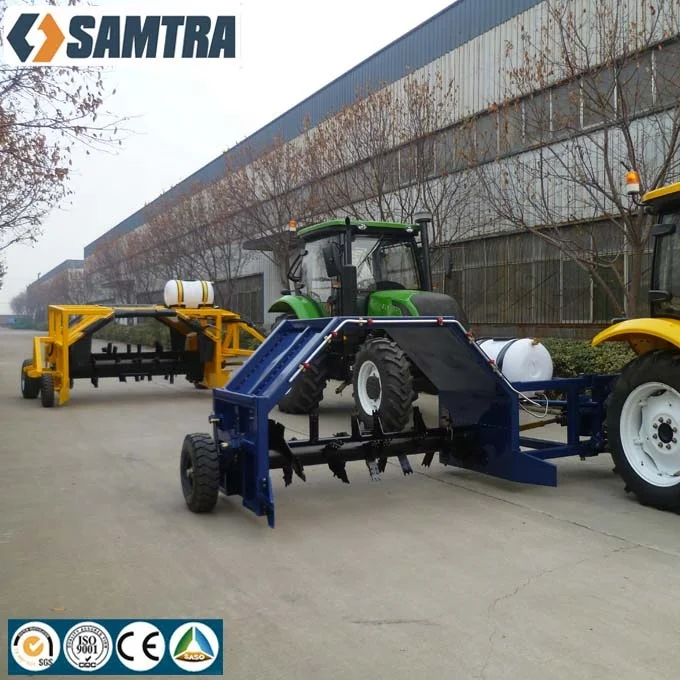

Compost turner

Compost turner also called as Window Turner, is mainly used to turn&mix raw material or organic fertilizer like: poultry manure, sludge, agricultural waste, agricultural stalks, sugarcane and corn leaves. Besides, the compost turner also helps to accelerate composing speed.
ZFQ series compost turner is powered by tractor, rear PTO shaft mounted and walking besides tractor on working.

Model	ZFQ200	ZFQ250	ZFQ300	ZFQ350
Max.Windrow Width (m)	2	2.5	3	3.5
Max.Windrow Height (m)	1.1	1.4	1.4	1.4
Roller Length (mm)	2000	2500	3000	3500
Roller Dia. (mm)	600	800	800	800
Processing Capacity (m³/h)	500-900	800~1400	1000~1800	1500~2500
Engine Power (HP)	>60	>80	>100	>120
Weight (kg)	820	2100	2300	2500
Water Tank and Spraying Manifold	optional
Overall Dimentions (LxWxH)	1485x4260x1350	2850x3700x1560	2850x4200x1560	2850x4700x1560

Main Features

1, Highly-automatic: 1person enough for all operation
2, Short decomposed period: 4-6weeks
3, High yield: 30-50 thousand tons/year for one machine
4, Water tank and Spraying Manifold: option
5, Non-environmental pollution: Aerobic fermentation, no foul smell

Certifications

Detailed Images

Machine Parts

Name: Reducer Gearbox
Brand: SAMTRA
Original: China

Robust reducer gearbos is selected for the ZFQ Compost turner. Large power and torque can guarantee the heavy work of compost turner.

Main Features

Name: Water Spraying Manifold
Brand: SAMTRA
Original: China

180-300L Water tank is as an optional device for the ZFQ Compost Turners. Water pump is driven by electric motor which power is from tractor battery.

Machine Parts

Name: Rotor
Brand: SAMTRA
Original: China

Rotor's diameter is 800 mm, which can finish different kinds of works. And its strong strength guarantees its capability to deal with different kinds of materials.

Main Features

Name: Transporting Wheel
Brand: SAMTRA
Original: China

The wheel can be swing from back side to middle side. In this way, the compost turner can be towed from other side by tractor. This is much more convenient for transportation.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	4250 (L) * 2200 (W) * 1850 (D)
Weight	1.8 T
Packaging Details	Packing size of ZFQ250, ZFQ300 and ZFQ350 is big for LCL. We suggested to deliver by FCL. LCL is not suggested
