Мини Регистратор цветов KH200AL с тотализатором потока

Описание и отзывы

Характеристики

Isolated universal input, high accuracy
RS485/RS232/USB/Relay
72x72x110mm, 8 MB

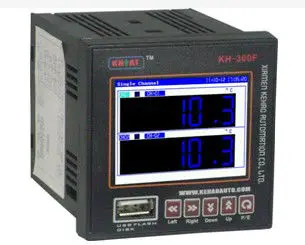

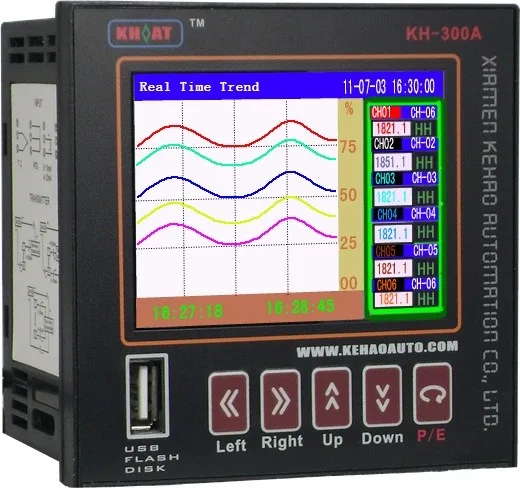

KH300GF is high quality color paperless recorder (72X72X110mm, up to 4 channels), used the advanced technology, to be designed high quality and performance, isolated, high accuracy, universal use, to be aimed to monitor, record, analysis the processes in various industry application.

Application

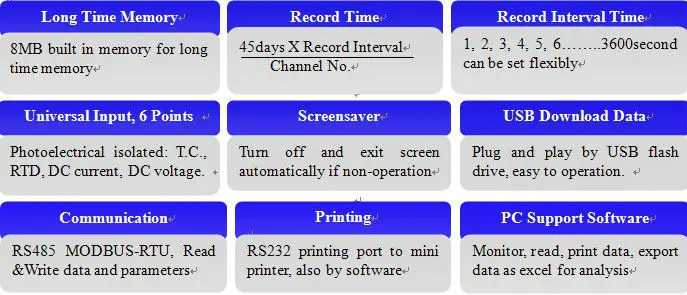

Features

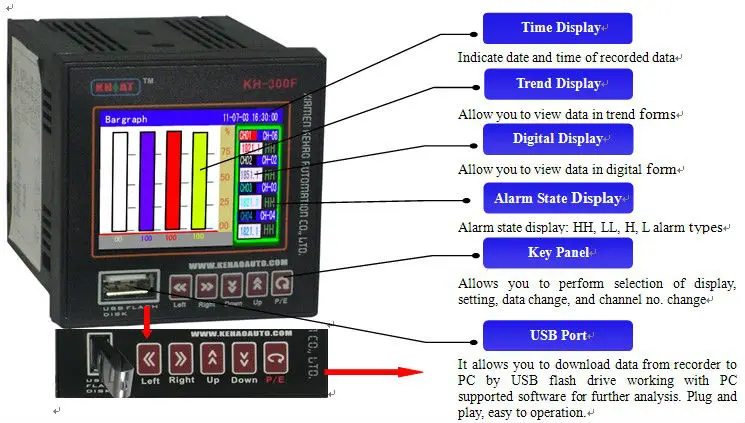

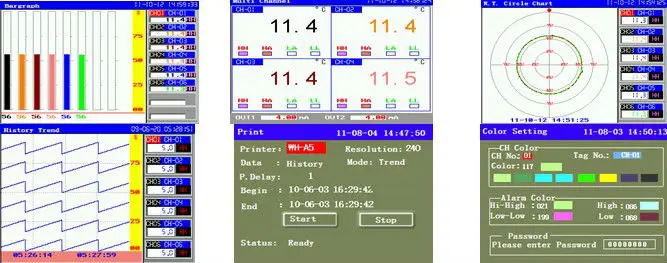

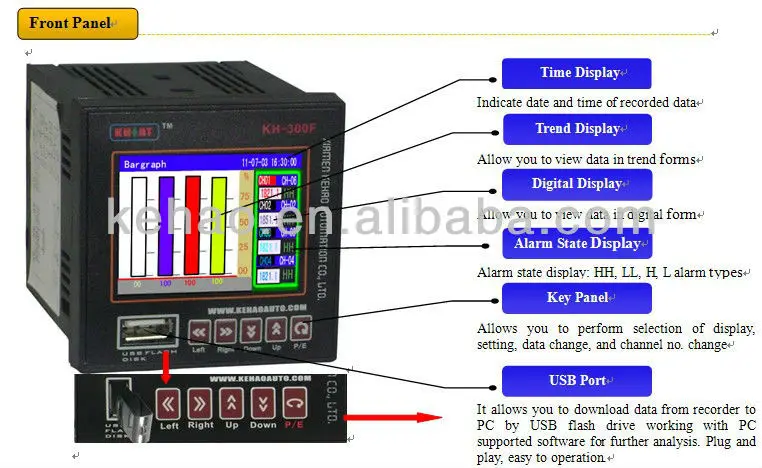

Various Display

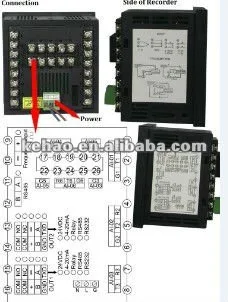

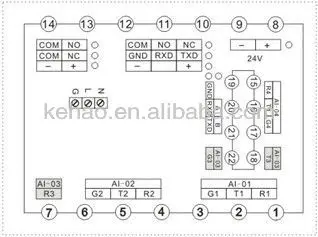

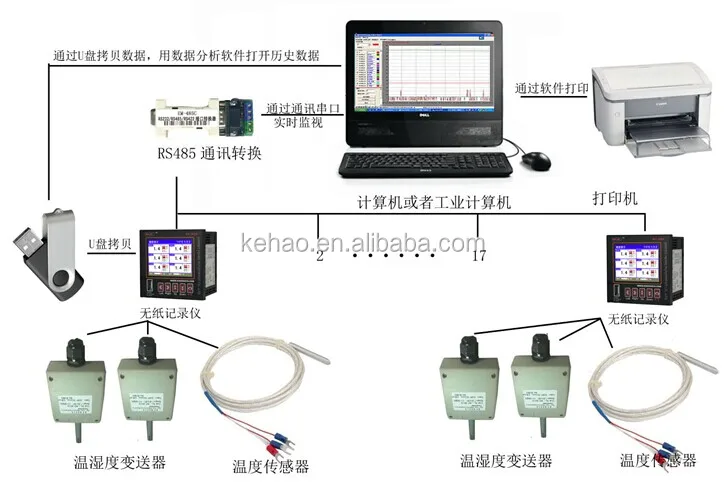

Connection

Specification

 Accuracy:  ±(0.2%FS+1)digit

 Power supply: 100-240VAC; 24VDC

 Display: 3.5 inch , 320*240 TFT color LCD

 Input Signal

        T.C: K, S, E, J, T, B, N , R, WRe526, WRe325

        RTD: PT100, CU50, CU100

        Linear voltage: 0-5VDC, 1-5VDC, 0-10VDC

        Linear current: 0-10mA, 4-20mA

        Frequency input: 0-5KHZ, one channel

        Specials:0-20mV,0-60mV, 0-100mV, 0-500mV

 Output Module

        Relay alarm output

        4-20mARetransmission output

        RS485 Communication port

        24VDC Aux. Power Supply output

        RS232 Printing port

        USB Port

 Record time

        Record interval time setting: 1s, 2s, 3s, 4s….3600s

        Record Time:

                     45days x Record interval time

                               Channel numbers

 Screensaver Protection

        Screensaver time setting for LCD background light auto off when

        no any operation in order to decrease the power consumption.

 Power-off Protection Time

        The setting parameters and history data can be kept by FLASH

        MEMORY, memorized forever if power off.

        Hardware clock built in for still accuracy running.

 Environmental temperature:

        0-50°C

 Environmental humidity:

        0-85%RH

Packaging: PC into bubble bag with , then into carton box

By air: DHL, TNT etc courier

Delivery :7 working days

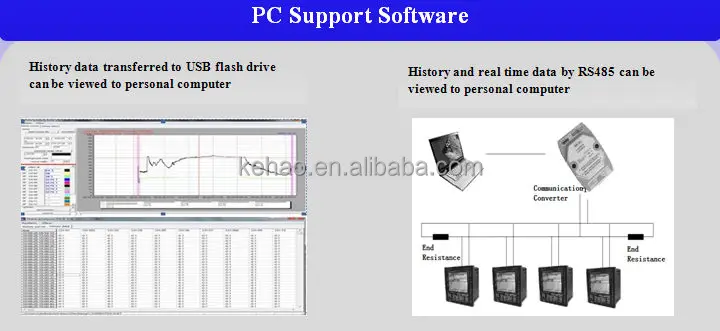

It is not only the instruction in the carton.We would send you the software to monitor,read, print data,export data as excel for analysis on computer and USB flash driver for you to download data in few minutes,plug and play ,it's very easy and flexible.And we also would send you the resisitance as many as the channels' number and installing brackets.As a convenience,we have installed the software for analysis in USB driver.In addition, you can use other USB driver for it,such as Kingston or other genuine USB driver.

We can offer you good technical support  and offer good warranty for afterservice as proffesional manufacturer

Warranty: One year

During warranty, if the ordered goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned to Kehao for free repair and maintenance.  However, Kehao will be not responsible for free repair and maintenance if the goods is damaged and with error caused by user’s man-made and force majeure factor.
