Product Description

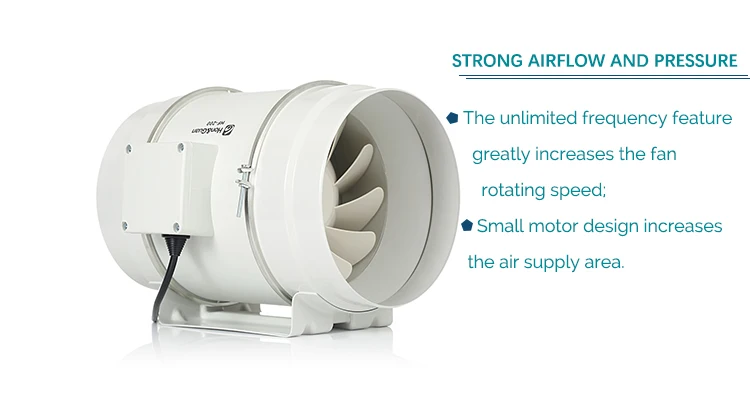

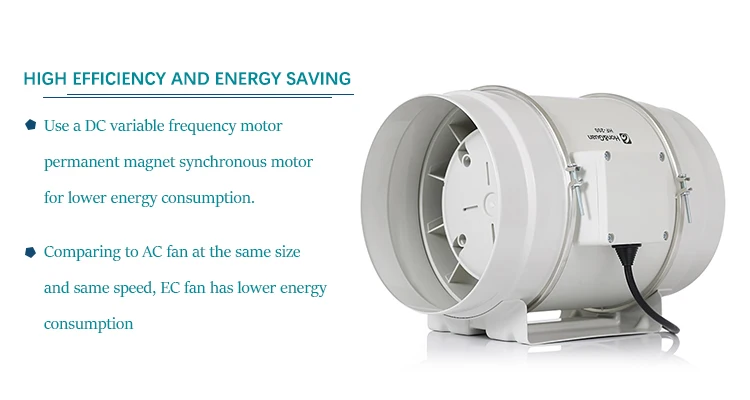

Hydroponics air extractor 100mm 125mm 150mm 200mm

Product Features:

The shell is made of polypropylene plastic, one-time disposable molded, with high anti-acid function.

Using ABS blades, design by hydromechanics to reach the optimal air and pressure.

Two-speed motor, imported NMB ball bearing, it's life expectancy up to 50,000 hours.

IP44 Protection class, waterproof and dustproof more effective.

Can be designed with a delay function, temperature sensors and humidity sensors, more of user-friendly features design.

Run the ambient temperature range: -20°C~60°C.

Performance Parameter:

Model	Gear	Voltage/Frequency	Current	Power	Speed	Weight	Air Flow	Air Pressure	Avg. dBA@3m
Model	Gear	Voltage/Frequency	(Amps)	(W)	(RPM)	(Kg)	(M³/H)	(Pa)	(db)
HF-100 (4")	H	230V/50Hz	0.12	26	2200	2.0	198	156	31
	L	230V/50Hz	0.11	23	1850		165	131	26
	H	115V/60Hz	0.26	30	2200		198	156	31
	L	115V/60Hz	0.24	28	1850		165	131	26
HF-125 (5")	H	230V/50Hz	0.14	33	2250	1.8	284	159	31
	L	230V/50Hz	0.13	28	1850		248	106	26
	H	115V/60Hz	0.30	32	2250		284	159	31
	L	115V/60Hz	0.26	27	1850		248	106	26
HF-150 (6")	H	230V/50Hz	0.24	54	2550	2.7	530	300	33
	L	230V/50Hz	0.21	48	1850		410	240	29
	H	115V/60Hz	0.58	65	2550		530	300	33
	L	115V/60Hz	0.49	53	1850		410	240	29
HF-200 (8")	H	230V/50Hz	0.57	128	2450	4.9	840	352	63
	L	230V/50Hz	0.52	123	1950		690	274	55
	H	115V/60Hz	1.41	162	2450		840	352	63
	L	115V/60Hz	1.28	146	1950		690	274	55

Dimensions (mm):

Fresh air provider bathroom toilet kitchen office ventilation duct fan

Model	X	A	øB	C	øD	E	F	G	H
HF-100	188	303	176	115	97	100	90	80	60
HF-125	188	258	176	115	123	100	90	80	60
HF-150	212	320	200	127	147	112	130	80	60
HF-200	232.5	302	217	141	197	124	140	100	94

Performance Curves

qv: Air volume in m3/h and m3/s.

psf : Static pressure in mmWG and Pa.

Dry air at 20°C and 760mmHg.

Performance data in accordance with ISO 5801 and AMCA 210-99 Standards.

Fresh air provider bathroom toilet kitchen office ventilation duct fan

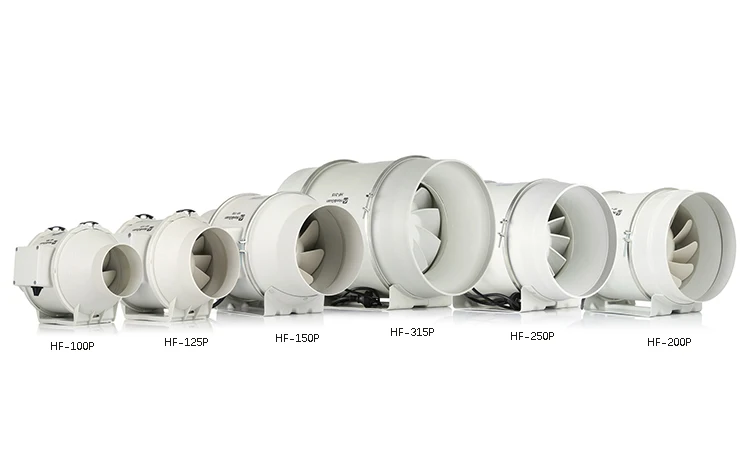

Fresh air provider bathroom toilet kitchen office ventilation duct fan Photo Gallery (Various angles):

Fresh air provider bathroom toilet kitchen office ventilation duct fan

Mixed Flow Fans vs. Axial & Centrifugal Fans:

Fresh air provider bathroom toilet kitchen office ventilation duct fan

Application:

Practical examples of installation of the HF mixed flow fans range The HF fans provides a large number of solutions for small and large ventilations.

Residential-Kitchen, Domestic-Range Hood Exhaust, Commercial-Office, Industrial-Republic Restroom, School-Dining Hall, Industrial-Locker Room Health-Waiting Room, Meeting Room, Catering, Gym, Bathroom, Study Room.
