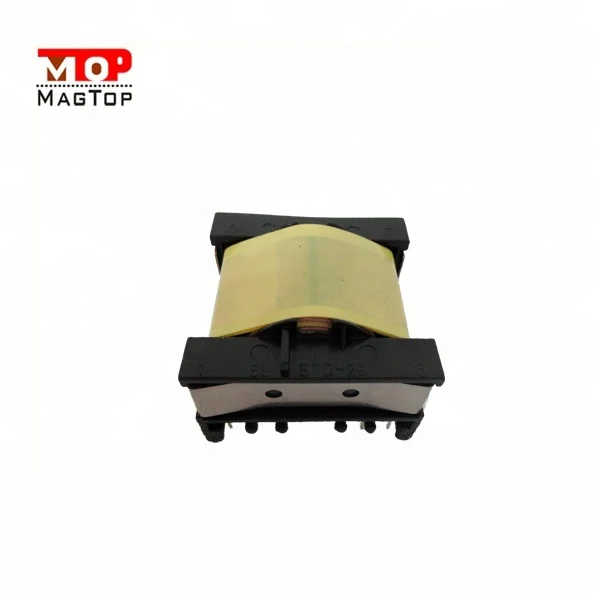

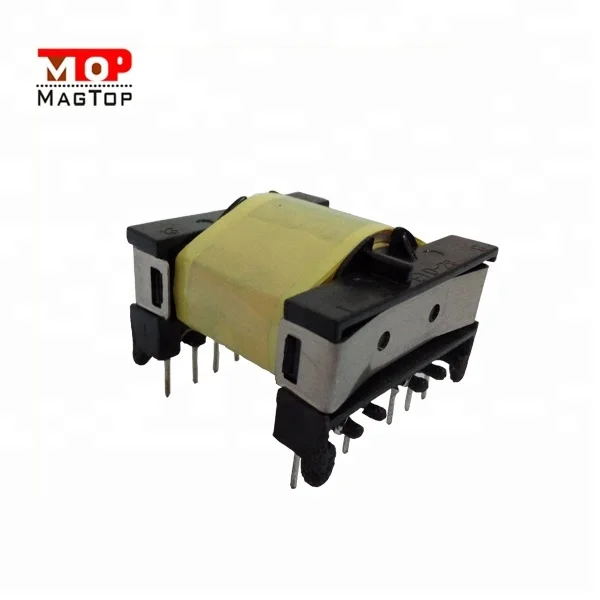

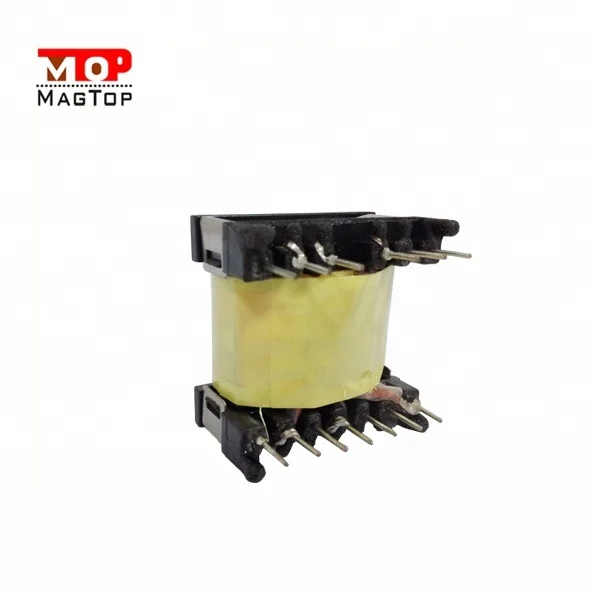

Высокочастотный импульсный трансформатор питания типа

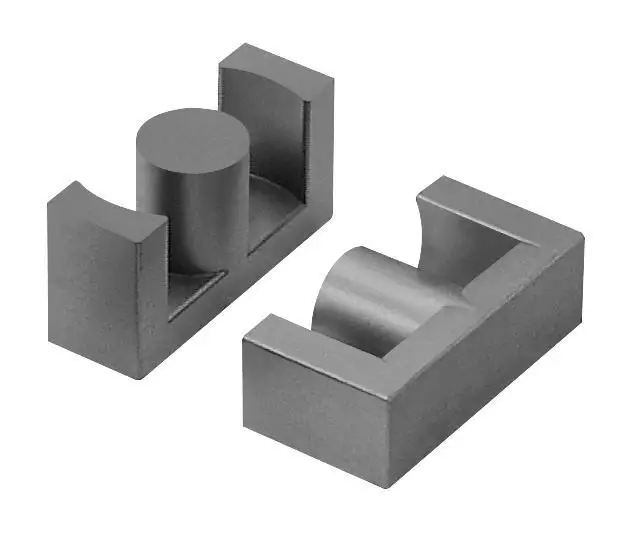

ETD Type

 ETD29/ETD34/ETD39/ETD44/ETD49

The reference of dimensions

Features:

1. Custom designs available

2. High efficiency of over 95%

3. High frequency range 10kHz-1MHz

4. High isolation strength

5. Lower profile and weight

6. high power density

7. High-temperature resistant

8. Operating temperature -40°C to +125°C

9. Power range 10w-10kw

10.High Power Electronic Transformer

 APPLICATIONS:

1. VCRS, Copy machine , Audio equipment , Game machines

2. TV sets, Microcomputer equipment, printers, Terminals

3. communications control equipment

4.Switching power supply, chargers, alarm system

5. UPS, VCD/DVD players, audio and visual equipment

6. OA machines, inverters, chargers, alarm system

    Specifications:

*Low magnetic leakage,low loss

*Small distributed capacity

*Fine tuning inductance

    Electrical Characteristics:

1. Operating Temperature range:-20 to +45

2. Storage temperature: -40 to +70

3. Switching frequency:1KHz to 200KHz

4. Withstanding voltage:1500/3750Vac for 1 minute between primary&secondary

5. Insulation resistance:500Vdc 100MΩ min.between primar&secondary

  The shipping and payment

The shipping and payment

   Company View

 Our Certification

 Our advantage

1.We are Alibaba Assessed 4 years Gold Supplier.

2.We are a factory manufacturing transformer , Inductor and RJ45 Connector, best production

     capability ,best quality control, Best Service.

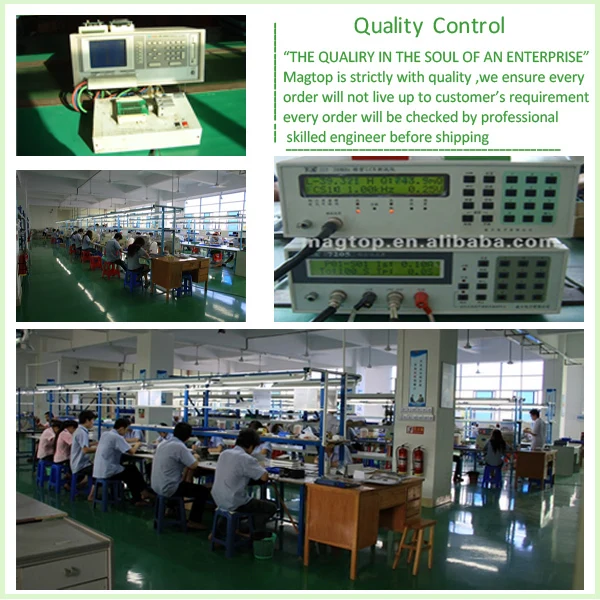

3.100% QC inspection Before Shippment.

4. ISO/RoHs listed,competitve price.
