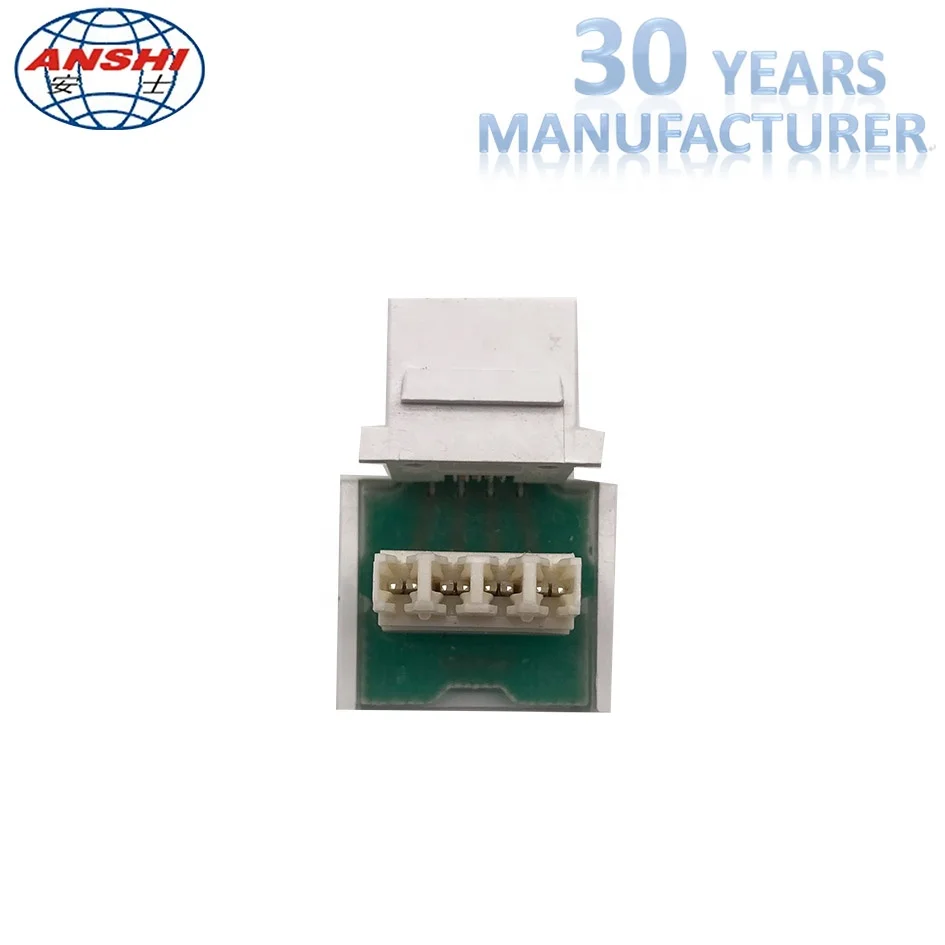

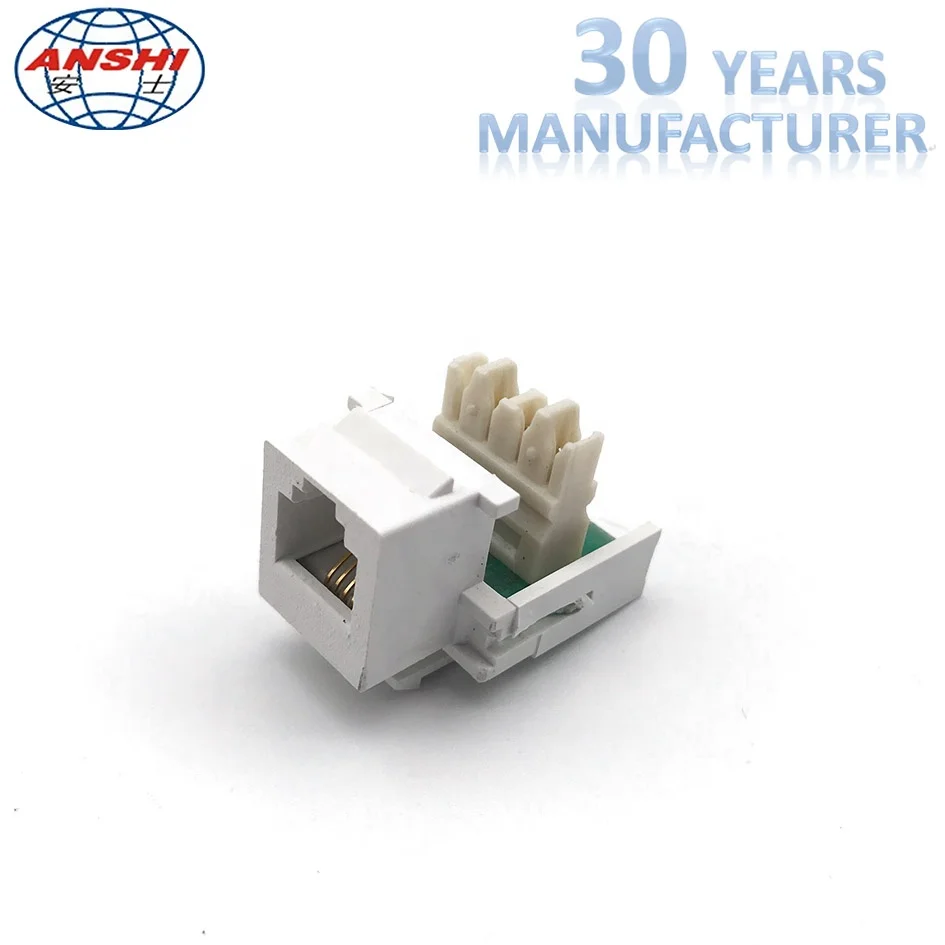

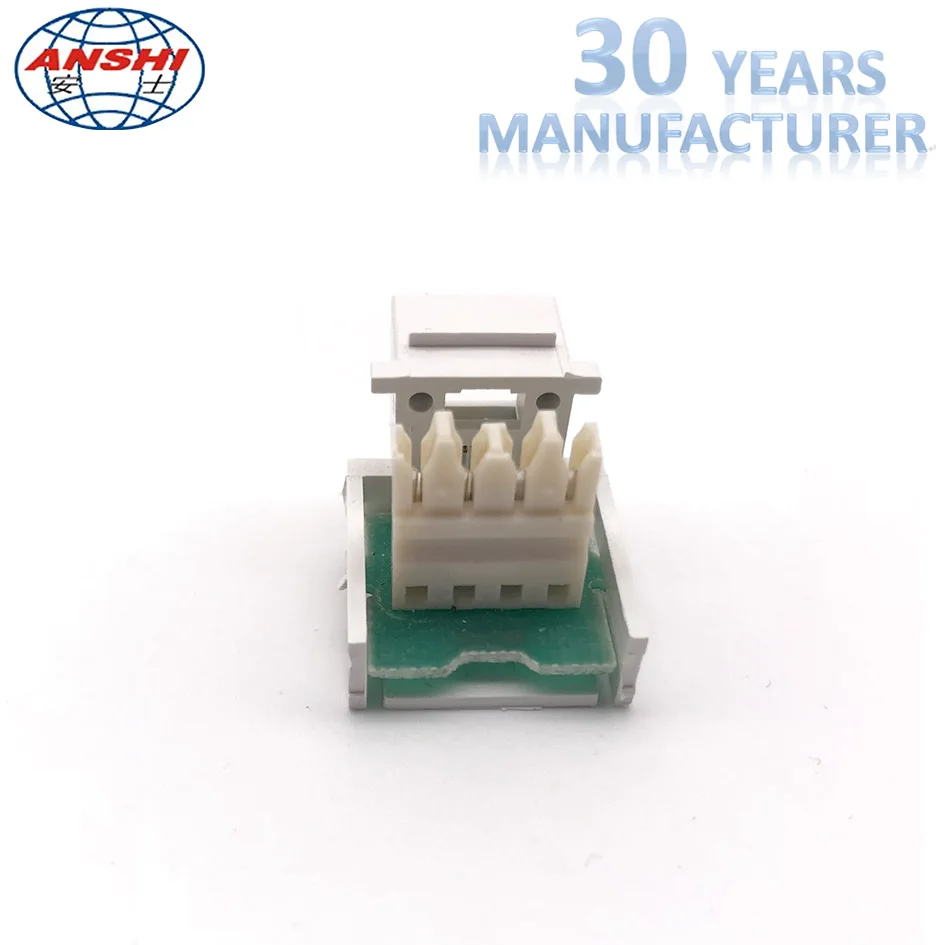

ANSHI Cat 3 голосовой Телефон 90 градусов keystone jack

Описание и отзывы

Характеристики

1.Various information modules provide multiple choices for wiring system.
2.The design of modules exceed the standard requirement.
3.Units with colors are easy to identity and easy to manage network.
4.Be able to meet the allocation requirement of various work.
5Have 4types:ABCD
· Housing : high temperature thermoplastic
· Contract : phosphor bronze , phosphor bronze with 6 to 50 u " gold plate .
· Available in Cat 3,T568 A ,T568 B wiring .meeting every cabling requirement
· Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
· Easy to be terminated Low attenuation loss and high return loss .
· Available color : blank , white ,blue ,yellow ,milk white .
· High reliability and superior performance .
· Use the first xx to specify the color :

Meets FCC parts 68
ANS, TIA, EIA-568B
ISO, IEC 11801
ETL verified EIA/TIA T568B: Cat. 5e channel link
Transmission performance
Physicals:
IDC connector accept 22-26 AWG solid wire
Jack wiring: 50-micron inch gold plate over 100-micron inch nickel
Housing: high impact flame retardant plastic UL94V-0 rated
IDC connector suitable for 110 punch down and Krone tool
Mechanical:
Plug insertion life: 750cycle/minute
Plug retention force: 30lbs/minute
Electrical:
Current rating: 1.5A
Insulation resistance: 500M Ohms minimum
Contact resistance: 20 Milli-ohms maximum
DC resistance: 0.1 Ohms maximum
Data transmission rates up to 250Mbps
