Оборудование для лабораторного горного тестирования одноступенчатая и многоячейная флотационная машина
- Категория: >>>
- Поставщик: Ganzhou Gelin Mining Machinery Co. Ltd.
Сохранить в закладки 2010594847:
Описание и отзывы
Характеристики
Products Description
Lab mining test equipment single and multiple cell flotation machine
Description
The equipment is applicable to the laboratory flotation of a small sample ore in such areas as geology, metallurgy, building material and chemical industry.
Product Parameter
1. XFD-12 laboratory multiple cell flotation machine
XFD-12 laboratory multiple cell flotation machineis applicable to used in flotation of non-ferrous metals, ferrous metals, non- metallic and coal that 35 nesh or less size fraction . It also can be used in float test on 125-3000g flotation sample.
Specification | XFD-12 |
Groove capacity(L) | 0.5, 0.75, 1, 2, 4, 8 |
Rotary speed of impeller (rpm) | 700-2000 |
Feeding granularity(mm) | 2 |
Motor | 250W |
Diameter of impeller (mm) | 54, 73, 95 |
Boundary dimension(mm) | 560*460*860 |
Weight(kg) | 58 |

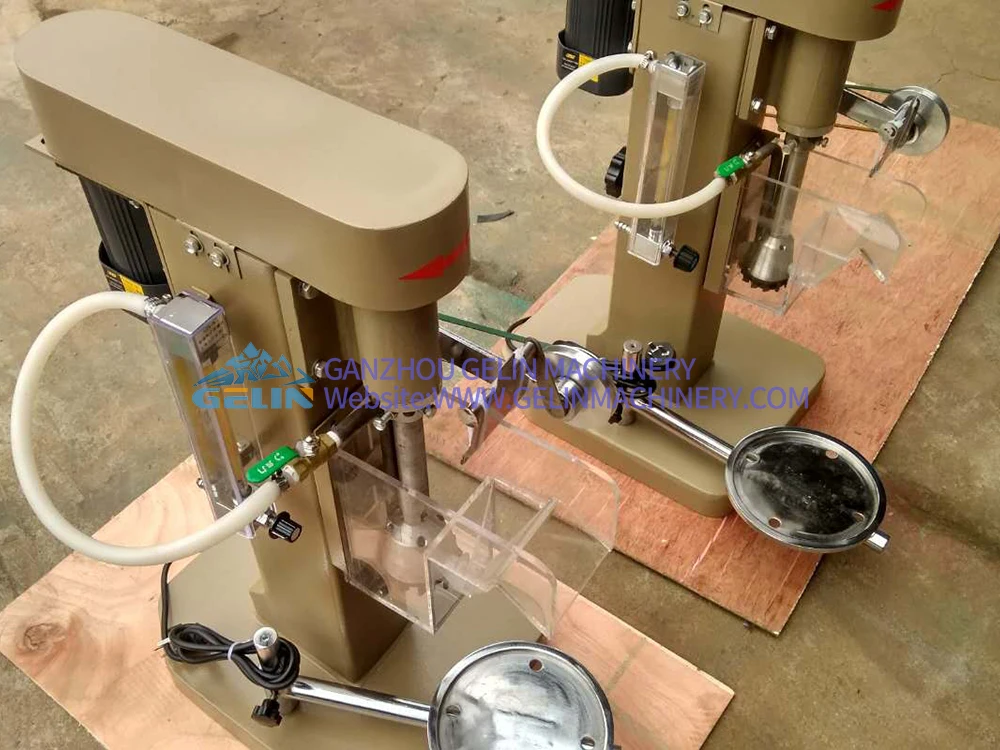

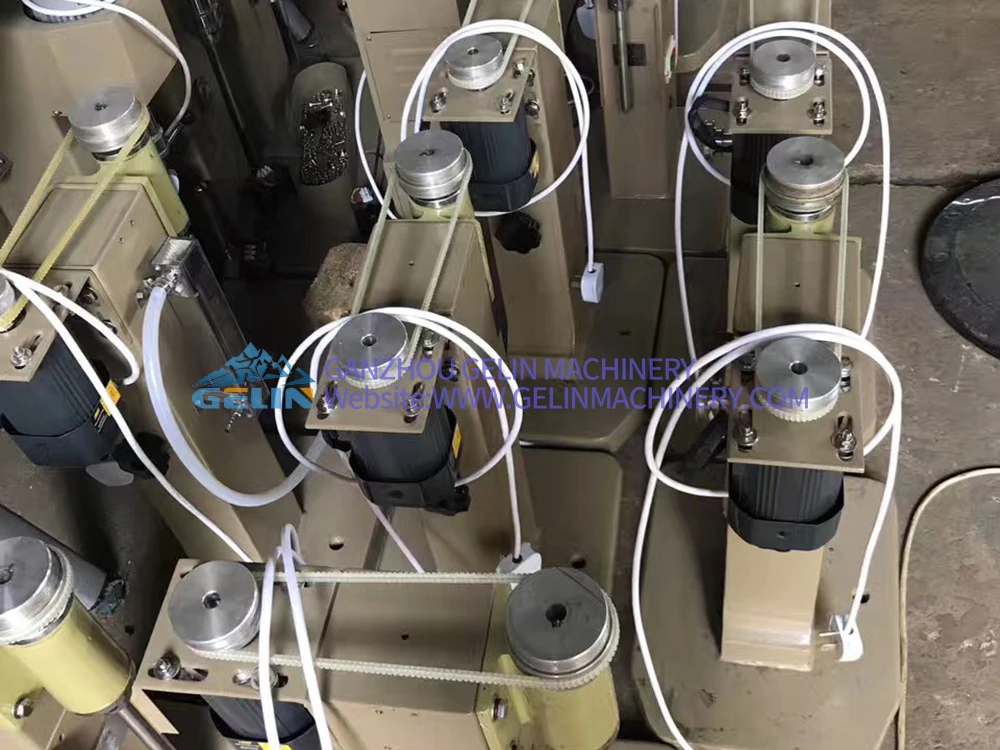

2. XFD-I single cell laboratory flotation machine
the ordinary simple type, the impeller rotary speed can not be adjustable, and without LED display screen, without heater device,can not control temperature of the minerals.
1. Machine base 8.Motor
2.Supporting board 9. Flow Meter
3. Cell 10.Switch
4. Mix impeller 11.switch of scraper
5. Scraper 12.Frequency transformer
6. Main shaft 13.Adjusting knob
7. Cover;
All parts are fastened to the body, the spindle rotates in the clockwise direction , the movement through a belt to the spindle pulley belt and the spindle pulley have three different speeds. Rotation of the blade driven by the blade driven pulley the motor can have two different speed. The blade height can be adjusted by the position of the butterfly nut
Flotation machine driven by V-belt drive motor rotating impeller to form centrifugal vacuum, on the one hand inhalation pulp mixed with sufficient air , on the other hand stirring the pulp to mixed with drugs, while refined foam, mineral adhesive foam on top , float to the surface and then form a slurry bubble mineralization. Adjust shutter’s height and control surface to scrape the useful foam.
3. Cell 10.Switch
4. Mix impeller 11.switch of scraper
5. Scraper 12.Frequency transformer
6. Main shaft 13.Adjusting knob
7. Cover;
All parts are fastened to the body, the spindle rotates in the clockwise direction , the movement through a belt to the spindle pulley belt and the spindle pulley have three different speeds. Rotation of the blade driven by the blade driven pulley the motor can have two different speed. The blade height can be adjusted by the position of the butterfly nut
Flotation machine driven by V-belt drive motor rotating impeller to form centrifugal vacuum, on the one hand inhalation pulp mixed with sufficient air , on the other hand stirring the pulp to mixed with drugs, while refined foam, mineral adhesive foam on top , float to the surface and then form a slurry bubble mineralization. Adjust shutter’s height and control surface to scrape the useful foam.
XFD I Series Technical Parameters | Model | |||||||||||
Model | XFD I-0.5 | XFD I-0.75 | XFD I-1 | XFD I-1.5 | XFD I-3 | XFD I-8 | ||||||
Cell capacity | 0.5 | 0.75 | 1.0 | 1.5 | 3.0 | 8.0 | ||||||
Rotary speed of impeller(r/min) | 2590, 2340 | 2100, 1900 | 1910, 1750 | 1890, 1708 | 1400 | |||||||
Impeller diameter(mm) | 45 | 55 | 60 | 70 | 100 | |||||||
Rotary speed of scraper(r/min) | 15 30 | 7.9, 19.1 | ||||||||||
Feeding size(mm) | <0.2 | |||||||||||
Spindle motor(w) | 51k90A-EF 2800r/min 90W | JW63241410r/min 250w | ||||||||||
Dimension (mm) | 502*263*628 | 502*263*628 | 502*263*628 | 560*310*590 | 700*360*760 | |||||||
Weight(kg) | 29 | 28 | 30 | 32 | 50 | 72 | ||||||

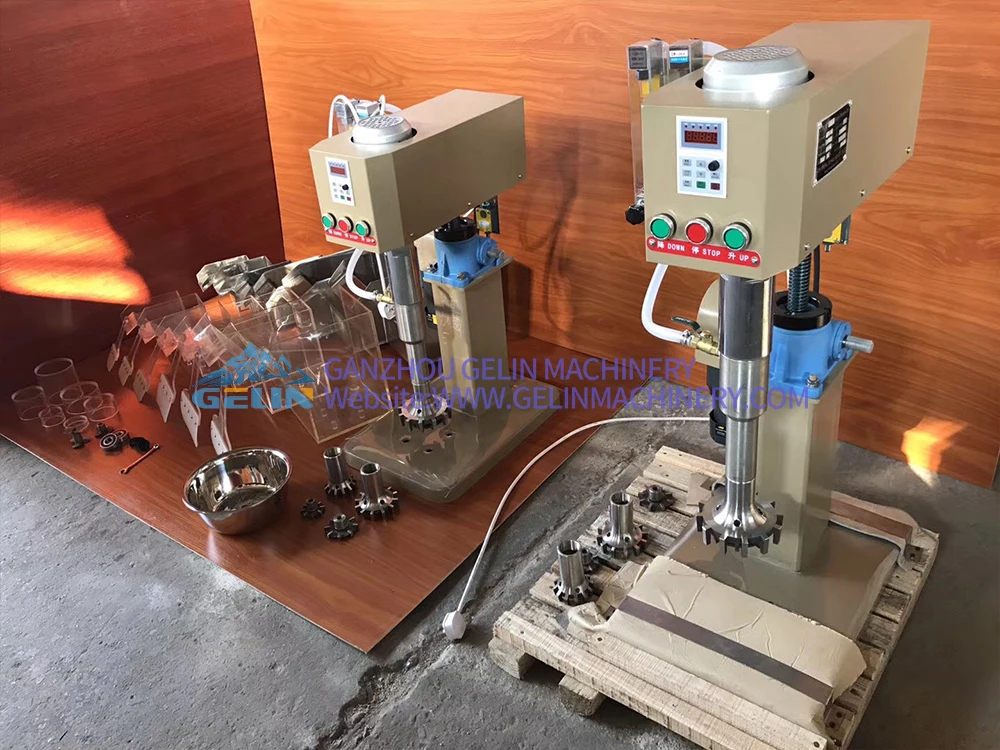

3. XFD-II single cell floatation machine
it is the updated version of XFD I, the impeller rotary speed can be adjustable as your needs, but with LED display screen, without heater device, can not control temperature of the minerals.
Frequency conversion technology;
Stepless speed regulation of vane wheel;
LCD display;
Accurate direction adjustment;
Reliable operation;
Allowing installation of temperature controller;
Instant display of temperature of pulp in the cell;
Inflatable single cell flotator of FDC is designed with liquid level regulation, inflating volume regulation, digital display of
rotary speed and water supplement functions.
XFD II Series Technical Parameters | Model | |||||||||||
Model | XFD II-0.5 | XFD II-0.75 | XFD II-1 | XFD II-1.5 | XFD II-3 | XFD II-8 | ||||||
Cell capacity | 0.5 | 0.75 | 1.0 | 1.5 | 3.0 | 8.0 | ||||||
Rotary speed of impeller(r/min) | 0-2800 | 0-1400 | ||||||||||
Impeller diameter(mm) | 45 | 55 | 60 | 70 | 100 | |||||||
Rotary speed of scraper(r/min) | 0-30 | |||||||||||
Spindle motor(w) | 120W | 250w | ||||||||||
Feeding size (mm) | 0.04-0.25 | |||||||||||
Dimensions(mm) | 520*338*770 | 520*338*770 | 520*338*770 | 560*338*770 | 570*338*820 | 580*505*970 | ||||||
Weight(kg) | 26 | 28 | 35 | 40 | 50 | 80 | ||||||
It is the highest grade type. It uses inverter technology, variable speed impeller, digital display, and also change from the outside air to intake inflated with precise adjusted, clear and stable display.
According to user needs, it can be equipped with a heater, temperature control device to control, display tank mine fluid temperature at any time.
The machine can be equipped with additional water level automatically adjusts automatically administration and other devices, can achieve a higher level of automation.
The machine can be equipped with additional water level automatically adjusts automatically administration and other devices, can achieve a higher level of automation.
It uses inverter technology, variable speed impeller, digital display, and also change from the outside air to intake inflated with precise adjusted, clear and stable display. According to user needs, it can be equipped with a heater, temperature control device to control, display tank mine fluid temperature at any time. The machine can be equipped with additional water level automatically adjusts automatically administration and other devices, can achieve a higher level of automation.
The flotation machine has a frame member, spindle transmission parts, locking parts, wiper parts, flotation tank, outside the inflatable devices and electrical control components. Gas of pump tank supply to the rotor agitation, and mix with ore fluid, the stator is cut to produce tiny bubbles mineralization. Rotor speed is stepless and can be adjusted by inverter. Fixed flotation tank fasten by hand wheel drive screw clamp. Shaving foam body, its trajectory is a circular motion.
Advantages:The flotation machine has a frame member, spindle transmission parts, locking parts, wiper parts, flotation tank, outside the inflatable devices and electrical control components. Gas of pump tank supply to the rotor agitation, and mix with ore fluid, the stator is cut to produce tiny bubbles mineralization. Rotor speed is stepless and can be adjusted by inverter. Fixed flotation tank fasten by hand wheel drive screw clamp. Shaving foam body, its trajectory is a circular motion.
Frequency conversion adjust speed;
Set heating temperature;
Add air;
XFD III Series Technical Parameters | Model | |||||||||||
Model | XFD III-0.5 | XFD III-0.75 | XFD III-1 | XFD III-1.5 | XFD III-3 | XFD III-8 | ||||||
Cell capacity (L) | 0.5 | 0.75 | 1.0 | 1.5 | 3.0 | 8.0 | ||||||
Rotary speed of impeller(r/min) | 0-2800 | 0-1400 | ||||||||||
Impeller diameter(mm) | 45 | 55 | 60 | 70 | 100 | |||||||
Rotary speed of scraper(r/min) | 15-30 | |||||||||||
Feeding size(mm) | <0.25 | |||||||||||
Heating power(w) | 200w | 200w more | ||||||||||
Motor power(w) | 120 | 250 | ||||||||||
Voltage(V) | 220 | |||||||||||
Temperature adjust range(℃) | 50-150 | |||||||||||
Dimensions(mm) | 440*320*730 | 520*338*770 | 520*338*770 | 560*338*770 | 470*330*870 | 580*505*970 | ||||||
Weight(kg) | 30 | 30 | 35 | 43 | 50 | 80 | ||||||
Packing & Delivery
Packing
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below:
1. Nude packing.
2. Bundle packing.
3. Grass rope packing.
4. Water proof packing.
5. Wooden pallets packing.
6.Wooden box or carton box packing.
Delivery
Usually the equipments are delivered aboard by tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express, our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below:
1.40HQ container: used for goods without overlength, overheight and overweight;
2.FR(Flat Rack) container:suitable for large equipments with overlength,overheight like ball mill,excavator,etc.
3.Bulk cargo shipment (LCL): used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable.
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below:
1. Nude packing.
2. Bundle packing.
3. Grass rope packing.
4. Water proof packing.
5. Wooden pallets packing.
6.Wooden box or carton box packing.
Delivery
Usually the equipments are delivered aboard by tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express, our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below:
1.40HQ container: used for goods without overlength, overheight and overweight;
2.FR(Flat Rack) container:suitable for large equipments with overlength,overheight like ball mill,excavator,etc.
3.Bulk cargo shipment (LCL): used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable.
Related Products
Spiral Classifier
It is widely used to pre-grading and inspection grading in closed circuits when used in the production flow of metal processing.
About Company
Ganzhou Gelin Mining Machinery Co., Ltd is an professional manufacturer of mining machines and mining engineering service provider in China.Gelin has a strong production capacity and full range of equipments for beneficiation engineering such as feeding&conveying,crushing,screening,grinding,flotation,separation etc.. Gelin have a complete service system which can provide customer full service in mining field and after sales service.By now, Gelin’s equipments and services are exported to over 60 countries,include America, Russia, India, Africa, Brazil, Chile etc.
Sincerely welcome customers to visit our factory.
Our Services
One Stop solution for beneficiation plant service:
1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.
2.Arrange mineral beneficiation experiment after received the material sample and beneficiation test report will be done after test.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
4.Manufacturing the necessary equipments and arrange the shipment.
5.Complete services for Installation and commissioning and technical training(operating training,common problem solving training).
After-sale Service
Regularly visit customers to provide after- sale technical supports and to solve problems of beneficiation plant. For equipments supplied,we could provide one-year warranty and provide spare parts with preferential price in the long term and be responsible for any problems with the them.
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with 110 workers,6 workshops covered 17,000㎡ and office covered 2,500㎡.\t
Q: Is it possible to provide sample for your factory to do ore-dressing experiment?
A: Yes, engineering consulting is available and we’d like to arrange mineral beneficiation experiment after received your sample and provide the test report.
Q: How long is the guarantee period of your products?
A: The guarantee period of Gelin equipments is 1-2 years, pls ask staff for more details, And we will supply the spare parts for you for life-long time at lowest cost.
Q: If I need the complete mineral processing line, will you be able to help me build it?
A: Yes, we have strong and skilled R&D team,we can provide even mineral beneficiation experiment, engineering design,scheme of plant construction an working drawings,necessary equipment delivery,installation and commissioning until the full mineral processing line completed.You can believe our quality and service.
Welcome to our factory at any time.
For more details, please refer to our website: www.gelinmachinery.com
Похожие товары
Мусульманские часы Azan, молитвенные часы, напоминания о времени, фабрика al-helal, qibla, направление, hijri, календарь, исламский Декор, деловые подарки для влюбленных
Одноразовый набор для сбора слюны от вируса Vtm, 5 мл
Заколка высокого качества с красивыми перьями на заказ для шляп и одежды
0,23 $ - 0,60 $
Акриловый игровой коврик Kanazawa gold leaf, большой коврик для мыши, сделано в Японии
11,00 $
Милая мини-бутылка для воды 150 мл стальная Вакуумная бутылка с двойными стенками изолированный стакан с деревянной крышкой
1,75 $ - 2,55 $
Дешевая проволочная щетка 1300, шлифовальная машина для деревянного производства, скругленного пола, шлифовальная машина для тиснения и рисования

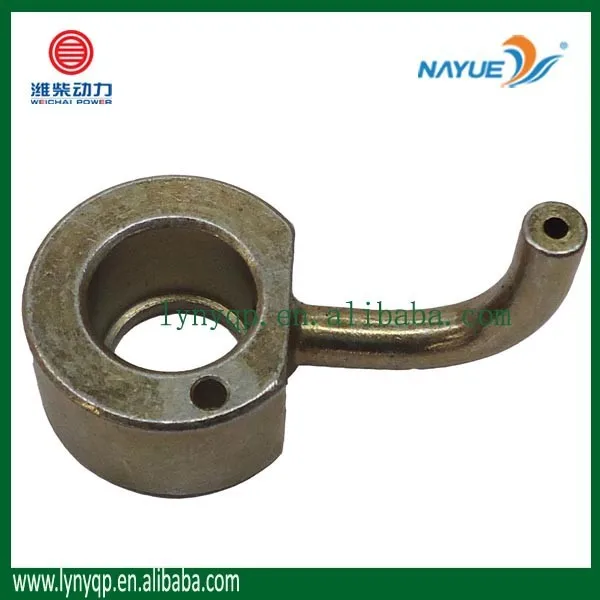

Оригинальные запчасти WEICHAI, поршневые охлаждающие сопла 61560010090
