Product Description

50kg 100kg cheap mini vertical electric steam boiler



Product description

Vertical design electric steam boiler ,the heating elements are completely submerged in water and completely insulated-high efficiency and  minimum radiation losses . After precision calculation&design, boiler could quickly and efficiently reach work pressure. Using low heat load surface heating elements-- not easily melted or softened.Each component with water pressure and withstand voltage test.Boiler could immediately work after connecting to power and water supply. Nearly 100% thermal efficiency--quiet, clean, more in line with environmental requirements, No atmospheric emissions  NOx (nitrogen oxides)electric Steam Boiler





Technical Parameters

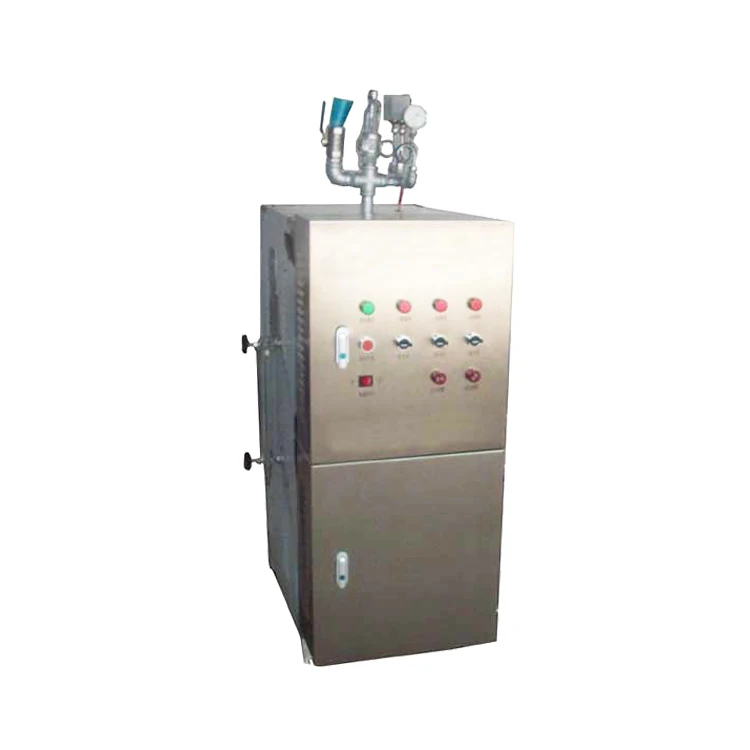

LDR Vertical Electric Heating Steam Boiler
TypeLDR0.15LDR0.2LDR0.3LDR0.5
ProjectUnit
Rated evaporationt/h0.150.20.30.5
Rated working pressureMPa0.7/1.00.7/1.00.7/1.00.8/1.0
Staturated steam temperature170/184170/184170/184175/184
Input PowerKW108144216360
Input currentA162216324540
Rated pressureV3N AC 50Hz 380V
Power×GroupKW×P18×618×8/24×627×836×10
a Main steam valve diameterDN25253250

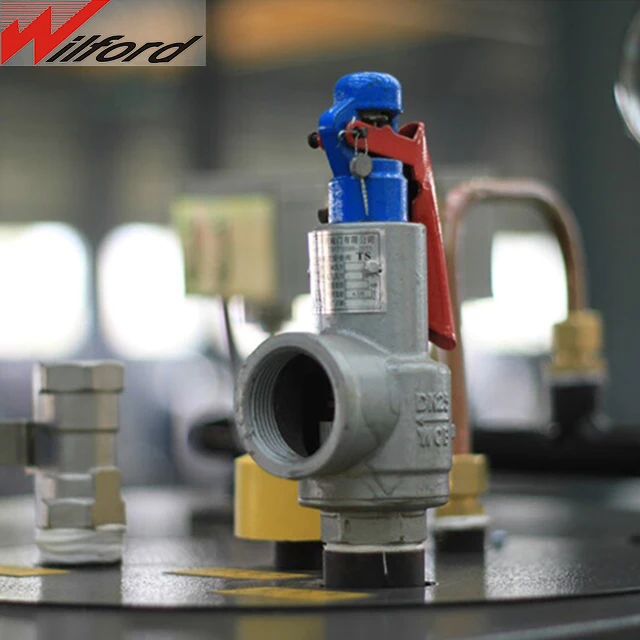

b Safety valve diameterDN25252540
c Inlet diamater DN15152525
d Blowoff  Valve diameterDN25254040
Overall sizeLmm1100115013001450
Wmm95095011001350
Hmm1950200021002300

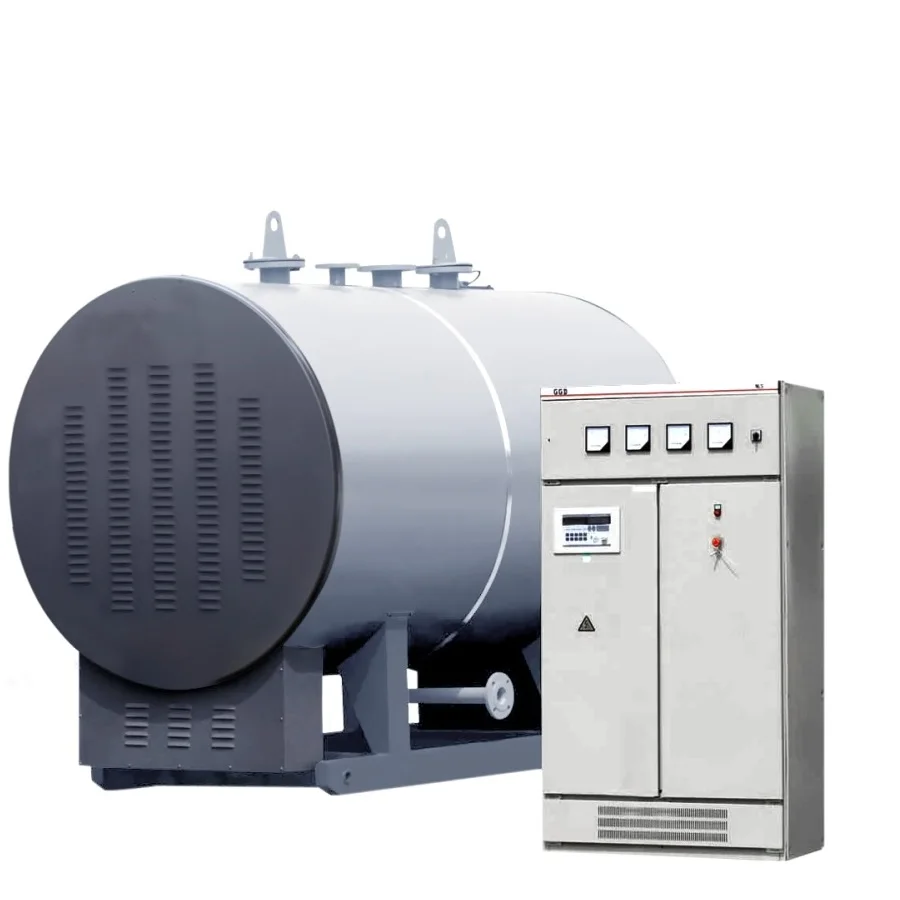

For boiler steam capacity up to or more

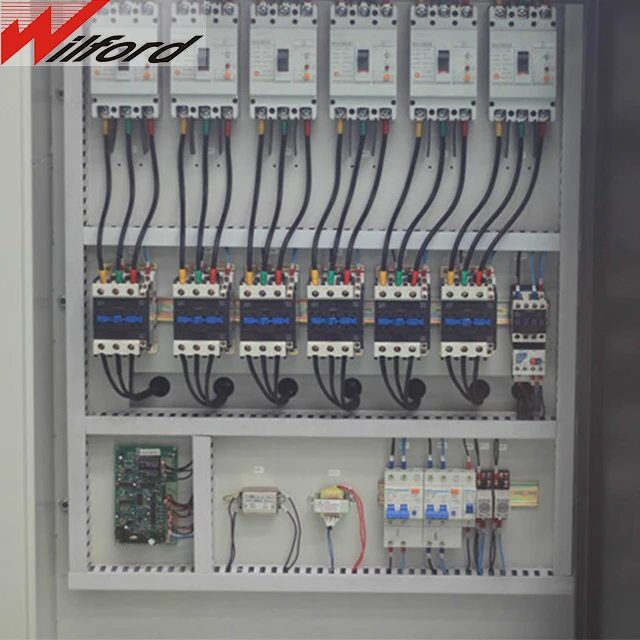

than 300kg/hr ,the structure is seperated --boiler with seperate electrical control cabinet.

Amm---1200
Bmm---600
Cmm---2000
Weightkg350450680980





Product Advantages

1.All electrical components with CE and UL marks --ensure safety and long life service.

2.Quickly start and stop, big operation load adjusting range,easily handling."

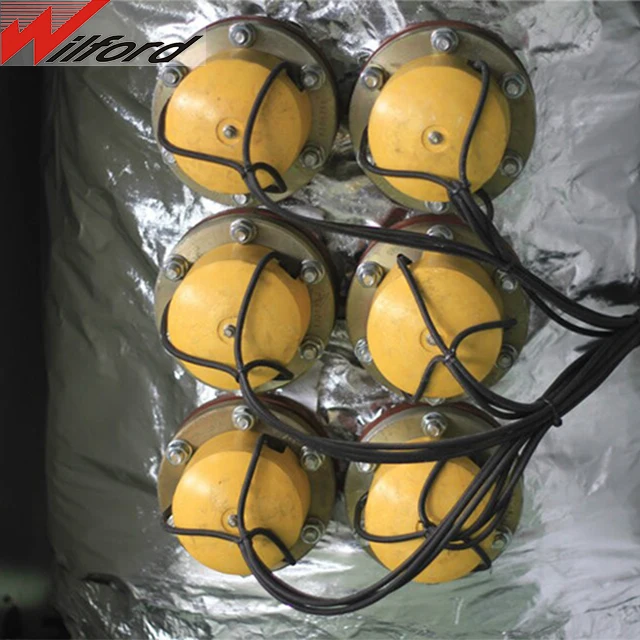

3.Each heating element use a concentrated beam flange connection, independently arrangement, simple structure, high mechanical strength, safe, reliable, convenient replacement, long service life."

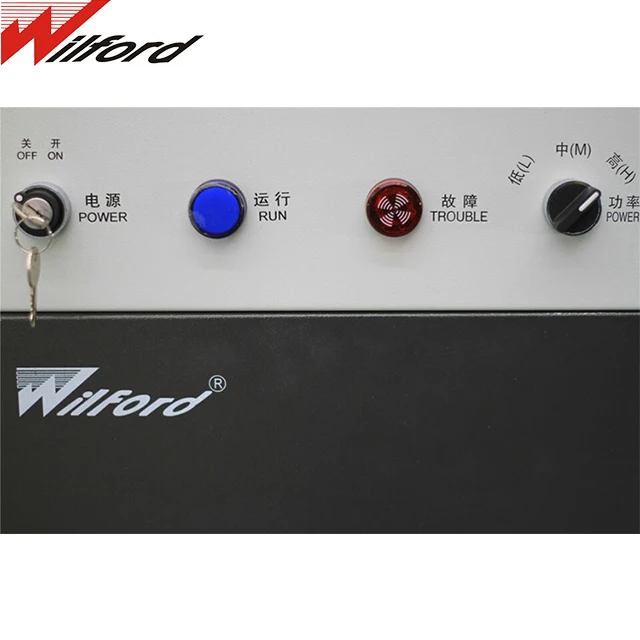

4.Flexible working methods, could set either  manual or automatic mode."

5.Unique power switching function,could be regulated based on actual demand of steam power, make same usage time/frequency ,improve equipment service life."

6.When electric boiler heating element in a group has problem, could immediate stop operation the destroyed heating group and cut off power supply."

7. Vertical structure, compact and beautiful, elegant style, classic color, save room space and easily installation."electric Steam Boiler


Please contact here for more product information.  contact us>>
Related Products



electric Steam Boiler

Company Profile

Electric Steam BoilerElectric Steam BoilerElectric Steam BoilerElectric Steam Boiler             Electric Steam Boiler

FAQ
Q: Are you a factory or a trading company?
 A: We are a 20-year-old industrial boiler factory , specializing in gas oil diesel electric fired boilers.
Now we are one of leading industrial boiler manufacturers in China.

Q: What is the Warranty for the boilers?
A: Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new
parts for free.

Q: How long should we wait for delivery?
A. Usually it will take about 35-45 days for pressured boilers, If you need to change the voltage or pressure, it
need more time.

Q: What about your payment term?
A: Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other
payment way.
