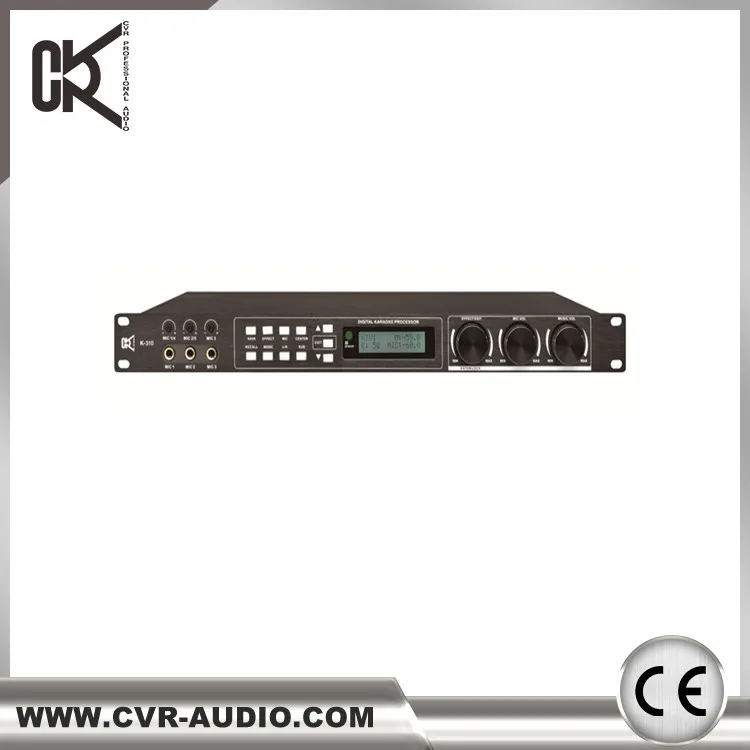

CVR pro аудио звуковая система караоке pdj песни mp3 Бесплатная загрузка

Сохранить в закладки 2017496950:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики




DESCRIPTION and APPLICATION


 24-bit, 48kHz sampling rate,AD/DA convertor,32 bit DSP chip

5 MIC input , with  independent gain  control . MIC  channel  with master volume control, phase, low-cut,9 band PEQ,limiter, 6 class feedback suppressor
 Effector has Echo, Reverb, Surround, thickness,exciter,5 band PEQ,limiter etc...
Echo and Reverb can be adjusted separately. Delay and repeat parameter for Echo, pre-delay and time parameter adjust for Reverb
 2 stereo music input can be switched automatically or mannually, each input with  independent volume control
Music channel with master volume control, chooseable low-cut,5 band PEQ, limiter
 Output included main output L/R,center,sub-woof
 Main output L/R with independent volume control, Voice/ Music ratio adjust,3 band  PEQ, L/R independent delay
Center  output  with  Independent  volume  control , Voice / Music ratio adjust, Voice  effect can be chosen,3 band PEQ, Delay
 Sub-woof output   with   low-cut , high-cut ,  3  band  parameter equalizer, independent  volume control of voice and music
 Sub-woof with AGC (Automatic Gain Control)function. output can accept MIC attenuation , and the attenuation can be adjusted continuously
2×16  LCD display , IR control , 4  factory  presets  and  6 user presets
Save and recall the presets file, download and upload the data available
PC software selectable for Chinese and English. LOCK function for front panel  and PC software. RS232 long-distance control port ,Safe and easy for operation

TYPEK-310
Microphone input 1/4" TRS, unbalanced
Input impedance10KΩ
Input gain-0dB
Maximum input level120mV(effect:0dB,input gain:0dB)-1kHz; 250mV(effect:-∞dB,input gain:0dB)-1kHz
Music inputRCA, unbalanced
input impedance10KΩ
Mamimum Input1.2V-1kHz  XLR-3, RCA
digital input
Input connectorFiber RX, RCA
Input formatSPDIF
OutputXLR-3, RCA,u nbalanced
Output impedance100Ω
Maximum output10V -1kHz
DSP
Sampling rate24bit,48K
Frequency response20Hz~20kHz±0.1dB
Total harmonic distortion0.04% 50Hz~20KHz(Microphone); 0.01% 20Hz~20KHz(music)
Power supply
Input levelAC 100~240V/50Hz
Power Consumption10W
Physically
Dimensions44.5×482×179mm
Weight2.5kg
