 High Quality Frequency-alterable


Elevation Platforms for Construction


 TLS(Iron Giant) brand


CCC/ISO9001 Certified


I. Brief Introduction to Elevation Platforms for Construction



Brief Introduction


The SC series of construction elevators are widely used at the sites of industrial and civil construction, bridge construction, underground construction, large chimney construction, ship industry and so on. Being suitable for the vertical transport of materials and people, they can also be used as permanent / semi-permanent electric elevators and in various sites like warehouses and high towers.


This series of construction elevators, which are known for their stable performance, reliable safety, easy transportation and strong adaptability, can enhance work efficiency and reduce workers’ labor intensity.







II. Technical Parameters of Elevation Platforms for Construction



Technical Parameters


























































Model



SC200/200



Height (m)



50 (33 mast sections)



Wall Tie (set)



6



Max Possible Height (m)



200



Rated Loading Capacity (kg)



2*2000



Rated Lifting Speed (m/min)



36



Rated Passenger Number



2*16



Motor Power (kw)



2*3*11



Power Supply (Voltage/Frequency)



380V/50HZ



Inner Dimension of Cage (m)



3*1.5*2.2



Mast Section Dimension (mm)



650*650*1508



650mm Mast Section Weight (kg)



148



Rated Lifting Capacity of for Installation Hoist (kg)



200

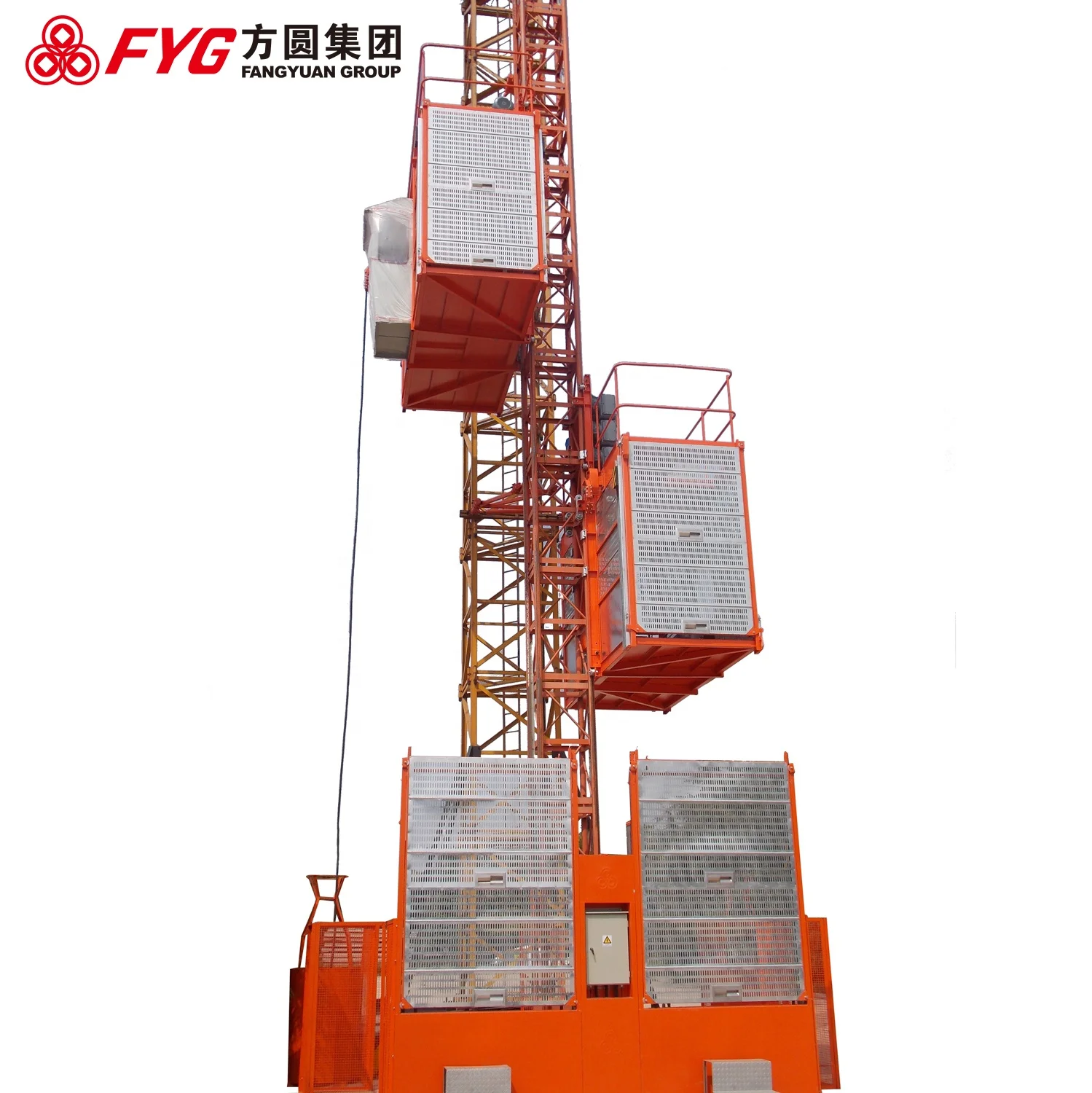

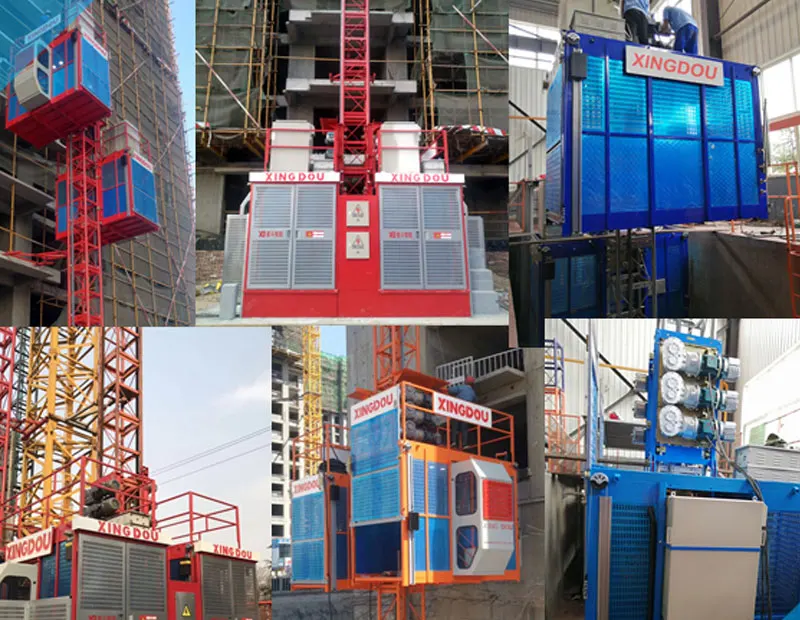

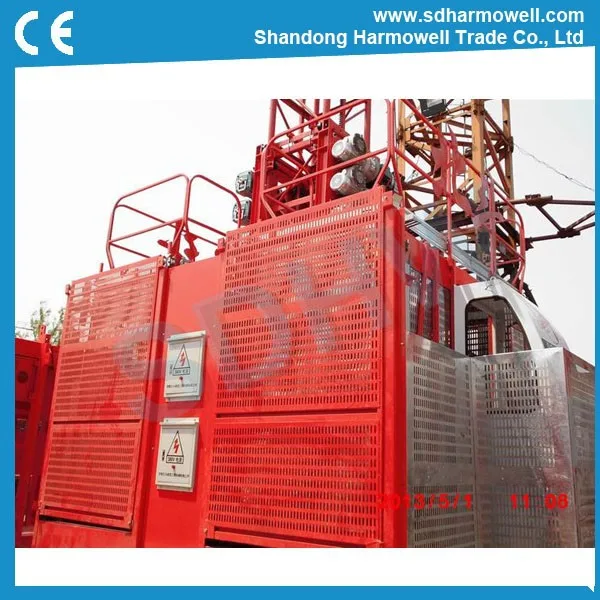

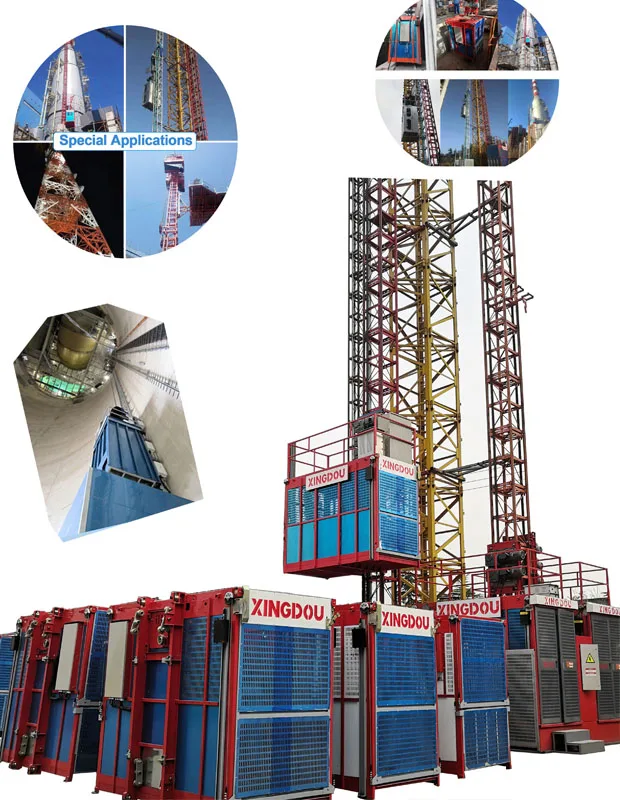

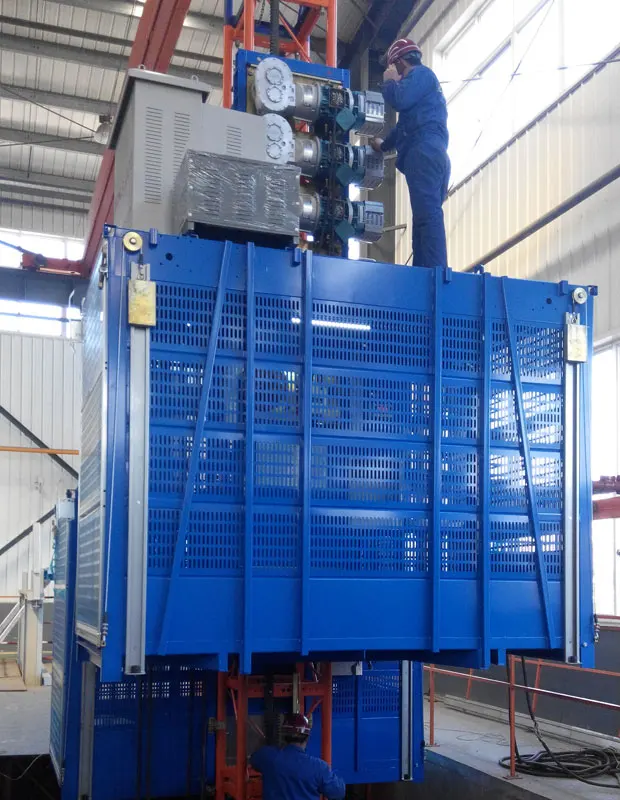

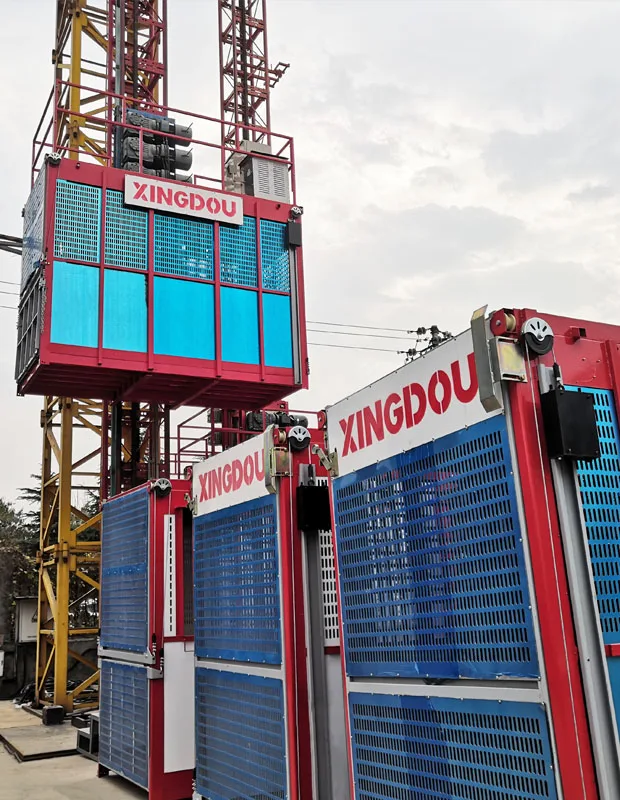

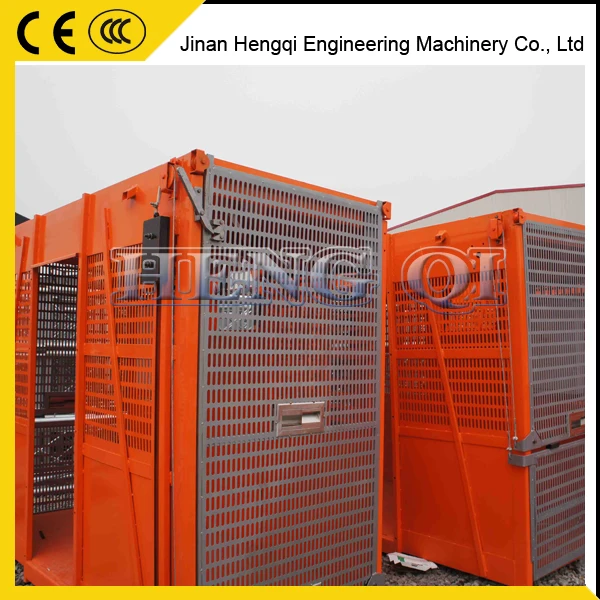

III.Detail Pictures of Elevation Platforms for Construction



Detail Pictures


 Elevation Platforms for Construction.jpg





 Elevation Platforms for Construction.jpg





 Elevation Platforms for Construction.jpg





 Elevation Platforms for Construction.jpg





 Elevation Platforms for Construction.jpg





 Elevation Platforms for Construction.jpg







IV.Introduction to Our Company



Company Information


We are Shandong Hongda Construction Machinery Group Co., Ltd., a professional construction machinery manufacturer with a history of 30 years. Our registered trademark “Tie Li Shi” (“Iron Giant” in English) has been approved as “Famous Trademark of China”. Our products have passed CE, CCC and ISO9001 quality certifications. Our company has been appraised as a Contract-honoring & Promise-keeping Enterprise by the government for many consecutive years.


We have the following Construction Elevator:


Single-cage Construction Elevator: SC100, SC200, etc.


Doublele-cage Construction Elevator: SC100/100, SC200/200, etc.


Other equipment we supply:


1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);


2. Construction Elevators (multi-speed, stepless-speed);


3. Concrete Mixers (rotary-drum-type, double-horizontal-shaft);


4. Concrete Batchers;


5. Concrete Mixing/Batching Plants (25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);


6. Concrete Truck Mixers (6-16m3);


7. Truck-mounted Concrete Pumps (diesel, electric);


8. Trailer-mounted Concrete Pumps (diesel, electric);


9. Concrete Pump Trucks (with 24-52m booms);


10. Asphalt Mixing Plants (40-320t/h, stationary, mobile, oil-burning, gas-burning, coal-burning);


11. Stabilized Soil Mixing Plants.


Our Advantages:


We have CE, CCC, ISO9001 Certificates;


We have 30-year experience;


We have over 3000 workers to ensure quick delivery;


We have after sales service like: Installation, Debugging, Operator training and Spare parts supply.


Our Certificate:


-1 .jpgISO Certificate(2012-2015).jpg


Our Factory:







2014 Seminar-1.JPG

























-9 .jpg













You are warmly welcomed to visit our products! Our web page //www.cnsdhongda.net


If you have any question, please feel free to contact us.


You can send email to salesatcnsdhongda.net,


or you can call us +86 535 7287987


or fax to us +86 535 7287987 any time!
