Система охлаждения теплицы охлаждающая испарительная Подушка и охлаждающий вентилятор
- Категория: >>>
- Поставщик: Xiamen Heseng Agricultural Technology Co. Ltd
Сохранить в закладки 2023174837:
Описание и отзывы
Характеристики
Product Features
Details Images
NO. | ITEM | DETAILS | REMARKS |
1 | Steel structure | Hot-galvanized steel pipe | 275g/m2 |
2 | Roof cover | Plastic Film/PC Sheet/Glass | According to clients' requirement |
3 | Wall | According to clients' requirement | Built by clients/our side |
4 | Outer shading system | Sunshade net with different light transmission | Optional |
5 | Inner shading system | Sunshade net with different light transmission | Optional |
6 | Inner warming system | Install a thin film inside the greenhouse. it can keep warm | According to clients' requirement |
7 | Cooling system | Cooling fans and cooling pad | According to clients' requirement |
8 | Ventilation system | Top & side window | According to clients' requirement |
9 | Heating system | 1.Boiler warming: boiler and water warming blower. The boiler type has gas boiler, coal boiler, oil boiler and bio fuel boiler, and gas/oil boiler. 2. Electric warming: only has electric warming blower | Optional |
10 | Irrigation and fertilization system | Drip irrigation or spray irrigation system based on different crops growing. | According to clients' requirement |
11 | Light compensating system | High - pressure sodium lamp, or LED lamp | According to clients' requirement |
12 | Seedling bed System | Using for seedling | According to clients' requirement |
13 | Soilless culture | Hydroponics system | NFT types, DFT type and Dutch bucket type,etc |
14 | Power distribution system | control cabinet | Optional |
15 | Other equipment | According to clients' requirement | Optional |

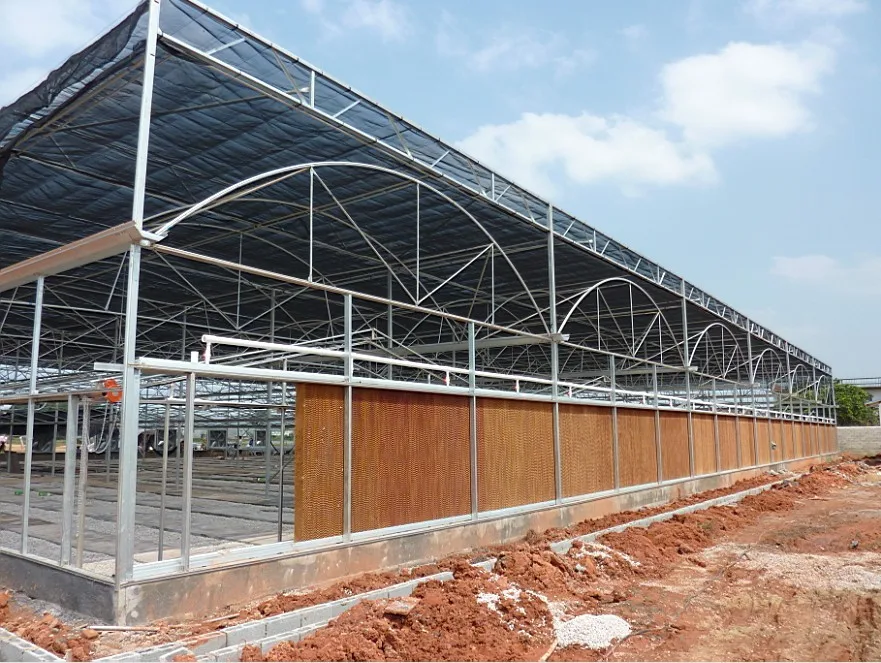

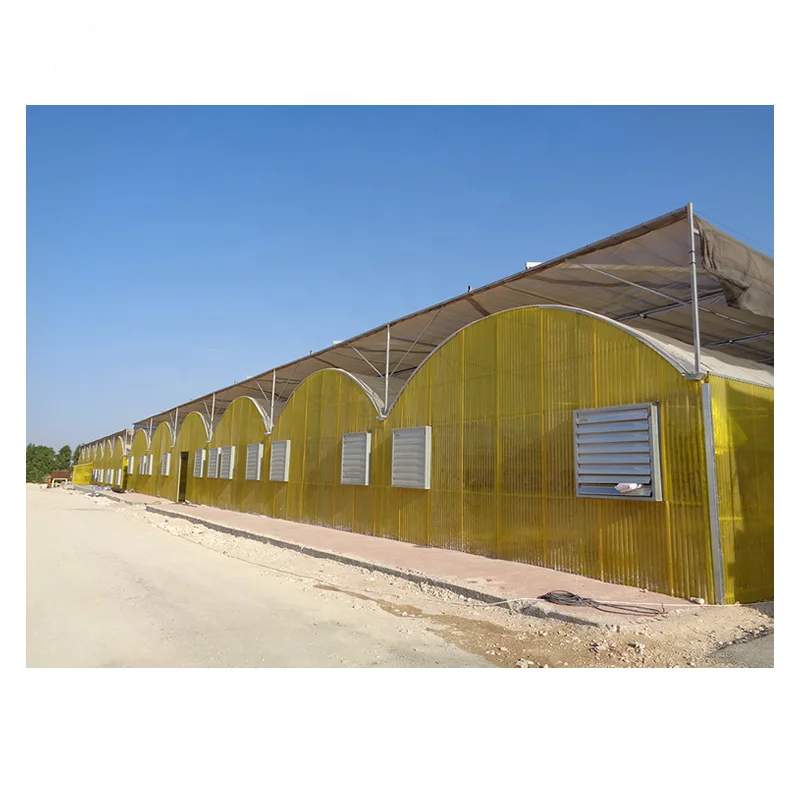

Cooling Pad&Fan System of Agricultural Greenhouse:
1-Cooling fans and cooling pads are popular for greenhouse cooling for its economy;
2- Humidity rate is increased and temperature is down by 5-10℃;
3-The cooling fans is on one wall while the cooling pad in the opposite;
4-The whole system including Exhaust Fan on one side and Evaporative on the other side.
1-Cooling fans and cooling pads are popular for greenhouse cooling for its economy;
2- Humidity rate is increased and temperature is down by 5-10℃;
3-The cooling fans is on one wall while the cooling pad in the opposite;
4-The whole system including Exhaust Fan on one side and Evaporative on the other side.

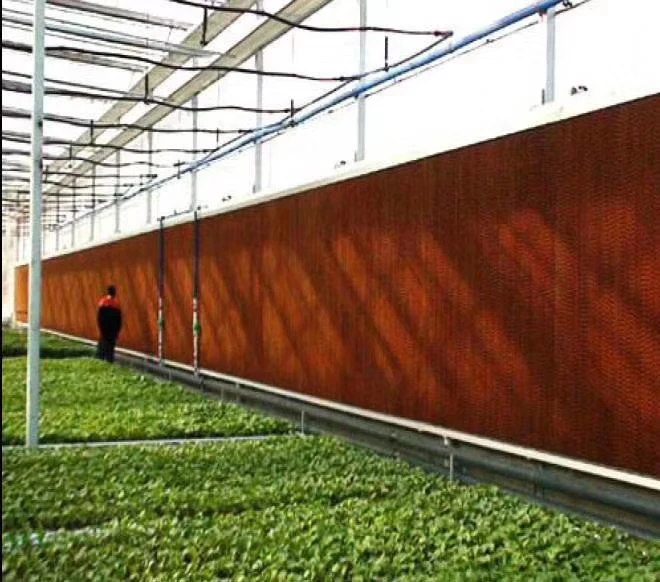

Evaporative Cooling Pad:
1-It is made of corrugated paper with special technique processing, corroding-resistant, high strength and long life;
2-Standard color is blown. Black,Green,Yellow,etc is optional;
3- Five year warranty.
4-Details data as below:
Height(mm): 1500~2000
Width(mm): 600+5
Thickness(mm): 100, 150
Wave Height(mm): 5/6/7
Angle: (°): 45*45
Weight:(kg/m3)：25.6(7090 Dry)
Natural Water absorb:50mm/5min
Working Temperature:2~30℃
Working PH Data：PH6~7.5
Water content(kg/h/m3)：6.0
Warranty: 5 year
Material: Raw
1-It is made of corrugated paper with special technique processing, corroding-resistant, high strength and long life;
2-Standard color is blown. Black,Green,Yellow,etc is optional;
3- Five year warranty.
4-Details data as below:
Height(mm): 1500~2000
Width(mm): 600+5
Thickness(mm): 100, 150
Wave Height(mm): 5/6/7
Angle: (°): 45*45
Weight:(kg/m3)：25.6(7090 Dry)
Natural Water absorb:50mm/5min
Working Temperature:2~30℃
Working PH Data：PH6~7.5
Water content(kg/h/m3)：6.0
Warranty: 5 year
Material: Raw
Aluminum Framework for Evaporative Cooling Pad
1-Full aluminum framework for evaporative cooling pad is offered.
2-15 year warranty.
3-Good quality and long life!
3-Good quality and long life!

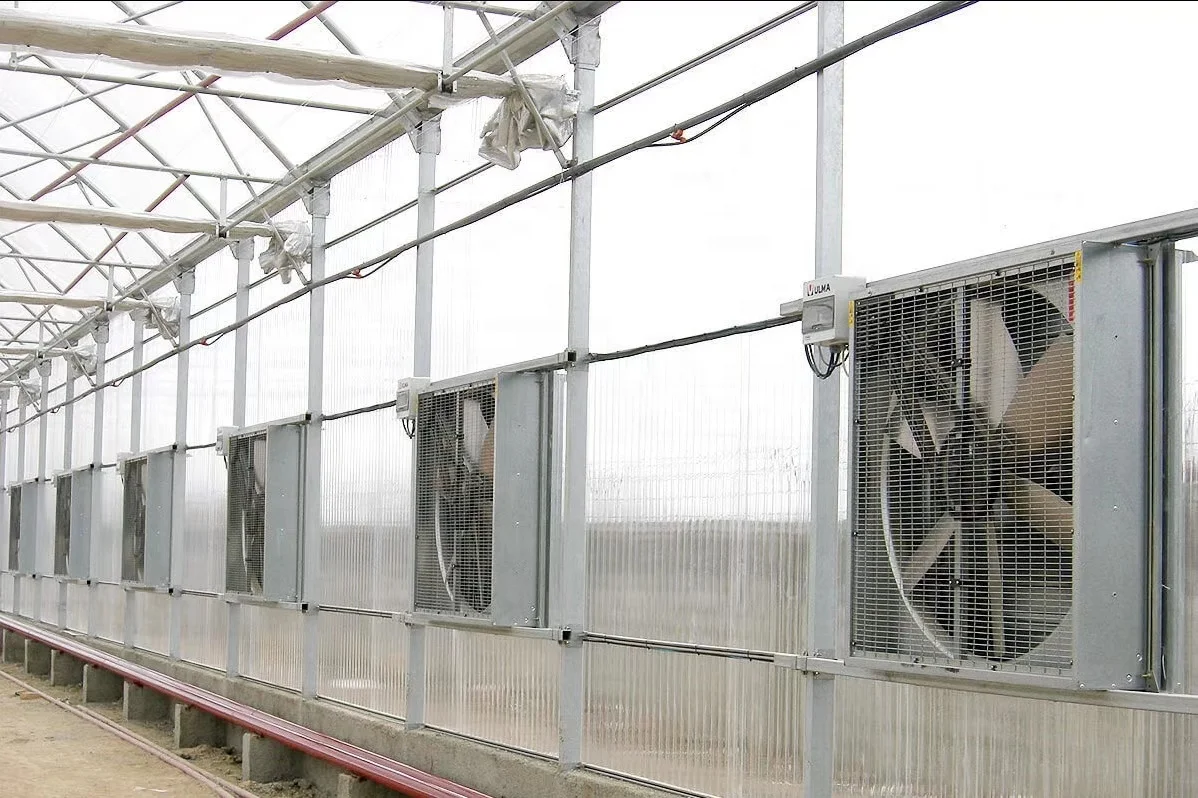

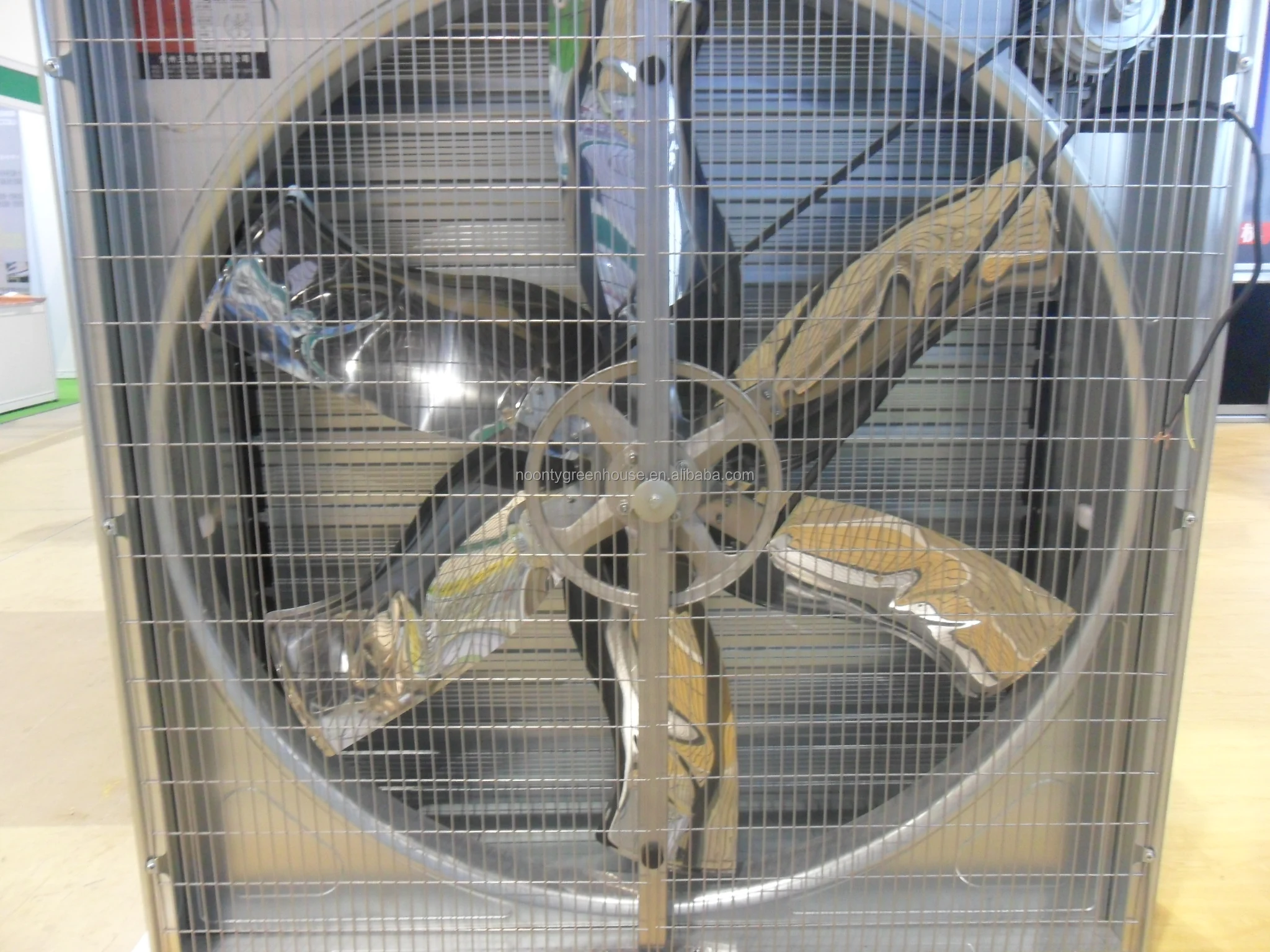

Exhaust Fan
1- The general structure is hot dip galvanized;
2-The blade is aluminum;
3-Detailed data as below:
2-The blade is aluminum;
3-Detailed data as below:
Items | Unit | Economic Type | Noonty Export Standard | ||
1 | Size | mm | 1380*1380*400 | 1380*1380*400 | |
2 | Power | Kw | 1.1KW,380V,50HZ,3-PHASE | 1.1KW,380V,50HZ,3-PHASE | |
3 | Noice | dB | 70 | 65 | |
4 | Weight | KG | ---------- | 69 | |
5 | Air delivery | m3/Hr | 40000 | 44500 | |
6 | Rotation | rpm | 410 | 427 | |
7 | Frame-Up | 0.8mm,Galvanized100g/m2 | 1.0mm,Galvanized 275g/m2 | ||
8 | Frame-Down | 0.8mm,Galvanized100g/m2 | 1.0mm,Galvanized 275g/m2 | ||
9 | Frame-Left | 0.8mm,Galvanized100g/m2 | 1.0mm,Galvanized 275g/m2 | ||
10 | Frame-Right | 0.8mm,Galvanized100g/m2 | 1.0mm,Galvanized 275g/m2 | ||
11 | Shutter | 0.45mm,Galvanized100g/m2 | 0.5mm,Galvanized 275g/m2 | ||
12 | Motor Brand | China Local | Laoyite(//www.laoyit.com) | ||
13 | Blade | Stainless Steel,1.2mm | Aluminium,2.2mm | ||
14 | Belt | China Brand: Sanlux(//en.v-belt.com/) | England Imported: Newnix | ||
15 | Net | Cold Galvanized , Iron Wire 2.5mm | Hot Galvanized , Iron Wire 2.8mm | ||
16 | Packing | No Carton | Hard Carton | ||
Company Profile
Is the Mother Company of Noonty Greenhouse Company Limited, which is specialized in greenhouse and hydroponics industry.
Greenhouse types we offer include Single Tunnels, Gothic Multi-span Plastic Film Greenhouses, Double-layer Warm-keeping Greenhouses, Saw-tooth greenhouse, Venlo Polycarbonate,Venlo Glass Greenhouse, Light Deprivation Greenhouse, etc.
Our Advantages
Team Appearance
Customer Photos
Product packaging
FAQ
Q: How could we get the quotation?
A: Agriculture Greenhouse is customized based on detailed climate condition, land area prepared for the greenhouse,etc.
Q: How could we assemble the greenhouse?
A: Greenhouse is prefabricated and no welding is required. Detailed drawing and assembly manual will be offered for each order.
Q: Is engineer supervision available for greenhouse assembly?
A: Yes,engineer supervision is available to send to the project within customers requirement.Two-way tickets,local accommodation and salary is arranged by customer.
Q: What is the delivery time?
A:Usually about 25days to 60days based on greenhouse design and size.
Похожие товары
Недорогая туннельная теплица от китайского поставщика
Лидер продаж, тепличные системы для сельского хозяйства, автоматические туннельные Зеленые дома, затемнение

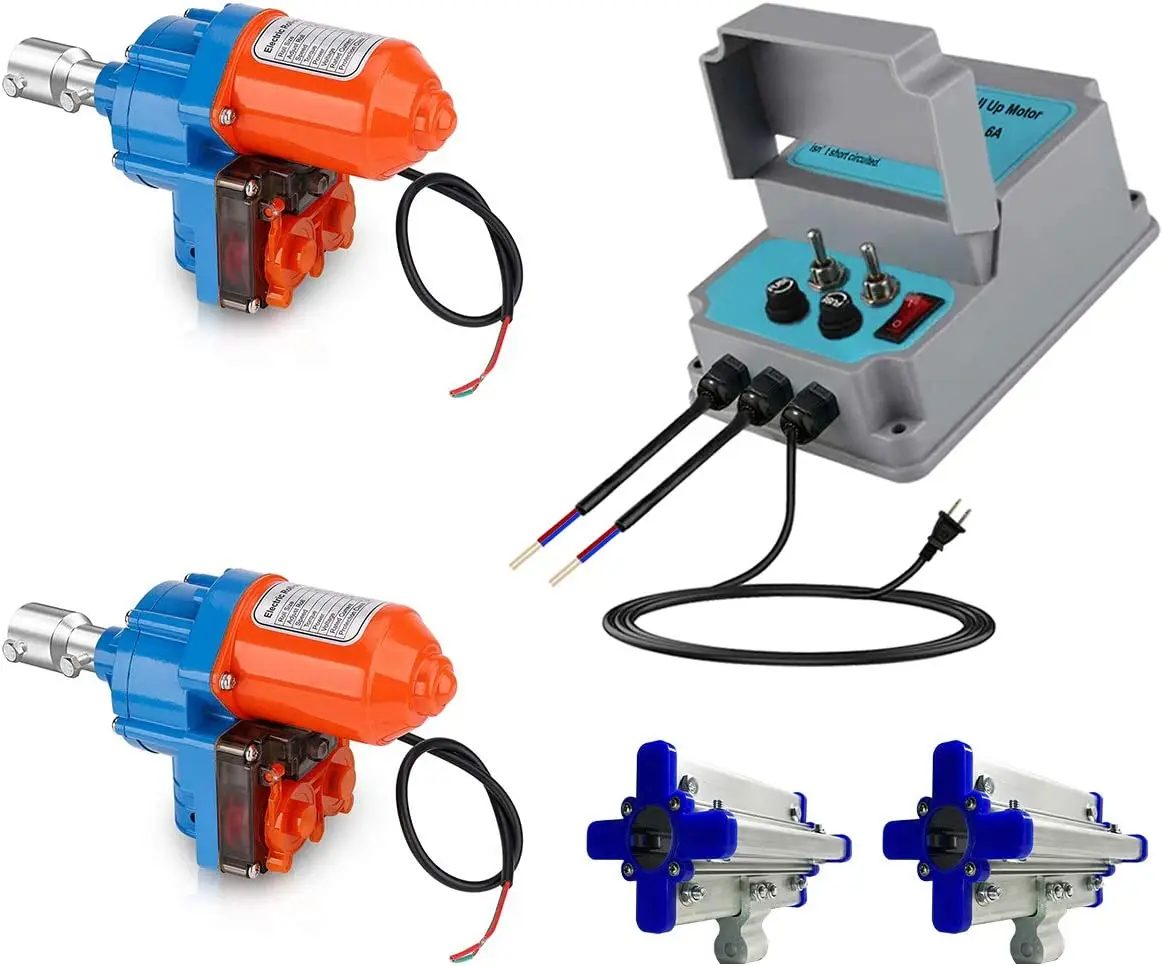

Searea парниковых Roll up двигатель вентиляция Электрический мотор крена-вверх
4 963,30 ₽

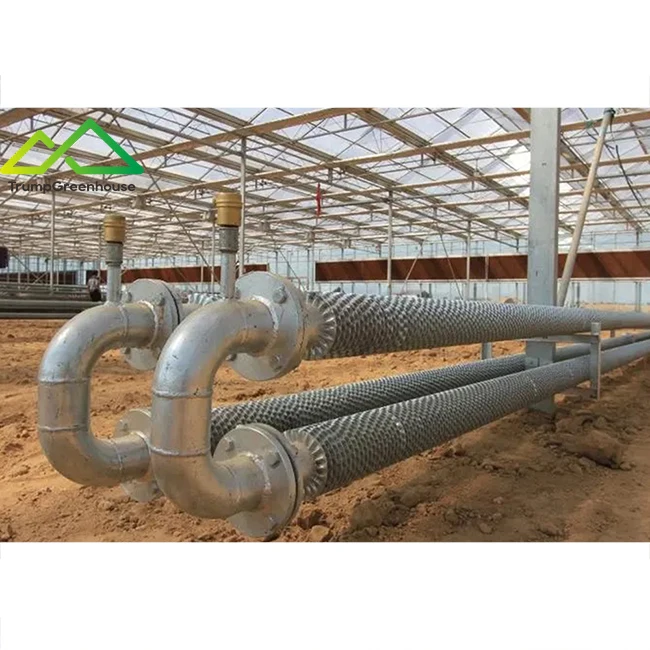

Горячая распродажа, система отопления теплиц для многопролетных коммерческих сельскохозяйственных экологических теплиц
1 834,27 ₽ - 2 265,86 ₽

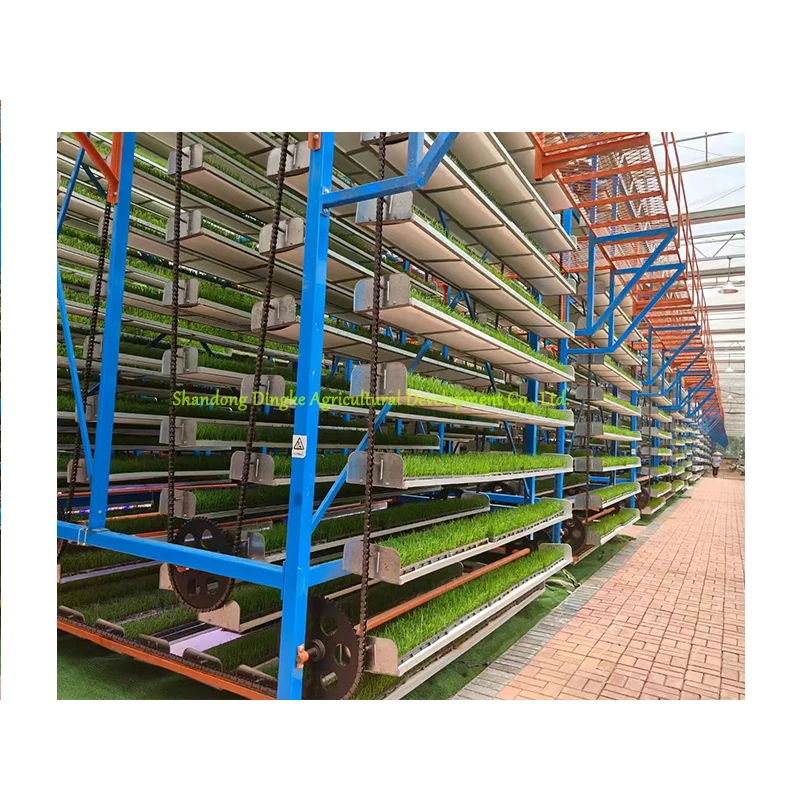

Вертикальная система стеллажей для вертикального сельского хозяйства теплицы
